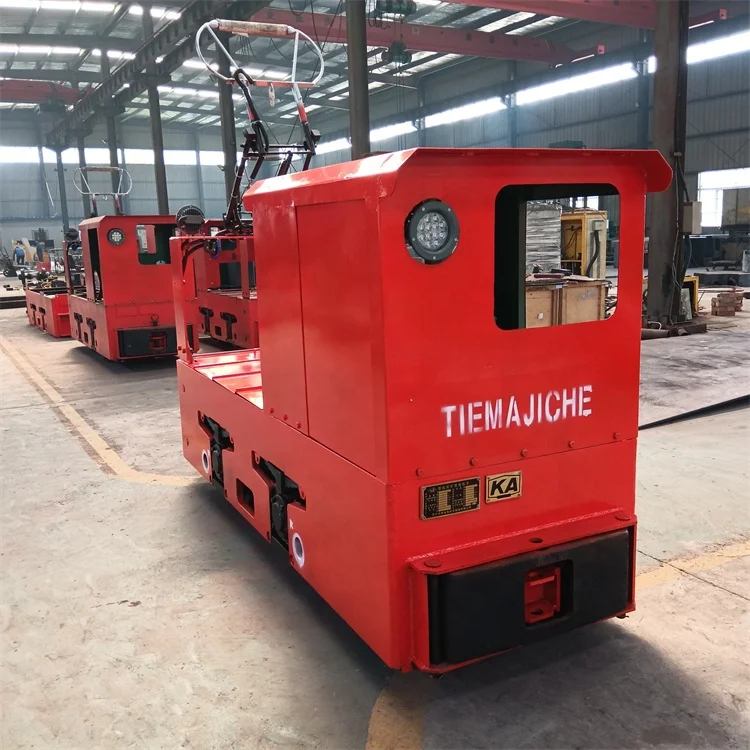

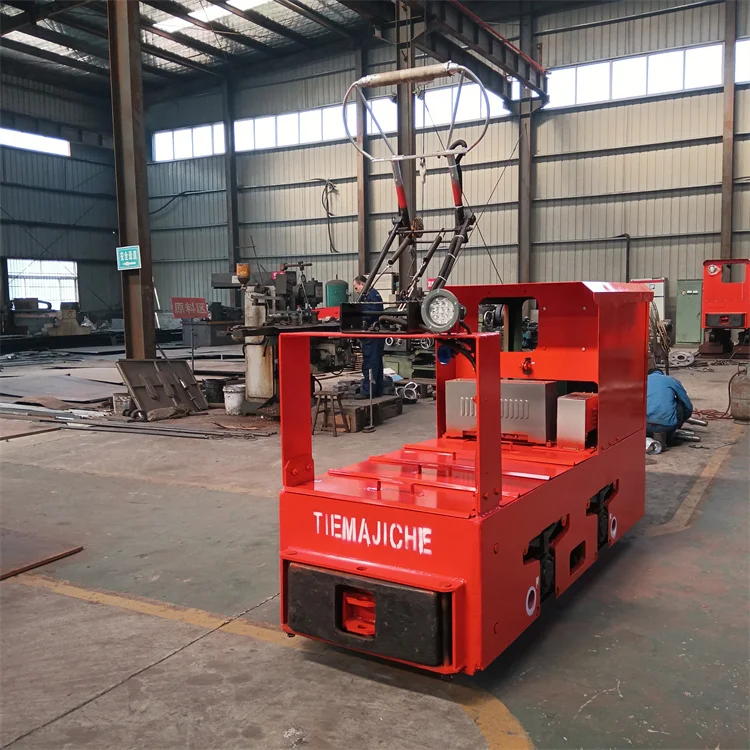

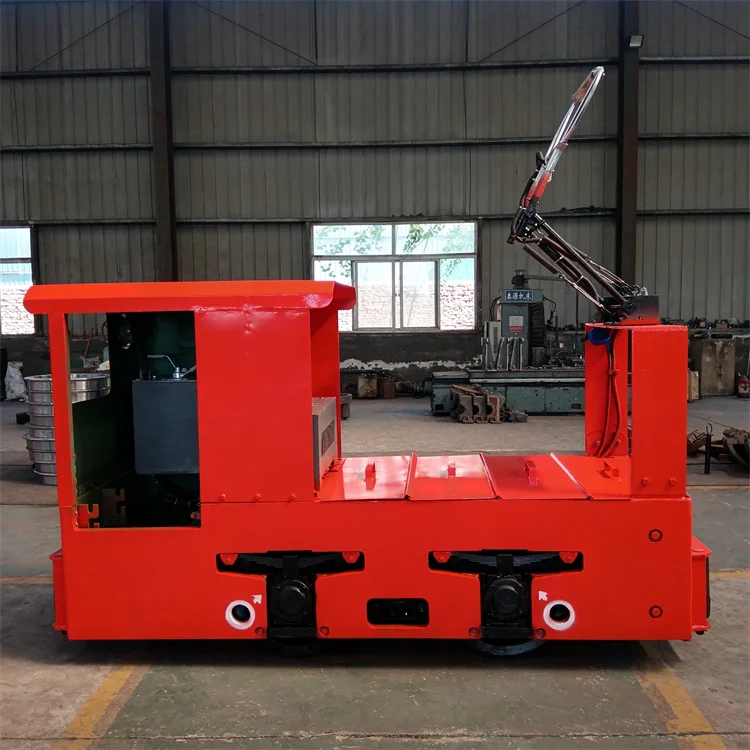

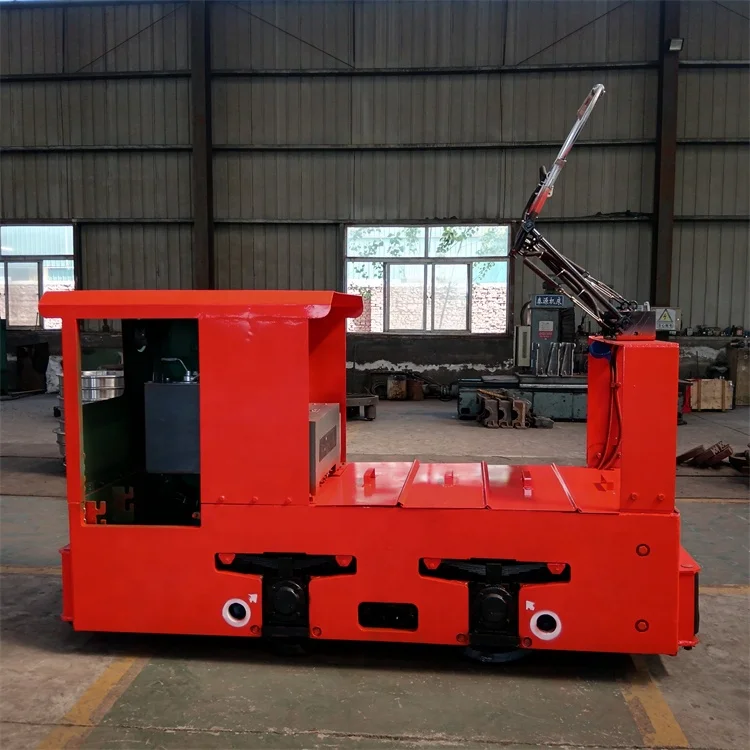

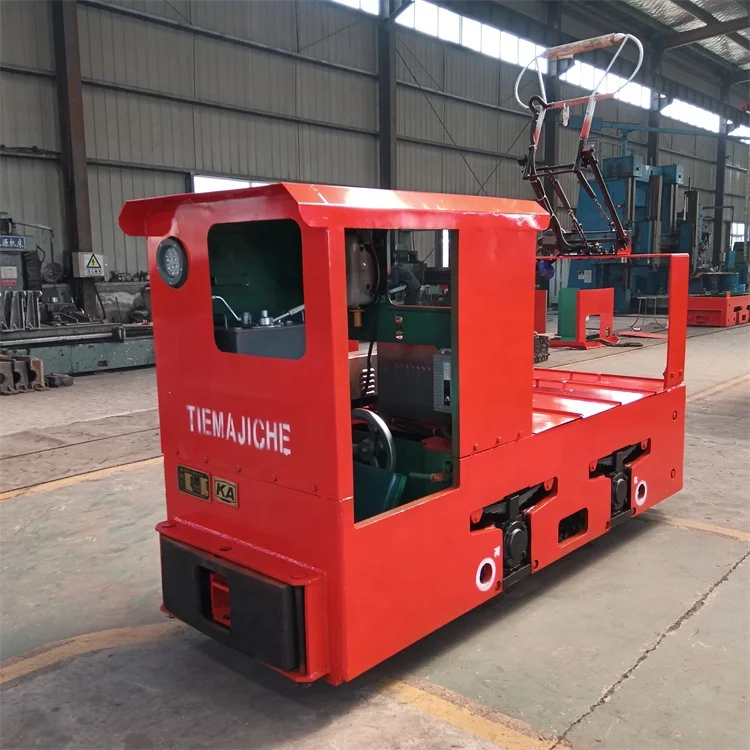

CJY3/6.7.9B CJY3/6.7.9P overhead line type industrial and mining electric locomotives are divided into two types: stepless speed regulation and stepwise speed regulation. They adopt mechanical braking and the voltage is 250V. Its characteristics: large traction, fast speed, stable and flexible operation, the running mechanism adopts cone and positive two-stage transmission, long life and high efficiency.
Curb weight
3T
Gauge
600mm; 762mm; 900mm
Traction force
5.74KN
Speed
7.5Km/h
Traction force
7.36 KN
DC voltage
250V
Traction motor
6.5 KW×2 units
Total length
2750mm
Overall width
944mm; 1106mm; 1244mm
Height from rail surface to ceiling
1550mm
Traction height
210mm; 320mm
Wheelbase
850mm
Wheel base
φ520mm
Working height of receiver
1800mm~2200mm
Minimum curve radius
6m
Speed regulation method
resistance
Braking method
mechanical

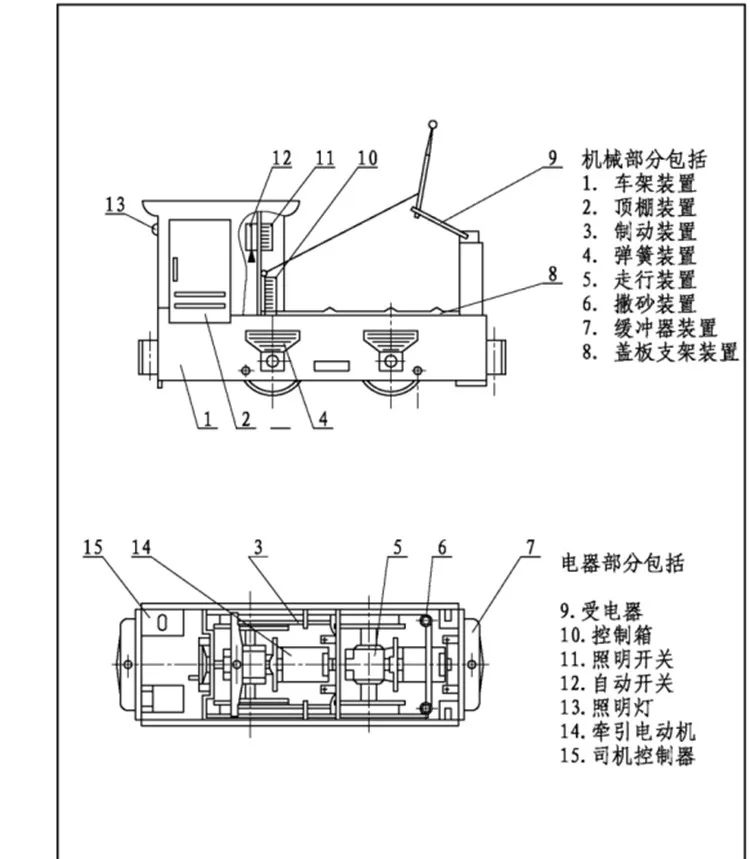

CJY3 overall structure
Overall structure of electric locomotive
The overall layout and main structure of the electric locomotive can be divided into two parts: mechanical and electrical.
The mechanical part includes:
1, the frame device
2, the ceiling device
3, the braking device
4, the spring device

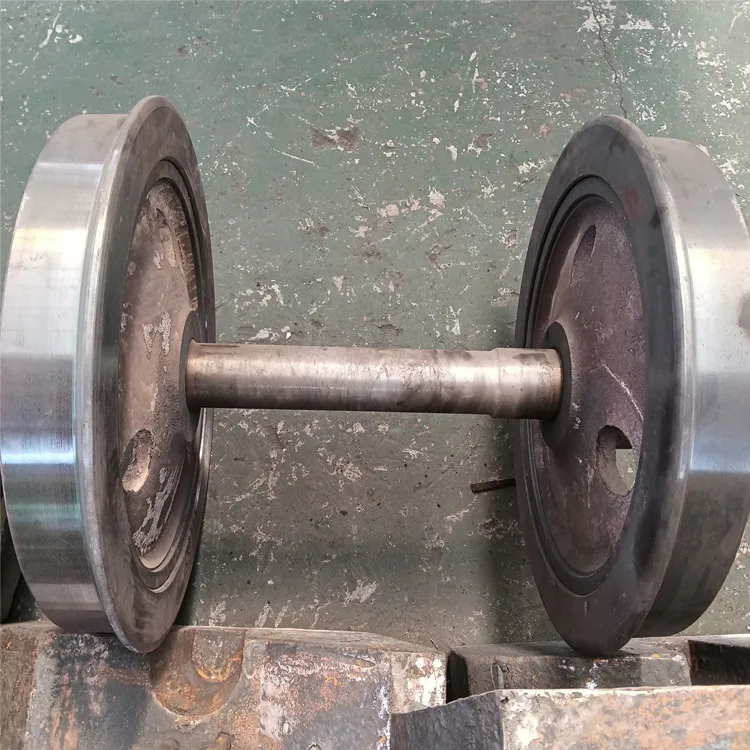

5, the traveling device
6, the sanding device
7, the buffer device
8, the cover support device.
The electrical part includes:

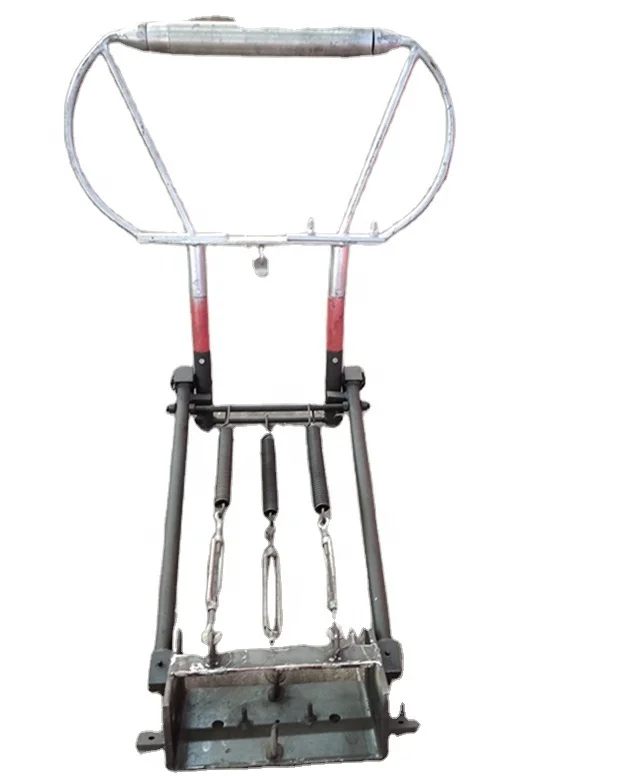

9, horn 10, receiver

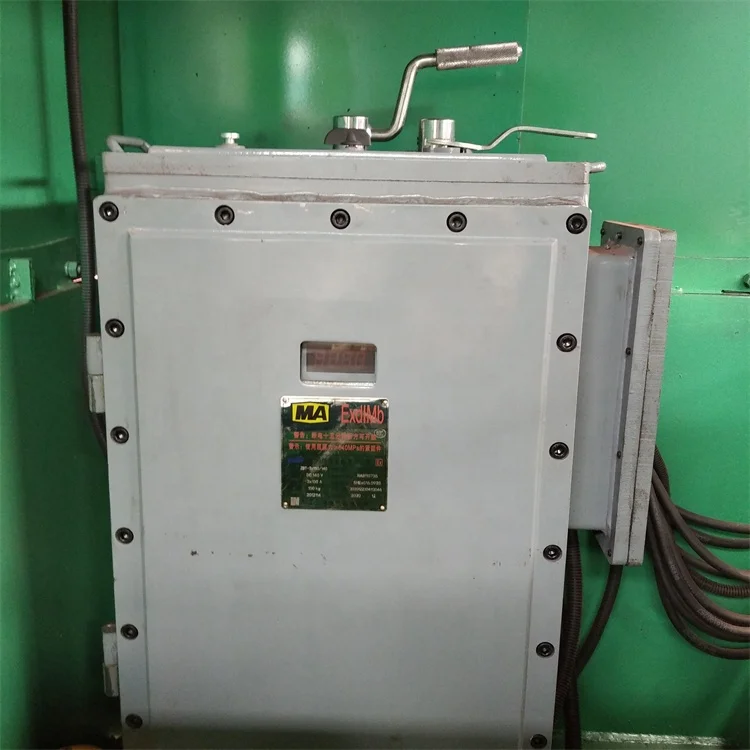

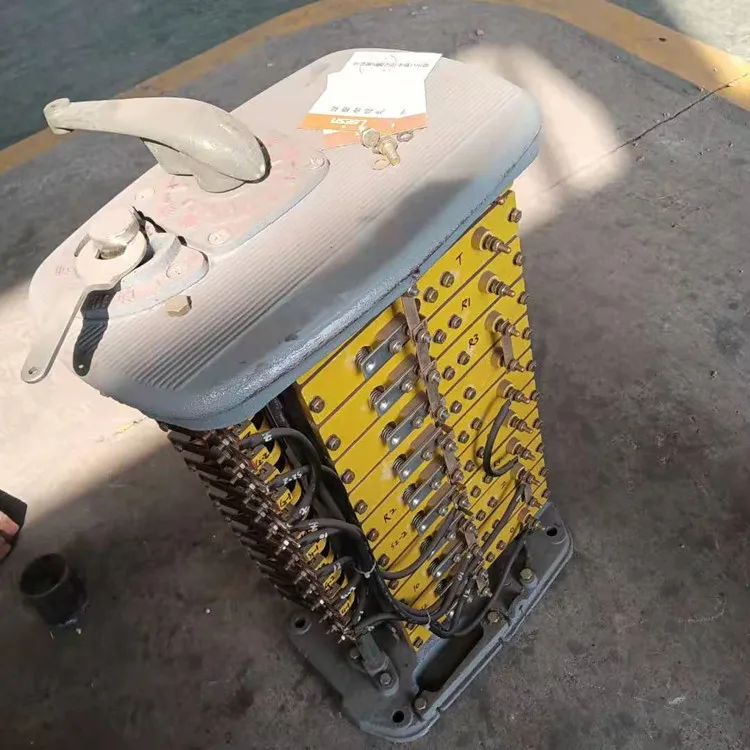

11, speed control device
12, DC transformer
13, automatic switch
14, lighting

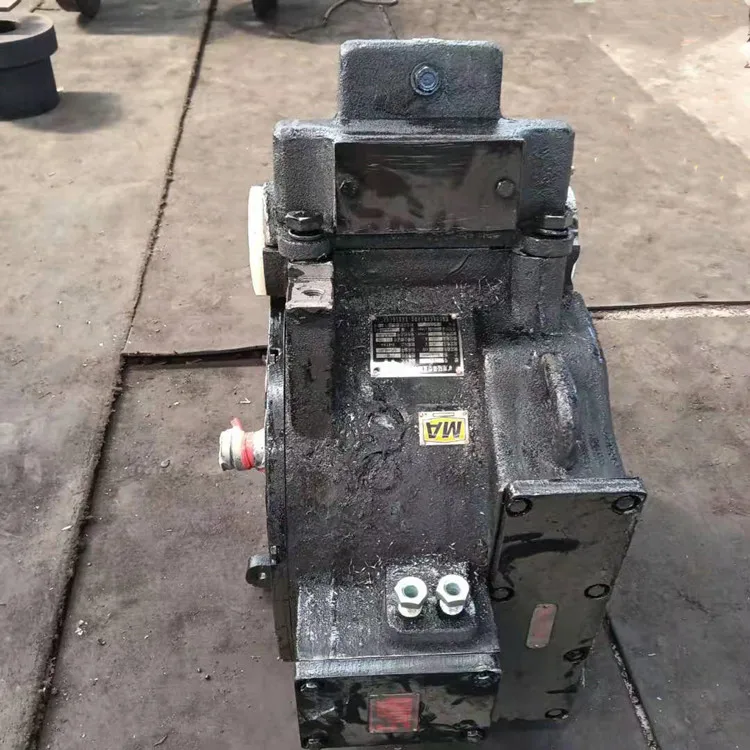

15, traction motor
Details Images
