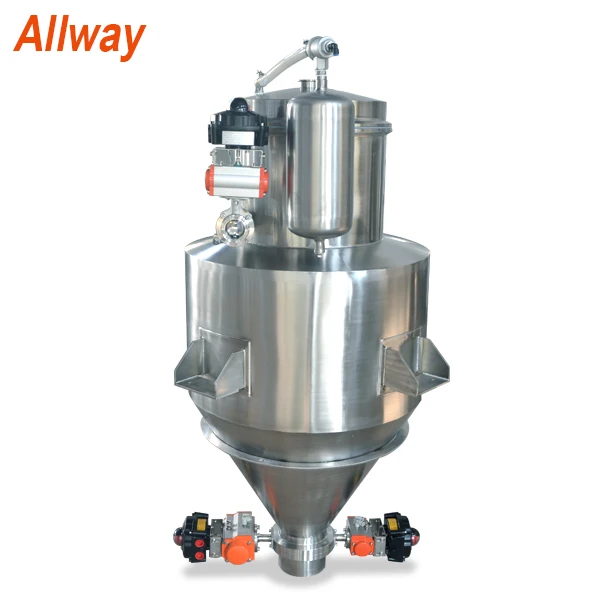

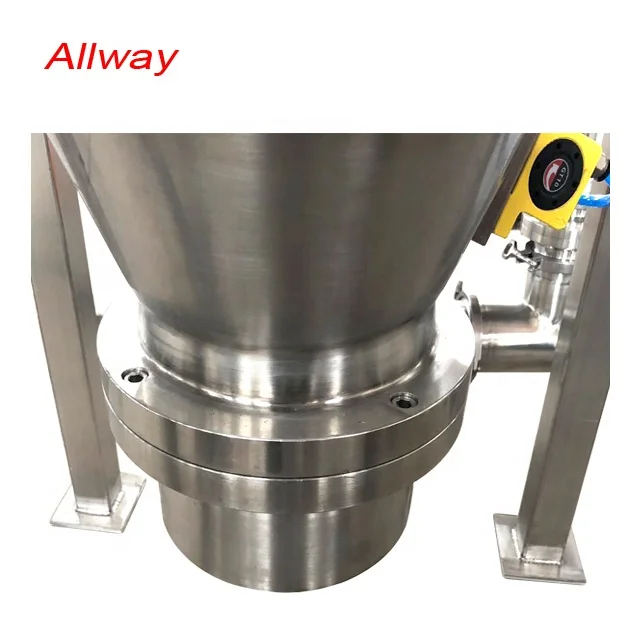

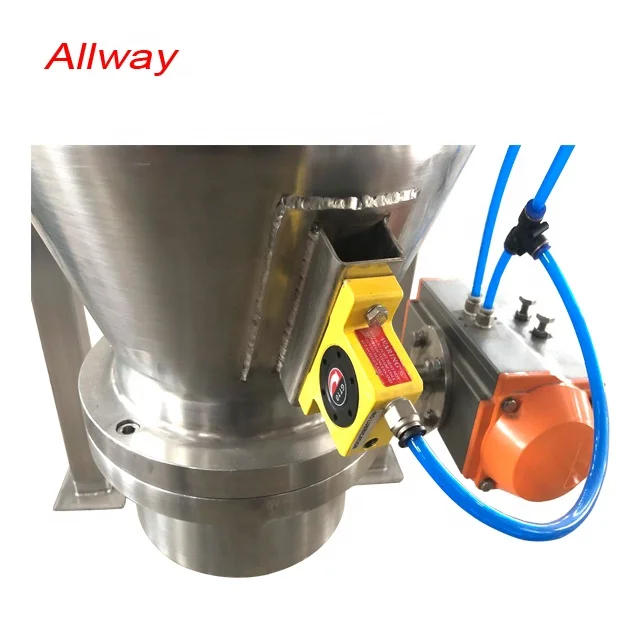

dust free vacuum conveyor in pharmaceutical industry
Operation instruction:

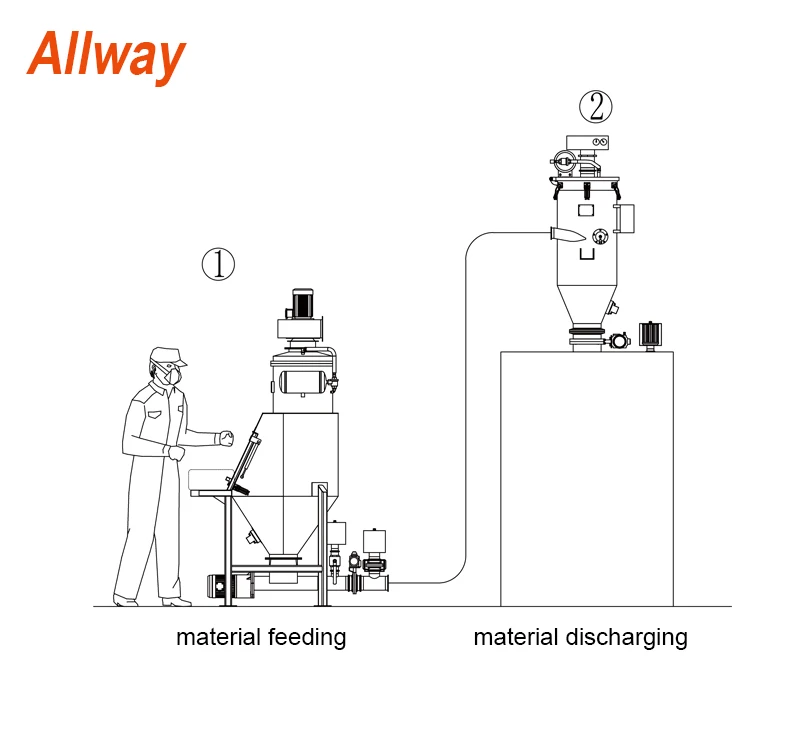

1. Equipment installation: Material conveying pipe will be collected with material feeding equipment. Vacuum pipe will be connected with vacuum equipment. Vacuum conveyor will be connected with material receiving equipment.

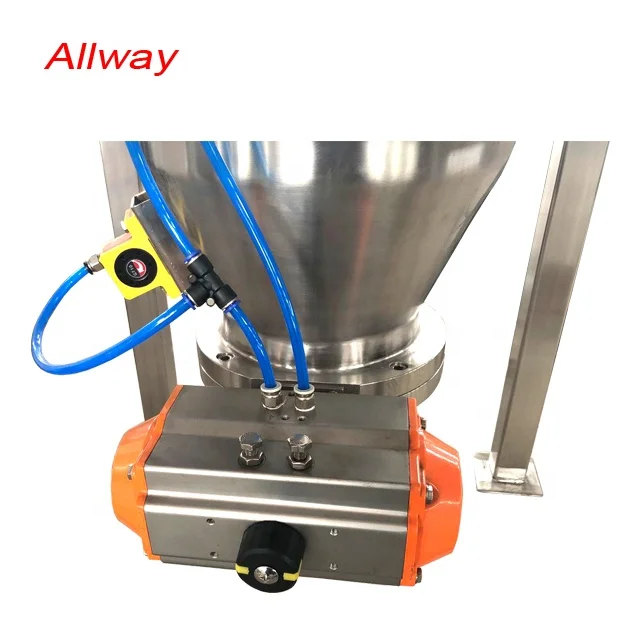

2. Running the vacuum conveyor, material will be conveyed into the vacuum conveyor hopper. Open the discharging valve and material will be released into material receiving equipment.

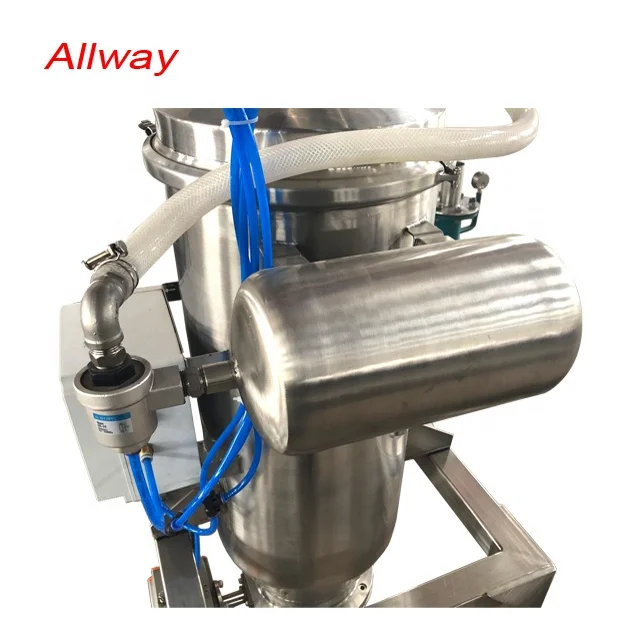

3. Suction time and discharging time can be controlled by PLC program. Vacuum conveyor is equipped with filter and filter cleaning system.
4. Vacuum conveyor electric type used wind blowers as vacuum source. Wind blower includes roots blower and centrifugal blower.
Product Parameters:
Basic Parameters
Model
AWZ180
AWZ250
AWZ320
AWZ430
Equipment height
850MM
950MM
1100MM
1400MM
Inner diameter
180MM
250MM
320MM
430MM
Effective volume
7L
18L
35L
60L
Equipment weight
20KG
35KG
37KG
55KG
Blanking butterfly valve caliber
150MM
150MM
320MM
200MM
Air consumption
(0L/min,0.6L/min)
(0L/min,0.6L/min)
(0L/min,0.6L/min)
(0L/min,0.6L/min)
Vacuum flow
(0L/min,90L/min)
(0L/min,90L/min)
(0L/min,90L/min)
(0L/min,90L/min)
Work pressure
(-92.5kpa,0kpa)
(-92.5kpa,0kpa)
(-92.5kpa,0kpa)
(-92.5kpa,0kpa)
Throughput
(0.1t/h-0.5t/h)
(0.3t/h-0.8t/h)
(0.5t/h-2t/h)
(1.3t/h-5t/h)
Applicable Item Properties
Applicable Material Type
Powder
Granule
Applicable Material Temperature
(-10℃-70℃)
(-10℃-70℃)
Applicable Material Humidity
(0%RH-20%RH)
(0%RH-20%RH)
Applicable Material Particle Size
(0.2um-10mm)
(0.2um-10mm)
Vertical Conveying Distance
(0m-20m)
(0m-20m)
Horizontal Conveying Distance
(0m-80m)
(0m-80m)
If larger capacity equipment is needed, please contact us for customization.
