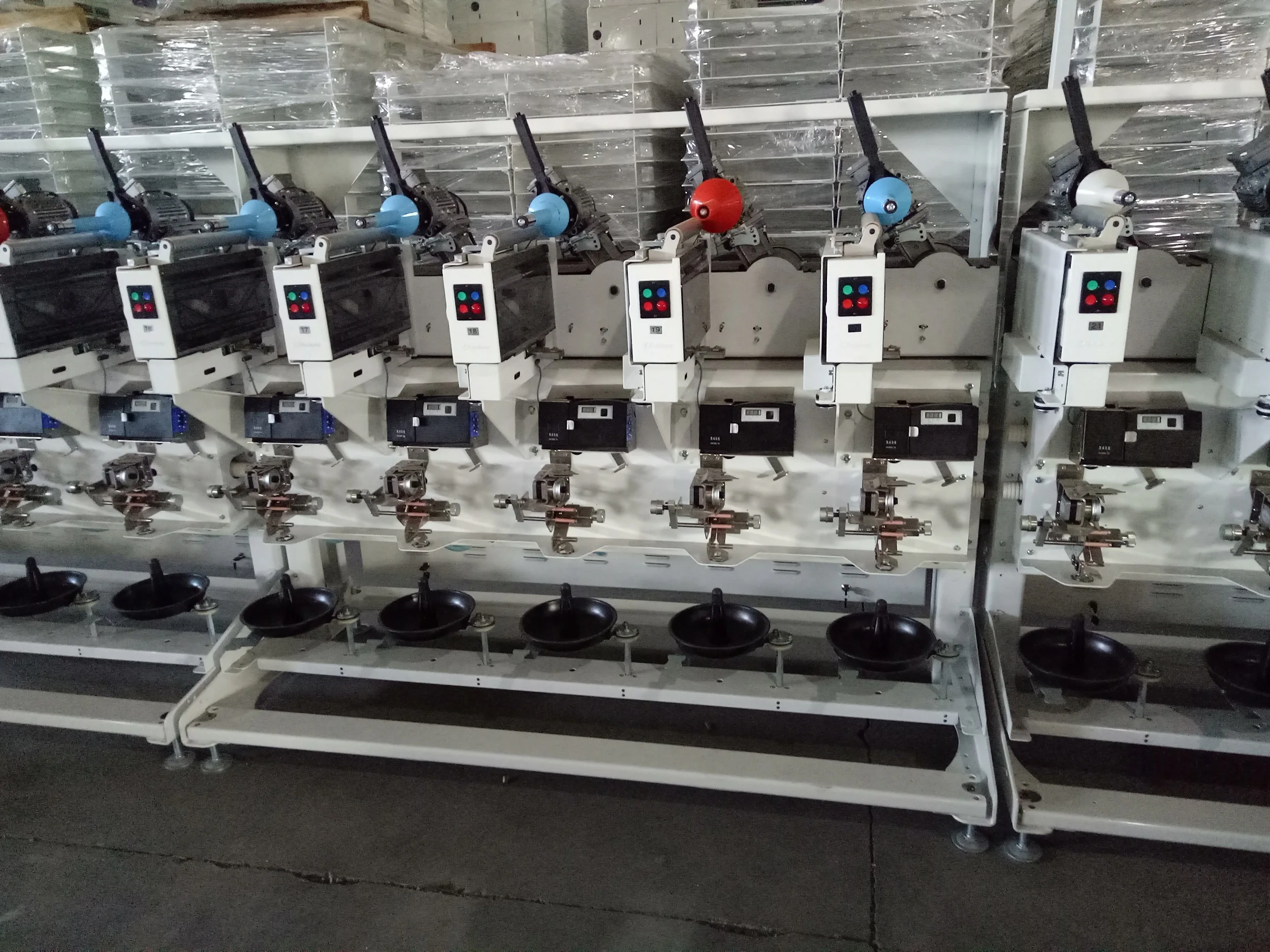

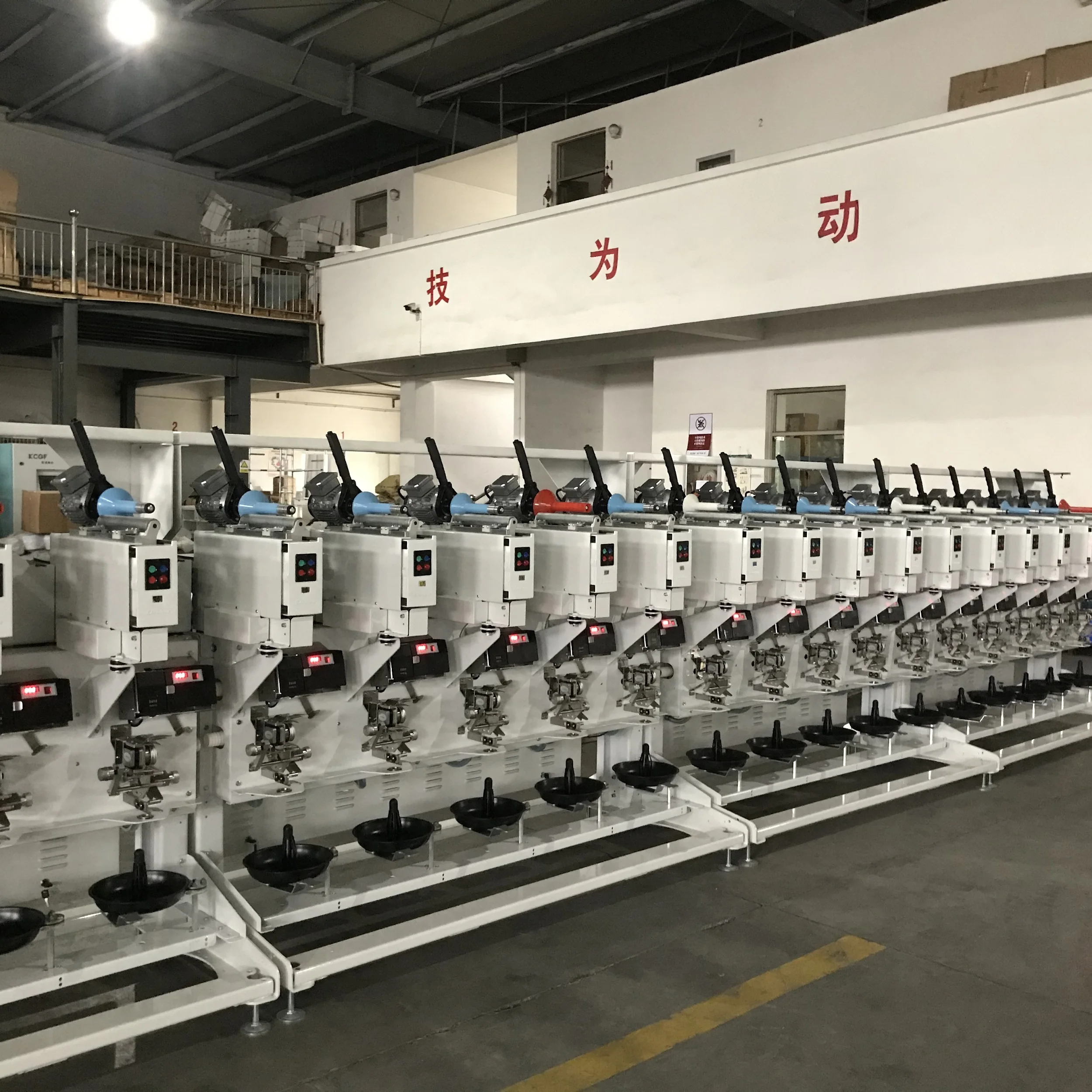

tray line machine KC212D high speed winder electric motor coil winding machine
tray line machine KC212D high speed winder electric motor coil winding machine
tray line machine KC212D high speed winder electric motor coil winding machine
tray line machine KC212D high speed winder electric motor coil winding machine
tray line machine KC212D high speed winder electric motor coil winding machine
tray line machine KC212D high speed winder electric motor coil winding machine
tray line machine KC212D high speed winder electric motor coil winding machine

tray line machine KC212D high speed winder electric motor coil winding machine

Share on (1600246944652):


Price:$2,400.00 - $2,550.00

Quantity:


Product Overview

Description



Product Description

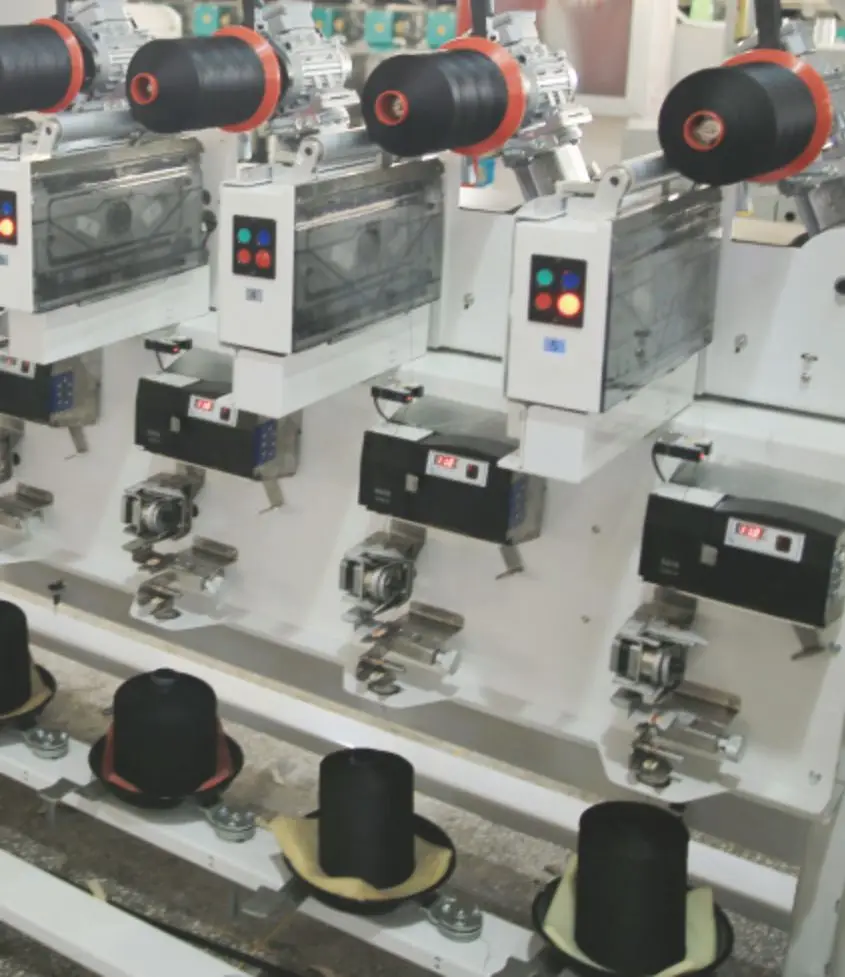

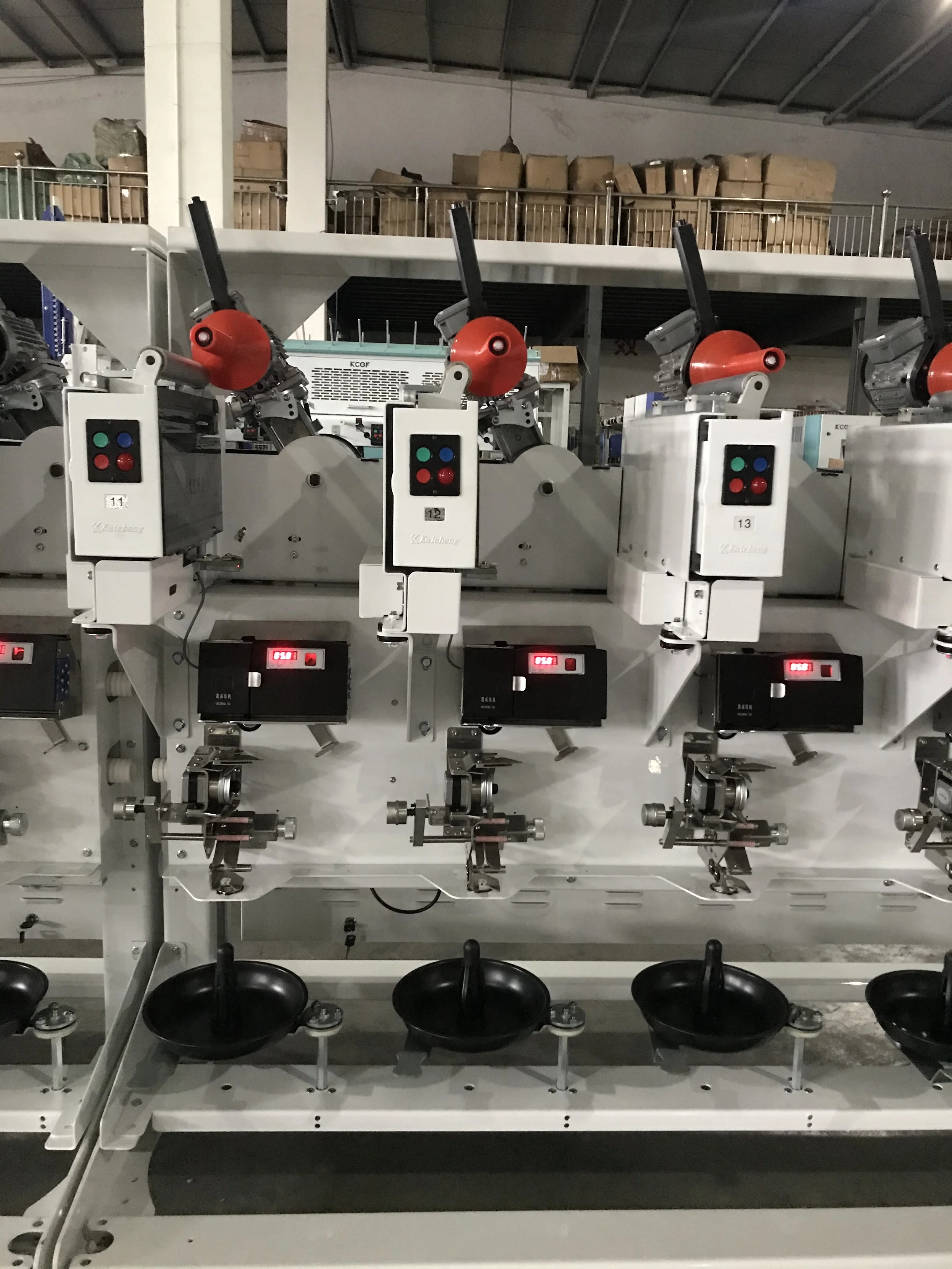

Suitable for Winding large packaged embroidery thread & sewing thread on A tube, Y tube and cylinder tube.

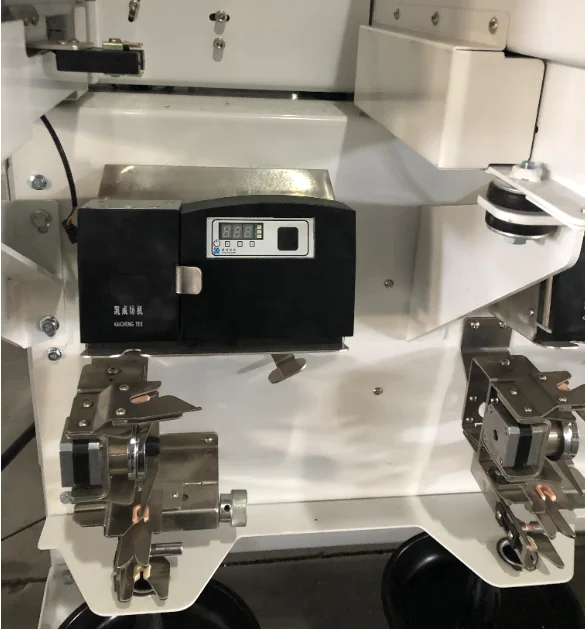

Features
1. Electronic yarn guide system, can be arbitrarily adjusted 1 inch~ 10 inches molding length, winding density and edge Angle;
2. When product Y tube, yarn molding can be adjusted with the angle of horn tube intelligent and moved automatically;
3. Creel can set automatic detection and roller pressure to increase and decrease intelligently, to ensure good molding;

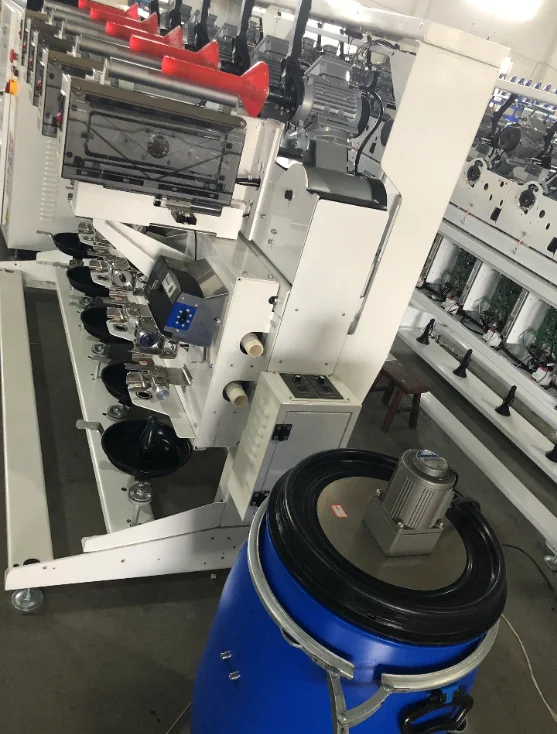

4. Intelligent oil control device, real-time accurate temperature control, oil break, oil shortage automatic shutdown, perfect
guarantee of yarn oil;
5. Intelligent weight, length, measurement functions.




Technology Parameter


Machine structure
Single size, single layer, 5 spindles per section
Spindle gauge
360mm
Winding form
Precision cross winding

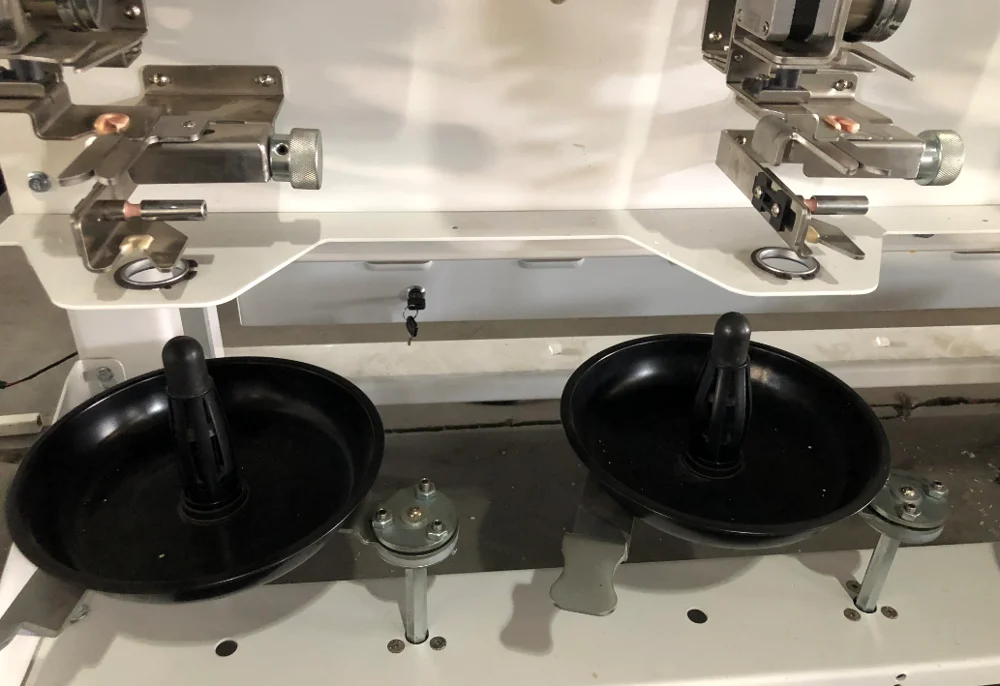

Take-up tube bobbin
King-tube, A-tube(tapered tube), Y-tube(horn tube)
Linear speed
Up to 1200 m/min(depend on the process parameters)
Traverse
85mm~250mm (It can be changed according to actual needs)
Yarn count
Up to 3300D
Rated power
300W/spindle

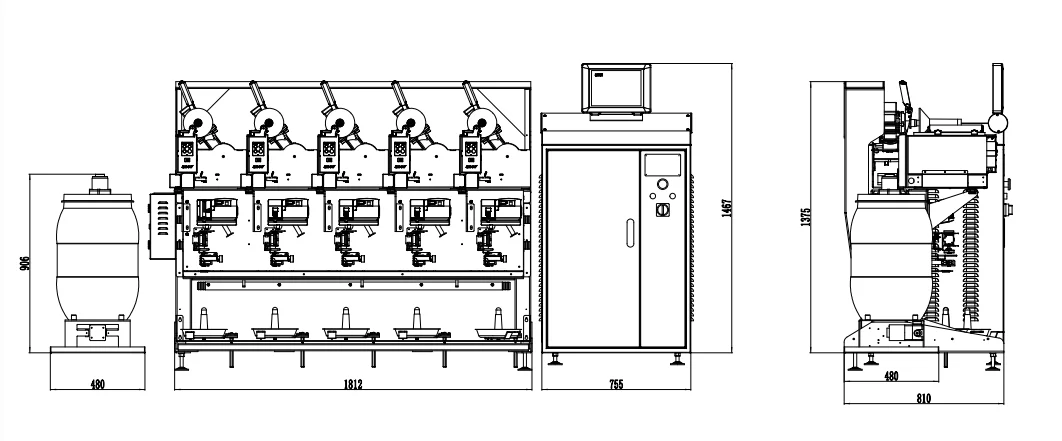

Dimensions




Packing & Delivery




Parking Details : Wooden Case and Pallet(according to customer's request)

Shipping Type : Ocean transportation

Port : Ningbo or Shanghai


Our Service


①Training how to instal the machine, training how to use the machine.

② Inquiry and consulting support.

③Support sample yarn test.

④View our Factory.

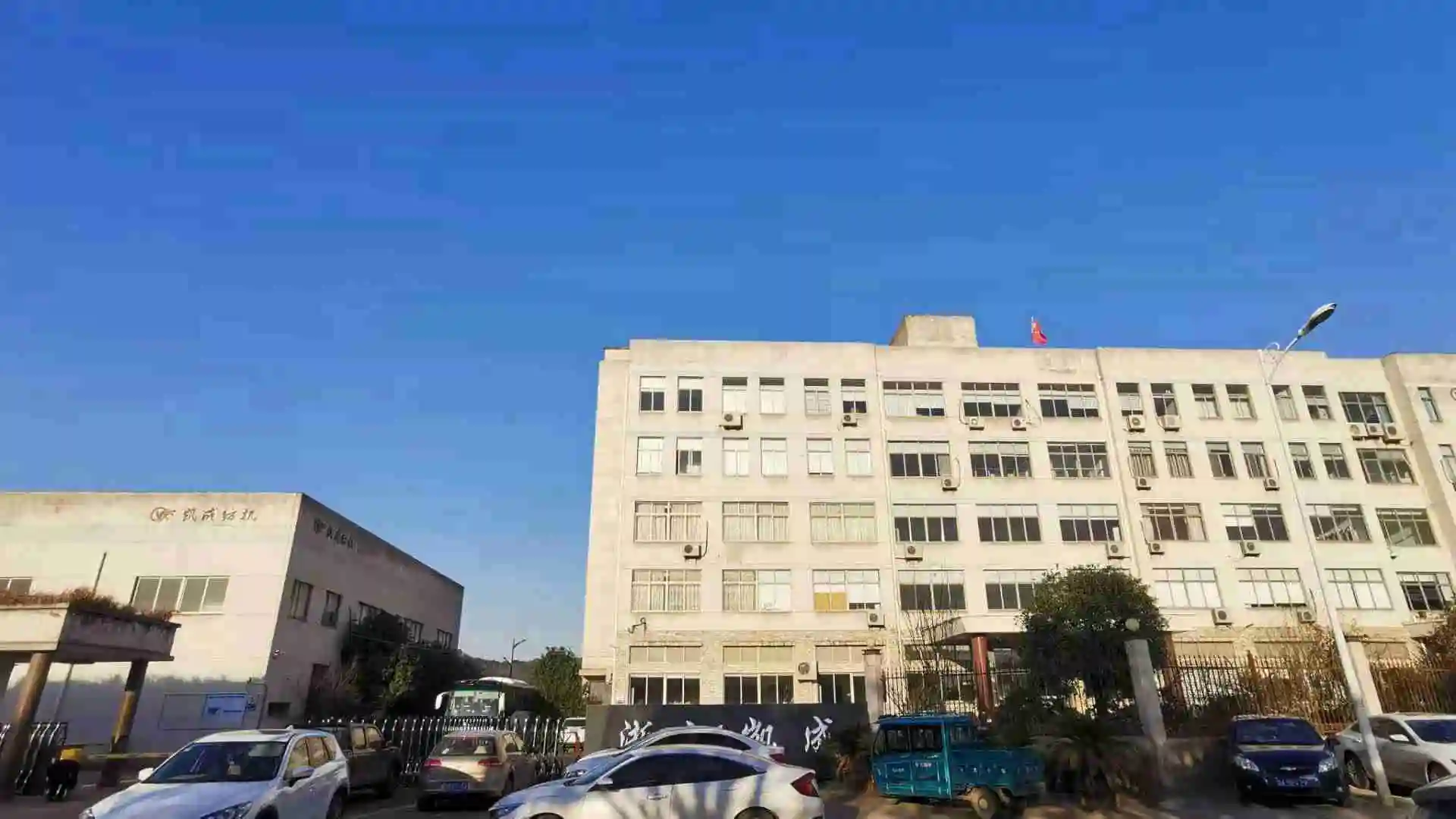

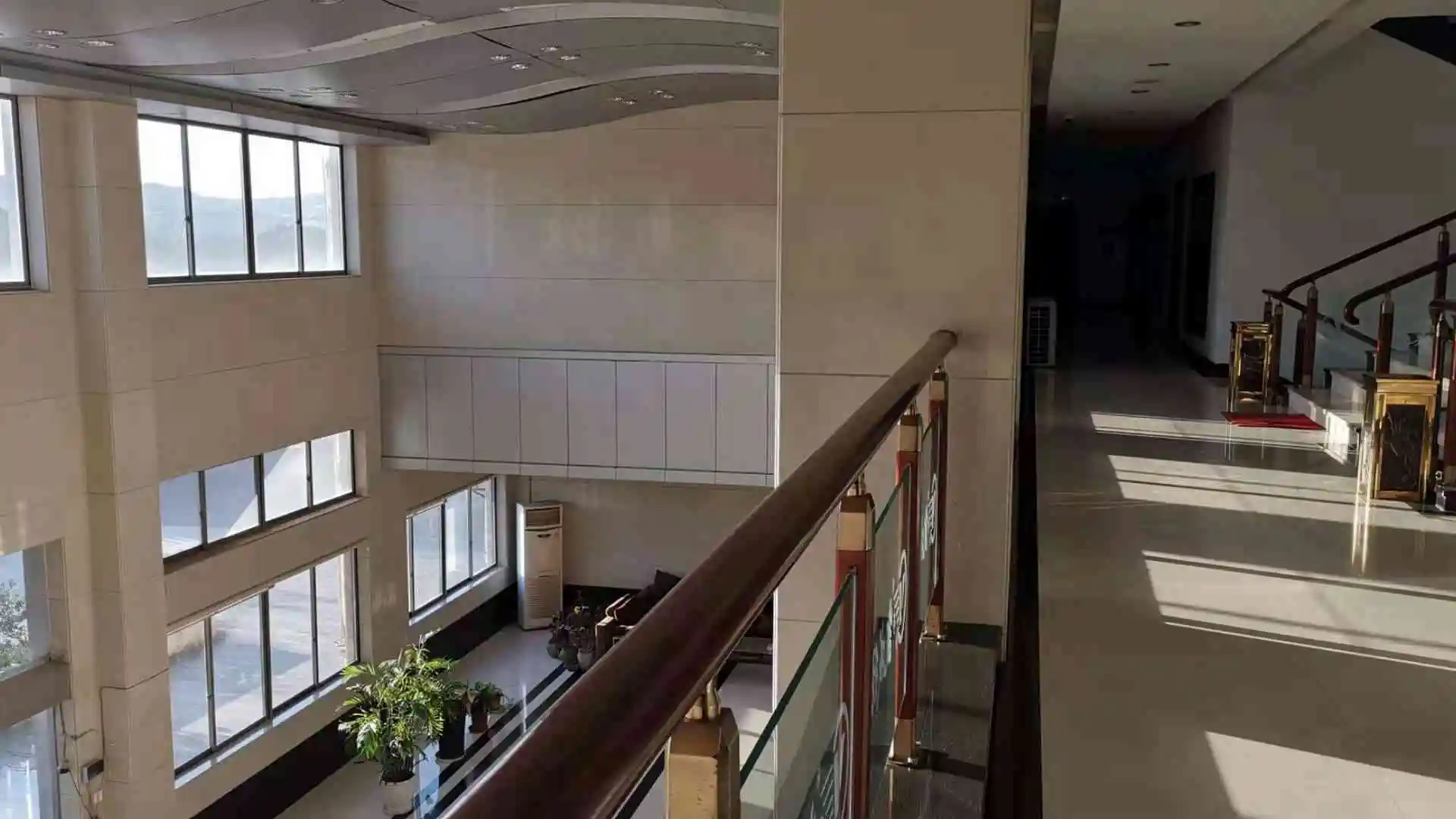

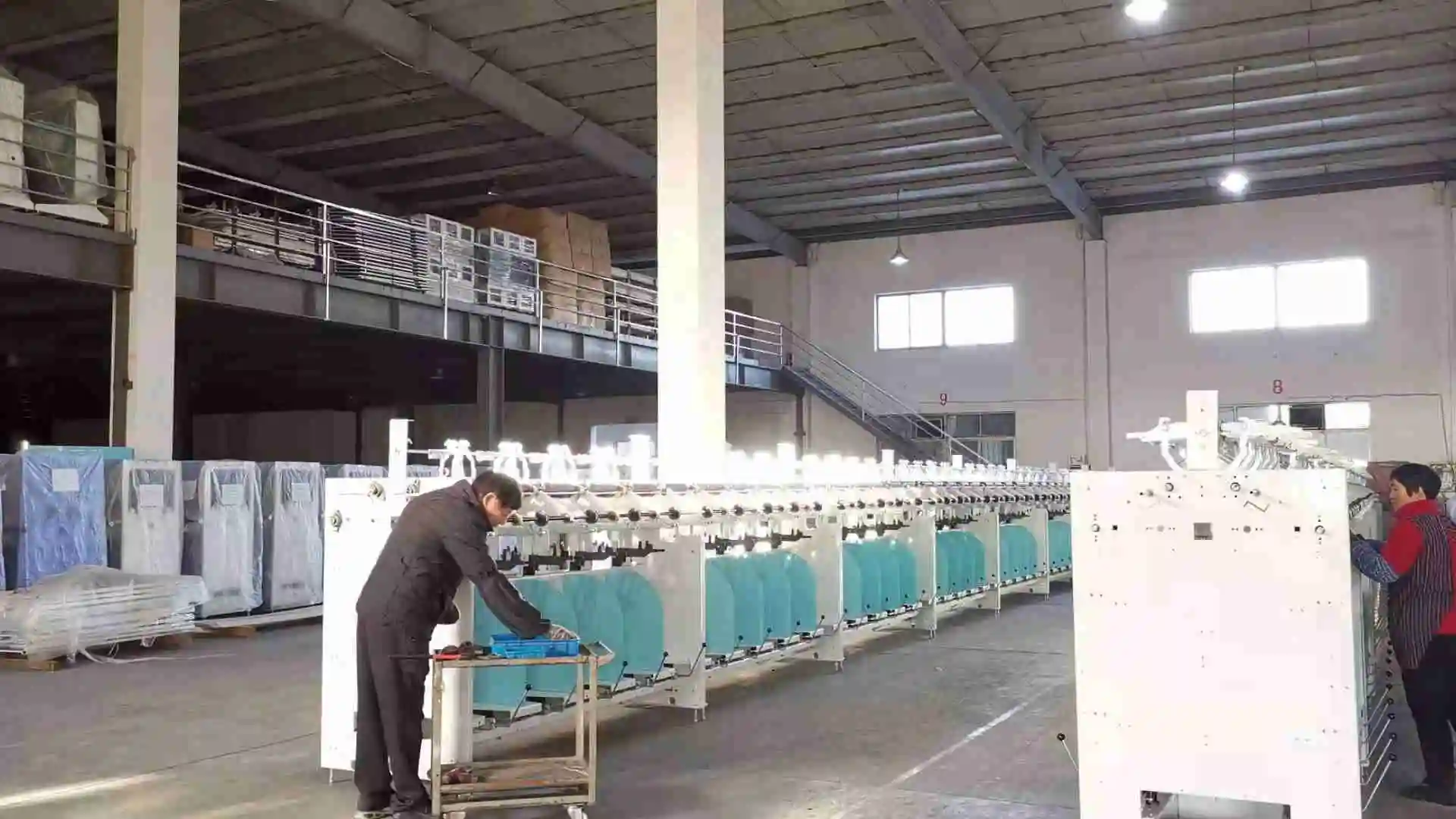

Company Profile


Zhejiang Kaicheng Intelligent Machinery Co.,Ltd

Specialized in manufacturing and researching of intelligent textile machinery
Devoted to build up a leading-brand KAICHENG winder & twister in China

Our company is specialized in the production of special double twister, winding machine, many years of production experience makes us master quite mature design concept. Our company has 232 national patent certificates, including 12 invention patents. 14 products won the title of "Provincial New Product", and 2 products reached the "International Advanced" level in 2011 and 2015 respectively. Products all over the country and exported to Southeast Asia, West Asia and South America, Europe, can meet the civil silk,industrial silk,clothing fabrics and other comprehensive chemical fiber filament yarn's twisting and winding.

Warmly welcome to visit our factory and open up the boundaries of communication.

Thank you!
