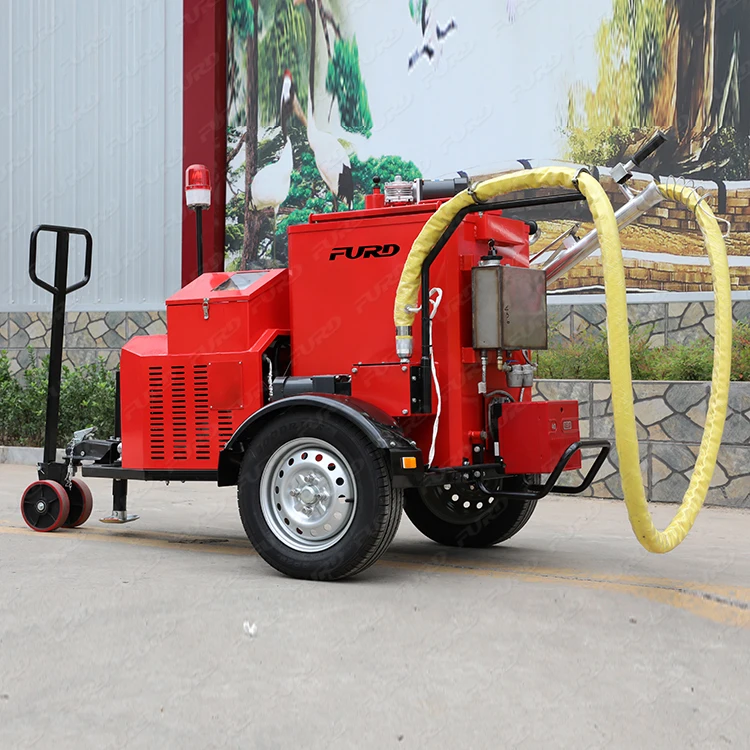

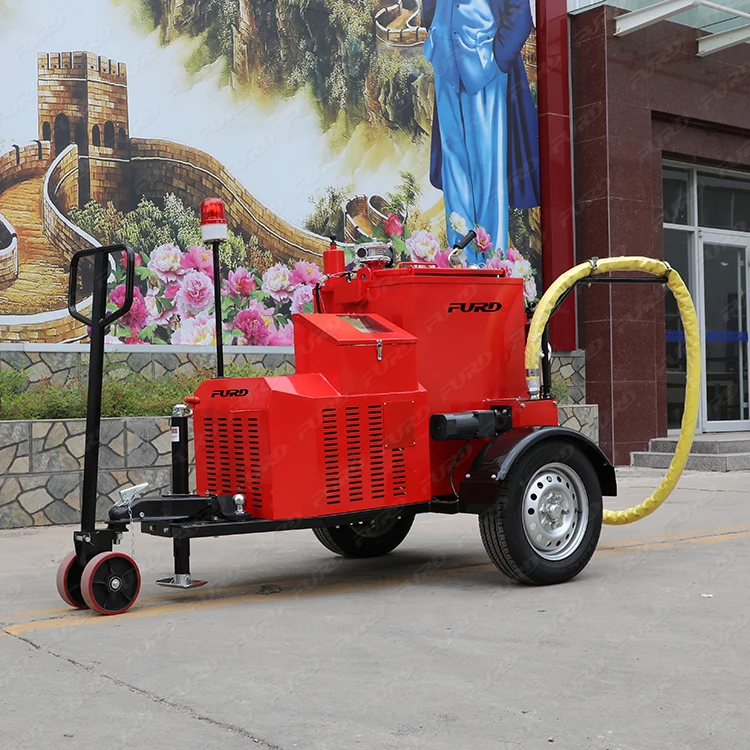

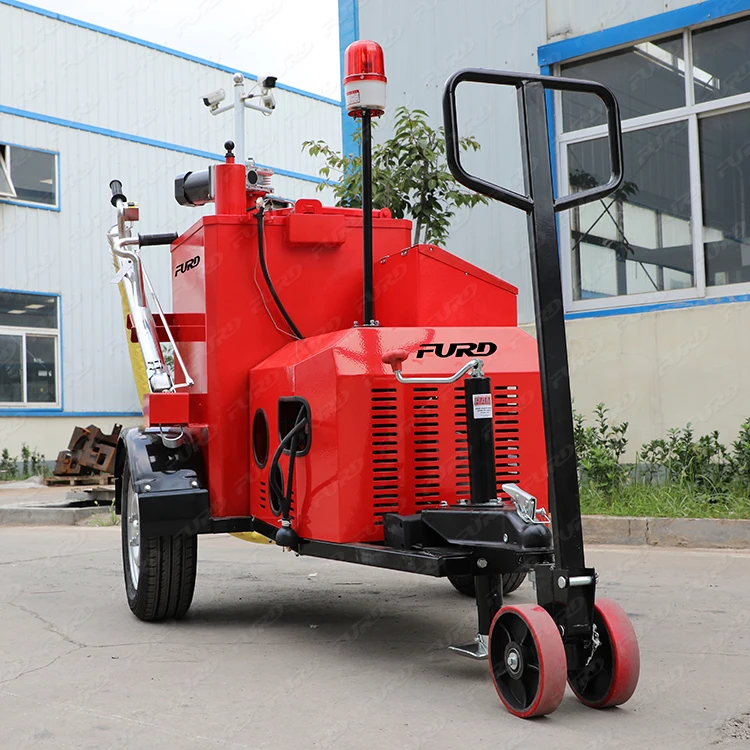

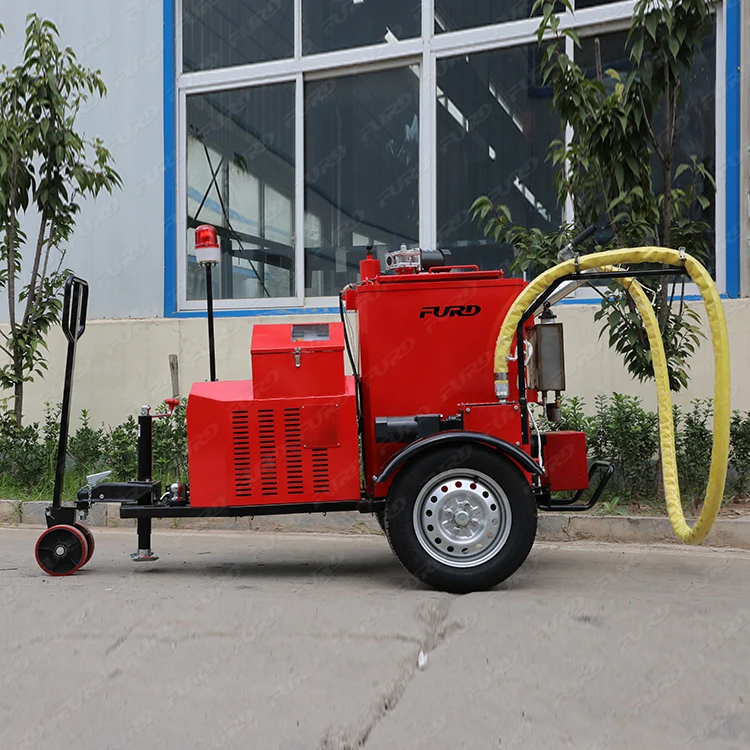

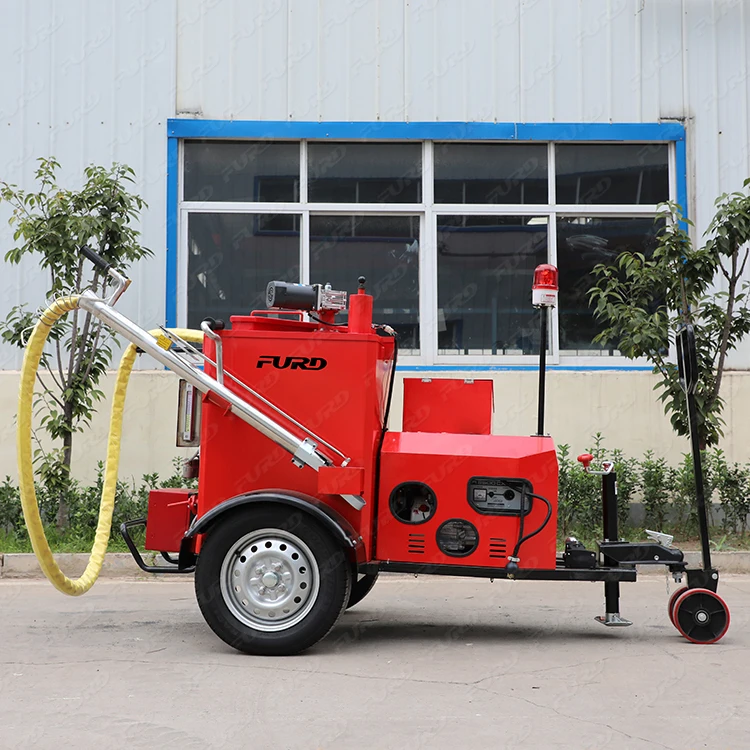

Generator Powered Trailer Joint Road Crack Sealing Machine FGF-100

FGF-100 crack sealing (crack fill) machine produced for melting and pouring the bitumen-elastomeric ​sealing compounds order to seal crack / seams and provide waterproofing for repair and construction work on highways, airfields, bridges

Joint Sealing Machine

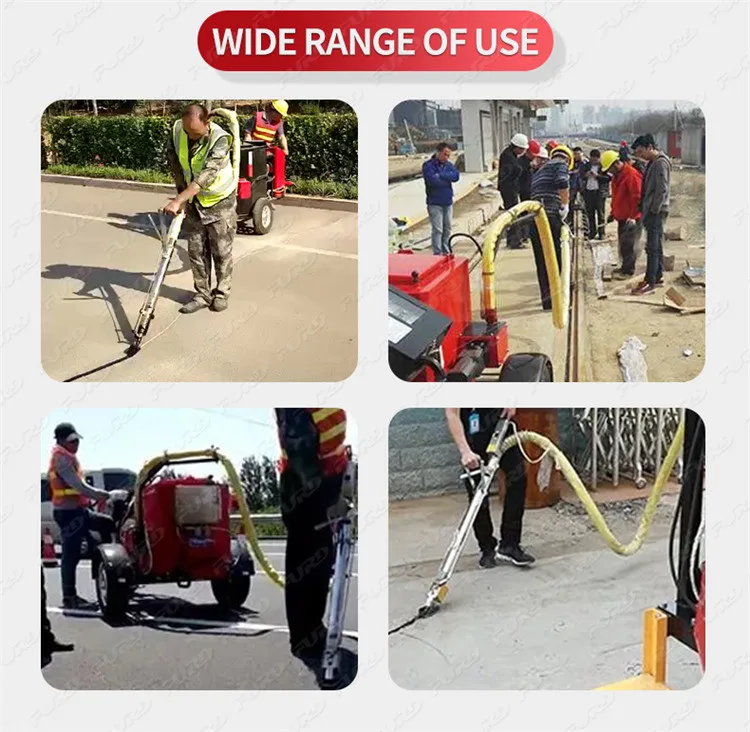

The 100L joint sealing machine is mainly used for the treatment of surface cracks on asphalt pavement, cement pavement, and site. After grooving the crack through the slot machine, use a hot spray gun or a vacuum cleaner to blow the dust of the slag crusher in the tank, and then use the crack sealing machine to sew the sealant into the crack to repair the crack and ensure the overall performance of the road , can extend the service life of the highway.

Joint Sealing Machine

Features:
1. Equipped with generator to provide sufficient power.
2. The heat conduction oil is heated cyclically, evenly and quickly, with long-lasting heat preservation.
3. Electric control operation, adjustable flow.
4. The discharge pipe is equipped with heating function and oil return function to avoid pipeline blockage and cleaning.







Technical Parameter


Model
FGF-100
Generator Model
Honda EC2500CL
Walking Mode
Trailer Type
Material Tank Volume
100L
Generator Power
2.3 KW
Heating Medium
Conduction Oil
Asphalt Flow
0 - 24 L/min
Temperature Range
180 - 220 ℃
Material Hose Length
Standard 4.5m (6m optional)
