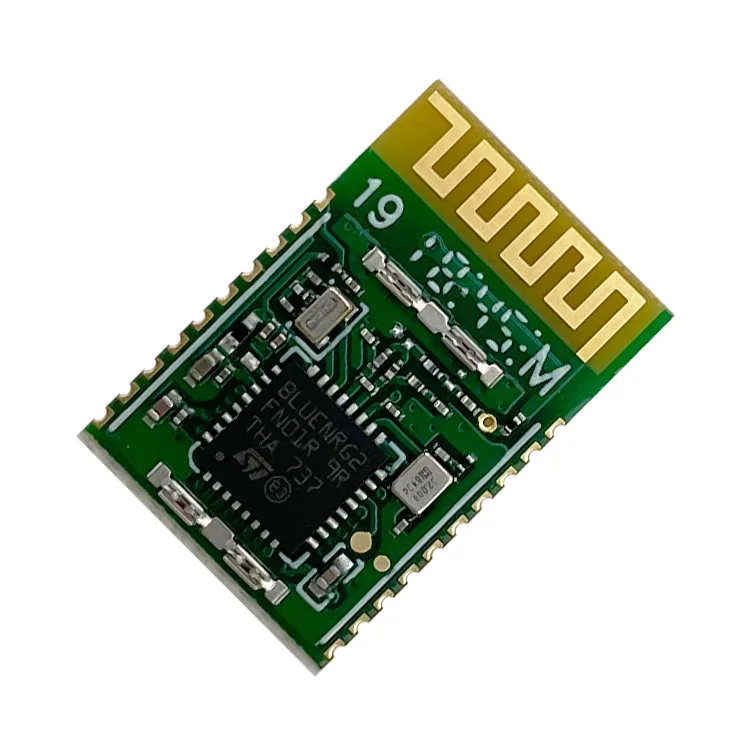

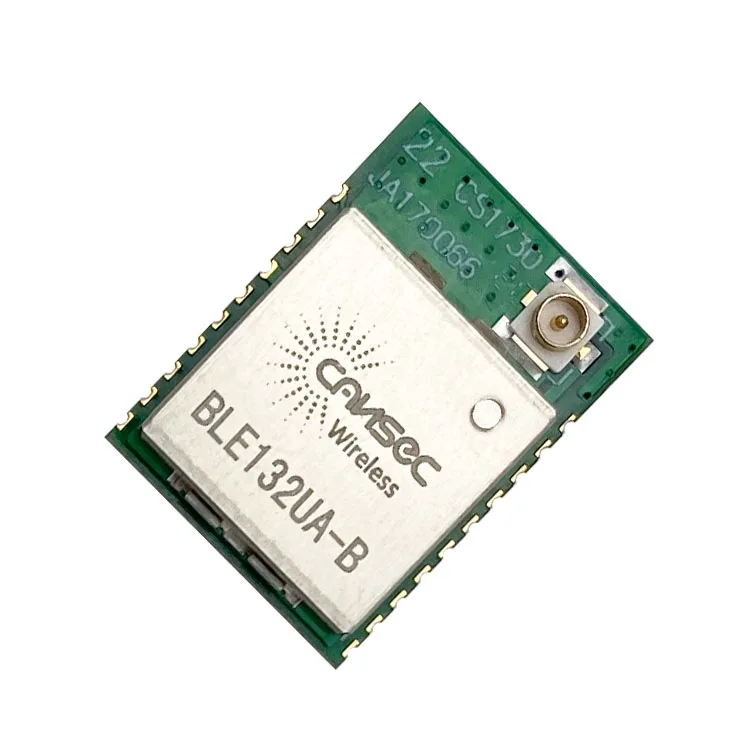

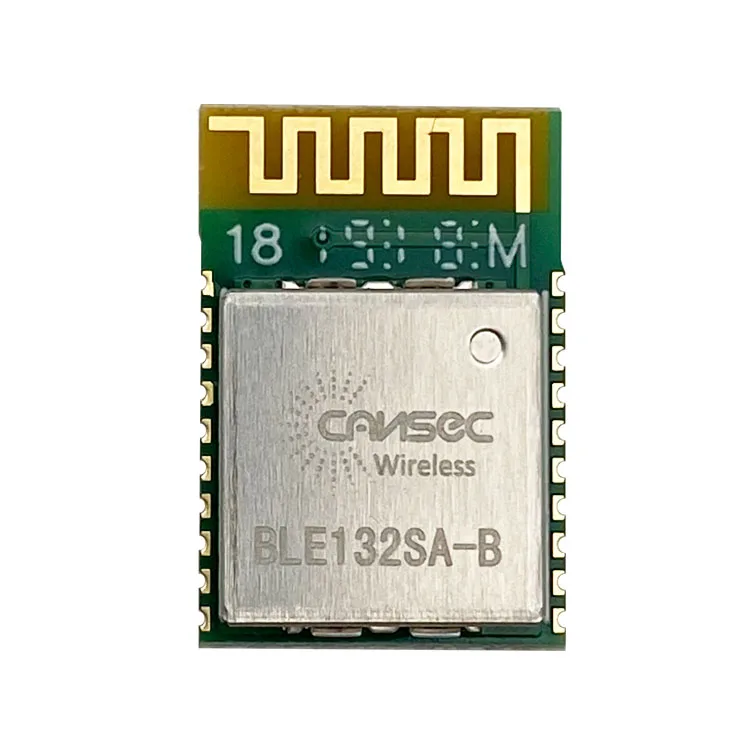

Cansec BLE132SA/UA B 2,4 ГГц синий зуб модуль беспроводной ST BLUENRG 132 Ble модуль iot решения BLE4.2
- Category: Wireless & IoT >>>
- Supplier: Beijing Jiaan Electronics Technology Co. Ltd.
Share on (1600250260703):
Product Overview
Description

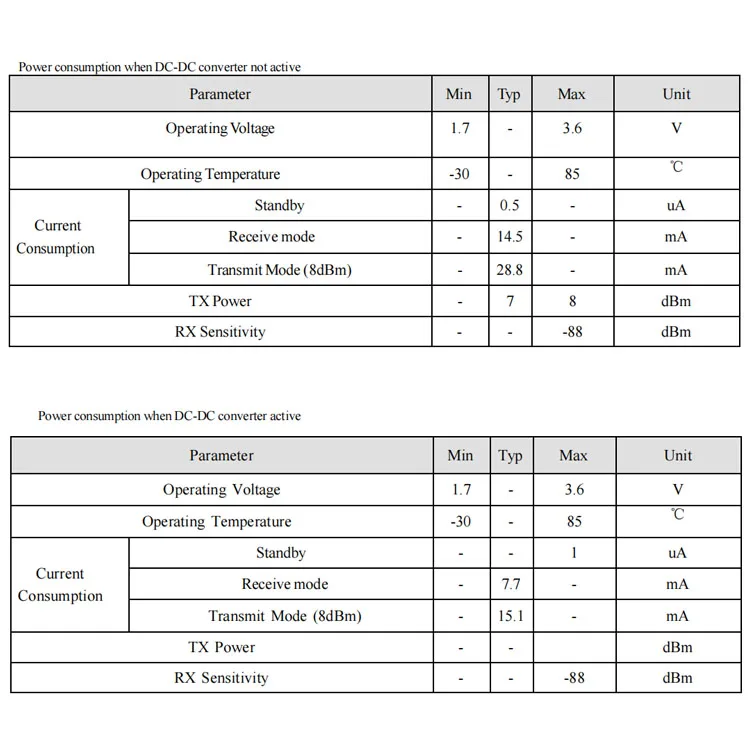

Power consumption when DC-DC converter not active
Parameter | Min | Typ | Max | Unit | ||
Operating Voltage | 1.7 | - | 3.6 | V | ||
Operating Temperature | -30 | - | 85 | °C | ||
Current Consumption | Standby | - | 0.5 | - | uA | |
Receive mode | - | 14.5 | - | mA | ||
Transmit Mode (8dBm) | - | 2&8 | - | mA | ||
TX Power | - | 7 | 8 | dBm | ||
RX Sensitivity | - | - | -88 | dBm | ||
Power consumption when DC-DC converter active
Parameter | Min | Typ | Max | Unit | ||
Operating Voltage | 1.7 | - | 3.6 | V | ||
Operating Temperature | -30 | - | 85 | °C | ||
Current Consumption | Standby | - | - | 1 | uA | |
Receive mode | - | 7.7 | - | mA | ||
Transmit Mode (8dBm) | - | 15.1 | - | mA | ||
TX Power | - | - | dBm | |||
RX Sensitivity | - | - | -88 | dBm | ||
1. BLE132SA/UA-A series module is designed based on ST company's BlueNRG-1.The BlueNRG-1 is a very low power Bluetooth low energy (BLE4.2) single-mode system-on-chip compliant with Bluetooth specification.
2. The BlueNRG-1 extends the features of award-winning BlueNRG network processor, enabling the usage of the embedded Cortex M0 for running the user application code.
3. The BlueNRG-1 includes 160 KB of programming Flash memory, 24 KB of static RAM memory with retention (two 12 KB banks) and SPI, UART, I2C standard communication interface peripherals. It also features multifunction timers, watchdog, RTC and DMA controller.
4. An ADC is available for interfacing with analog sensors, and for reading the measurement of the integrated battery monitor. A digital filter is available for processing a PDM stream.
5. The BlueNRG-1 offers the same excellent RF performance of the BlueNRG radio, and the integrated high efficiency DC/DC converter keeps the same ultra-low power characteristics, but the BlueNRG-1 improves the BlueNRG sleep mode current consumption allowing a further increase in the battery lifetime of the applications.
