288 cores Dome type mechnical sealing fiber splice closure with 1 6 ports

Product Overview

Description

1.1   Introduction:

This product is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment.

Dome-to-base design; the splice trays, hinge for access of any splice without disturbing others trays; Fast and reliable sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, wall mounting or directly buried.

1.2   Specification:

Model:		GJS03-M9AX-JX-288C-SRZJ21-W12  (GP1425)
Size: With clamp’s biggest outer dia.	593*271 mm	Raw material	Dome,clamp,base:modified PP +GF Tray: ABS Metal parts:Stainless steel
Entry ports number:	1 oval port, 6 round ports	Available cable dia.	Oval port:available for 2 pcs, with optional rubber for different cable dia. Round ports:with optional seal rubber for different cable dia.
Max. tray number	12 trays	Base sealing method	Mechanical
Tray capacity:	24F	Applications:	Aerial, directly buried, Wall/ pole mounting
Max. closure splice capacity	288 F	IP grade	68

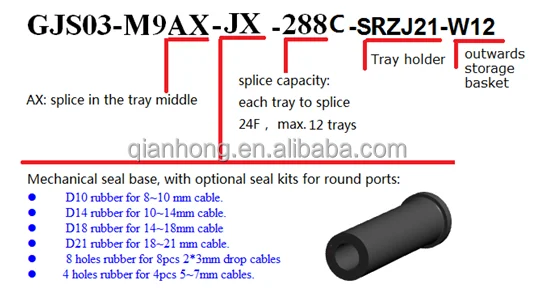

1.3   Order Guidance:

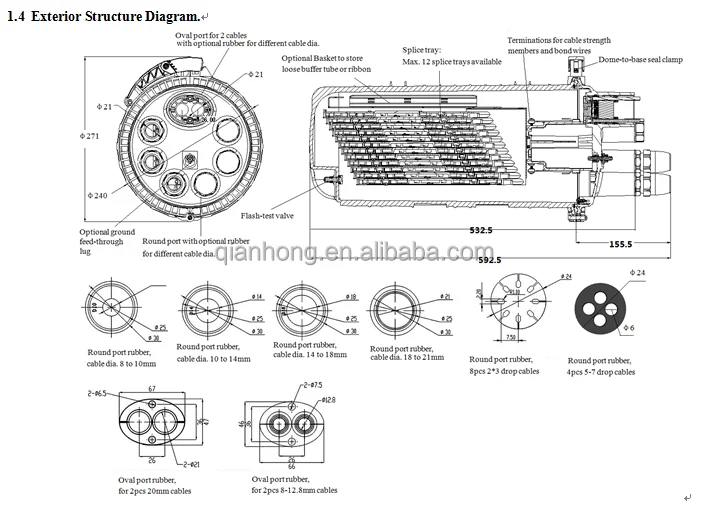

1.5 Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+65 degrees centigrade
2. Atmospheric Pressure: 62~106Kpa
3. Axial Tension: >1000N/1min
4. Flatten Resistance: 2000N/100 mm (1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV(DC)/1min, no arc over or breakdown
7. Temperature recycle: under -40℃~+65℃,with 60(+5)Kpa inner pressure, in 10cycles; Inner pressure shall decrease less than 5 Kpa when closure turn to normal temperature.
8. Durability:25 years
