Lab пилот распылительная сушилка для распылительной сушилки для вместимость ящика для кофейного порошка AYAN PWGZ3L двух жидкости распылительная сушилка (1600250689941)

Share on (1600250689941):


Price:9 000,00 $ - 9 800,00 $

Quantity:


Product Overview

Description



Pilot Spray Dryer -10L/H




Product Parameter

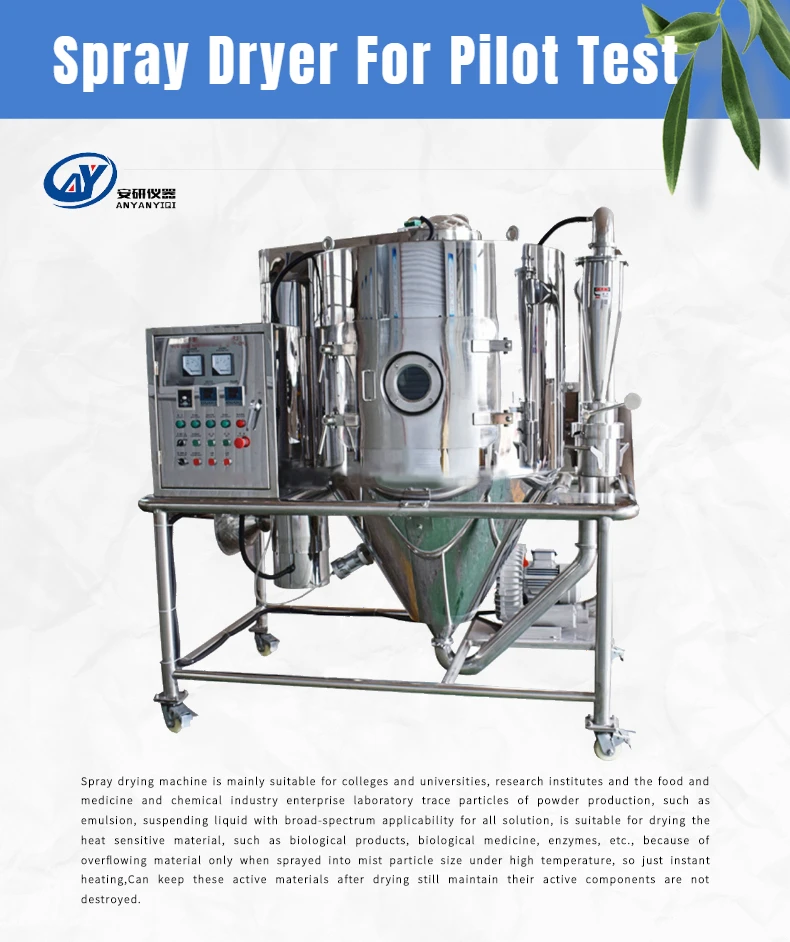

Spray Dryer for Pilot Test
AYAN-GZJ3L
AYAN-GZJ5L
AYAN-GZJ10L
Maximum Water Evaporation (ML)
3000
5000
10000
Minimum Feed Volume (ML)
80
80
80
Inlet Air Temperature (℃)
Indoor Temperature - 250℃
Atomization mode
Secondary Fluid
Centrifugal Type
Centrifugal Type
Diameter of drying chamber (mm)
500
800
1200

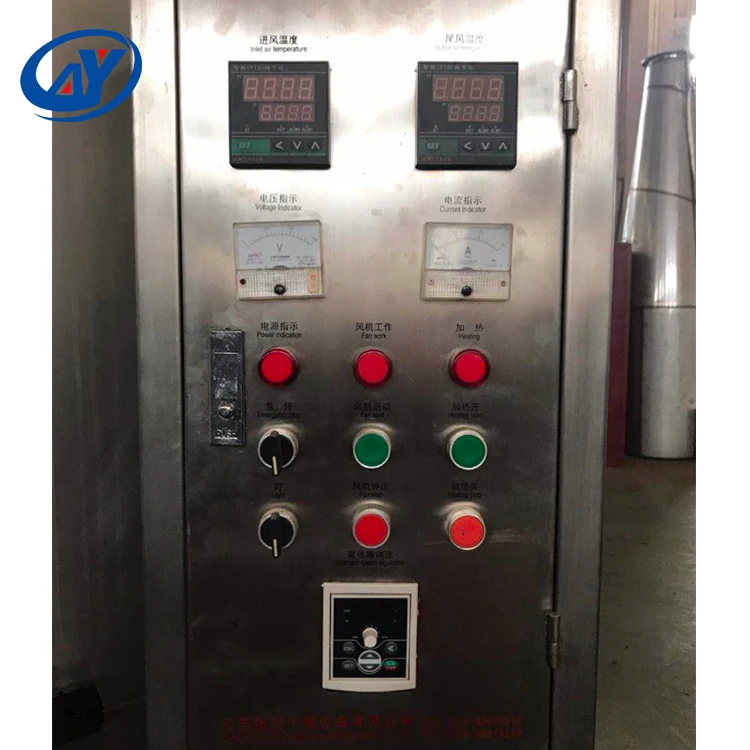

Electronic Control System
Ayan  independent research and development
Design of the Wind
Induced Air
Fan Configuration
Domestic
Compressor Configuration
Taiwanese Dolphins
Heating Capacity (kw)
7.5
15
25
The Switchboard power (kw)
10
18
30
Dimension (mm)
1300x800x1700
1600x1400x1800
2200x1400x2600
Weight(kg)
400
500
800

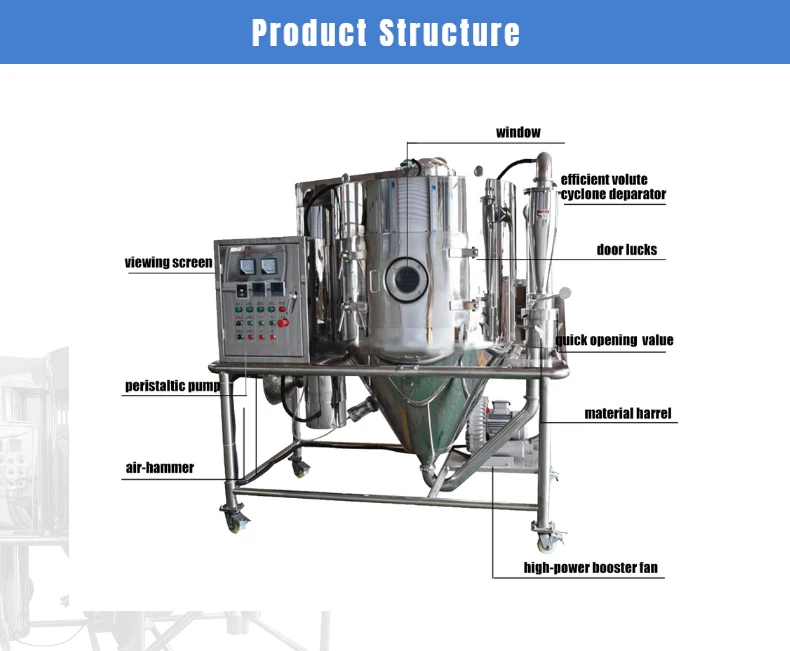

Product Structure

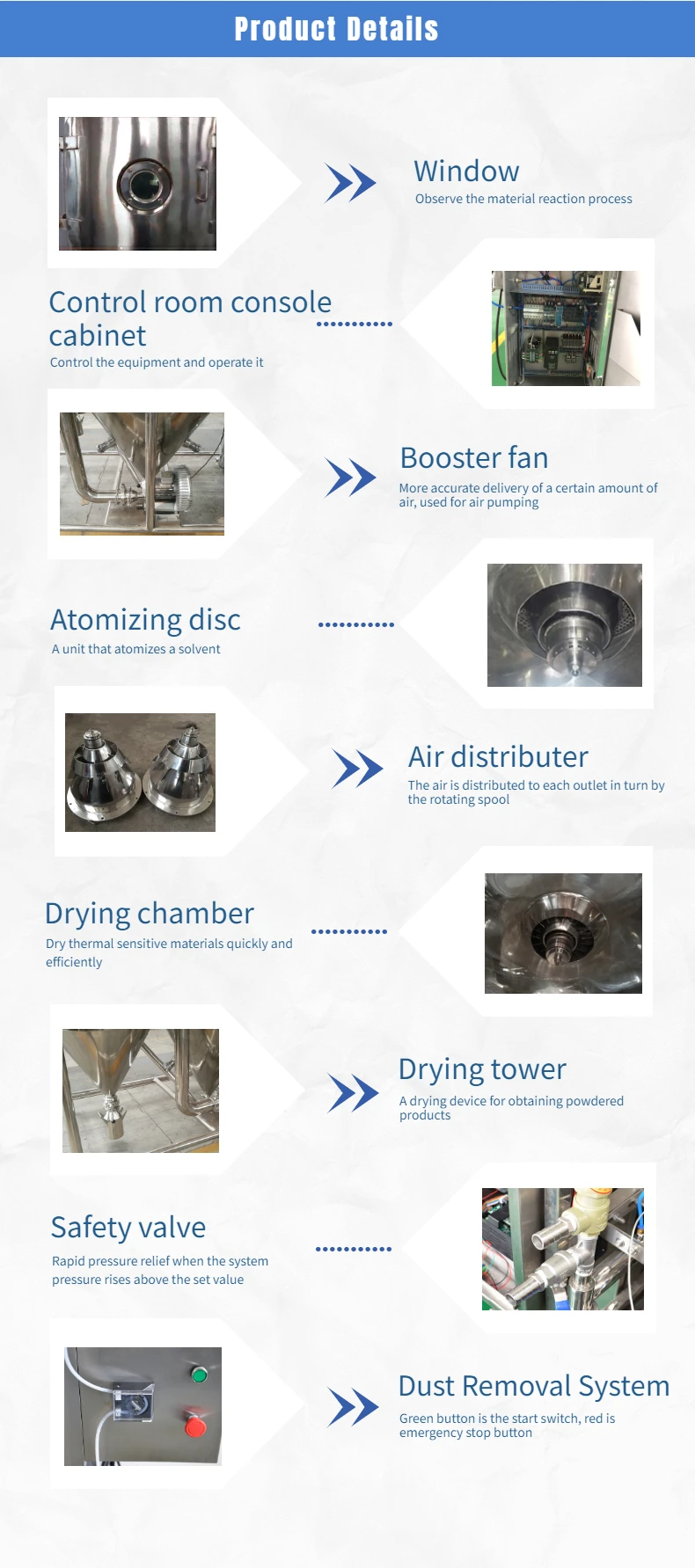

Details Images

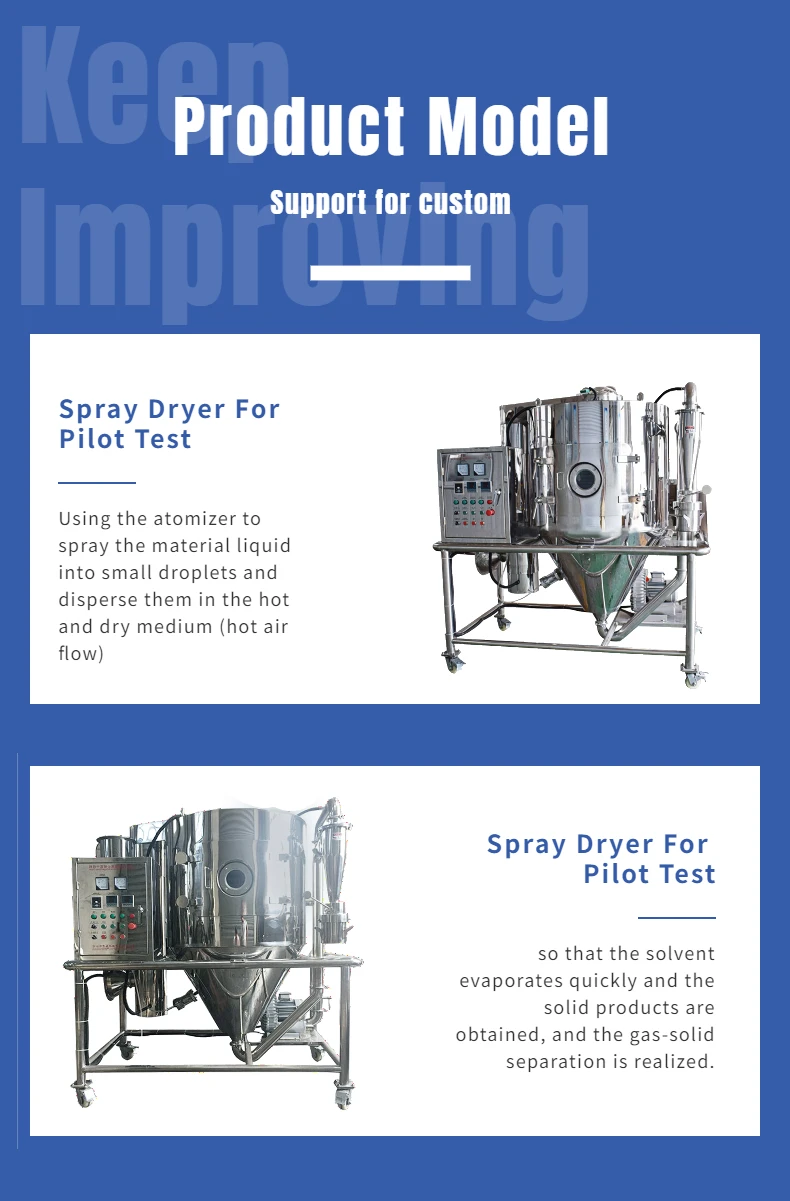

Product Model








Certifications

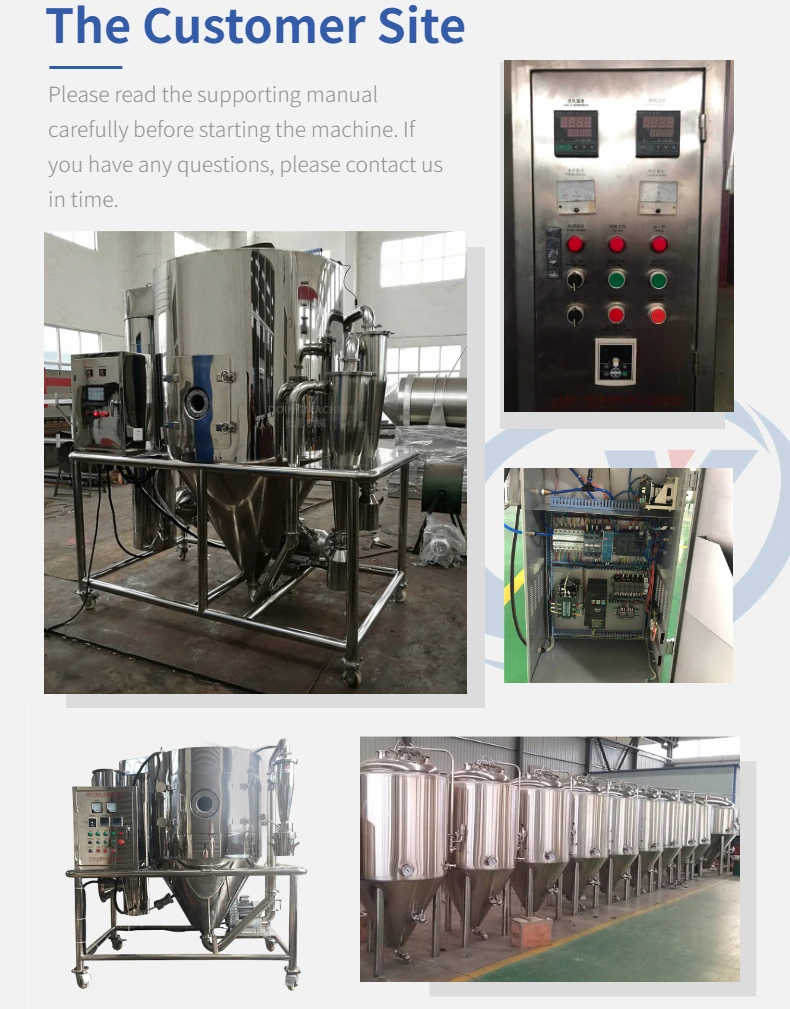

Our Cases






Factory Profile








Sales :Alicia
Email Address : [email protected]
Wechat/Whatsapp :
8618667110612
