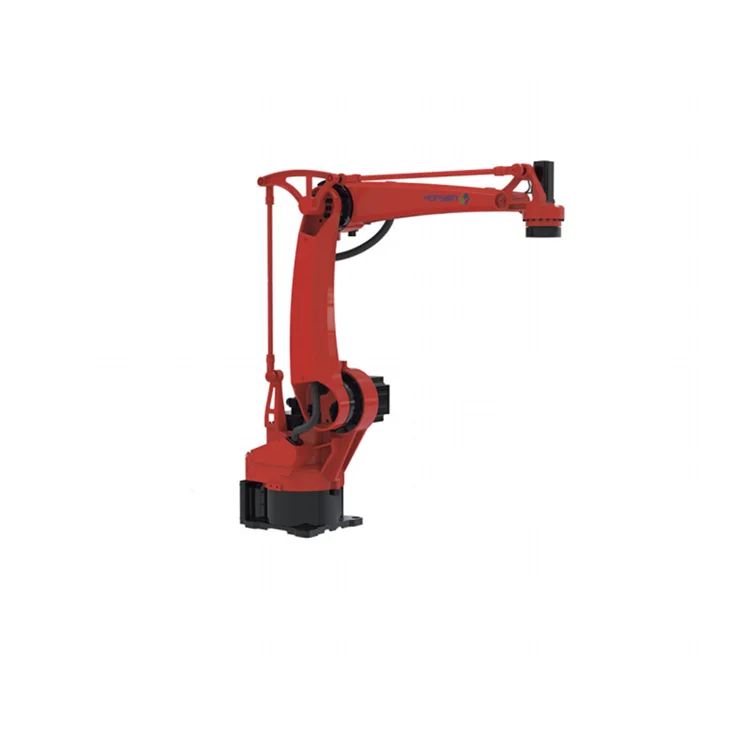

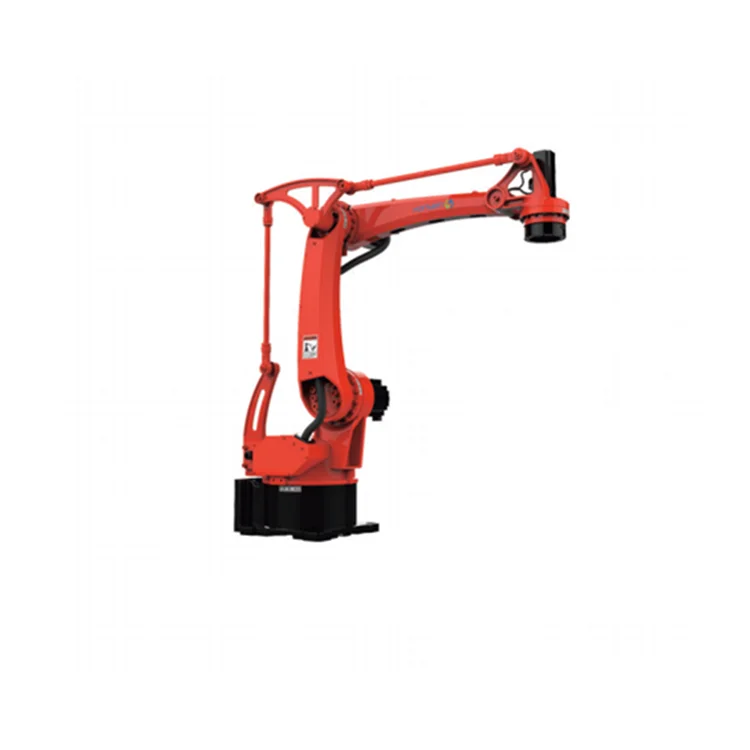

Горячая Распродажа 2021 цена Полезная нагрузка 50 кг 6 оси обработки Роботизированный штабелер вышлите ваш заказ прямо к этому поставщику для сумки
- Category: Manipulator >>>
- Supplier: Dongying Besco Machine Tool Limited
Share on (1600250821339):
Product Overview
Description
Product Overview
Automatic Robot Arm

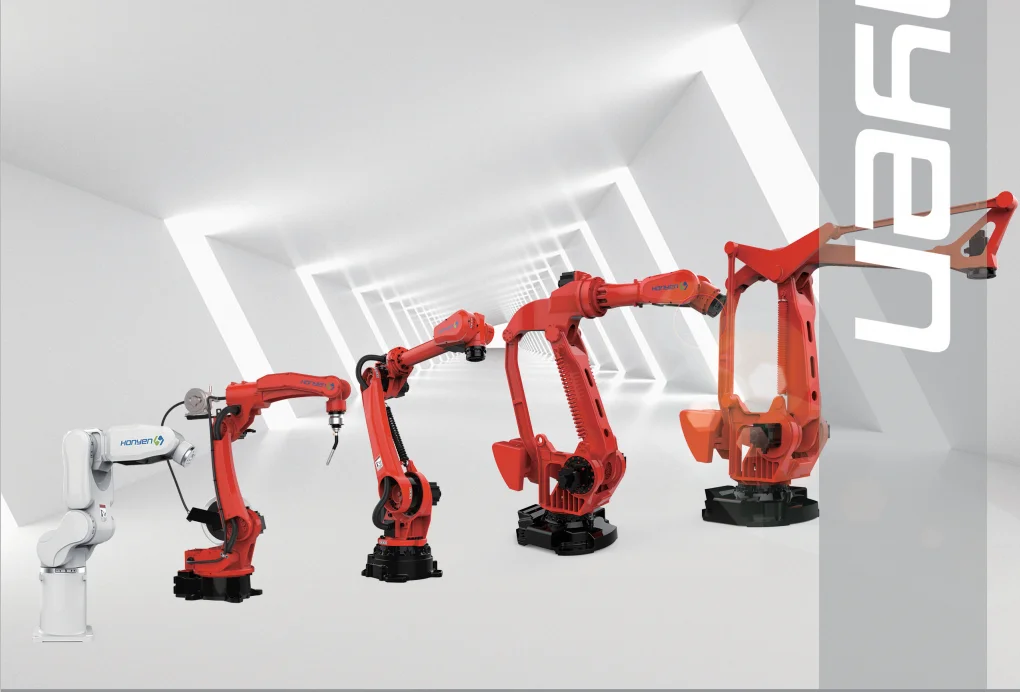

Besco supply a wide product range including industrial robots ranging from 3kg to 800kg payload (6-axis robot, 4-axis robot,delta robot, Scara Robot,Explosion-Proof robot and other special application robots), welding Positioners, robot walking rail,vision system, etc.
Our Robots Are Widely Applied in welding, Handling, Palletizing, Polishing, Painting, Cutting, Etc.
The advantages are: super cost-effective, well-knit compact structure, high flexibility, high reliability, high speed, High Precision, High Expansibility, Easy Operation, Easy Maintenance.
Our Robots Are Widely Applied in welding, Handling, Palletizing, Polishing, Painting, Cutting, Etc.
The advantages are: super cost-effective, well-knit compact structure, high flexibility, high reliability, high speed, High Precision, High Expansibility, Easy Operation, Easy Maintenance.
PRODUCT SPECIFICATIONS

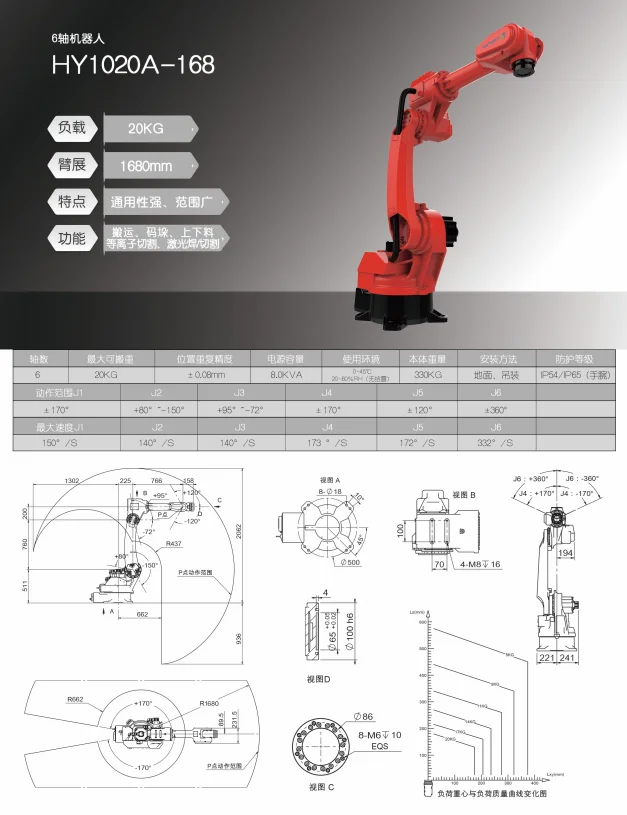

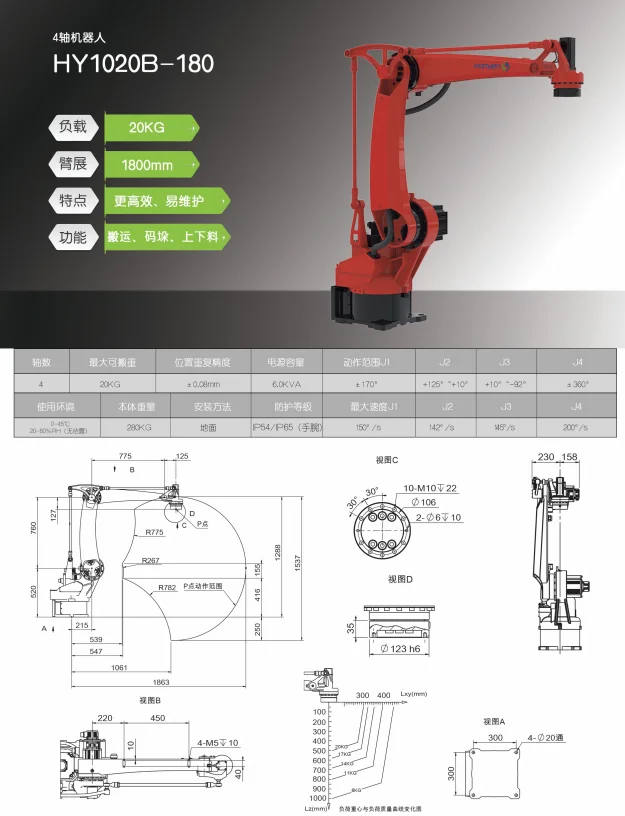

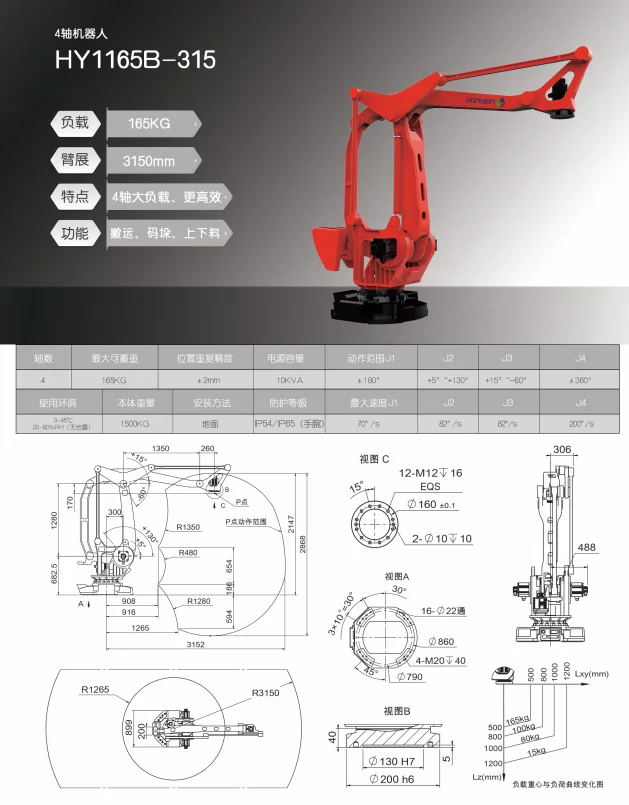

Model | HY1006A-145 | HY1006A-200 | HY1005A-085 | HY1020A-168 | HY1020B-180 | HY1165B-315 | ||||||
Number of Axis | 6 | 6 | 6 | 6 | 4 | 4 | ||||||
Max.load | 6KG | 6KG | 5KG | 20KG | 20KG | 165KG | ||||||
Precision | +-0.08mm | +-0.08mm | +-0.03mm | +-0.08mm | +-0.08mm | +-2mm | ||||||
Battery capacity | 3.7KVA | 6.5KVA | 1.6KVA | 8.0KVA | 6.0KVA | 10.0KVA | ||||||
Use environment | 0-45° | 0-45° | 0-45° | 0-45° | 0-45° | 0-45° | ||||||
Machine Weight | 170KG | 300KG | 60KG | 330KG | 280KG | 1500KG | ||||||
Range of motion | ||||||||||||
J1 | +-165° | +-170° | +-170° | +-170° | +-170° | +-180° | ||||||
J2 | +80°-150° | +80°-150° | +60°-150° | +80°-150° | +125°-+10° | +5°-+130° | ||||||
J3 | +125°-75° | +95°-72° | +205°-50° | +95°-72° | +10°-92° | +15°-60° | ||||||
J4 | +-170° | +-170° | +-130° | +-170° | +-360° | +-360° | ||||||
J5 | +115°-140° | +115°-140° | +-125° | +-120° | / | / | ||||||
J6 | +-220° | +-220° | +-360° | +-360° | / | / | ||||||
Maximum Speed | ||||||||||||
J1 | 145°/S | 158°/S | 145°/S | 140°/S | 150°/S | 70°/S | ||||||
J2 | 133°/S | 145°/S | 133°/S | 140°/S | 142°/S | 82°/S | ||||||
J3 | 145°/S | 140°/S | 140°/S | 173°/S | 145°/S | 82°/S | ||||||
J4 | 217°/S | 217°/S | 172°/S | 172°/S | 200°/S | 200°/S | ||||||
J5 | 172°/S | 172°/S | 172°/S | 172°/S | / | / | ||||||
J6 | 500°/S | 500°/S | 210°/S | 332°/S | / | / | ||||||
Machine Detalies
Our Service

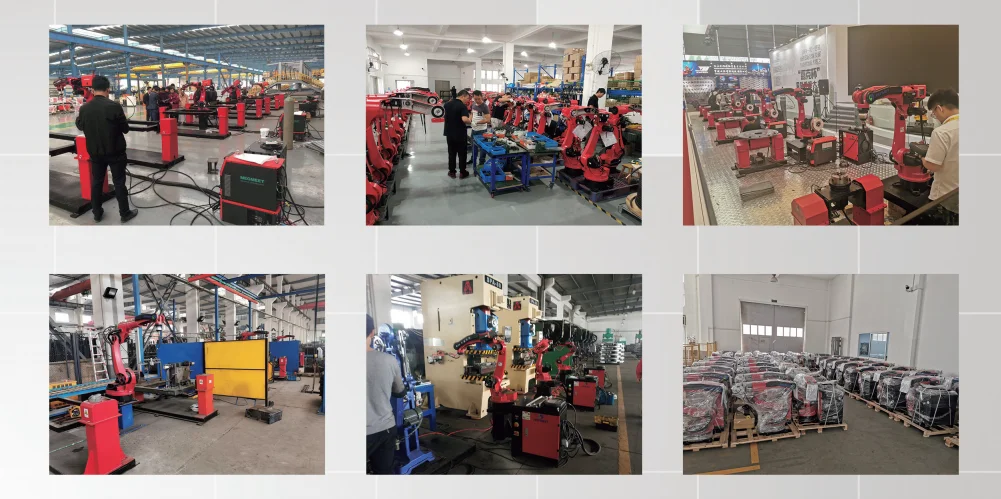

Our Company
Our Customers
More Choose
FAQ
GUARANTY PERIOD
One year free , a lifetime warranty after-sale support .
GUARANTY COVERS
Main parts of the machine , wearing parts not included .
PARTS DELIVERY
Within 5 days by DHL / Fexed .
TECHNOLOGY SUPPORT
Techanicans are available for oversea service .
INSTALLATION & COMMISSIONING
Seller can arrange the techanicals to do the installation for buyer if it is necessary.
One year free , a lifetime warranty after-sale support .
GUARANTY COVERS
Main parts of the machine , wearing parts not included .
PARTS DELIVERY
Within 5 days by DHL / Fexed .
TECHNOLOGY SUPPORT
Techanicans are available for oversea service .
INSTALLATION & COMMISSIONING
Seller can arrange the techanicals to do the installation for buyer if it is necessary.
