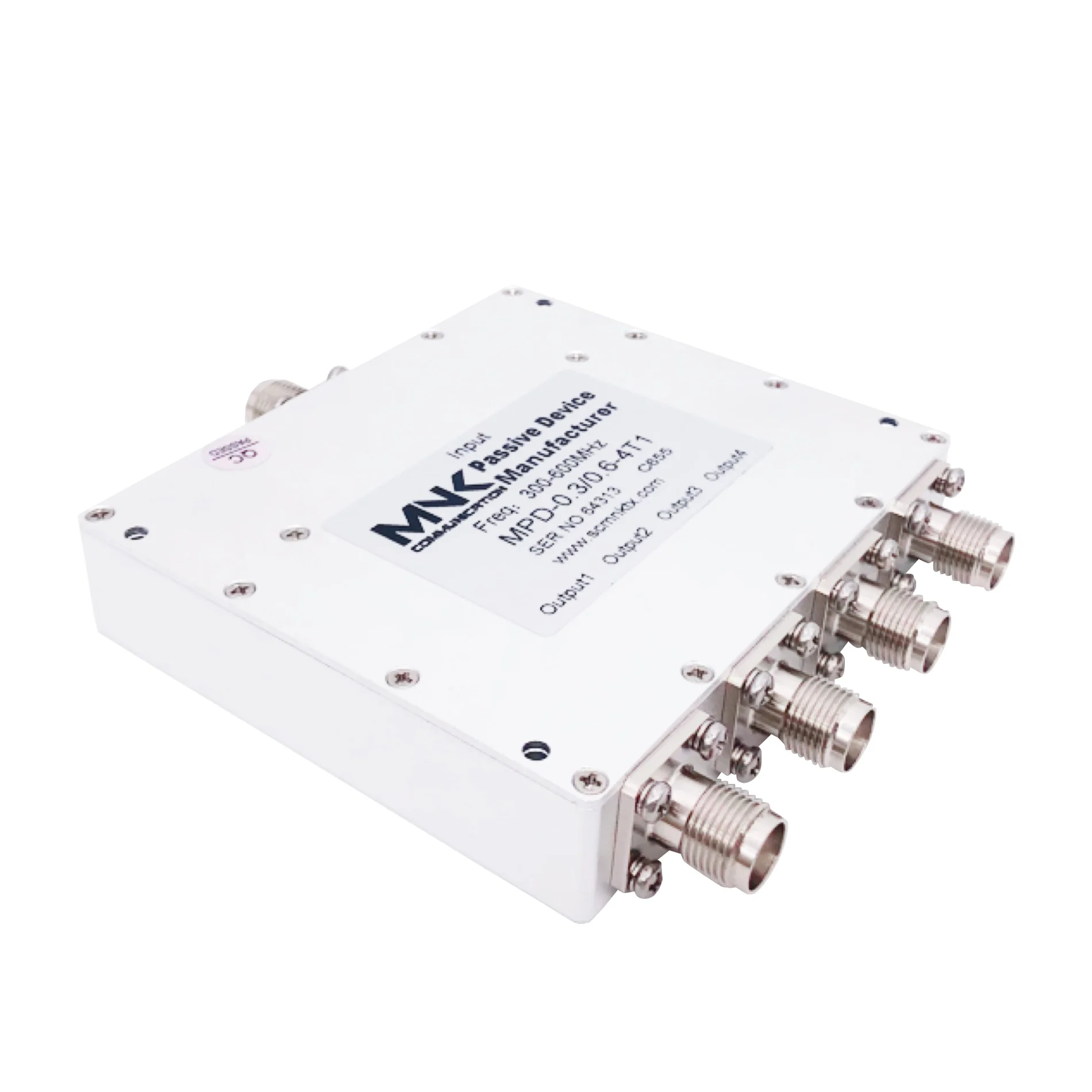

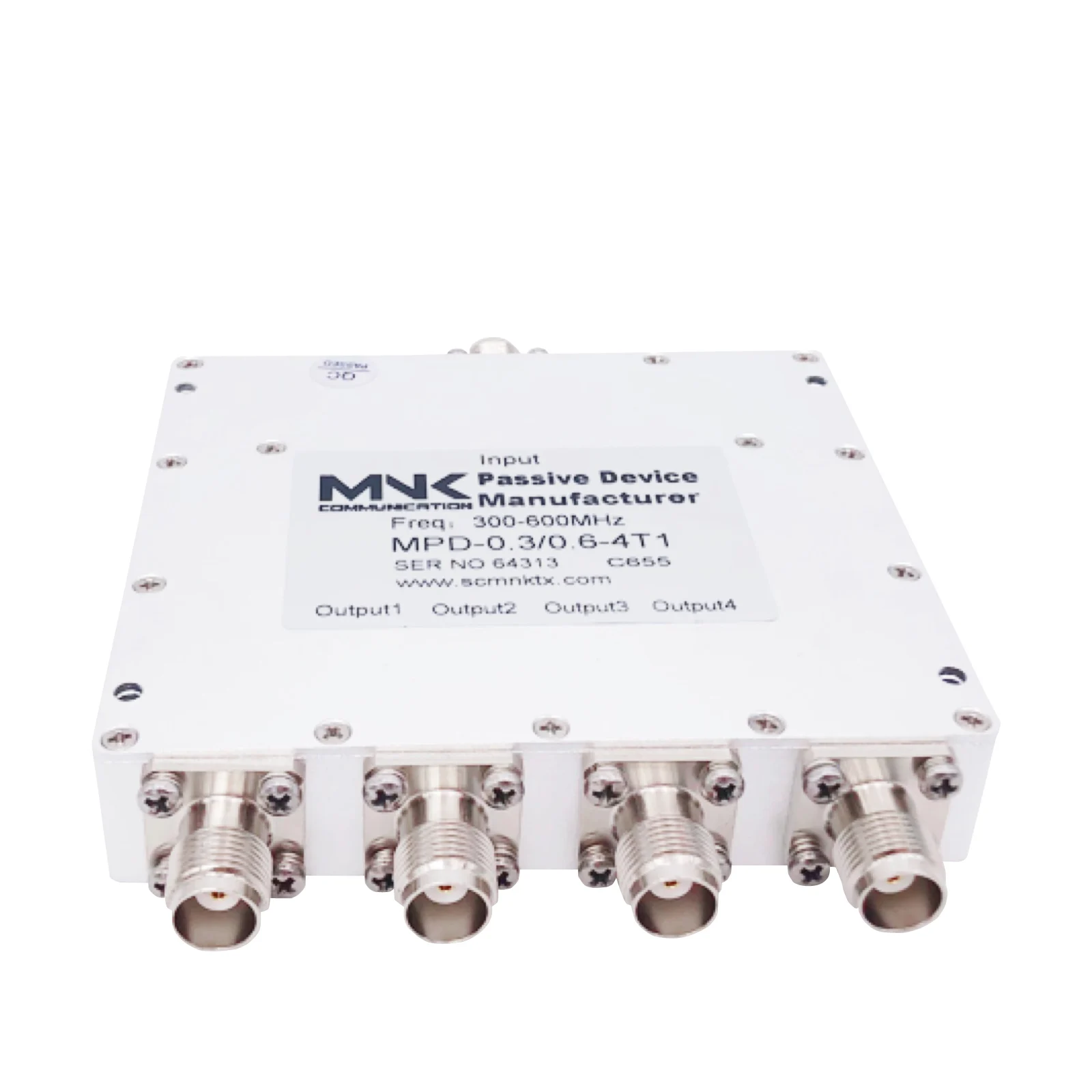

TNC Splitter 300 600MHz 4 Way rf power divider 4 Way Wilkinson Power Spliter combiner Passive suppliers
- Category: Telecom Parts >>>
- Supplier: Sichuan MNK Communication Technology Co. Ltd.
Share on (1600250878016):
Product Overview
Description
Product Description

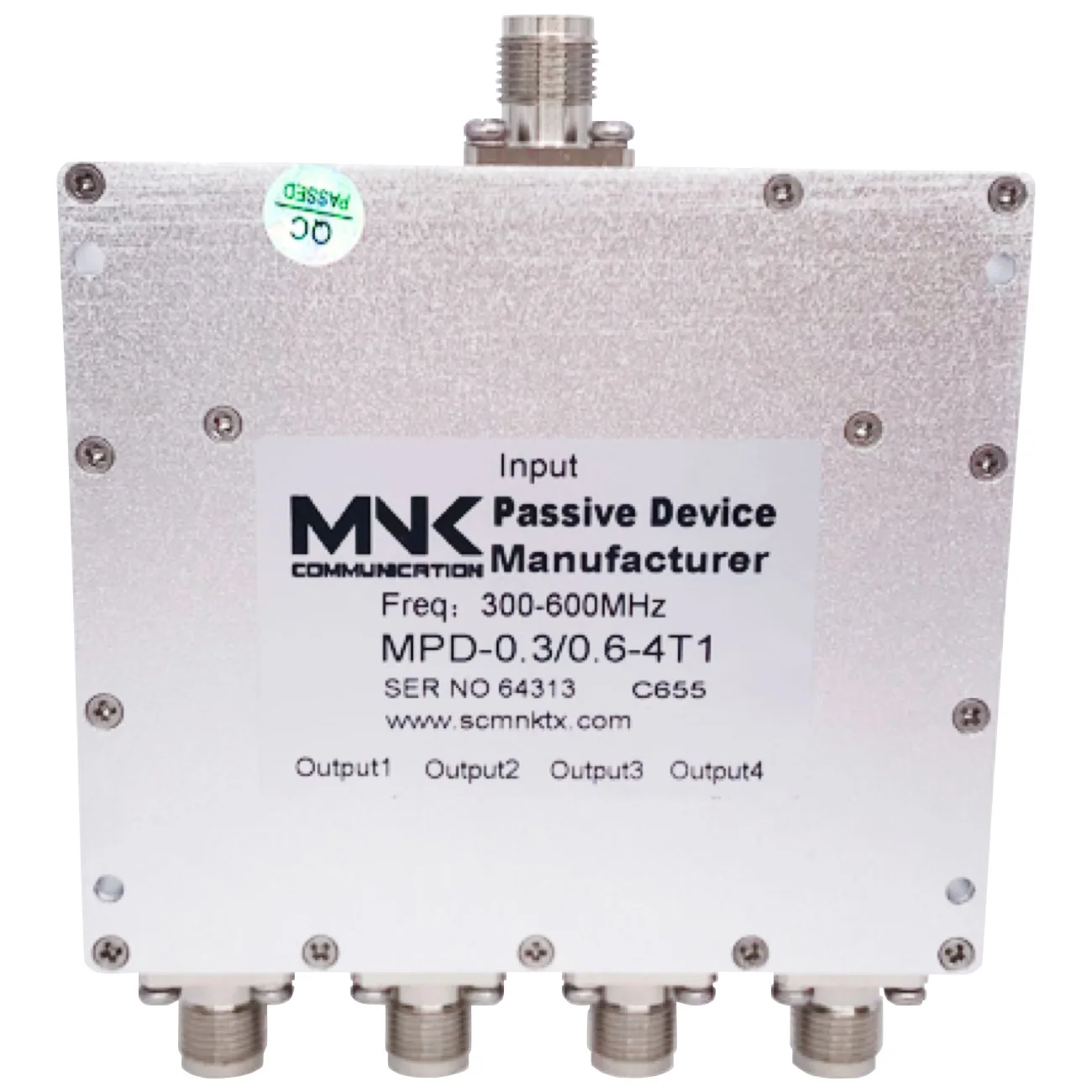

Four-Way Power Divider
Microstrip Power divider, full name of microstrip Power divider, English name Power divider, is a kind of device that divides one input signal energy into two or more outputs equal or unequal energy; Alternatively, the energy of multiple signals can be synthesized into one circuit output, also known as a combiner. A certain degree of isolation shall be ensured between the output ports of a power splitter. It has the advantages of wide working frequency, small insertion loss, high gain and isolation, stable performance and so on.

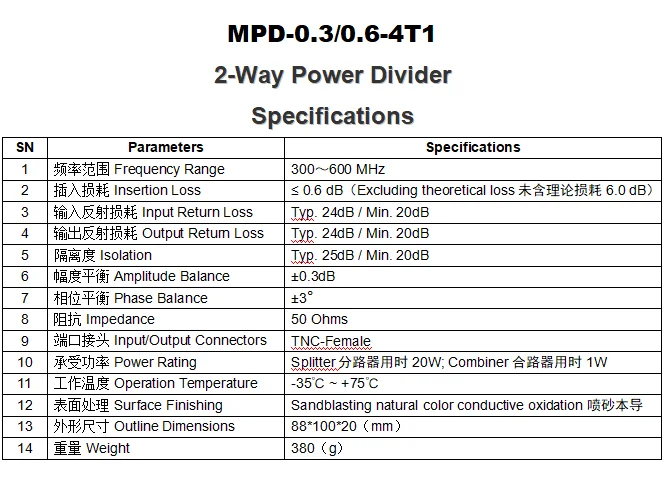

Specification
SN | Parameters | Specifications |
1 | Frequency Range | 300～600 MHz |
2 | Insertion Loss | ≤0.6dB（Excluding theoretical loss 6.0 dB） |
3 | Input Return Loss | Typ. 24dB / Min. 20dB |
4 | Output Return Loss | Typ. 24dB / Min. 20dB |
5 | Isolation | Typ.25dB / Min.20dB |
6 | Amplitude Balance | ±0.3dB |
7 | Phase Balance | ±3° |
8 | Impedance | 50 Ohms |
9 | Input / Output Connectors | TNC-Female |
10 | Power Rating | Forward Power 20W;Reverse Power 1W |
11 | Operation Temperature | -35℃ ~ +75℃ |
12 | Surface Finishing | Sandblasting natural color conductive oxidation |

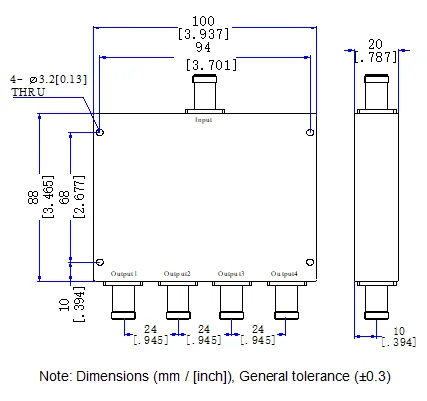

13 | Outline Dimensions | 88*100*20（mm） |
14 | Weight | 380（g） |
Company Profile
Sichuan Minnik Communication Technology Co., Ltd. was established in 2008, located in Wuhou District, Chengdu City, specializing in microwave communication, passive RF devices research and development, production and sales.
The company is committed to power dividers, Bridges, couplers and other passive devices to provide high quality products and quality services. We produce our own
brand MNK passive RF devices. With nearly 20 years of design and production experience, our products are not only popular in the domestic market, but also exported to more than 30 countries and regions around the world. Our products can even be a perfect substitute for international famous brands! We warmly welcome OEM and ODM orders, we are a competitive and reliable supplier.
From China, serve the world!
brand MNK passive RF devices. With nearly 20 years of design and production experience, our products are not only popular in the domestic market, but also exported to more than 30 countries and regions around the world. Our products can even be a perfect substitute for international famous brands! We warmly welcome OEM and ODM orders, we are a competitive and reliable supplier.
From China, serve the world!

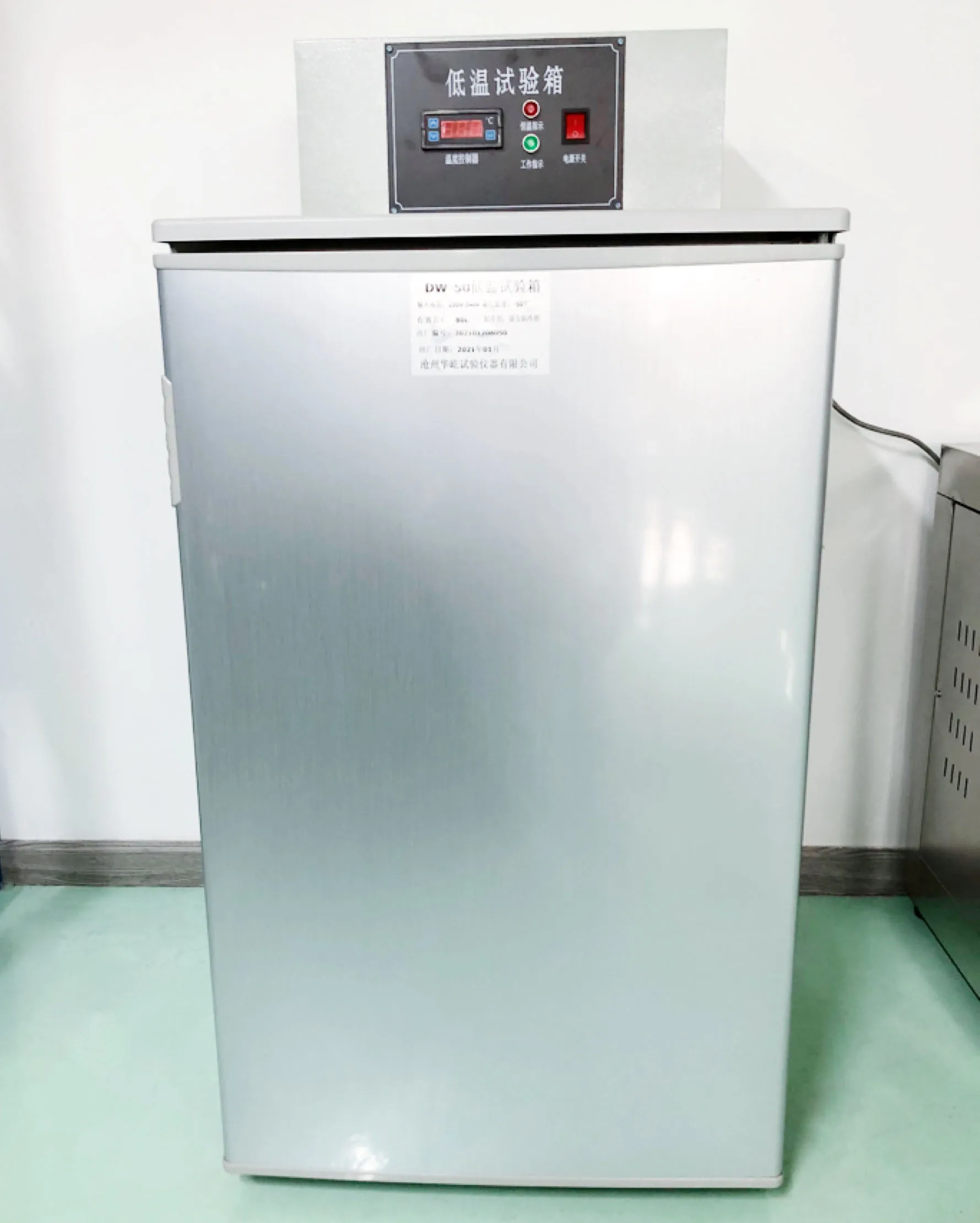

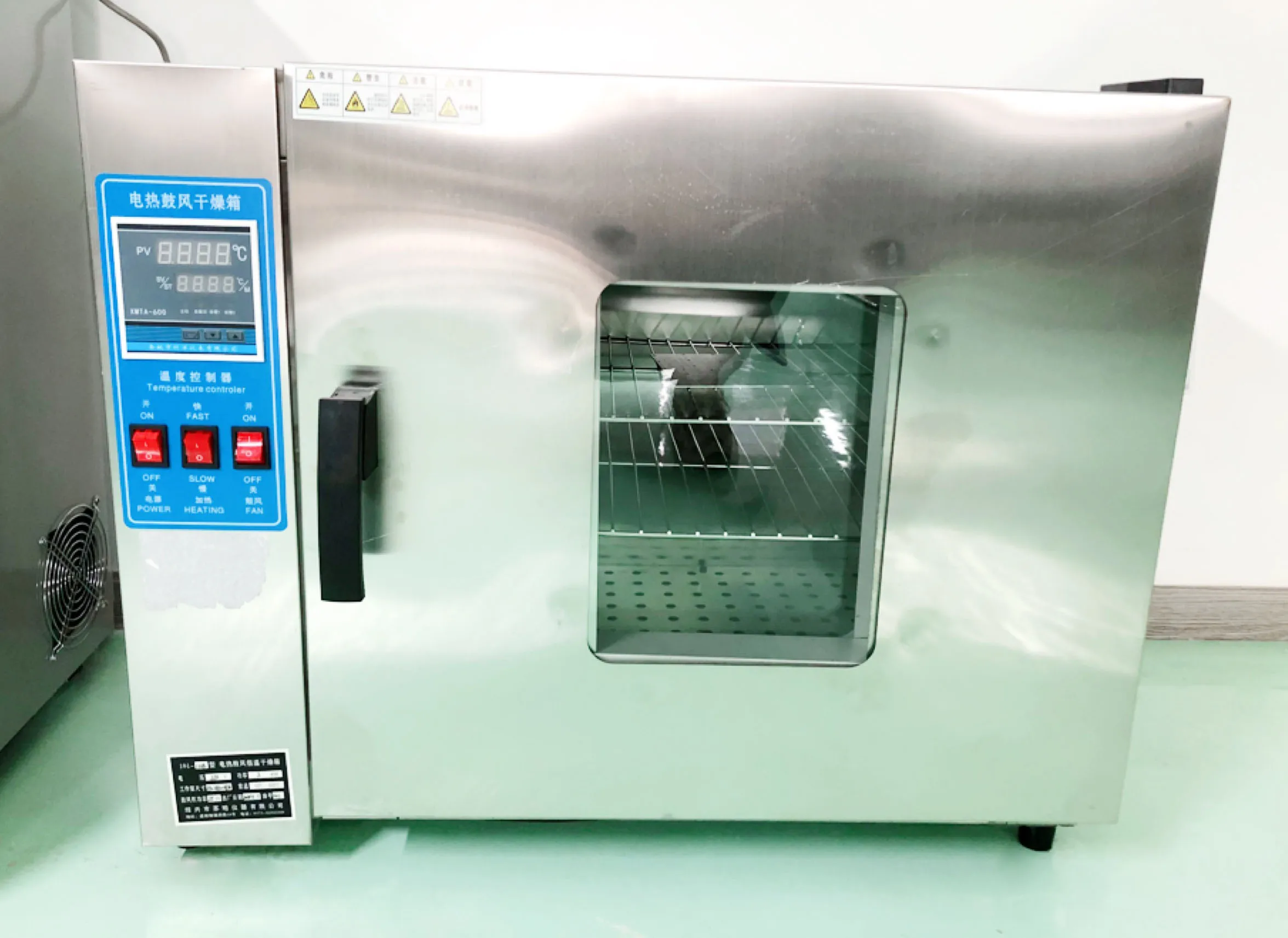

Our equipment

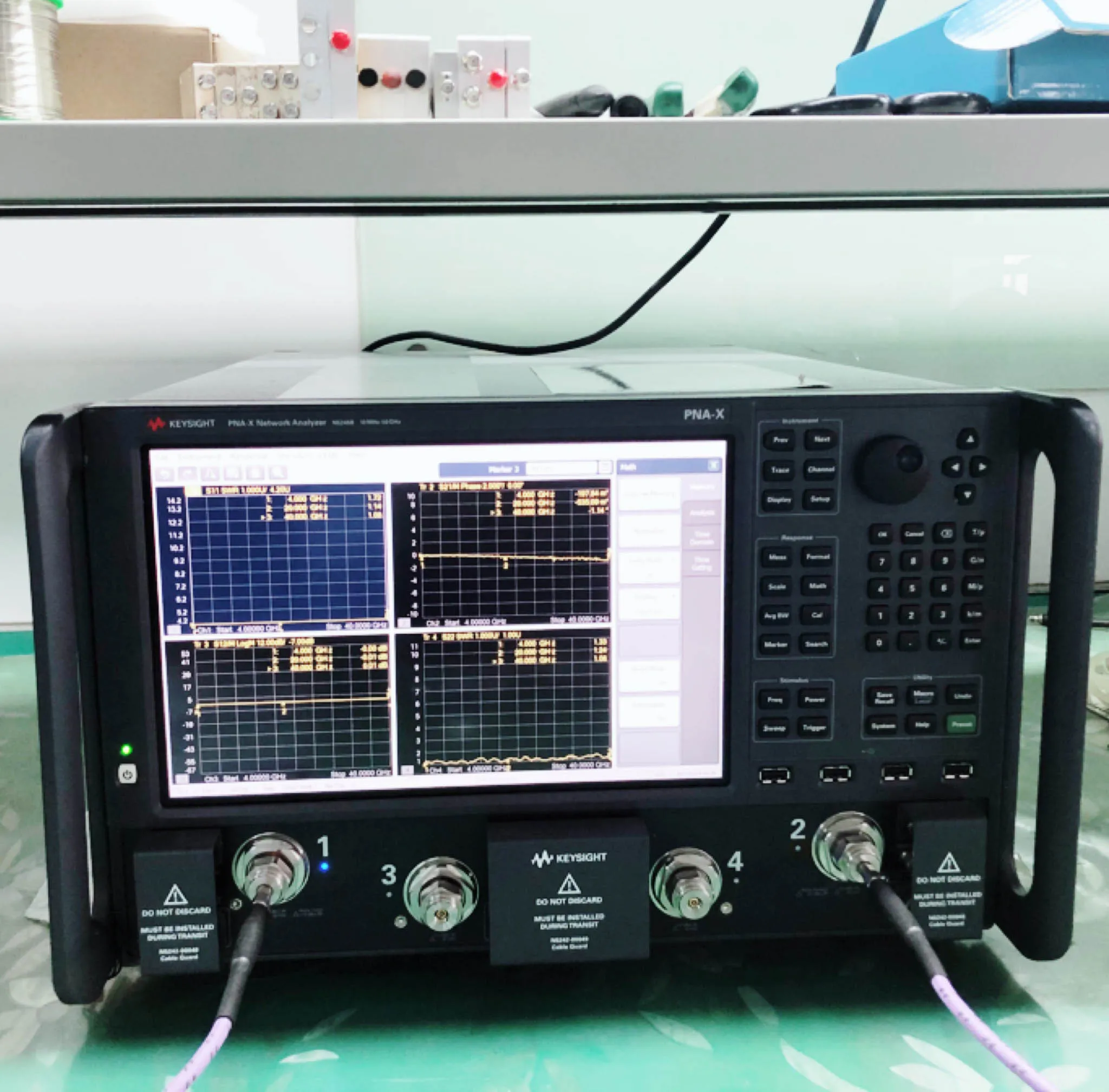

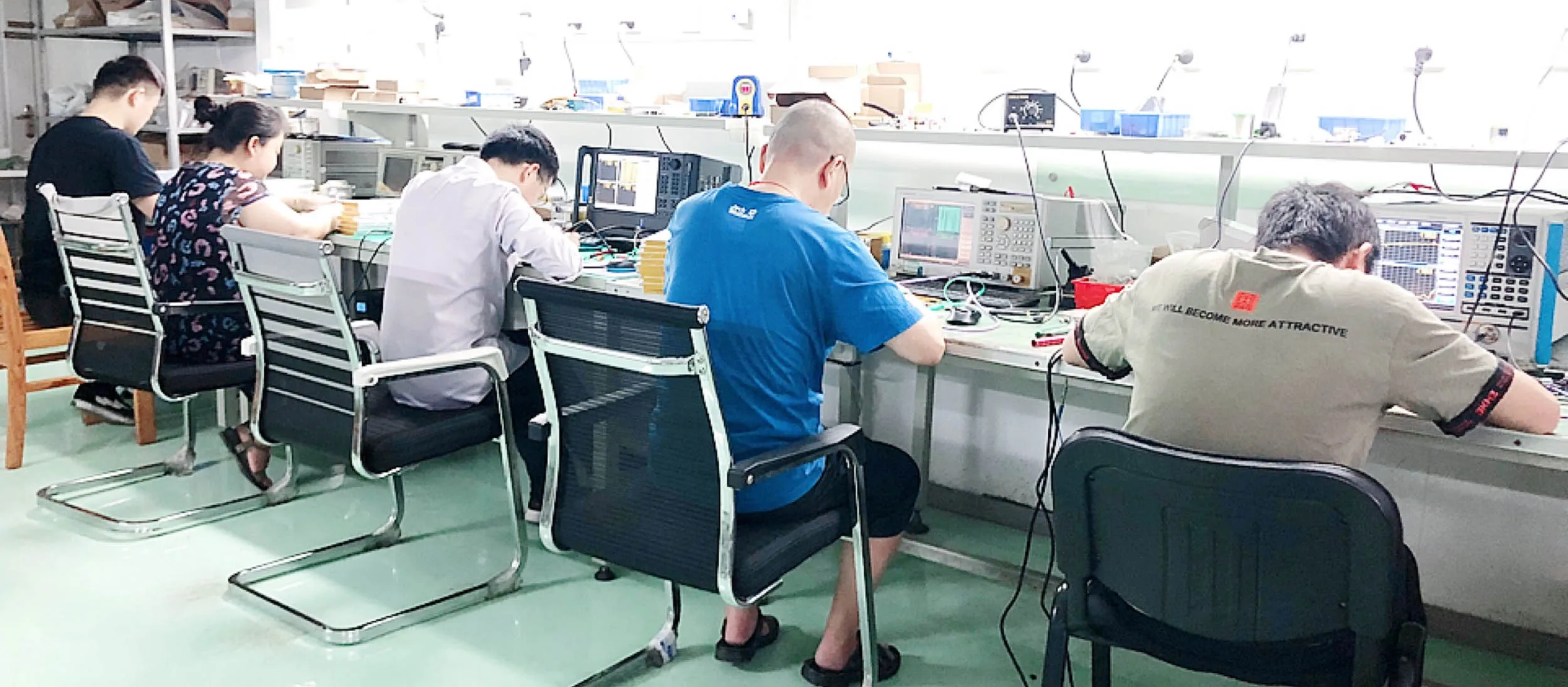

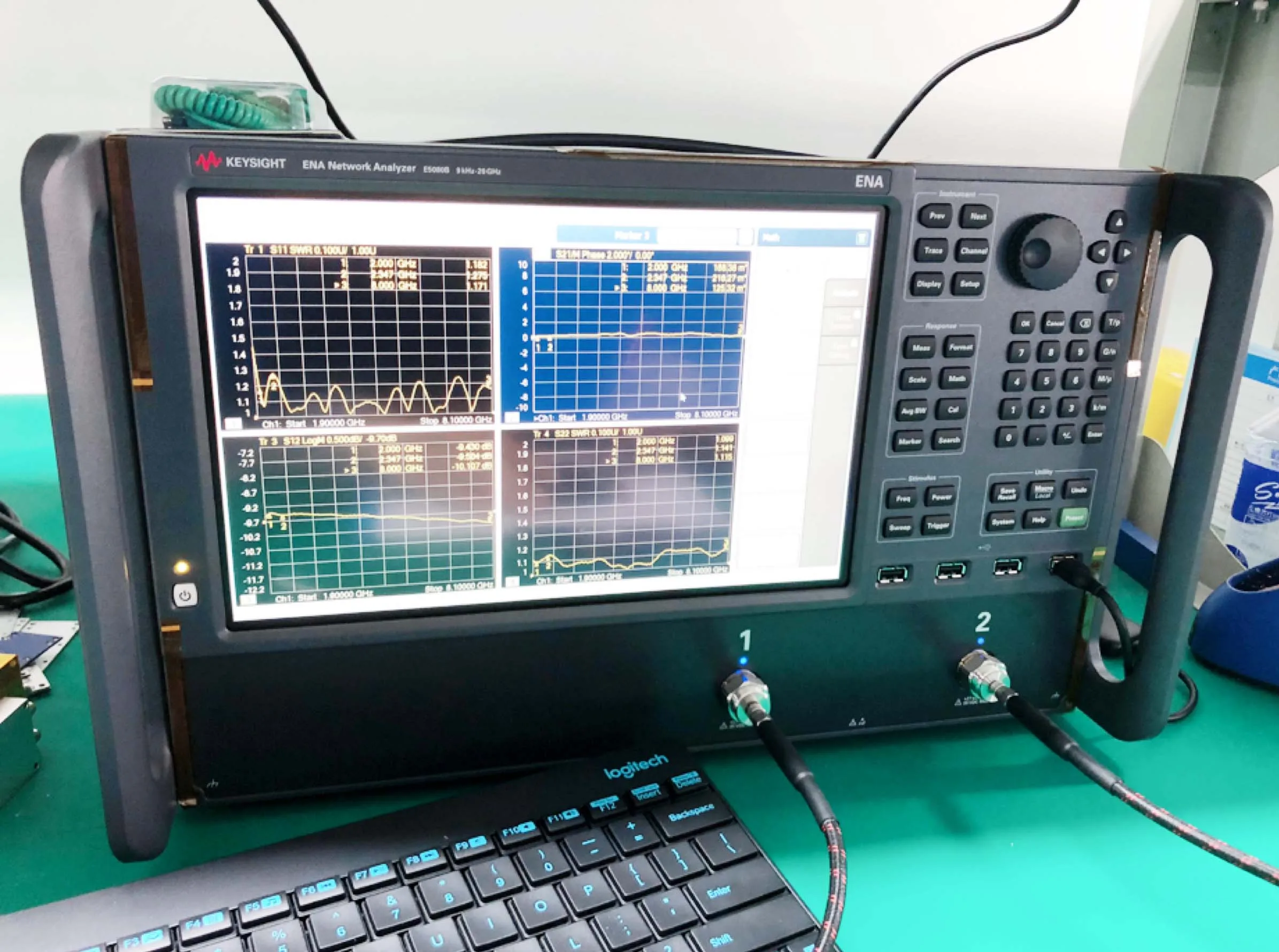

Production tests
Certificate
Packaging & transportation
FAQ
Q1. Are you a manufacturer or a trader?
A: We are a manufacturer, producing and selling together.
Q2. How about your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 14-28 days if the goods are not in stock, it is according to quantity.
Q3. Can you produce according to the samples?
A: Yes, we welcome OEM and ODM for you,Accept small batch customization.
A: We are a manufacturer, producing and selling together.
Q2. How about your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 14-28 days if the goods are not in stock, it is according to quantity.
Q3. Can you produce according to the samples?
A: Yes, we welcome OEM and ODM for you,Accept small batch customization.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
If you have another question, pls feel free to contact us.
A: Yes, we have 100% test before delivery
If you have another question, pls feel free to contact us.
