5 axsis brush making machine
US $1.00
Jaron Brand Good price Brush drilling and planting machine with five axes and five heads for toilet and dish brush
- Category: Brush Making Machines >>>
- Supplier: Yangzhou Jierun Precision Brush Making Equipment Co. Ltd.
Share on (1600251409855):
Product Overview
Description
Product Overview

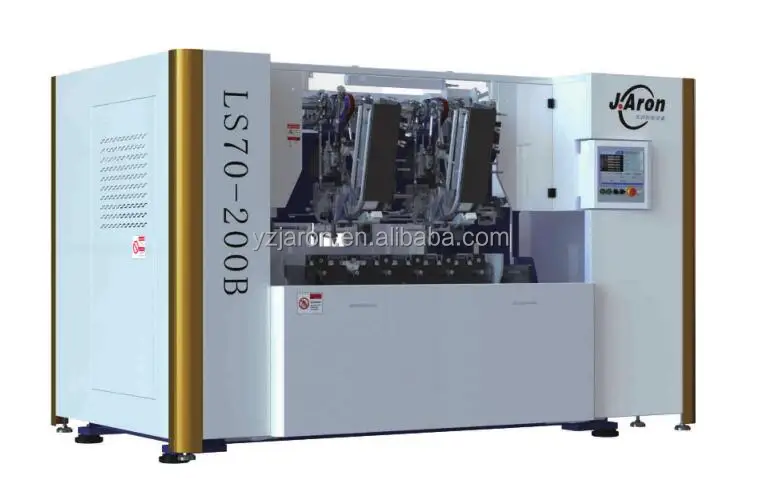

LS70-200B Brush making machine with five axes
The available platform types are as follows:
Platform for producing slope/vertical bristle angle; platform for spherical toilet brush and hemispherical dish brush; platform for tubular industrial brush platform.
FEATURES AT A GLANCE
Product features:
Brush planting method: flat filament or Martin method, equipped with 3 drilling heads and 2 planting heads to produce various brushes, and it can meet the mass production of various brooms, toilet brushes, roller brushes and other products.Our machine can produce two or three color brushes.
It is very easy to store 1000 different brush subroutines and make a new program
Brush planting method: flat filament or Martin method, equipped with 3 drilling heads and 2 planting heads to produce various brushes, and it can meet the mass production of various brooms, toilet brushes, roller brushes and other products.Our machine can produce two or three color brushes.
It is very easy to store 1000 different brush subroutines and make a new program

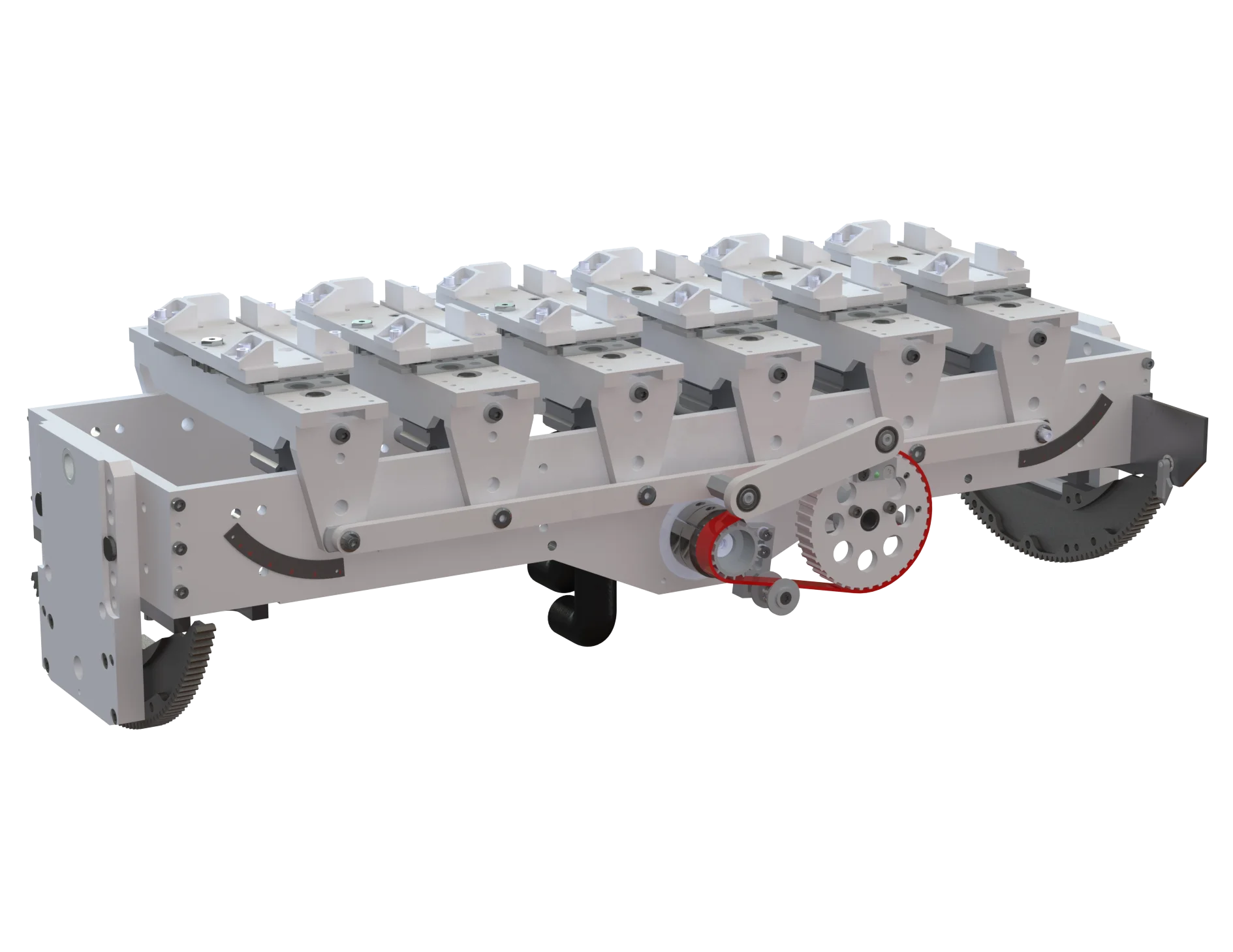

Part of brush making machine
Part of brush making machine
Part of brush making machine
PRODUCT SPECIFICATIONS
No | Model | LS70-200B |
1 | Power | 7.5KW |
2 | Number of axes | 5 |
3 | Heads of brush planting | 2 |
4 | Heads of drilling | 3 |
5 | Processing mode | Continuous |
6 | Mouth trip | 70 |
7 | Maximum speed(hole/min) | 900 |
8 | Maximum length of brush plate(mm) | 600 |
9 | Brush wire length range(mm) | 50-240 |
10 | Brush aperture range(mm) | 2.5-8.0 |
11 | Weight(KG) | 3800 |
12 | Dimensions(L*W*H)(mm) | 3100*1800*2040 |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
