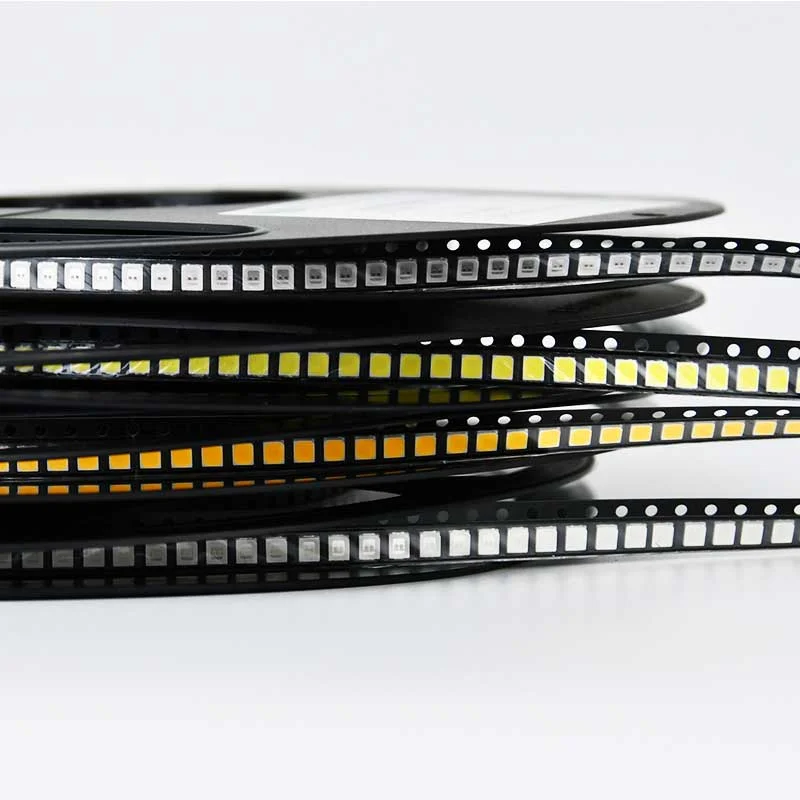

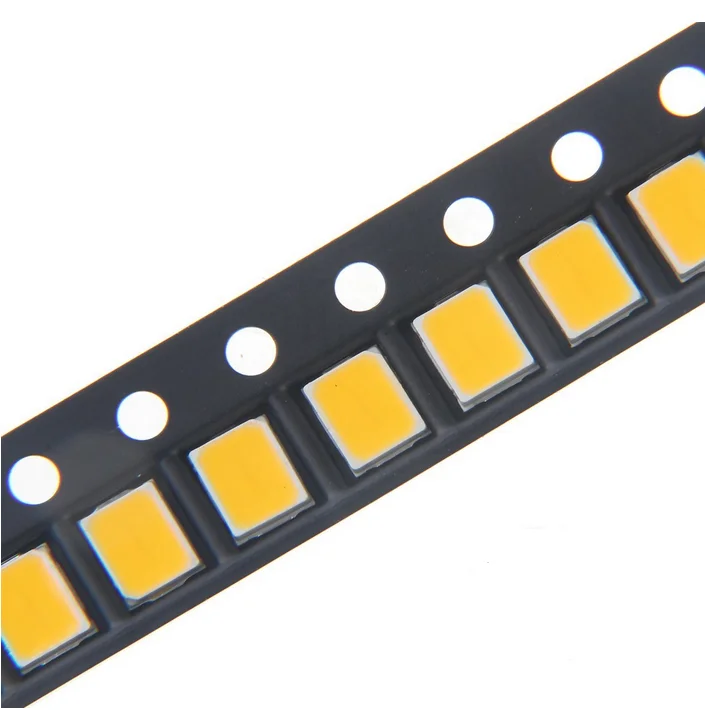

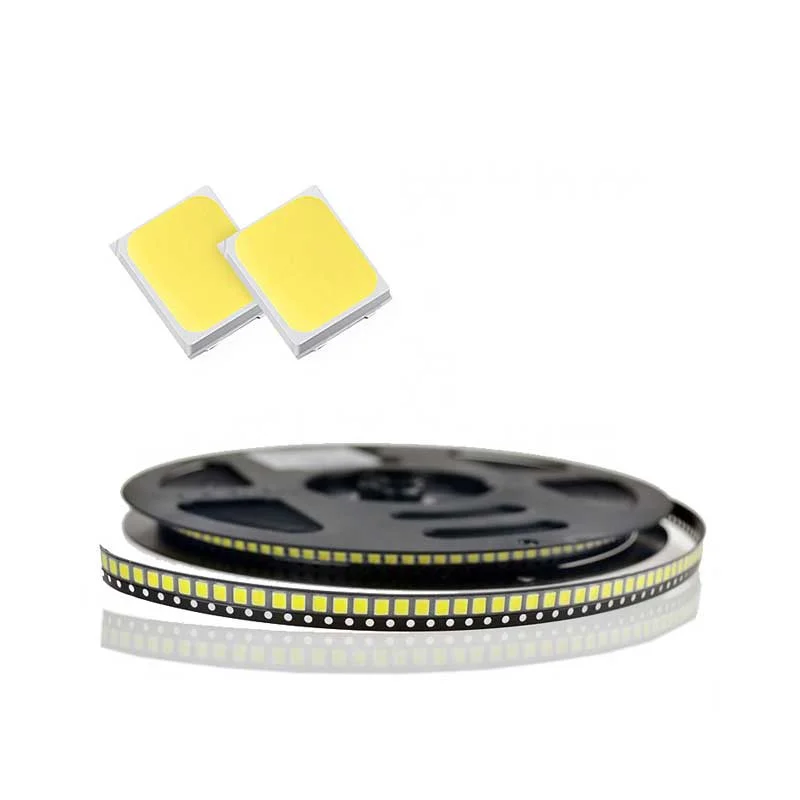

PPA copper bracket led chips smd 0.2W 3V SMD 2835 LED Chip
- Category: SMD LED >>>
- Supplier: Guangdong Anke Photoelectric Technology Co. Ltd.
Share on (1600251900580):
Product Overview
Description
Product Description
Main photoelectric characteristic arameter table(TA=25°C)
| Item | Symbol | Min | Typ | Max | Units | Test Conditions |
| Forward voltage | VF | 3.0 | 3.2 | 3.4 | V | IF=60mA |
| Reverse current | IR | - | - | 1 | uA | VR = 7V |
| Luminous flux | Φ | 24 | - | 26 | lm | IF=60mA |
| Ra | CRI | 80 | - | - | - | IF=60mA |
| Half power angle | 2θ1/2 | - | 125 | - | Deg | IF=60mA |
| Color tolerance | SDCM | - | 5 | - | Step | IF=60mA |
Maximum specification(TA=25°C)
| Item | Symbol | Maximum specification | Unit |
| Power consumption | PD | 200 | mW |
| Forward current | IF | 60 | mA |
| Peak Forward current | IEP | 65 | mA |
| Reverse voltage | VR | 7 | V |
| junction temperature | ≤ 125°C | ||
| Pin application temperature | ≤ 75°C | ||
| working temperature | -40°C To +85°C | ||
| Storage temperature | -40°C To +85°C | ||
Please contact our service department staff to get
more details and Spec PDF file . After our department
get your requirement.we will provide the file immediately.
About us
Workshop
Company advantage
Packing&Shipping
FAQ
Q1: What technical support can I get after purchase?
A: Data sheet and PDF will be provided to dear you. Our sales engineer will be answering your questions any time.
Q2: If there is LED failure, how can you support?
A: Clients provide us with pictures of the failed products or the samples rejected And give a test report, our engineers of after sale team will analyze the failure reasons. If the failure was caused by Anklight, we will compensate with qualified replacement as fast as we could!
Q3: Are you manufacturer or trade company?
A: In worldwide market, Anklight is well know as an experienced and professional LED manufacturer.
Q4: What about the lead time?How do you ship the goods and how long does it take to arrive?
A: It depends on the order quantity. Generally the lead time should be 7-12 working days.We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-6 working days to arrive. Airline and sea shipping also are optional.
Q5: What payment method do you accept?
A: We accept T/T, Paypal, Western Union and others more as clients’ requirements.
Q6:Can I get free sample?
A:Yes, we can offer free sample for you to check before order as long as you afford the express freight. After check the samples, we will deduct the freight in your bulk order.
