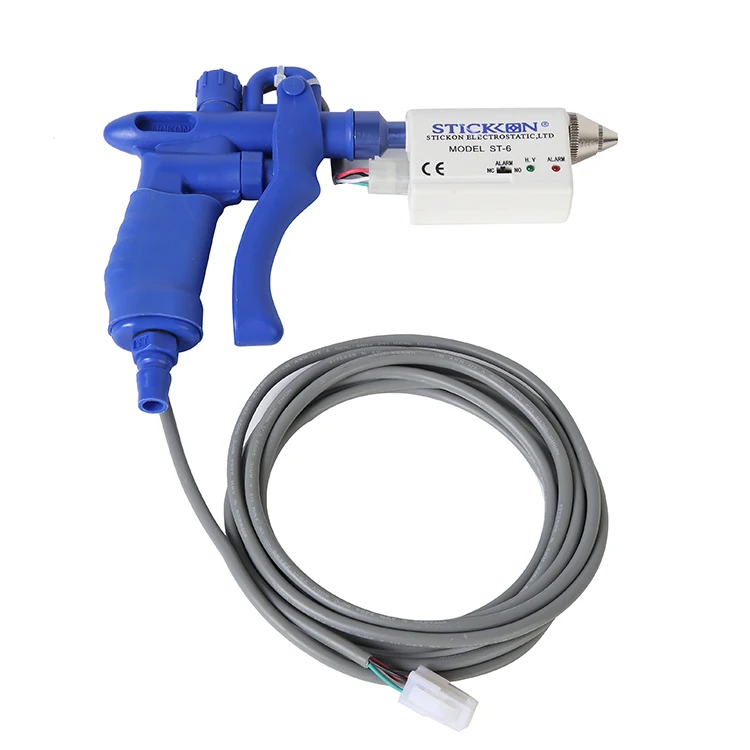

Лучшее качество, гарантия безопасности, высокочастотный ионный пневматический пистолет переменного тока
- Category: Power Spray Gun >>>
- Supplier: Sidike Technology (guangdong) Co. Ltd.
Share on (1600258237121):

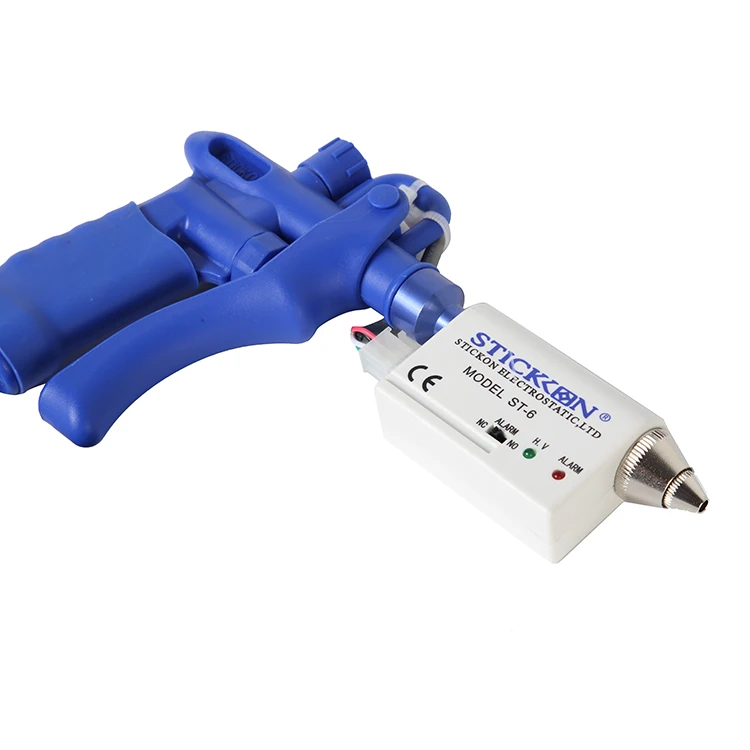

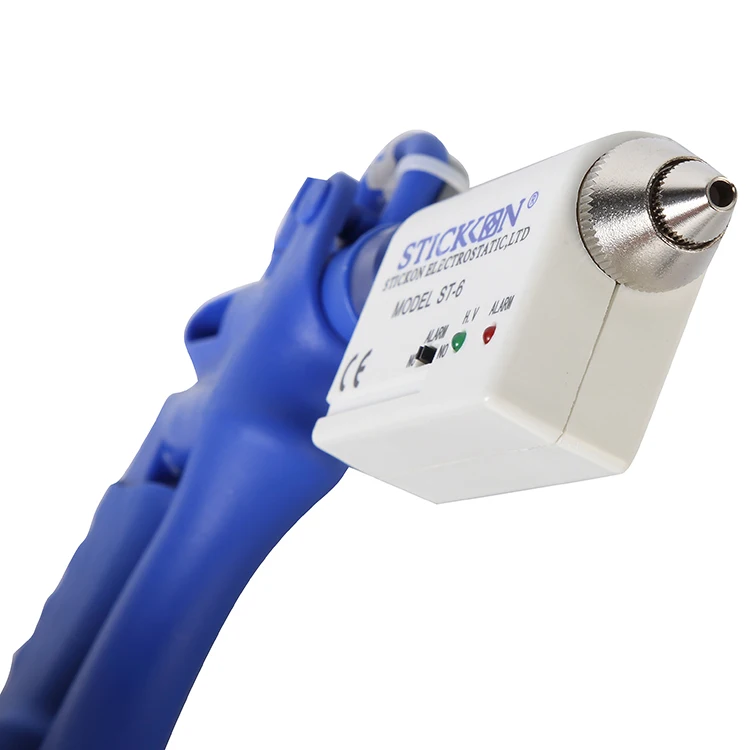

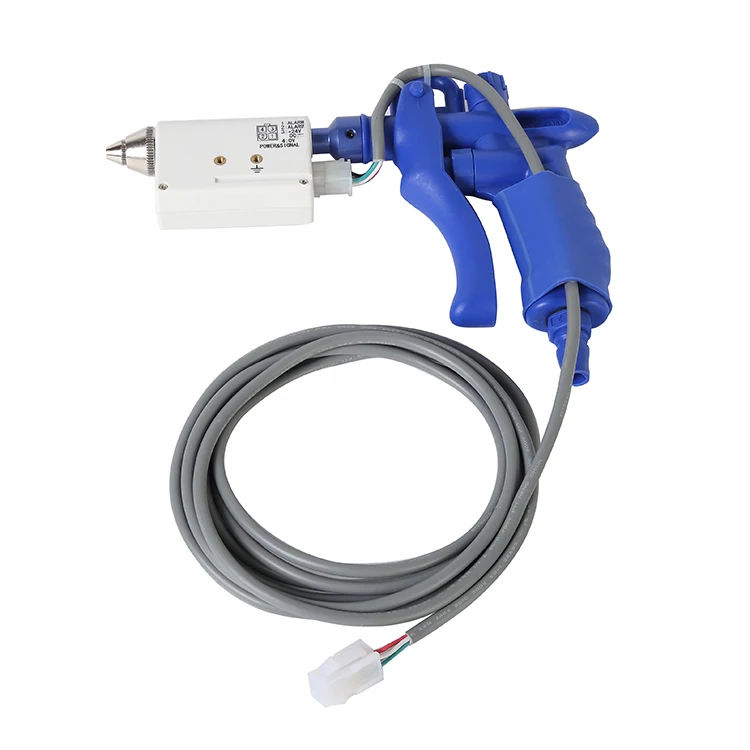

Product Overview
Description
Technical Parameter
Input power supply: | DC+24V±10% |
Capacity: | 2.4VA |
Output voltage: | High frequency 3000V |
Ion balance: | Under ±15V |
Use air pressure: | 0.05Mpa~0.6Mpa |
Air flow: | 30L/min~160L/min |
Ozone generation: | Under 0.05ppm (input air pressure: 0.02Mpa, measuring distance: 300mm) |
Working guarantee temperature: | 10~40℃(keep it below -10℃~60℃) |
Work guarantee humidity: | -75% or less, but no condensation (keep it below -90%, no condensation) |
Main body size: | 87×18×50mm(W×H×D) does not include protruding parts |
Main body weight: | 72g |

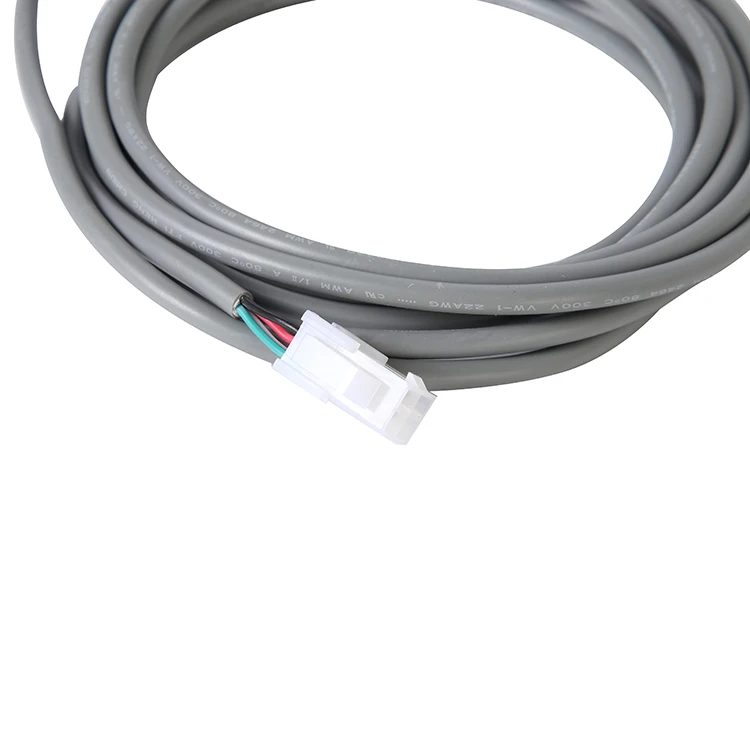

Attachments: | Enter the power cable |
Product Description
Product Features:
High reliability: Use air connectors to improve ozone resistance.
Ensure security: The transformer box with new structure is used to stop high voltage output when cleaning and replacing the discharge needle
Nozzles with improved ozone resistance: Various sprays with high ozone resistance
Easy to maintain: The discharge needle is detachable and easy to maintain, and can be pulled out together with the transformer from the rear to clean and replace the discharge needle conveniently.
High pressure stop alarm: It has alarm display function when high voltage stops, and is equipped with normally open and normally closed double contacts without signal contact.
Clean check [C.C]: It is also equipped with normally open non-signal contacts
High reliability: Use air connectors to improve ozone resistance.
Ensure security: The transformer box with new structure is used to stop high voltage output when cleaning and replacing the discharge needle
Nozzles with improved ozone resistance: Various sprays with high ozone resistance
Easy to maintain: The discharge needle is detachable and easy to maintain, and can be pulled out together with the transformer from the rear to clean and replace the discharge needle conveniently.
High pressure stop alarm: It has alarm display function when high voltage stops, and is equipped with normally open and normally closed double contacts without signal contact.
Clean check [C.C]: It is also equipped with normally open non-signal contacts
Use Field:
Static removal of electronic equipment
1. Static removal at wafer level (film peeling and static removal around bracket)
2. Static removal of cutting device (film peeling and static removal around bracket)
3. Equipment inspection device
4. ESD countermeasures for handling after packaging
5. Device for equipment mounting process
6. Static removal of operation parts such as mounting robot
7. Assembly lines for small products such as mobile phones
8. Local static removal of (ESD) products such as DVD pickup
1. Static removal at wafer level (film peeling and static removal around bracket)
2. Static removal of cutting device (film peeling and static removal around bracket)
3. Equipment inspection device
4. ESD countermeasures for handling after packaging
5. Device for equipment mounting process
6. Static removal of operation parts such as mounting robot
7. Assembly lines for small products such as mobile phones
8. Local static removal of (ESD) products such as DVD pickup
Product Overview
High efficiency, strong blowing force and low gas consumption, and wide application;
The ion balance reaches 0±15 V, which meets the high-end electrostatic control and dust removal requirements of electronic manufacturing and medical equipment;
The gun nozzle has air outlet filter, which can ensure clean air blowing;
The gun body is lightweight and solid-resistant, and the touch switch and air volume control valve are comfortable to operate;
There is ion balance adjustment system;
Two sections of LED bright display power supply and high voltage output;
The gun body and trachea cable shell are made of electrostatic dissipation materials;
In addition, it is equipped with a hanger to hold the air gun.
The ion balance reaches 0±15 V, which meets the high-end electrostatic control and dust removal requirements of electronic manufacturing and medical equipment;
The gun nozzle has air outlet filter, which can ensure clean air blowing;
The gun body is lightweight and solid-resistant, and the touch switch and air volume control valve are comfortable to operate;
There is ion balance adjustment system;
Two sections of LED bright display power supply and high voltage output;
The gun body and trachea cable shell are made of electrostatic dissipation materials;
In addition, it is equipped with a hanger to hold the air gun.

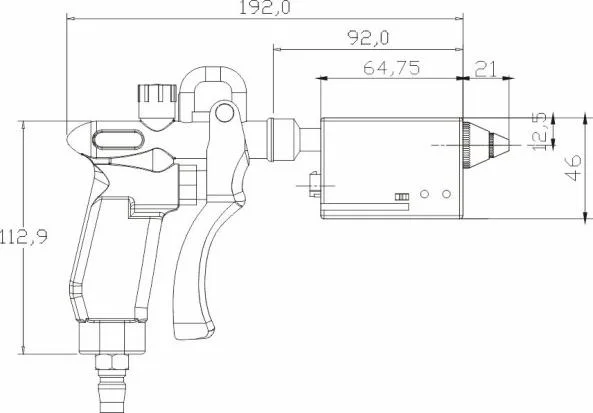

Product Size
Company Profile
Stickon Technology Guangdong Company Ltd
Stickon Technology Guangdong Company LtdStickon Technology Guangdong Company Ltd was established in Dongguan, 2004. With information industry developing at very fast speed, Stickon has been growing to be a famous professional manufacturer of static equipment in China. Stickon with high reputation in static equipment industry, registered trade mark in China and protected by law.Stickon Technology Guangdong Company Ltd is a comprehensive manufacturer of static charge controling elimination equipment.We creat all aspects of our top line prouducts,from research and development,through manufacturing and marketing.Our aim is to gain the maximum cost efficiency for our customers and increase their production field.We pursue high quality/low cost in every step of our productions process for the ultimate benefit of our customers.
Stickon,steam of experts,combine with our sophisticated management;suste,suste-of-the-art technology an tight quality control ,brings our customers the maximum satisfaction in practile products and services.Stickon research and manufacturing:Ionizing Air Blower、Ionizing Air Gun、Ionizing Air Nozzle、Ionizing Air Bar、Static Elimination Blower、Ionizing Air Copper Bar、Static net、Ionizing Air Curtain.
Bank of Stickon series products has been installed for kinds of customers.In addion to our product line,Stickon also produces customized static charge eliminator according to customers specifications.We provide solution or solve conrol problem for our customers.Your inquiry and order are warmly welcome.

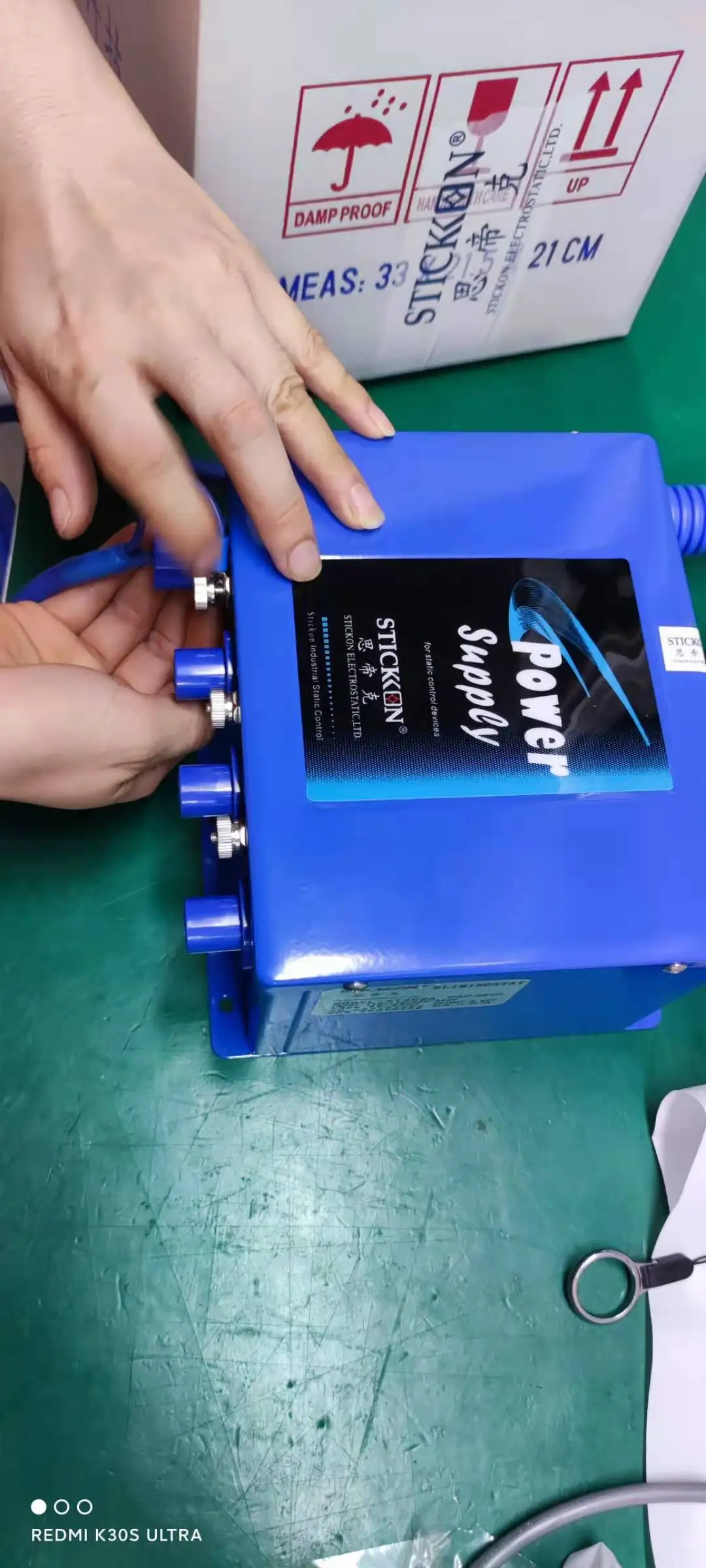

Packing & Delivery
Exhibition
Certifications
FAQ
1. How can I get the price?
- We usually quote within 24 hours after we get your inquiry (except weekend and holidays). If you are urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples?
- Yes. Please feel free to contact us.
3. What is your lead time?
- It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4. What is your payment term?
- T/T, Western Union, MoneyGram, and Paypal. This is negotiable.
5. What is the shipping method?
- It could be shipped by sea, by air, or by express (EMS, UPS, DHL, TNT, FEDEX etc). Please confirm with us before placing orders.
6. How do you make our business long-term and good relationship?
- We keep good quality and competitive price to ensure our customers benefit. Furthermore, we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
- We usually quote within 24 hours after we get your inquiry (except weekend and holidays). If you are urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples?
- Yes. Please feel free to contact us.
3. What is your lead time?
- It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4. What is your payment term?
- T/T, Western Union, MoneyGram, and Paypal. This is negotiable.
5. What is the shipping method?
- It could be shipped by sea, by air, or by express (EMS, UPS, DHL, TNT, FEDEX etc). Please confirm with us before placing orders.
6. How do you make our business long-term and good relationship?
- We keep good quality and competitive price to ensure our customers benefit. Furthermore, we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
