Gel coat Portable Gel Coat Spray Gun Spray Cup

Share on:

Price:$80.00 - $120.00
Price in USD:Details


Product Overview


Product Description

Product name:

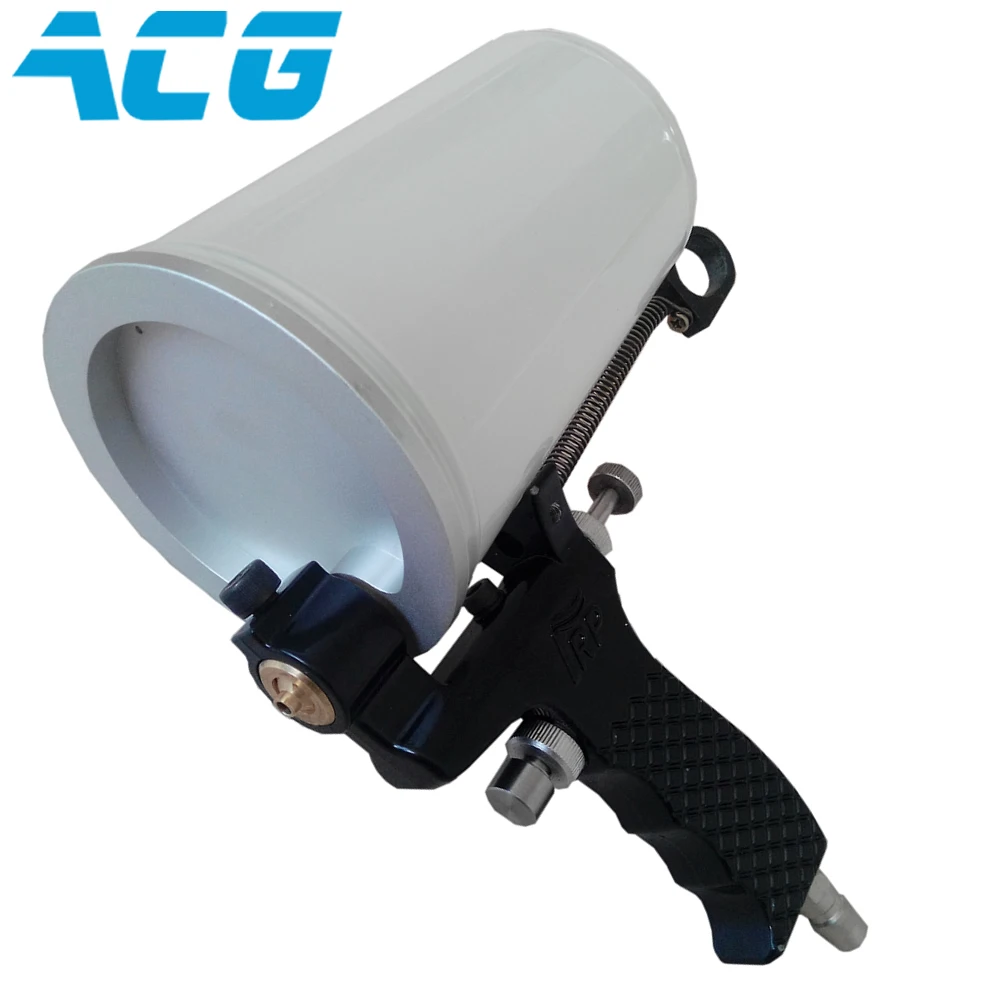

Gel-coat Portable Gel Coat Spray Gun
Nozzle size:
5#(4.0mm) x 1pcs
Cup size::
1000 cc X 2 pcs, wall thickened
Metal Lid:
1 pcs (black or silver) with perfect apperance
Sealing rings:
2 sets
Wash bottle:
500 ml X 1 pcs


Portable gel coat spray gun is a compact size, easy to operate , easy to maintain , and versatile gel coat resin spraying tools.
This product is based on different properties of raw materials, install the appropriate nozzle , spray products can be used in gel coat , tooling gel coat , outer gel coat spray pattern can also be used to spray resin paint and interior and exterior decorative paints , in particular, can add a polyester coating particles the gel coat .

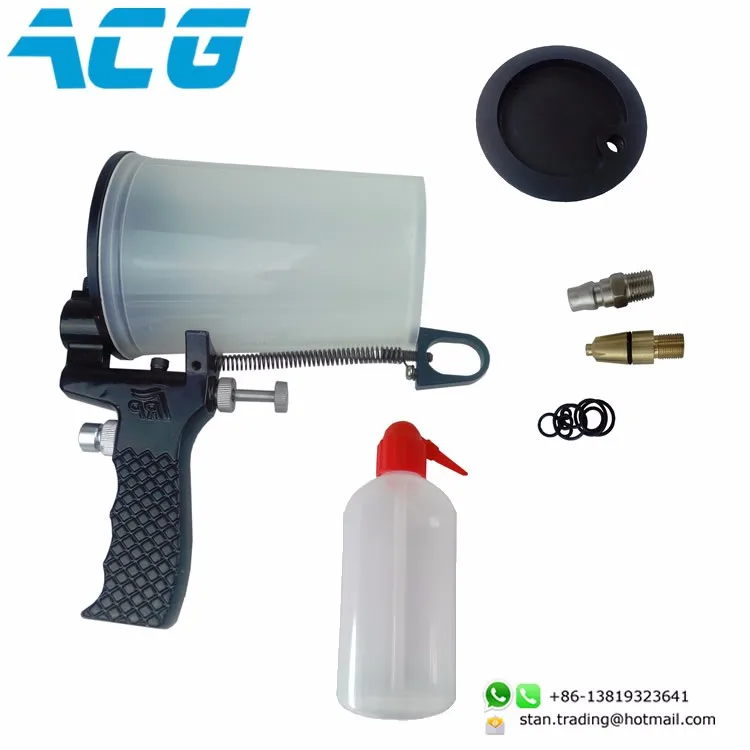

the composition structure :
- Gun body : gun trigger X1 , gas flow control valves X1 , housings X1, spring hooks X1 ;

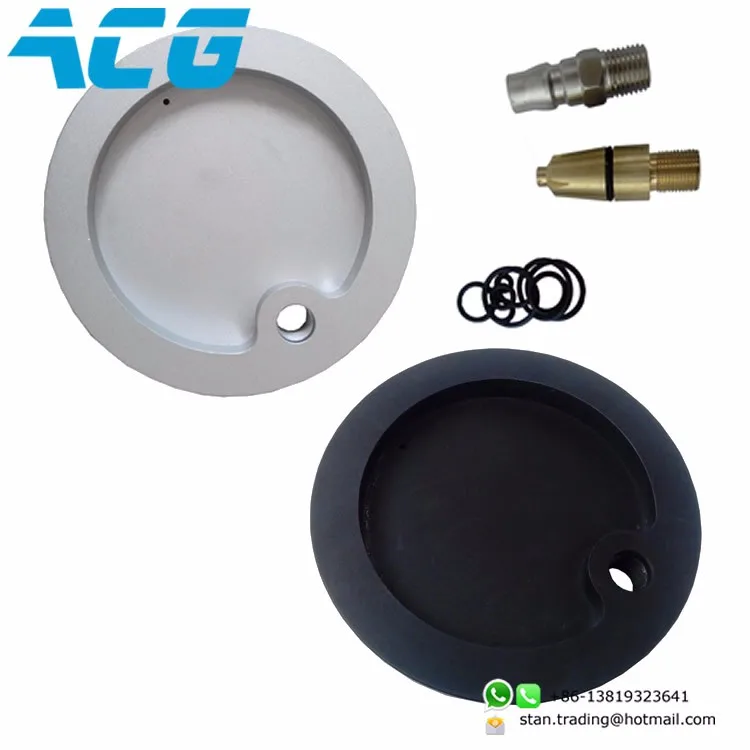

- Nozzle : nozzle X1 , seals ; (5# on a standard nozzle 4.0mm)
- Cup : 1000 ml plastic cups X2,

- Lid: metal lid X1 .

- 500 cc  wash bottle
Note: The assembled Check all joints to ensure that all joints are fully tightened.

you can contact us to buy other Nozzle as following:
1# nozzle: inner diamter 0.8mm
2# nozzle: inner diamter 1.5mm
3# nozzle: inner diamter 2.5mm
4# nozzle: inner diamter 3.0mm
5# nozzle: inner diamter 4.0mm
6# nozzle: inner diamter 5.0mm
7# nozzle: inner diamter 5.6mm
8# nozzle: inner diamter 6.2mm

How to use:( Air compressor is no less than 5KG)

1 Preparation:
According to gel coat viscosity, select the appropriate nozzle diameter (nozzle type for selection 1-8 ( small to large ) ; generally used 4MM or 6MM size.

2 steps:
Cover the lid on the cup filled with raw materials , and pressed the lid .
The jet nozzle is inserted into the mouth of the gun force before the injection port until the nozzle is exposed .
Hold the grip , hold back the bolt , the air ejected from the jet port .
Note 1 :In performing the above steps , the nozzle should always be up to prevent the nozzle leakage of material , will pour under the gun , ejected material , adjust the control valve ,
The raw material to achieve the best atomization , the muzzle aligned mold surface can be spray production .
Suggestion: When spraying, tips and the mold surface into a 90 -degree angle .
Note 2 :In the injection process, remember not to point the nozzle themselves and others , in order to avoid accidental injury , when you stop spraying, will tip up, with
When you release the bolt , so the raw material out of the gun with a cleaning solution , tips , feeding cups washed, coated with oil, to prepare for the next use.
