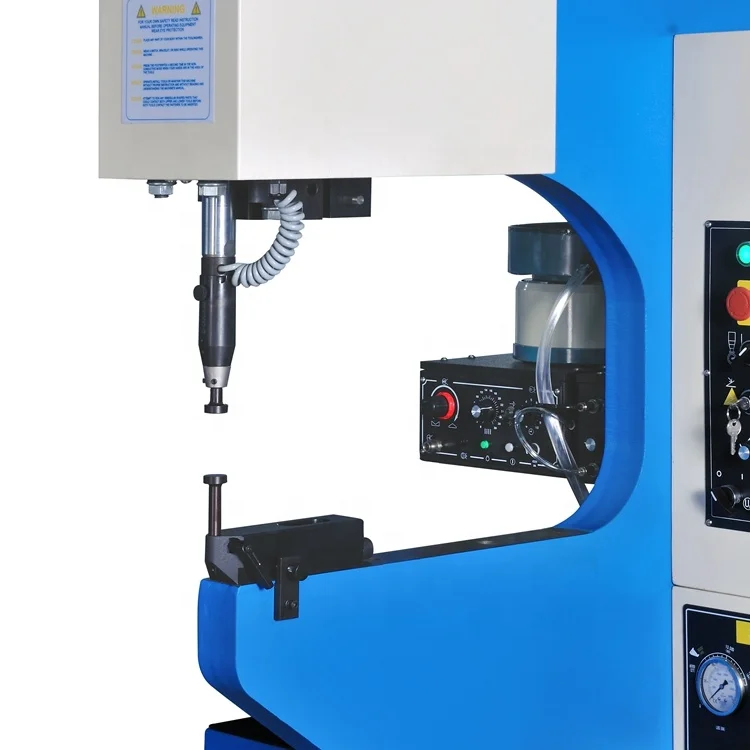

Hot Sale An Economic Metal Joining Process Without Any Heating Fastener Insertion Machine
- Category: Riveting Machine >>>
- Supplier: Rsm Machinery Co. Ltd.
Share on (1600258242556):
Product Overview
Description
Product Description
Force | 72KN |
Throat Depth | 610mm |
Throat Height | 421mm |
Stroke Length Adjustable | Yes |
Number of Inserts Per Hour(Manually) | 1200 |
Ram Force Repeat Accuracy | +/-1% |
Safety Device | Yes |
Manual Turret Insertion System(Optional) | Yes |
Automatic Feeding System(Optional) | Yes |
Clinching Joint System(Optional) | Yes |
Dwell time | Standard |
Forward Limited | Standard |
Batch Counter(Optional) | Yes |
Main Power | 3.75KW |
Tank Capacity | 76L |
Power Supply | 380V/3 phase/50HZ |
Dimension(W*D*H)mm | 1025*960*2500 |
Net Weight | 950kg |
DETAILS DISPLAY
Pressure Regulation

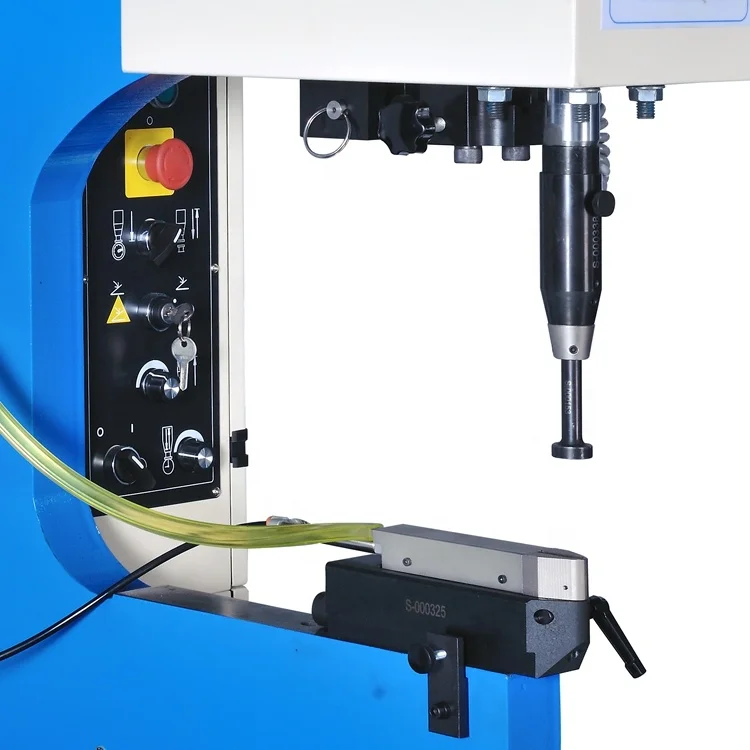

Control Panel
100% Safety System
High Quality Chassis
High-end Configuration

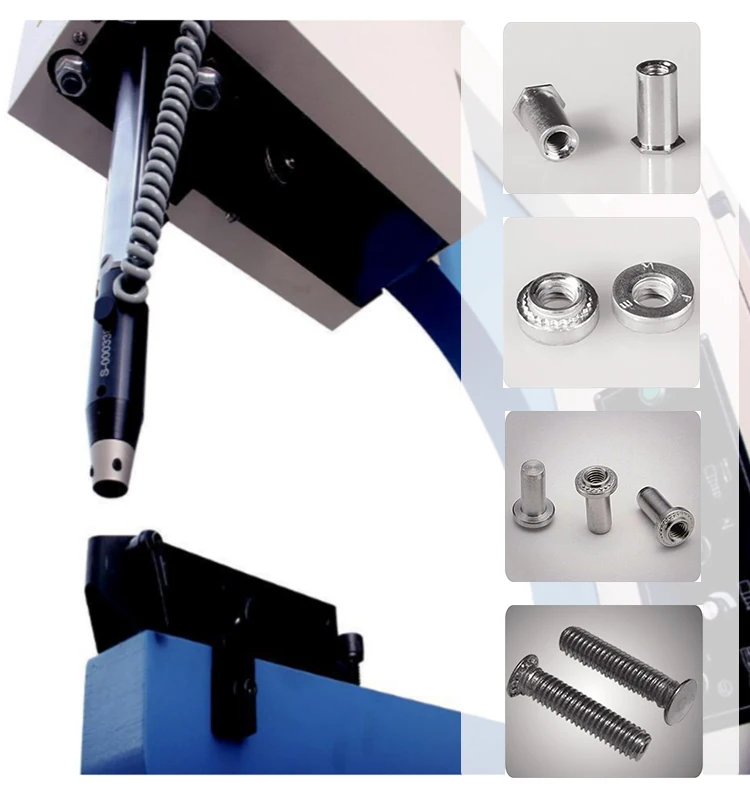

APPLICATIONS
Options
TIS-Turret Insertion System
MSTP
Batch Counter
Lazer Locating Light
Packing&Shipping
More Products
618 Fastener Insertion Machine
Self Clinching Machine
Self Riveting Solution
Rivet NUT
Rivet Tools
Spot Welding Machine
Company Profile
RSM MACHINERY CO.LTD is one of the world leaders for innovative products and resource sheet metal joint solution industry.Our mainly products are: Fastener insertion machine,Self-clinching machine,Self-Piercing rivet machine,Fastener elements,Spot welder,etc.
RSM sales net is cover more than 30 countries around the world and had established over 20 distributors. RSM are well-equipped to deliver timely and reliable solutions for customers wherever and whenever required.
RSM sales net is cover more than 30 countries around the world and had established over 20 distributors. RSM are well-equipped to deliver timely and reliable solutions for customers wherever and whenever required.
FACTORY
Exhibitions
CE CERTIFICATE
FAQ
1.Q: What is the function of the manual tooling package?
A: 33 pieces of manual tooling work with nuts/studs/standoff different size of punch and dies
M2-M8, length up to 35mm, special insertion application for small parts flange die holder and Manual J fram
A: 33 pieces of manual tooling work with nuts/studs/standoff different size of punch and dies
M2-M8, length up to 35mm, special insertion application for small parts flange die holder and Manual J fram
2. Q: What quick-wear part does Fastener Insertion Machine has?
A: Fuse, safety switch, relay, oil filter, die holder handle
3. Q: What size of nuts could fastener insertion 416/618/824 machine could press?
A: 416: Max M6 stud/nut (carbon steel)+2mm galvanizedsheet.
618: Max M6 stud (stainless steel)/M10 nut(carbon steel) +2mm galvanized sheet.
824: Max M12 nut(carbon steel)/M10 stud(stainless steel) +4mm galvanized sheet.
618: Max M6 stud (stainless steel)/M10 nut(carbon steel) +2mm galvanized sheet.
824: Max M12 nut(carbon steel)/M10 stud(stainless steel) +4mm galvanized sheet.
4. Q: How to achieve the safety function of the fastener insertion machine?
A: Inside the up adapter, there is safety switch sensor, this sensor can achieve the safety function
5. Q: How to achieve the self clinching function in the fastener insertion machine?
A: Customer should take away the insertion punch and die, and install the BTM tooling set is ok.
6.Q:What is the option configuration for each model?
A: 416: TIS is the available option.
618: TIS, batch counter, laser locating light, automatic tooling, forward limit, BTM
824: TIS, batch counter, laser locating light, automatic tooling, BTM.
618: TIS, batch counter, laser locating light, automatic tooling, forward limit, BTM
824: TIS, batch counter, laser locating light, automatic tooling, BTM.
