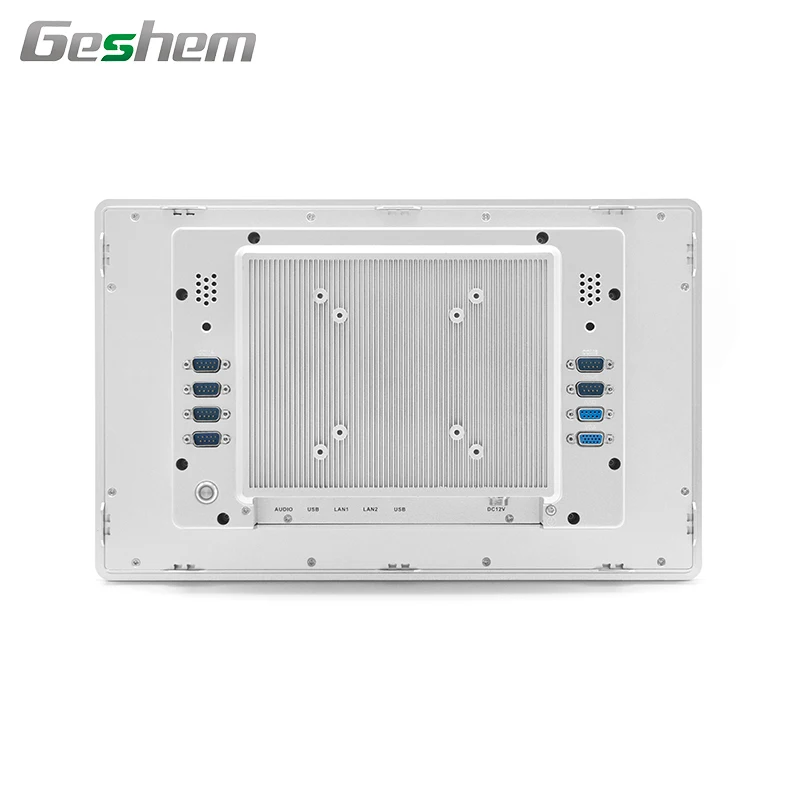

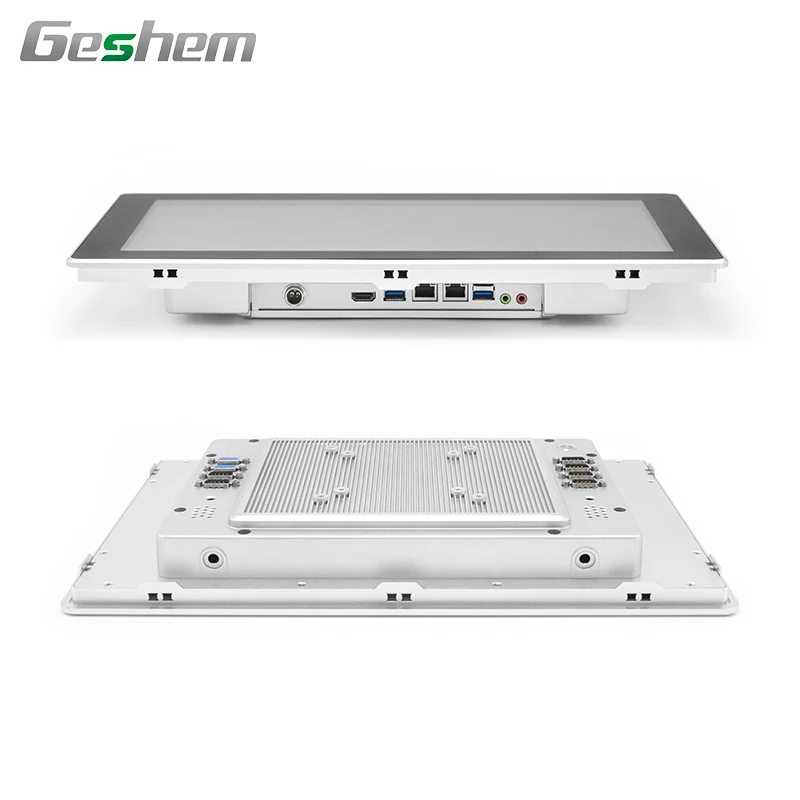

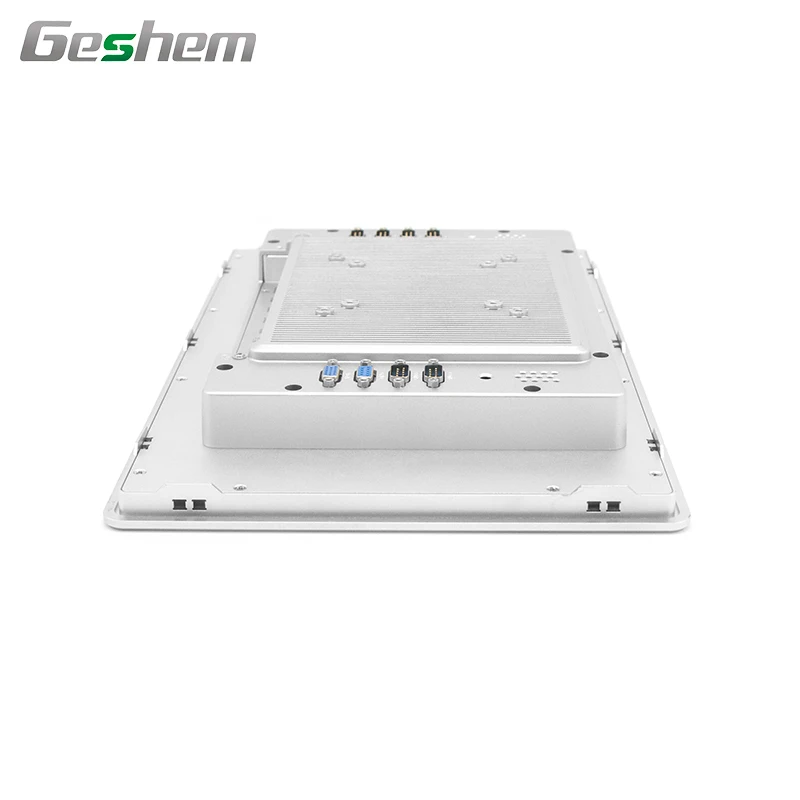

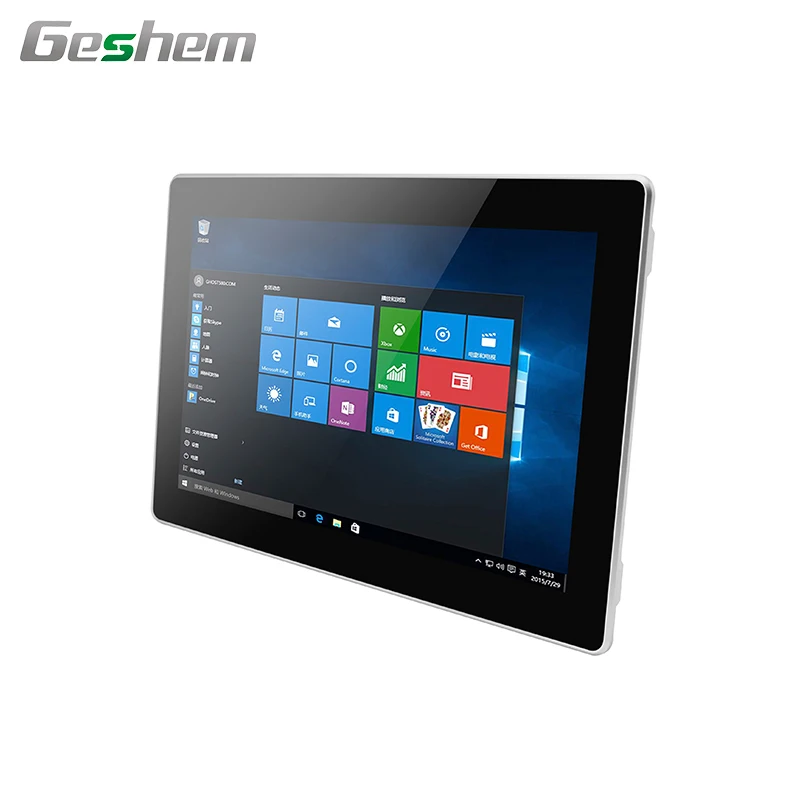

Популярный интерактивный сенсорный экран 21ich промышленный все в одном ПК промышленный компьютер
- Category: Industrial Computer & Accessories >>>
- Supplier: Shenzhen Geshem Technology Co. Ltd.
Share on (1600258252571):
Product Overview
Description
Products Description
Applications

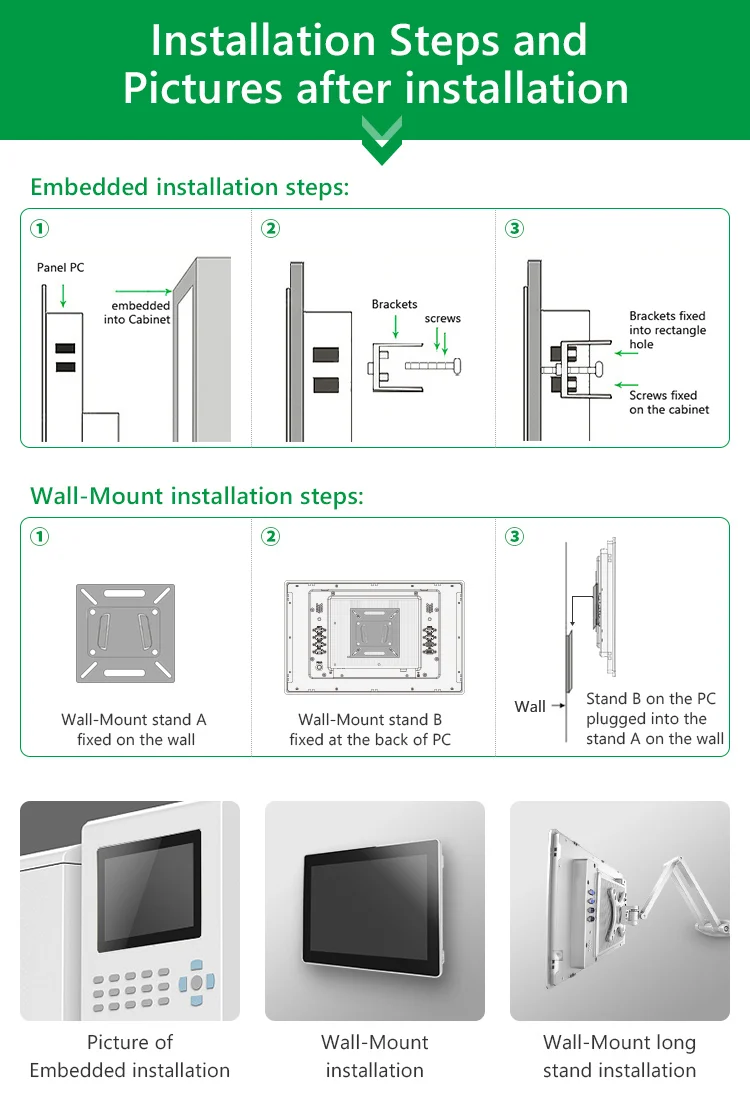

Installation Instructions
Display | ||||||||
Screen | 21.5″ TFT LCD | |||||||
Resolution | 1920*1080 | |||||||
Brightness | 250 cd/m2 | |||||||
Touchscreen | Multi-Point Capacitive touch | |||||||
Performance | ||||||||
Chipset | Intel® Celeron J1900/3855/3856/Core I3/I5/I7 | |||||||
RAM | J1900：2GB DDR3，up to 8GB 3855U/3865U/Core i3/i5/i7 ：2GB DDR4, up to 16GB | |||||||
Watchdog Timer | 0-255 sec by software | |||||||
Storage | SSD 64GB, up to 512GB | |||||||
OS | ||||||||
OS | Windows 10、Linux (J1900 also support Win7) | |||||||
I/O port | ||||||||
USB | J1900:3*USB2.0+1*USB3.0 3855U/3865U/Core6th/7th：4*USB 3.0 | |||||||
Ethernet | 2* GbE LAN RJ45 1000M | |||||||
COM | 6*RS232(1~2*RS485/RS422 optional) | |||||||
Audio | 1*Line-out+1*Mic | |||||||
Display | 1*VGA，1*HDMI | |||||||
Mini PCIe | 1*MiniPCIe(WIFI/BT/3G/4G optional) | |||||||
GPIO | 1*4 in/4 out | |||||||
Environmental | ||||||||
Anti-vibration | 5-19Hz/1.0mm amplitude;19-200Hz/1.0g, acceleration | |||||||
Anti-shock | 10g acceleration, 11ms duration | |||||||
IP Level | Front panel IP65 | |||||||
Mechanical | ||||||||
Dimensions | 527mm(L)*317.5mm(W)*54.9mm(H) | |||||||
Mounting size | VESA mounting: 75*75mm/100*100mm Embedded mounting: 520mm*312mm | |||||||
Material | Fanless High-strength and elegant Al-alloy panel | |||||||
Color | Silver | |||||||

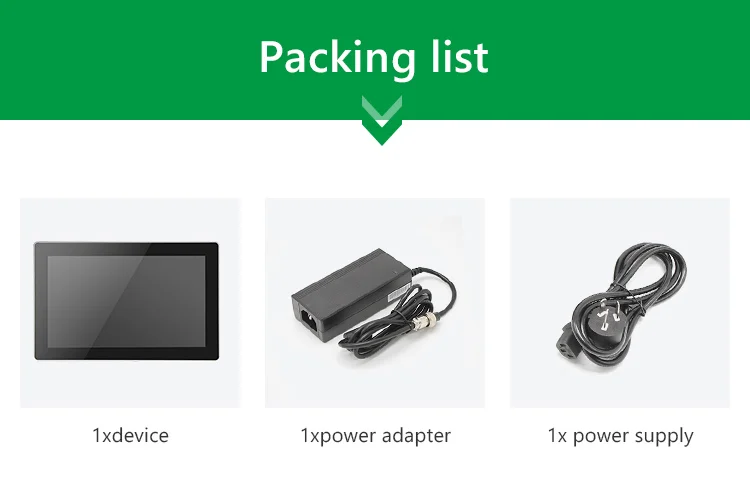

Product packaging

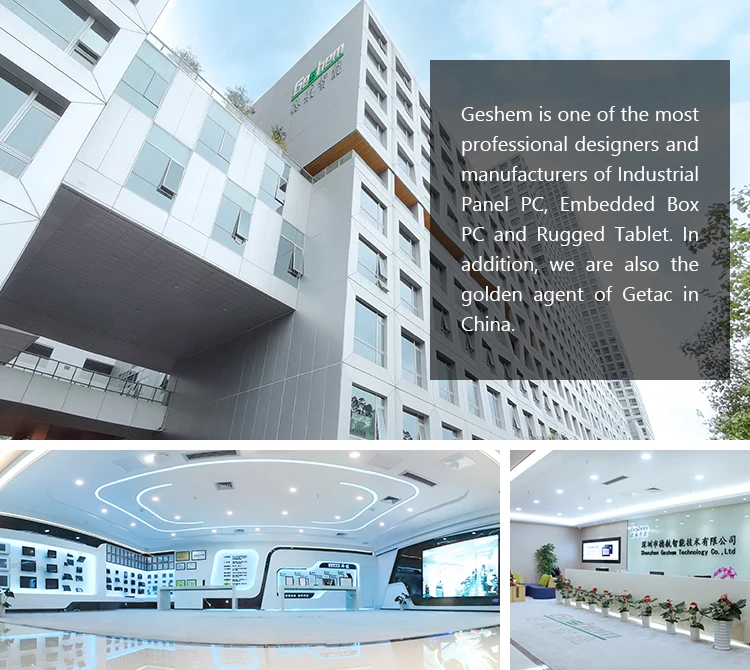

Company Profile
