Product Overview
Description
24V 70A Charge Machine Charging Discharging Capacity Load Test Meter Equipment Battery Discharge Tester
Product Description
Feature:
1.It adopts high efficiency discharge load and special steady current mode, high accuracy of constant current, fast response, environmental protection and no peculiar smell.
2.Discharge current, voltage protection lower limit, discharge time and other parameters can be set freely, the whole process constant current current discharge, no jump, when reached the voltage lower limit set value or discharge time to automatically stop discharge, can also be manually quit discharge at any time.
3.Various self-protection functions: reverse connection, wrong connection, under-voltage, over-voltage, undercurrent, over-current, over-temperature, fan abnormal.
4.with the "wireless battery patrol instrument" supporting the use of real-time collection of the voltage of each single battery, set the relevant parameters can achieve the automatic discharge of the whole process.
5.LCD screen, real-time display of the data, intuitive and easy to use.
6.Data communication interface: USB, RS485, Convenient online use and export data.
7.Built-in memory automatically save discharge data, support power off save.
8.The instrument is equipped with simple and practical background analysis software, which can perform data check and analysis, report printing, automatically generate curves, histogram, data tables, etc. Excel format file can be exported, which is convenient for data processing and reporting.
9.It’s small and light and can be carried by one person, easy to use, safe and reliable.
Parameter
| Model | ZC-F24/70 |
| Applicable Battery type | 24V |
| Dicharge Current working range | 0-70A |
| Current setiing step | 0.1A |
| Precision of constant current | +/-0.5% |
| Voltage testing accuracy | +/-0.5% |
| Display | LCD Screen |
| Communication interface | USB,RS485 |
| Data storage | Built-in flash memory. Support power off save. |
| Working power | Provice directly by the battery pack test, no need external power. |
| Software | The operating system: Win2000/xp/7 |
| Packing size | 80*35*85cm |
| Weight | 45Kgs |

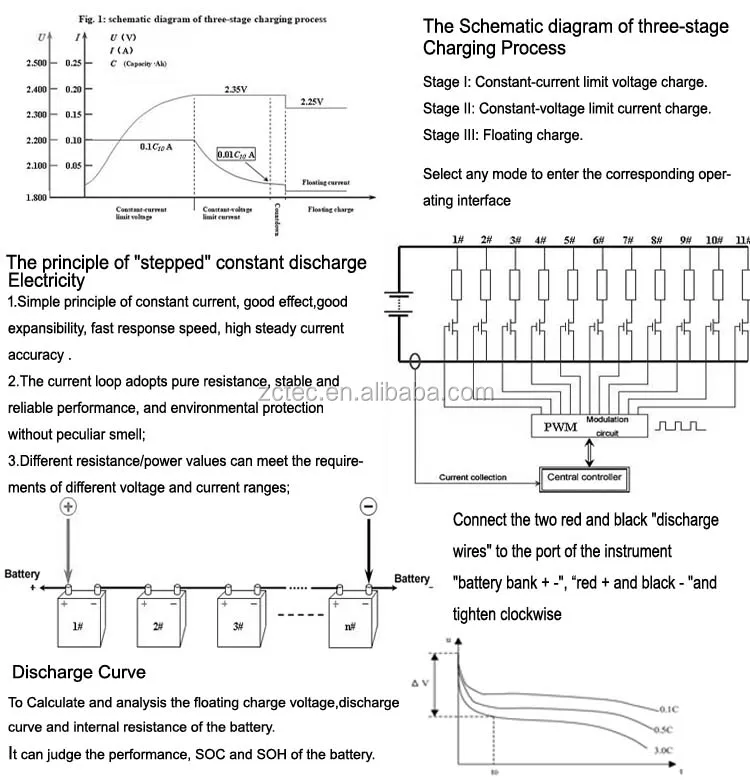

Our Advantages
More Pictures
Related Products
Packaging & Shipping
Company Information
Our Services
Shirley Shi
Hangzhou Zhechang Power Equipment CO. LTD
Skype:Shirleysuuny Mobile&wechat&Whatapp:0086-18958106655
Website: www.zhechang.net
Add:Building 1, 1418-60, Moganshan road, Hangzhou city, Zhejiang Province, China.310015
FAQ
Q1.Why need battery discharge tester?
A:Battery discharge testing is the only way to get an accurate value on the actual capacity of the battery.It can be used for tracking the battery’s health and actual capacity and estimate remaining life of the battery.
Q2. What about the lead time?
A:Sample needs 5-10 days, mass production or custom product need 2-4 weeks.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-8 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 12 months warranty to our products.
