Air motivated cast Aluminium heater 1500*2000
US $150.00-$180.00
Electric Heating Pad/Mat Silicone Rubber Heater
- Category: Industrial Heater >>>
- Supplier: Yancheng Dingchuang Electric Heating Machinery Co. Ltd.
Share on (1600260210993):
Product Overview
Description
Product Overview

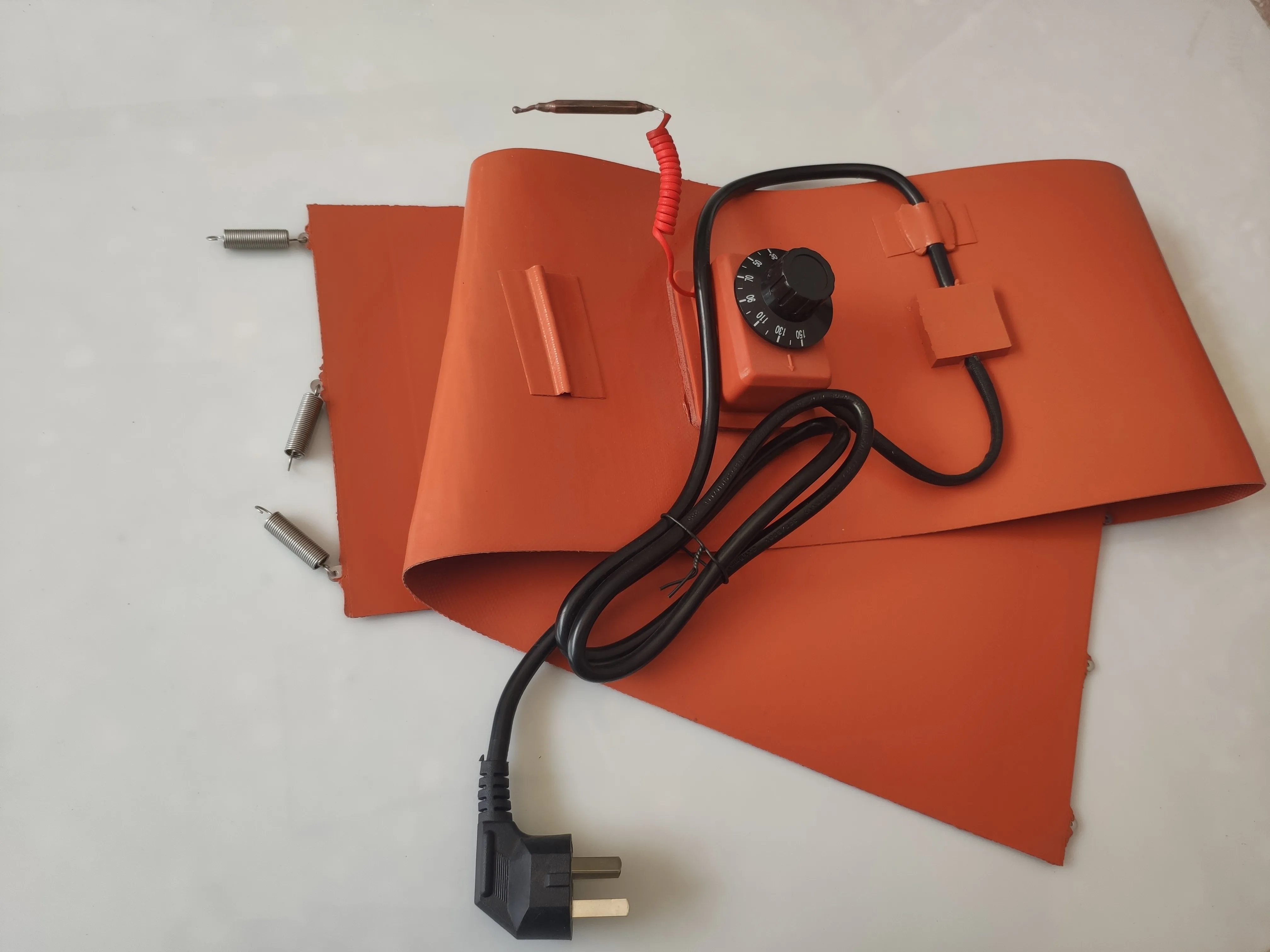

Electric Heating Pad/Mat Silicone Rubber Heater
Flexible Electric Heating Strips of Silicone Rubber Heating Element
Silicone Rubber Heater can be manufactured from etched foil or from resistance wireas a wire wound circuit. The circuit pattern is vulcanized between two layers of siliconrubber and can be easily mounted to heat sinks or devices that need to beheated. Silicone rubber's flexibility can make your Silicon Rubber Heater in the shapeof flat, spiral wrap, blanket, and molded to shape.
Silicone rubber heater can besupplied with thermistors , thermostats, thermal fuses and thermocouples. Siliconerubber's flexibility will assemble the heater to your application through the processof vulcanization and the use of silicon and pressure sensitive adhesives. Silicone rubber heating elements have two material, nickel chrome heating wire and etching foil. Both types are heating fast and high thermal conversion efficiency.
FEATURES AT A GLANCE
Thin, light and flexible.
Improve heat to accelerate warming.
Suitable for both low and high volts.
MAX wattage can be for 2w/cm2.
Various sizes and shapes.
Resistance wire/heating film can be used.
Decrease power in process of operation.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Power | Customized |
2 | Rated voltage | 12V—380V |
3 | Maximum size | 1000—1200m |
4 | Maximum thickness | 1.5mm—4mm |
5 | Working Temperature | 60-280℃ |
6 | Size deviation | ±0.5﹪ |
7 | Power deviation | ±5﹪ |
8 | Wire Type | Silicone braided wire |
9 | Insulation resistance | ≥5MΩ |
10 | Minimum size | 20mm×20mm |
Company introduction
We are specialist in production of electrical elements and equipments. Our factory locates in Yancheng city, Jiangsu province of China. We have been in heating industry for over 35 years, and have got certificates of ISO9001 and CE.
Main products are as below:
Aluminum heating plates
PTC heaters
SUS Tubular heaters
Silicone Rubber Heater
Ceramic heaters
Cartridge heaters
All heaters can be customized to produce according to clients’ requirements. We have exported our heaters to the USA, England and Asian markets.
Main products are as below:
Aluminum heating plates
PTC heaters
SUS Tubular heaters
Silicone Rubber Heater
Ceramic heaters
Cartridge heaters
All heaters can be customized to produce according to clients’ requirements. We have exported our heaters to the USA, England and Asian markets.
Superb Heater Technology has been focused on the production of silicone rubber heating plate with aluminum plate since 1984, which is well-known as one of the leading manufacturers and suppliers of silicone rubber heating plate with aluminum plate. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Applications:
* Thermal transfer equipment.
* Prevent condensation in motors or instrument cabinets.
* Freezing and compression prevention for various instruments and devices.
* Medical equipment such as blood analyzer, test tube heater.
* Computer auxiliary equipment, such as laser printer.
* Vulcanized surface of plastic film.
FAQ
1. What is your MOQ?
At least 1000pcs for each item.
2. What is the lead time?
10-25days, it is up to the quantity.
3. What is your prefered payment term?
TT payment term prefered, 20-30% prepaid after order confirmation.
4. Can you accept non-standard requirements?
Yes, we offer custom-made products and can design per your requirements.
5. Can you provide free samples?
We can provide free sample for 1pcs, but you should burden the freight.
6. What is your shipping type?
We can ship by sea, by air and by land; depends on the destination.
At least 1000pcs for each item.
2. What is the lead time?
10-25days, it is up to the quantity.
3. What is your prefered payment term?
TT payment term prefered, 20-30% prepaid after order confirmation.
4. Can you accept non-standard requirements?
Yes, we offer custom-made products and can design per your requirements.
5. Can you provide free samples?
We can provide free sample for 1pcs, but you should burden the freight.
6. What is your shipping type?
We can ship by sea, by air and by land; depends on the destination.
