TSL850 Compact Track Loader 850kg Track Skid Steer Loader
TSL850 Compact Track Loader 850kg Track Skid Steer Loader
TSL850 Compact Track Loader 850kg Track Skid Steer Loader

TSL850 Compact Track Loader 850kg Track Skid Steer Loader

Share on (1600260438895):


Price:$25,000.00 - $30,000.00

Quantity:


Product Overview

Description



Product Overview


850kg Track Skid Steer Loader

When a high cost-effective Skid Steer Loader brand is expected, Weitai will be the best choice you can get. From 370kg Mini to 1600kg Heavy Duty, Weitai has a full-size production line in Skid Steer Loaders. High strength and reliable Machines with competitive prices, Weitai Skid Steer Loaders will support you to do your complicated jobs easier and more efficiency.

TSL-850 Compact Track Loader is a Skid Steer Loader with Track Drive Travelling back hoe loader. It is with the same capacity of Bobcat T190 Compact Track Loader.


FEATURES AT A GLANCE


Track Skid Steer Loader
Advanced Structure
Automatic Bucket Leveling
Powerful Hydraulic
High Efficiency
Excellent Operation experience
Various Attachments
Easily Maintenance


PRODUCT SPECIFICATIONS


No
Description
Data
1
Rated Operating Capacity
850 kg
2
Operating Capacity
1700 kg
3
Operating Weight
3100 kg
4
Bucket Volume
0.47 CBM
5
Engine
Yuchai or Quanchai
6
Rated power
45 KW
7
Rated speed
2500 rpm
8
Hydraulic Flow
80 LPM

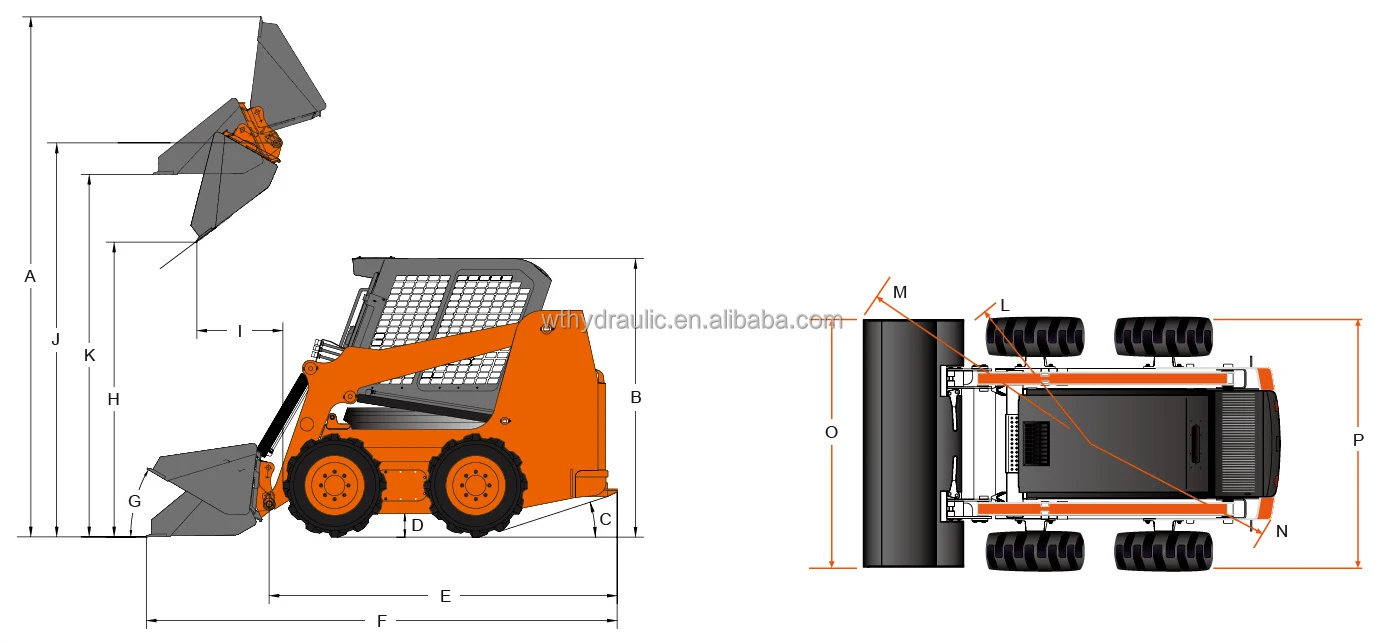

No
Dimensions
Data
A
Operating Height
3910 mm
B
Height with Operator Cab
2070 mm
C
Angle of Departure
30°
D
Ground Clearance
210 mm
E
Length without Attachment
2525 mm
F
Length with Standard Bucket
3350 mm
G
Rollback @ Carry Position
25°
H
Dump Height with Standard Bucket
2265 mm
I
Dump Reach @ Maximum Height
660mm
J
Height to Bucket Hinge Pin
2985mm
K
Height to Bottom of Level Bucket
2860 mm
L
Front Turning Radius without Bucket
1380 mm
M
Front Turning Radius
2030 mm
N
Rear Clearance of Machine
1530 mm
O
Width over Bucket
1800 mm


PRODUCT CONFIGURATION


Perkins Engine (EPA 4 optional)
Danfoss/Rexroth Piston Pump
Close loop Travel Motor
