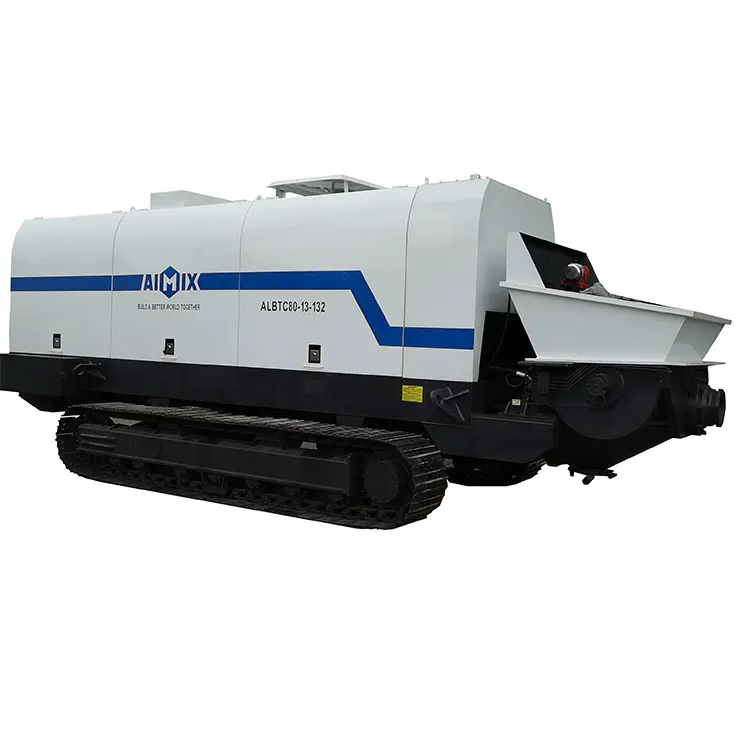

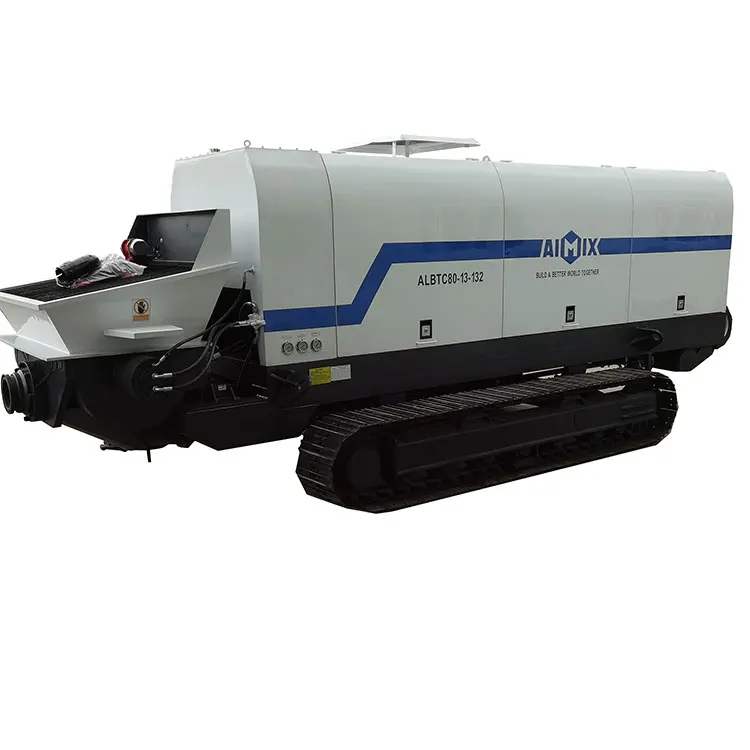

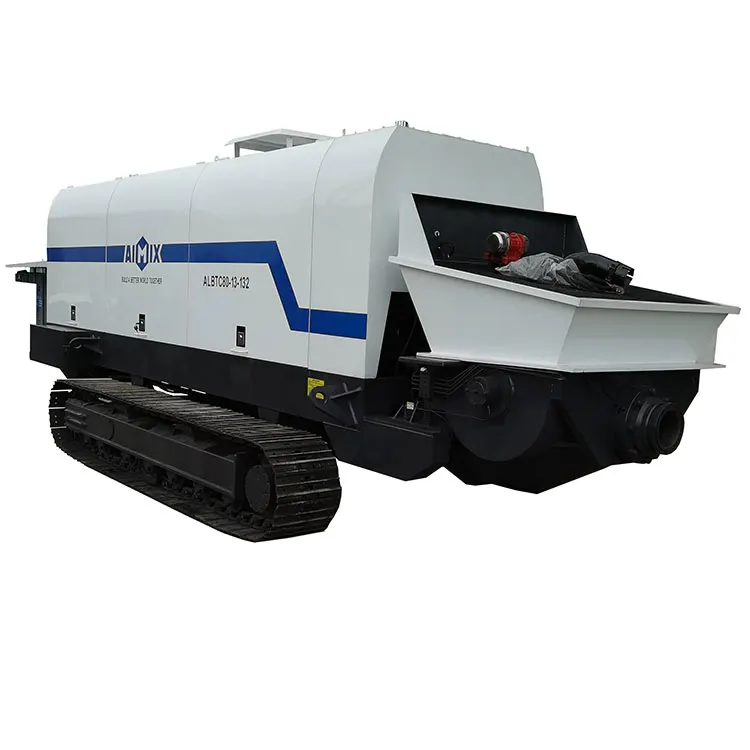

Aimix track concrete pump ready mix concrete mixer pump

Share on (1600260688723):


Price:

Quantity:


Product Overview

Description



Product Description


Aimix track concrete pump ready mix concrete mixer pump

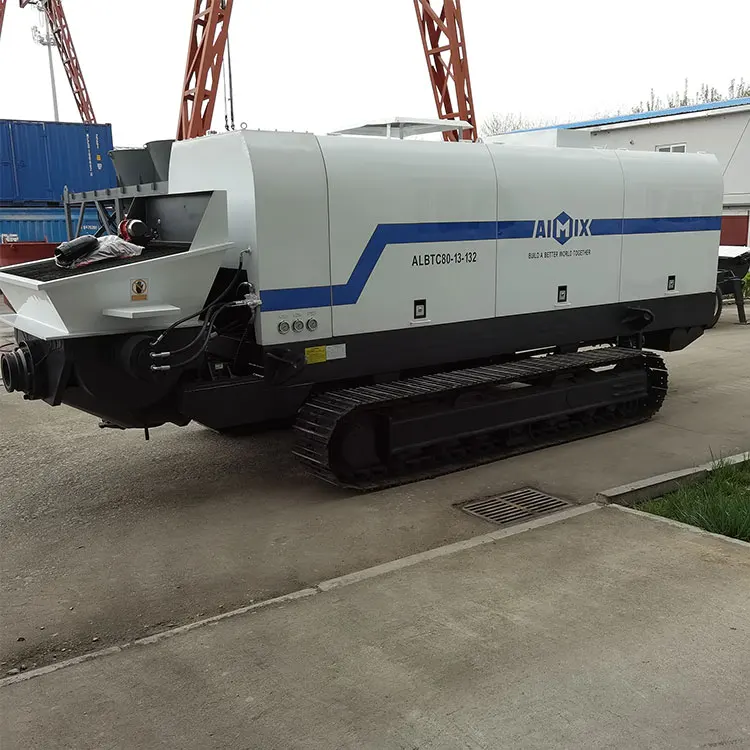

track-pump-8x

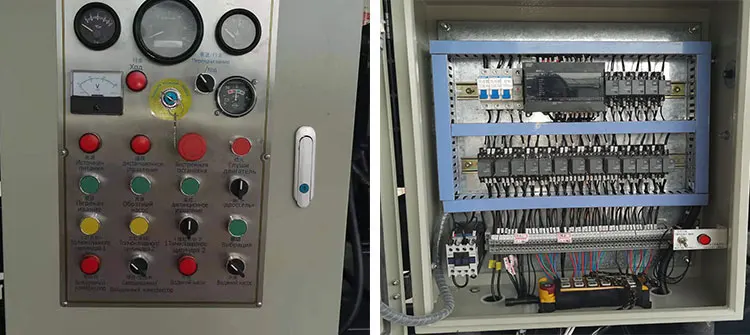

contral-system





Technical Parameters













































































































Aimix track concrete pump



Units



Perameters



ABT80C



whole performance of machine



Max. theo. concrete output(L./H)



M3/h



84/45



Max.concrete pumping pressure(H./L.)



MPa



16/7



Distribution valve type







S  Valve



Concrete cylinder diameter×stroke



mm



Φ200x1800



Hopper capacity x feeding height



L/mm



800/1400



Outlet diameter



mm



Φ180



Power system



Diesel engine model







Wechai



Diesel engineering power



KW



176



Rotate speed



r/min



2200



Hydraulic system



Circuit type







Open circuit



Pumping system pressure



MPa



32



Mixing system pressure



MPa



10



Capacity of oil tank



L



560



Other parameters



Max. Theoretical Vertical/Horizontal Conveying Distance



m



260/1200



Max. aggregate diameter



mm



Slick/scree:40



Inside diameter of delivering pipe



mm



Φ125



Dimensions:length×width×height



mm



6350x2150x2500



Total weight



kg



6900






contral-system





Packaging & Shipping


Usually , Standared packing way , of course we can provide  u customerized  packing methods,





FAQ1





1. How about the installation?


We will send you the installation materials which you can refer to. if you can't install it yourself, we will send our engineers or technicians to your place to supervise, you are responsible for their flight tickets, food and accomodation in your local place, as well as their salary.





2. What is your warranty?


One year.


If the construction machinery are broken in one year , how will you repair ?


If the construction machinery are broken naturally not by human during warranty period , we will send you the parts free , but if it is by human , you have to pay all the cost .





3. Your price is so expensive


All our construction machinery is made of national standrad steel and imported FRP , our strict quality control system try to assure the high quality for every parts , also our machinery have to be tested to promise it is extremely safe when running .





4. Is it can be customized ?


All our construction machinery can be customized according to your requirements.





5. How about the delivery time?


There are 1000 workers in our factory, so we can produce about 30 sets of common construction machinery within one month.


of course, we have some products in stock . we can send to u in one week .





6.  what is your payment way ?


      T/T   or   L/C  is OK  for us.


On T/T item , 30% T/T in advance and 70% T/T after inspecting the finished goods before shipment.


 On LC Item ,  a 100%  irrevocable L/C without "soft clauses" can be accepted .


7.   How can I trust your factory ?


we are a long history factory . you can search  information about us on internet, of course , we do welcome you to visit our factory .





8. what kind of quotation you can provide ?


   we normally work on FOB , CIF, CFR, EXW





9. How can I choose transportation tools?


90% of our shipment , we go by sea, eighter by container or ro-ro/ bulk shipment.


For neighbourhood countries of China ,  you can choose road or railway .


For light spare parts in urgent demand  ,  we can ship them by TNT , Fedex, , UPS,, DHL .
