Сверла с влажным алмазным сердечником R1/2 дюйма, наружная резьба, сверление бетона

Product Overview

Description

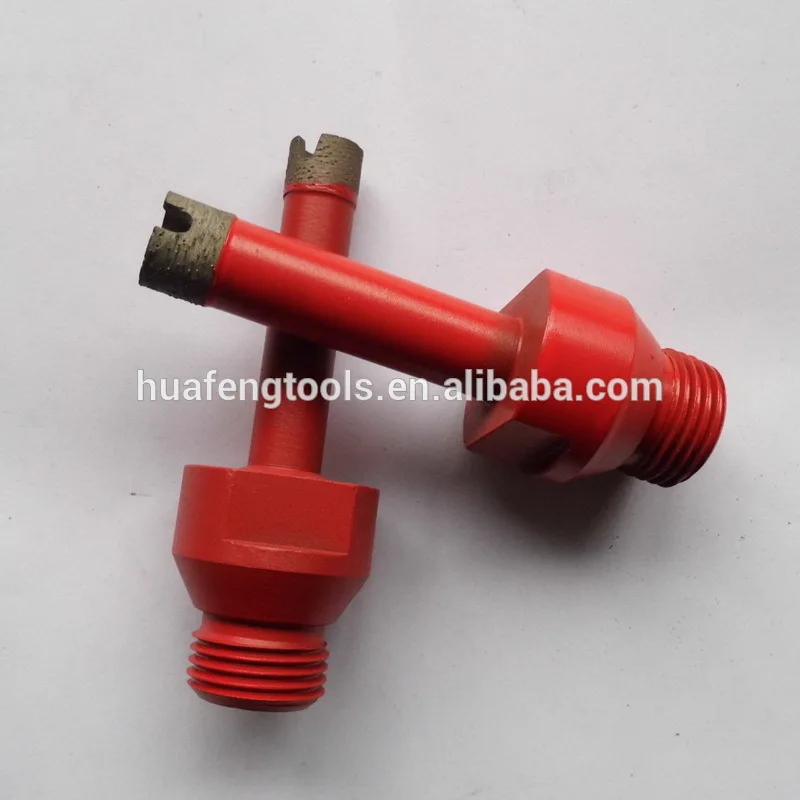

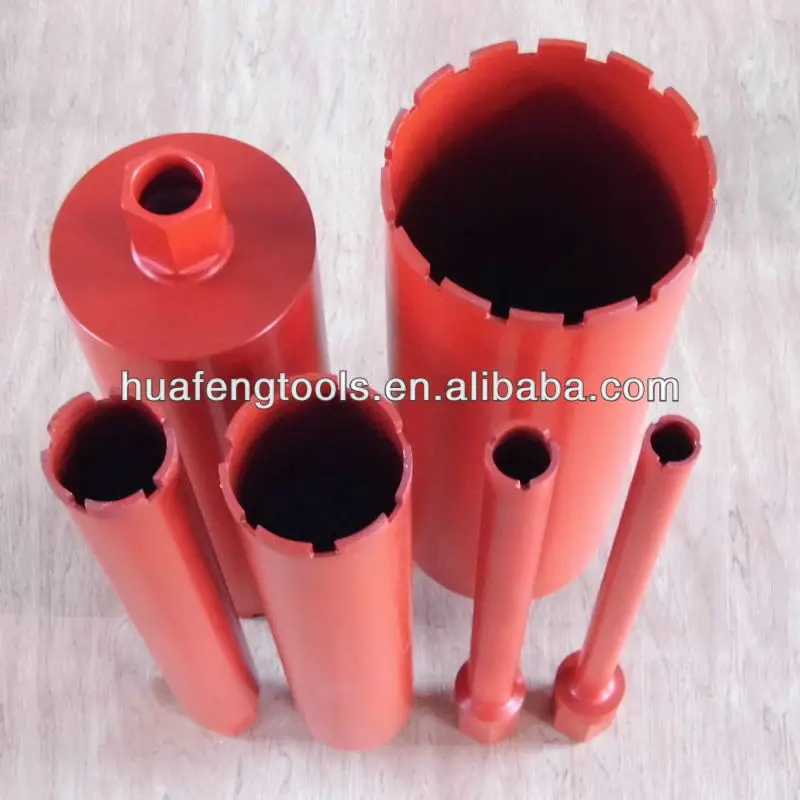

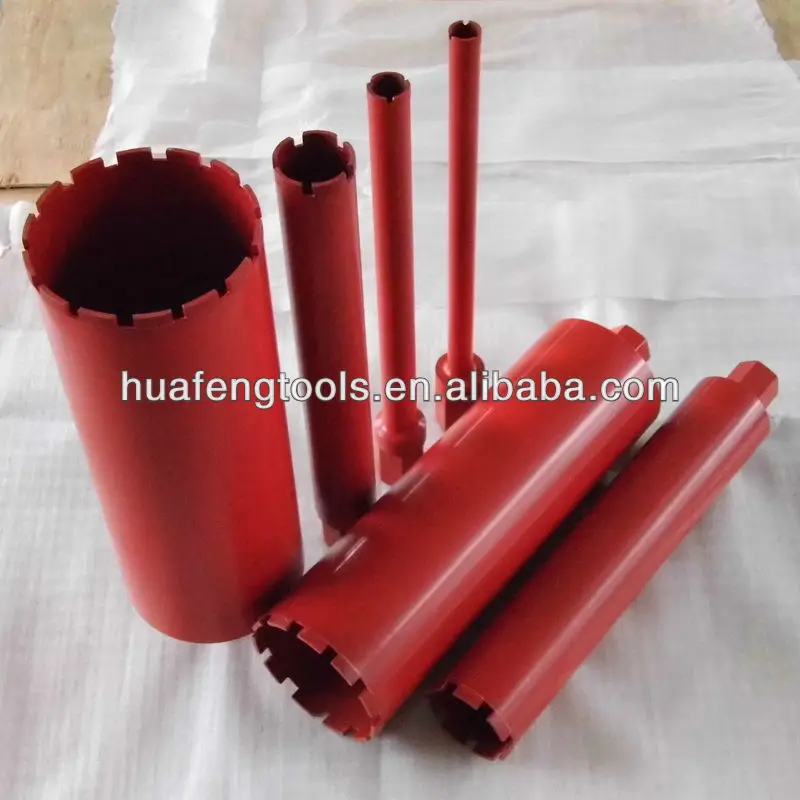

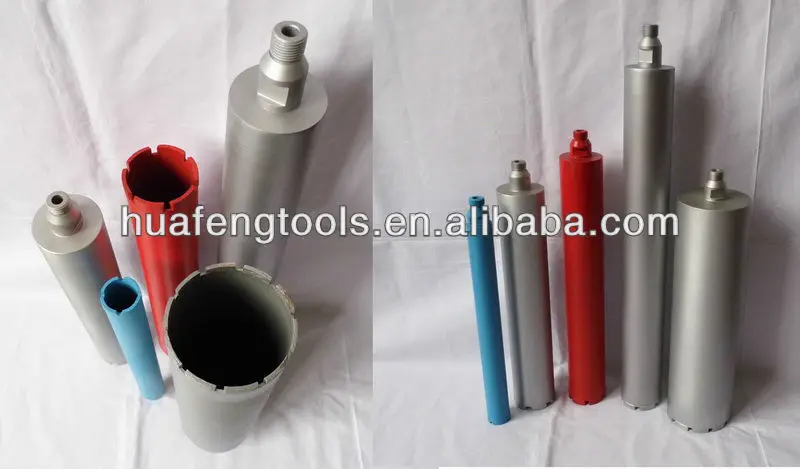

Wet Diamond Core Drill Bit in R1/2" Male Connection Thread



For wet cutting very wide range of building materials, such as reinforced concrete, brick/block and general building materials.

Our Diamond Core Drill Bit can be very Fast cutting with very long working life.

Our Diamond Core Drill Bit are used high precision steel core tube.

Our Diamond Core Drill Bit are widely used for professional works.



Sizes & Specifications are adjustable according to customers' requests.



Available working length from 300mm to 1000mm.

Available diamenter from 14mm to 600mm.

Available all kinds of segment designs and segments types.

Segments height can be adjusted according to customers' requests.

Segments could be welded by laser and braze.



Products Details









Size & Specifications for reference.



Ø mm	Segment No.	Wrorking Length mm	Connection Thread
14	Rim	300/350/400	1/2”BSP Male
16	Rim	300/350/400	1/2”BSP Male
18	Rim	300/350/400	1/2”BSP Male
20	Rim	300/350/400	1/2”BSP Male
22	Rim	300/350/400	1/2”BSP Male
25	Rim	300/350/400	1/2”BSP Male
28	Rim	300/350/400	1/2”BSP Male
30	Rim or 3, 4	300/350/400	1/2”BSP Male
32	Rim or 3, 4	300/350/400	1/2”BSP Male
34, 35, 36	3, 4	300/350/400/450	1/2”BSP Male
38	4	300/350/400/450	1/2”BSP Male
40, 41, 42	4, 5	300/350/400/450	1/2”BSP Male
45, 46	4, 5	300/350/400/450	1/2”BSP Male
49	5	300/350/400/450	1/2”BSP Male
51, 52	5, 6	300/350/400/450	1/2”BSP Male
56, 57, 58	6	300/350/400/450	1/2”BSP Male
61, 62	6	300/350/400/450	1/2”BSP Male
65, 66, 67	6	300/350/400/450	1/2”BSP Male
71, 72	6, 7	300/350/400/450	1/2”BSP Male
76, 77, 78	7	300/350/400/450	1/2”BSP Male
81, 82	7	300/350/400/450	1/2”BSP Male
87	7	300/350/400/450	1/2”BSP Male
91, 92	8	300/350/400/450	1/2”BSP Male
101, 102	8, 9	300/350/400/450	1/2”BSP Male
107, 108	8, 9	300/350/400/450	1/2”BSP Male
111, 112	8, 9	300/350/400/450	1/2”BSP Male
117	9	300/350/400/450	1/2”BSP Male
120, 121, 122	9, 10	300/350/400/450	1/2”BSP Male









Segments Types & Designs





 Production of Diamond Core Drill Bits







Production of high precision/quality steel core tubes for diamond core drill bit in own workshop







Packing and Package of our products





 Outlook of Our Factory





 Quality Guaranteed. Certificate of ISO 9001: 2008
