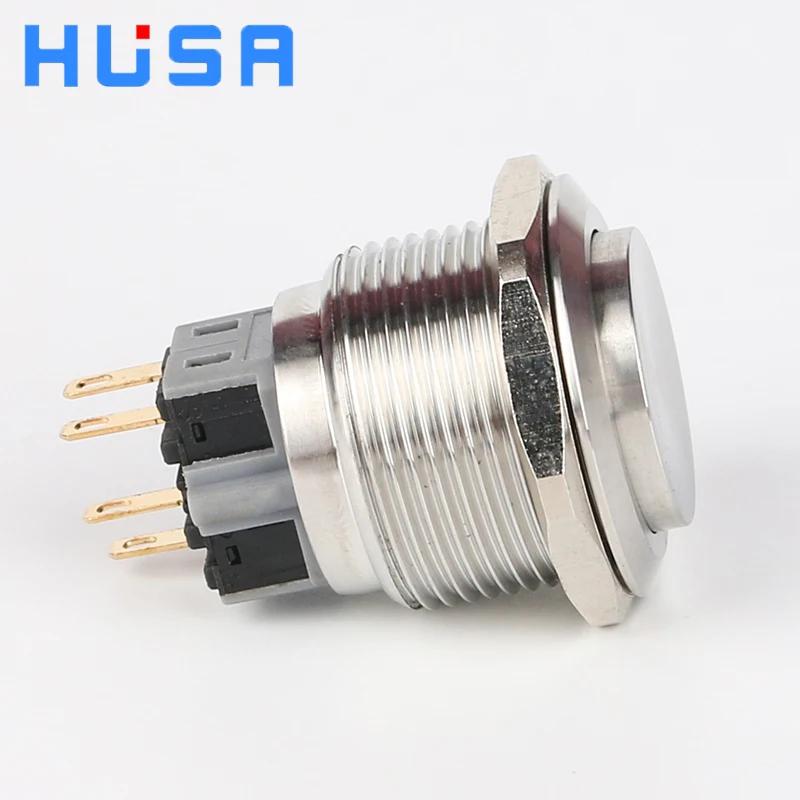

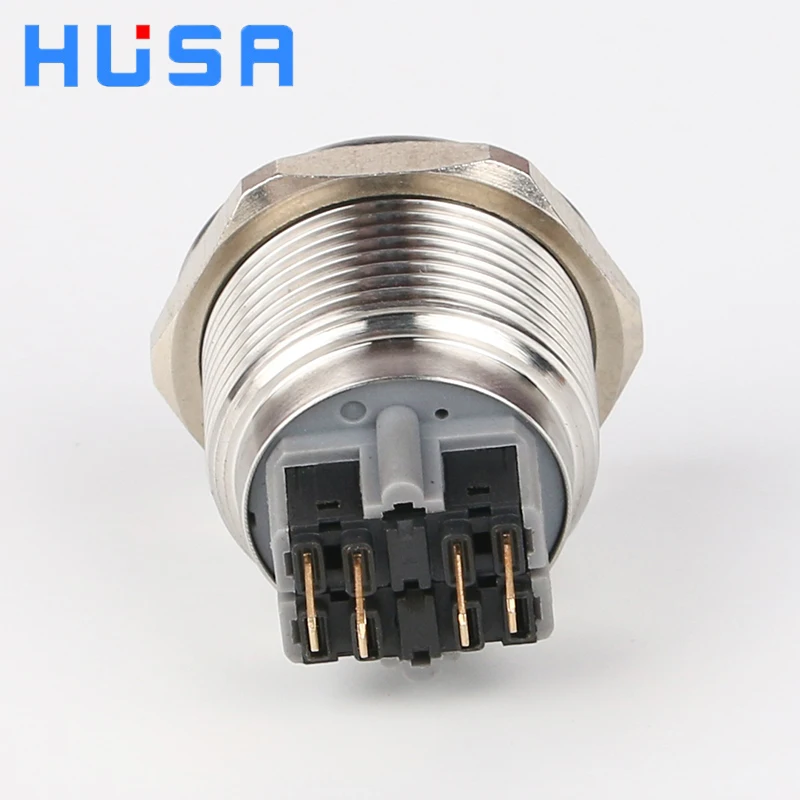

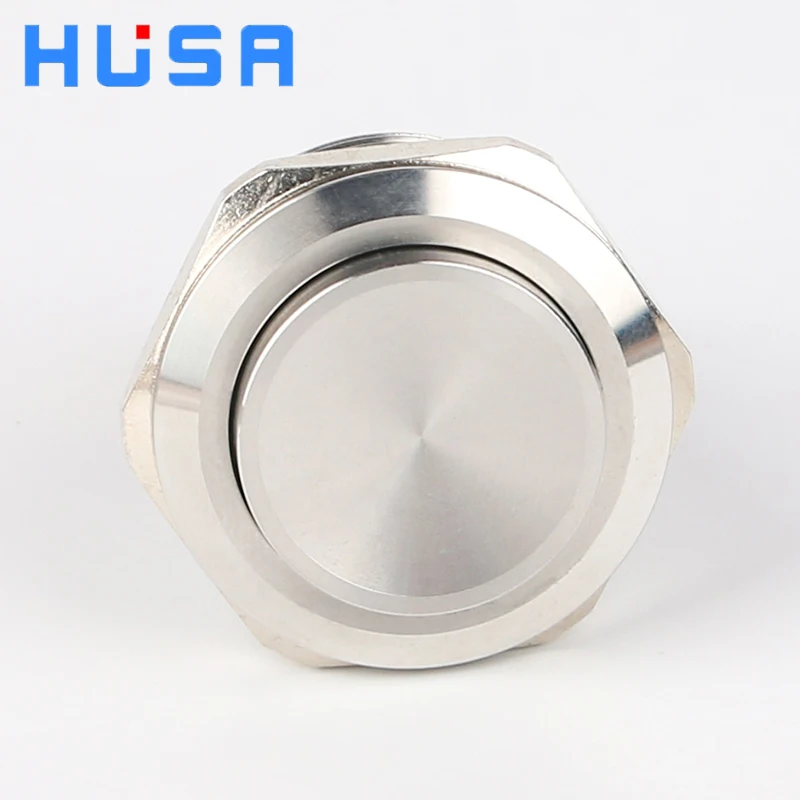

28mm Waterproof Metal Latching Push Button Switch 1NO1NC Sslf locking Stainless Steel On Off Button Switches For Machine Control
- Category: Push Button Switches >>>
- Supplier: Yueqing Husa Electric Co. Ltd.
Share on (1600263179221):
Product Overview
Description
HUSA - Button Switch & Connector Socket
The Switch:
- Great for electron magnetic Starter, relay, Horn Button Switch.
- PC Power Switch or any circuit controls on over 500,000 cycles.
- Ring LED can be on all the time or only when switch is on which depends on how you wire it.
- High quality metal material & IP65/IP67 waterproof protection can be used in wet or dusty environment.
The Wire Connector:
- PC Power Switch or any circuit controls on over 500,000 cycles.
- Ring LED can be on all the time or only when switch is on which depends on how you wire it.
- High quality metal material & IP65/IP67 waterproof protection can be used in wet or dusty environment.
The Wire Connector:
- a). By using wire connectors, you will no longer need to solder the terminals yourself, which will make it very easy to install the button switch.
It saves the process of welding the wire to the terminal, and also helps to avoid the bad situation of terminal melting caused by unprofessional operation during the welding process.
- b). In addition, using the wire connector to connect the switch allows you to change the switch at any time in a more convenient and easy way. You only need to unplug the switch from the socket.
- c). *Connectors' available options: φ16mm, φ19mm, φ22mm, φ25mm switches.
- d). *The connectors are need to be purchased separately.
Note:
* The switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater.
Note:
* The switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater.
* Please do not using the product while the running current is going over its max available amperes, otherwise the switch will get warm and to be burned out.
Products Certification & Description
28mm Waterproof Metal Latching Push Button Switch 1NO1NC Sslf-locking Stainless Steel On Off Button Switches For Machine Control
Product Parameters | value | |
Ⅰ. | ||
Product type | HUSA - 28mm 1NO1NC Series-A Metal Push Button Switch | |
Switch type | Metal Push Button Switch | |
Keyword | 28mm Metal pushbutton Switch | |
Certification | CCC | |
Protection Level | IP65、IP67、IK10 | |

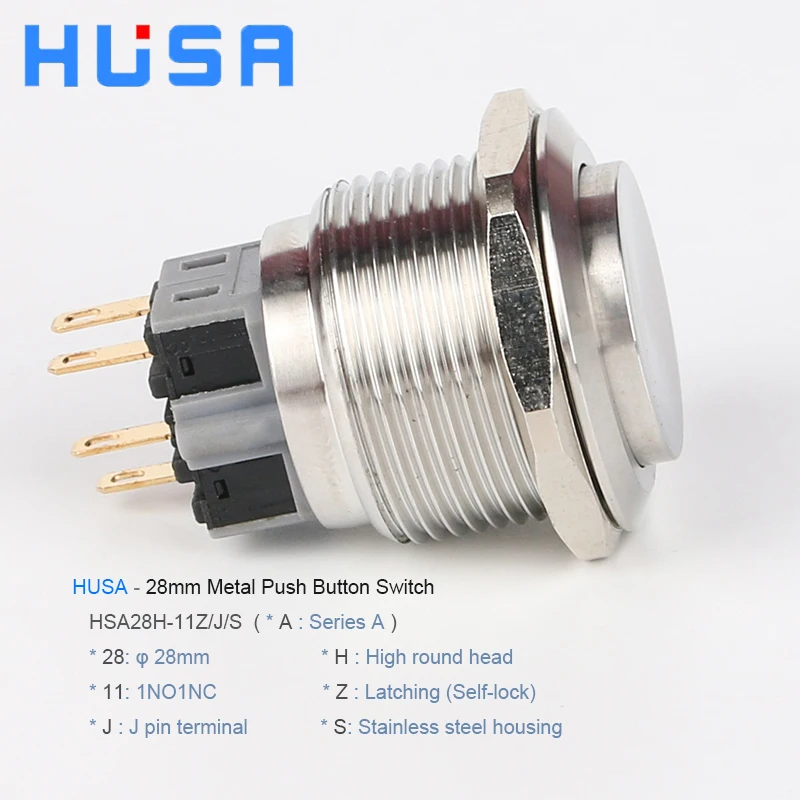

Model Number | HSA28H-11Z/J/S | |
Mounting hole diameter | 28 : φ 28mm | |
Head shape | H : High round head | |
Contact configuration | 11 : 1NO1NC | |
LED Light(Lamp) | Without LED Lamp | |
Lamp symbol | No LED light | |
Lamp Color | Red, Green, Blue, Yellow, Orange, White, or as you like. | |
Operation Type | Z : Latching ( Self-locking ) | |
Terminal | J : Solder Pins terminal ( J Pin ) | |
Enclosure Material | S : Stainless steel / N: Nickel plated brass | |
Ⅱ. | ||
Company Name | Yueqing Husa Electric Co., Ltd. | |
Business Type | Manufacturer | |
Plant Size | Medium Factory | |
Brand Name | HUSA | |
Place of Origin | Zhejiang, China | |
Sample & Small trial order | Available | |
Customization order | Available (Welcome to send us an inquire to discuss more details. ) | |
1. Sample: Available.
2. Payment: Paypal, Western Union, T/T, Credit card...
3. Port: Ningbo or Shanghai.
4. Discounts: Offered based on order quantities.
5. Delivery time: 5~7 working days for sample/small order; 8~15 working days for bulk order.
2. Payment: Paypal, Western Union, T/T, Credit card...
3. Port: Ningbo or Shanghai.
4. Discounts: Offered based on order quantities.
5. Delivery time: 5~7 working days for sample/small order; 8~15 working days for bulk order.
Recommend Products
HUSA - φ 22mm 1NO Momentary Metal Push Button Switch
(click the pictures to learn more details)
HUSA - 19mm Series-C Metal Push Button Switch
(click the pictures to learn more details)
HSC19F-11E/J/S
HS: HUSA company
19: 19mm diameter mounting hole
F : Flat round head / H: High round head
C : Sries C
11: 1NO1NC
E : Ring led light (without E, means no led light)
Packing & Delivery
Quantity (Pieces) | 1-500pcs | 500-2000pcs | >2000pcs | ||||
Est. Time (working days) | 5~7 days | 8-15 days | To be negotiated | ||||
Our Advantage:
1. Quality assurance & Fast Delivery Service:
All the products will be inspected and tested repeatedly before delivery; all the orders will be send to customers immediately after completion。
2. Production side:
The efficiency of our products is competitive in the market, and there are various delivery channels.
3. Superiority of price:
Our company is a professional manufacturer, most of the products in circulation on the market are produced and supplied by us, we could give you the most competitive price.
All the products will be inspected and tested repeatedly before delivery; all the orders will be send to customers immediately after completion。
2. Production side:
The efficiency of our products is competitive in the market, and there are various delivery channels.
3. Superiority of price:
Our company is a professional manufacturer, most of the products in circulation on the market are produced and supplied by us, we could give you the most competitive price.
Company Profile
YUEQING HUSA ELECTRIC CO., LTD.
Our Products mainly use for Home, Machine, Industry, Boat, Science & Technology, and other areas.
The business scope of ours are including button switch, distribution switch control equipment, complete sets of equipment, high and low voltage electrical appliances, electronic components, hardware punches, pneumatic components, plastic parts, moulds, communication equipment, explosion-proof electrical appliances and all various of its accessories.
At present, our products sell well in Europe, North and South America, Asia, Africa and Oceania, covering more than 100 countries and regions in the world.
At present, our products sell well in Europe, North and South America, Asia, Africa and Oceania, covering more than 100 countries and regions in the world.
FAQ
1. Who are we?
We are based in Zhejiang, China, established from 2015 with more than 10 years experience in this filed. There are more than 100 people in our factory.
We are based in Zhejiang, China, established from 2015 with more than 10 years experience in this filed. There are more than 100 people in our factory.
In the past, we sell our products to Domestic Market(60.00%), South Asia(12.00%), Southeast Asia(10.00%), Western Europe(8.00%), Eastern Asia(5.00%), Northern Europe(3.00%), Southern Europe(2.00%) ...
But right now, we are also committed to selling our excellent products to all parts of the world, we are and will make long-term efforts to do that.
2. Are you a factory or trading company?
Yes, we are a professional manufacturer who produced our products by ourselves, welcome to visit our factory.
3.I did not find the products what i want in your shop and catalog, could you please follow my design to produce the products for me?
Sure, welcome to let us know your ideas and product design artworks, we will do our best to help to finish the products for you.
4. Could I put my own logo or designs of label on the products?
Yes, welcome to show us your design artwork, we will follow your requirements to produce the product for you.
5. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
2. Are you a factory or trading company?
Yes, we are a professional manufacturer who produced our products by ourselves, welcome to visit our factory.
3.I did not find the products what i want in your shop and catalog, could you please follow my design to produce the products for me?
Sure, welcome to let us know your ideas and product design artworks, we will do our best to help to finish the products for you.
4. Could I put my own logo or designs of label on the products?
Yes, welcome to show us your design artwork, we will follow your requirements to produce the product for you.
5. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
6. What are your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
7. What are your terms of packing?
Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
8. How about your delivery time?
Generally, it will take 3~15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
9. How can I pay for my order?
You can pay by PayPal , Western Union, T/T... For big order it is also available to pay 30% as deposit, and 70% balance before delivery.
10. How do you make our business long-term and good relationship?
1). We keep good quality and competitive price to ensure our customers benefit ;
2). We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
2). We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Any other needs, ideas or questions, welcome to contact us for help at any time. : )
