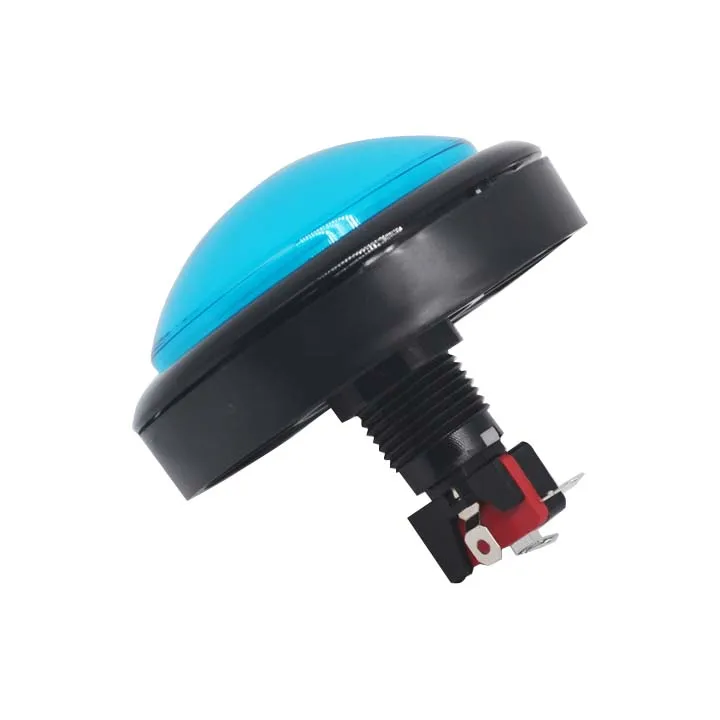

Wintai Tech Big game Button 100 mm Diameter Game Console Switch Button 100mm Arcade Button
- Category: Push Button Switches >>>
- Supplier: Wenzhou,Wintai,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Arcade Button Switch
A button switch, is commonly used to connect and disconnect control circuits. In electrical automatic control circuits, used to manually send control signals to control contactors, relays, etc. Its characteristic is that it is installed in the machine and instrument in progress, and most of the time it is in the initial free position. It only switches to the second position under the action of external forces when required. Once the external force is removed, the switch returns to the initial position.
Details Images

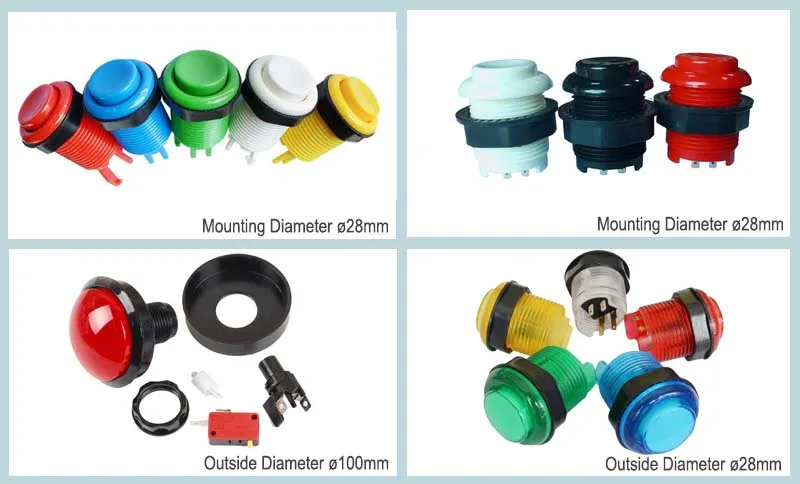

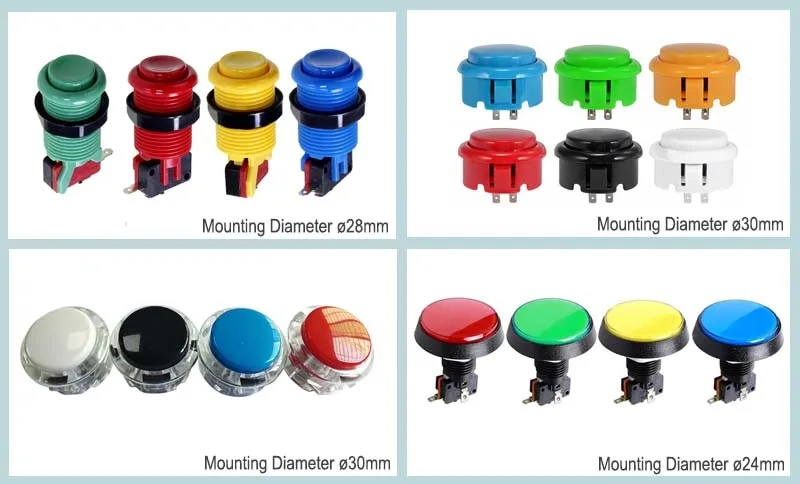

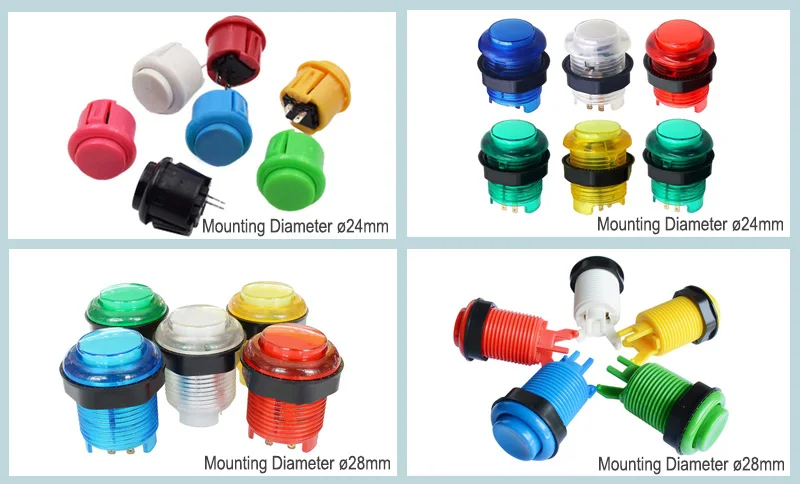

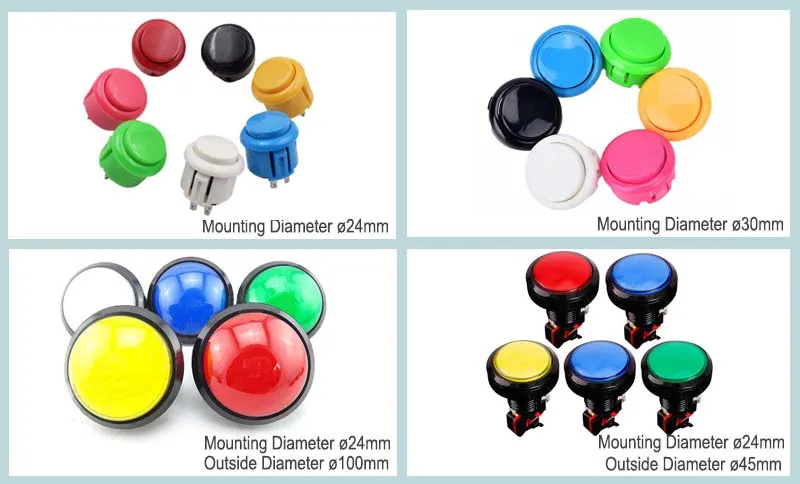

Multiple colors for selection
In general, each Arcade button switch has many colors to choose from, commonly black, white, green, red, blue, camel, red, pink, etc. In order to ship as soon as possible, we have almost every color in stock.The composition of game buttons
Most game button switches with lights are composed of a button body, fixing nuts, washers, brackets, LED lights, and micro switches. Usually, the diameter ranges from 24mm, 28mm, 30mm and 60mm to 100mm,
Products Description
Product Structure Description
It is composed of a button cap, a return spring, fixed contacts, movable contacts, a shell, and a strut connecting rod. The opening and closing state of the contact when the button is not subjected to external force is divided into start button (NO), stop button (NC) and composite button (NO/NC). For the start button, when the button cap is pressed, the contact closes, and when released, the contact automatically disconnects.
Product Paramenters
ArcadeProduct Name | Push button switch |
Current Rating | 0.3A 30VDC |
Travel | 1.5-2.5mm |
Operating Force | 250gf，350gf |
Operating Temperature | -25oC ～ +75oC |
Life Time | 500,000 Cycles |

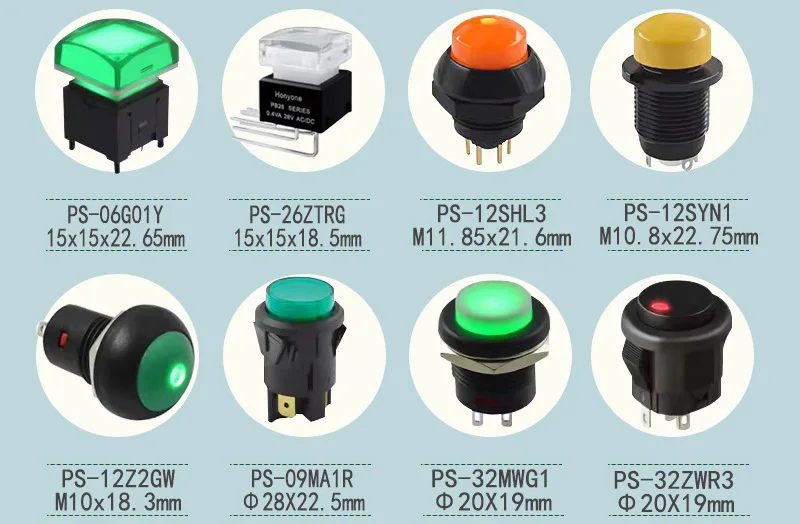

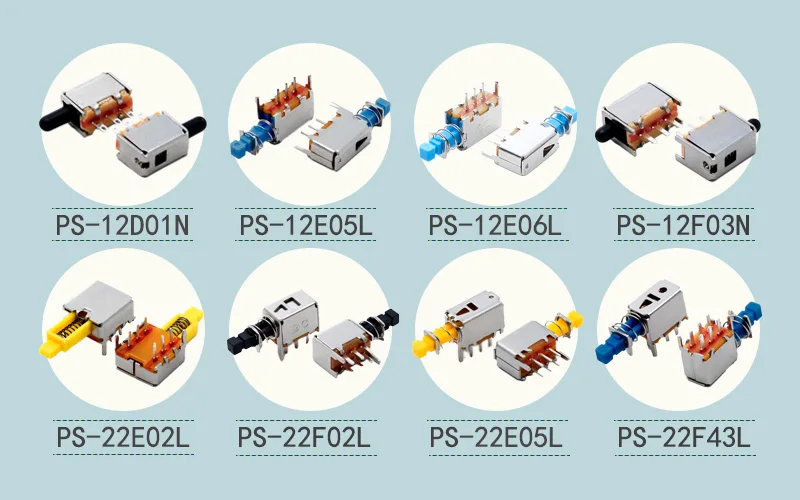

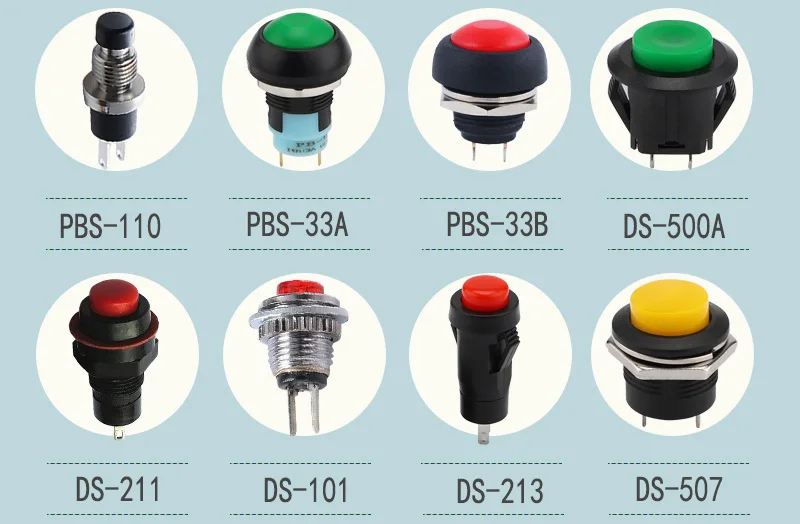

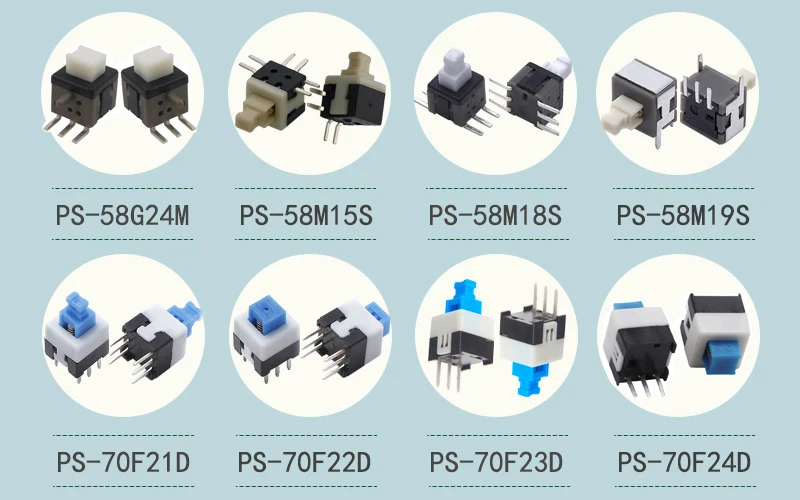

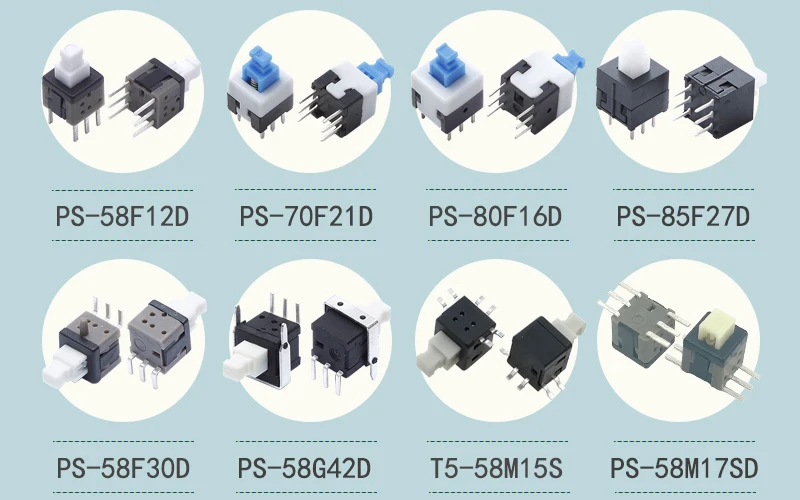

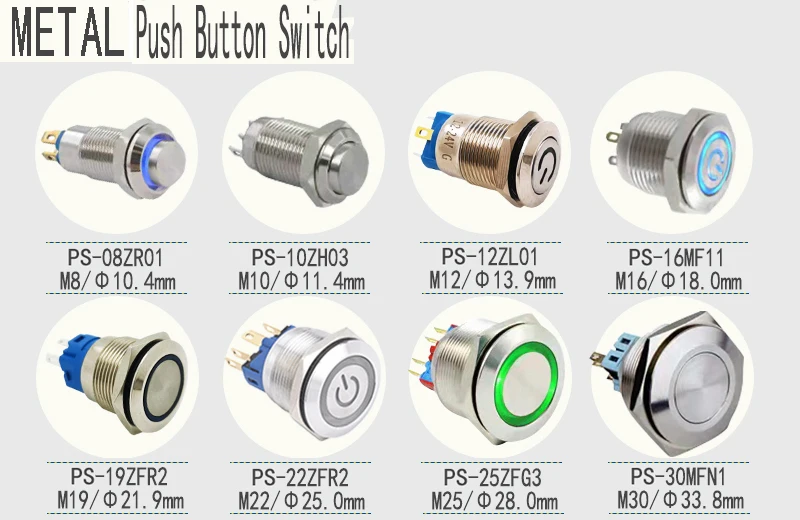

Related Products
