Product Overview
Description
Product Description
Feature:

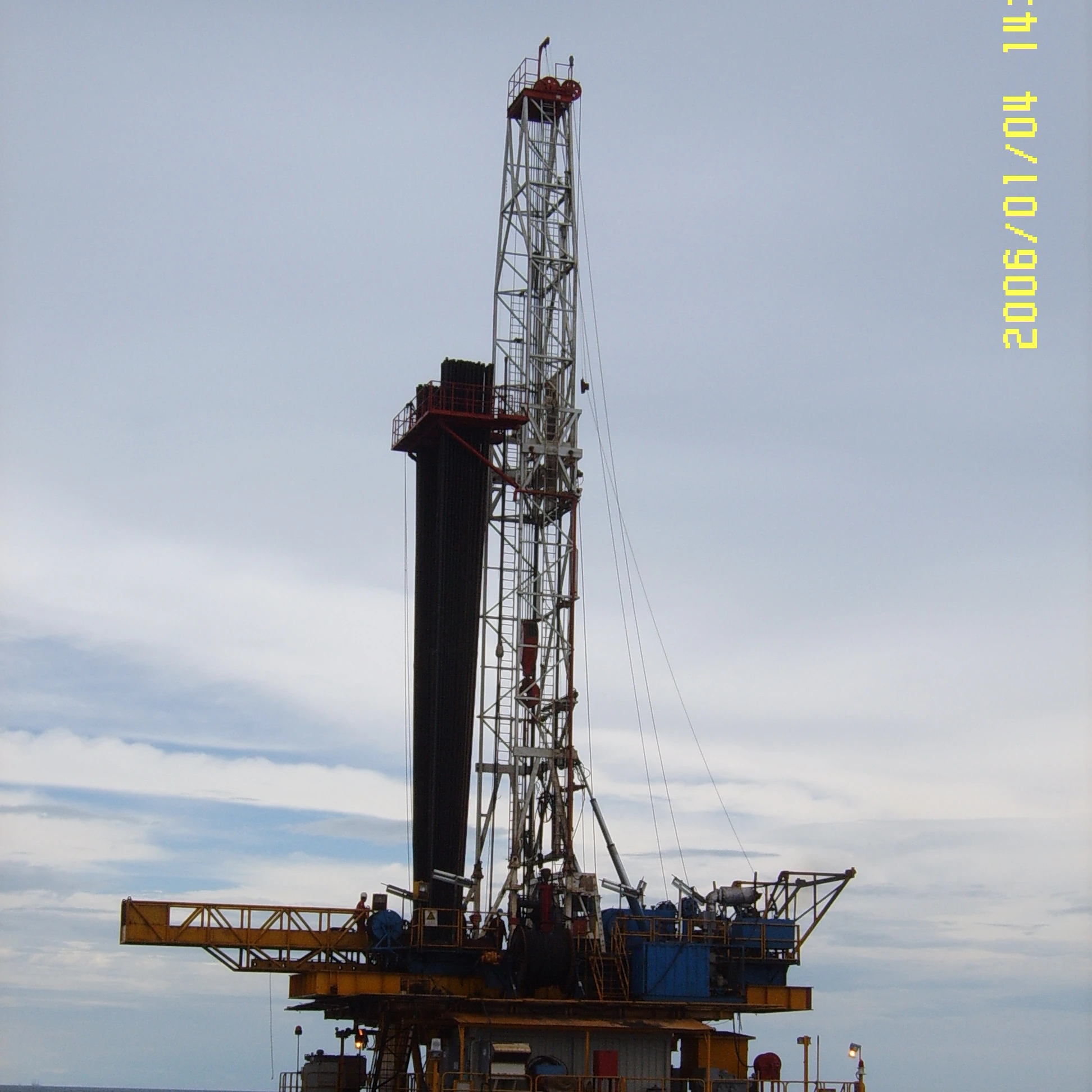

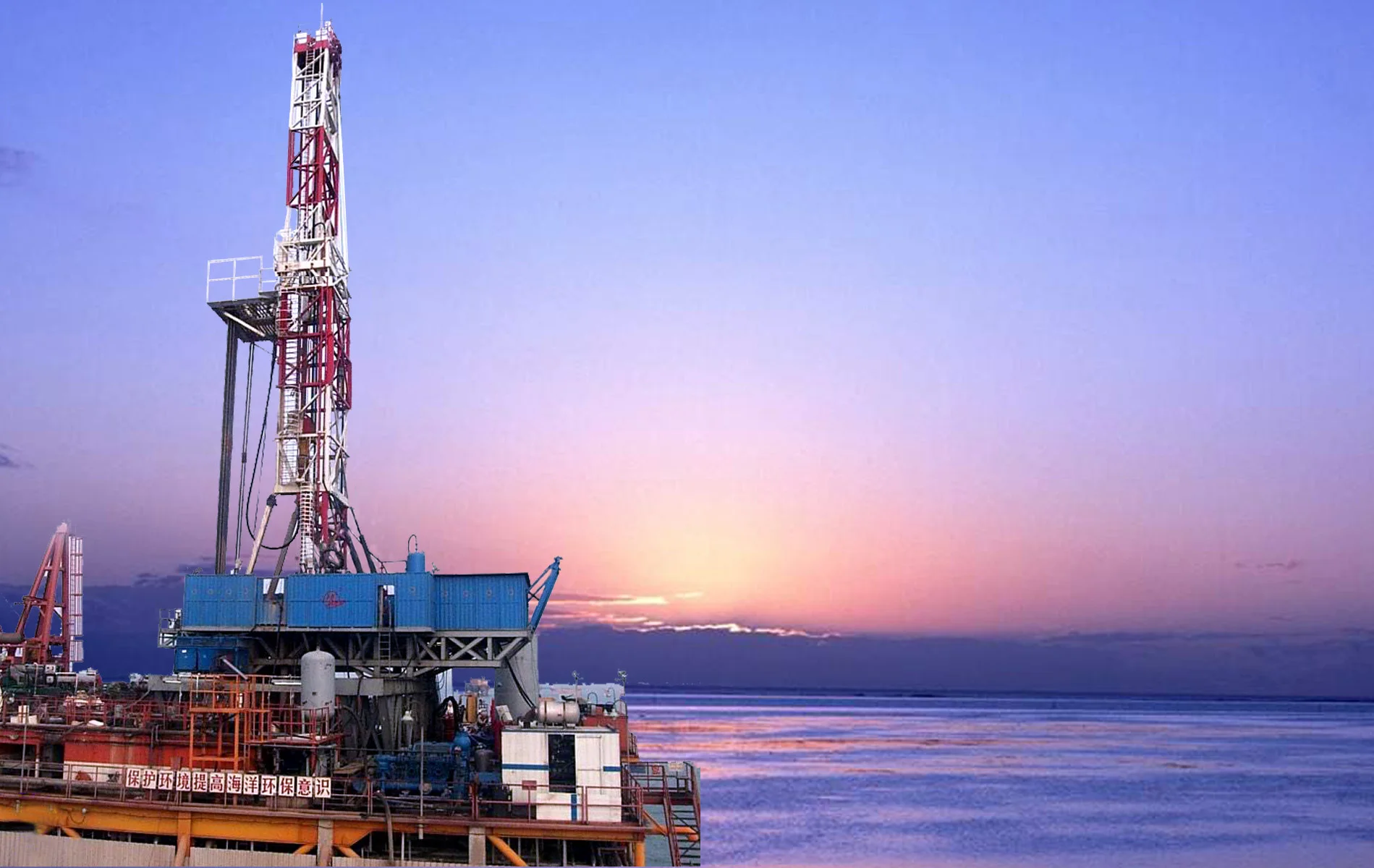

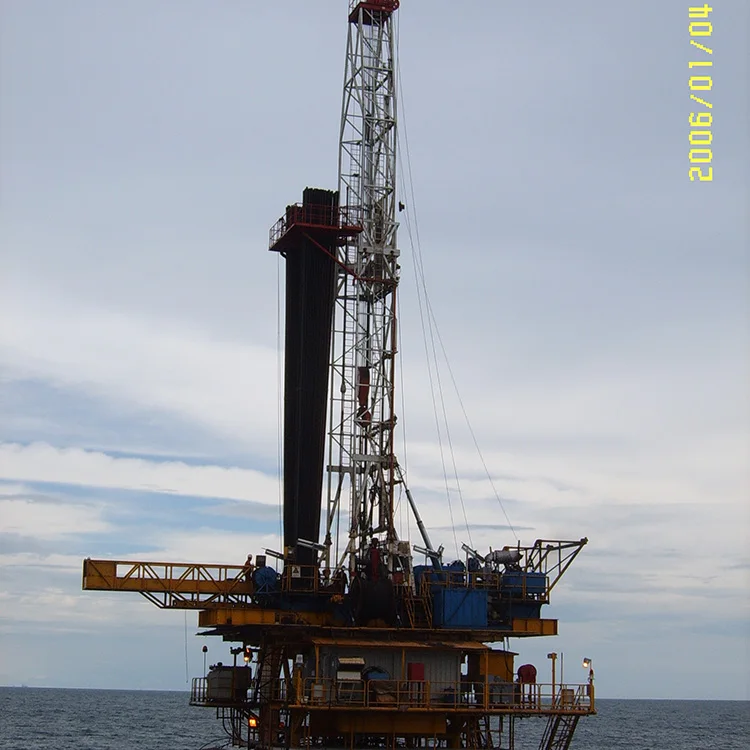

This offshore drilling and workover rig has a modular structure to achieve fast installation, and can meet the hoisting requirements of different hoisting equipment It can move in both longitudinal and transverse directions to achieve workover or drilling operations of every well location in the slot area of the ocean platform wellhead. With different structure and height, the basement can meet the layout requirements of a variety of guide rail spaces and deck planes.
This rig has strong wind-resistance and an anti-vibration capacity, Its maximum wind-resistance capacity is 107 knots (without setback).
The use of Caterpillar or Detroit engines with an Allison hydraulic transmission box ensures safety and reliability. The offshore workover rig can be driven by VFD or SCR, and has high driving efficiency whilst still being easy to control.
The derrick is erect, front-open without guylines, and has a double or multi-section telescopic structure or tower type.
The structural parts have undergone surface anticorrosive processes. This includes a combination of spray-painting, baked painting, spray-aluminum and spray-zinc to meet the requirements of the ocean environment and climate.
The rig is equipped with auxiliary safety equipment such as H2S and a combustible gas monitoring system, fire control and safe alarm system, industrial monitoring system, and so on.
The solid-control equipment and well-control equipment can be equipped to meet the requirements of drilling and workover operations.
This rig has strong wind-resistance and an anti-vibration capacity, Its maximum wind-resistance capacity is 107 knots (without setback).
The use of Caterpillar or Detroit engines with an Allison hydraulic transmission box ensures safety and reliability. The offshore workover rig can be driven by VFD or SCR, and has high driving efficiency whilst still being easy to control.
The derrick is erect, front-open without guylines, and has a double or multi-section telescopic structure or tower type.
The structural parts have undergone surface anticorrosive processes. This includes a combination of spray-painting, baked painting, spray-aluminum and spray-zinc to meet the requirements of the ocean environment and climate.
The rig is equipped with auxiliary safety equipment such as H2S and a combustible gas monitoring system, fire control and safe alarm system, industrial monitoring system, and so on.
The solid-control equipment and well-control equipment can be equipped to meet the requirements of drilling and workover operations.
Specification
Model | HXJ90 | HXJ110 | HXJ135 | HXJ158 (HXJ160) | HXJ180 | HXJ225 |
Max Hook Load (kN) | 900 | 1100 | 1350 | 1580 (1600) | 1800 | 2250 |
Nominal Drilling Depth (114mm)m | 2500 | 3500 | 4500 | 5500 | 6500 | 7500 |
Drawworks Power (kW) | 269 | 354 | 485 | 500 | 600 | 735 |
Lines | 6 | 8 | 8 | 8, 10 | 8, 10 | 10 |
Wireline dia.(mm) | 26 | 26 | 29 | 29 | 29, 32 | 32 |
Mast height (m) | 18, 29 | 29, 31 | 29, 31, 33 | 31, 33, 36 | 33, 36 | 33, 38, 41 |
Max hook speed (m/s) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
substructure height (m) | ≥5.5 | ≥5.5 | ≥5.5 | ≥5.5 | ≥5.5 | ≥5.5 |
RT hole dia.(mm) | 444.5 | 444.5 | 444.5 | 444.5 | 698.5 | 698.5 |
Main brake | band and disc brake | band and disc brake | band and disc brake | band and disc brake | band and disc brake | band and disc brake |
auxiliary brake | 224WCB, pneumatic disc brake | 224WCB, pneumatic disc brake | 224WCB | 224WCB | 324WCB | 324WCB, dynamic braking |
