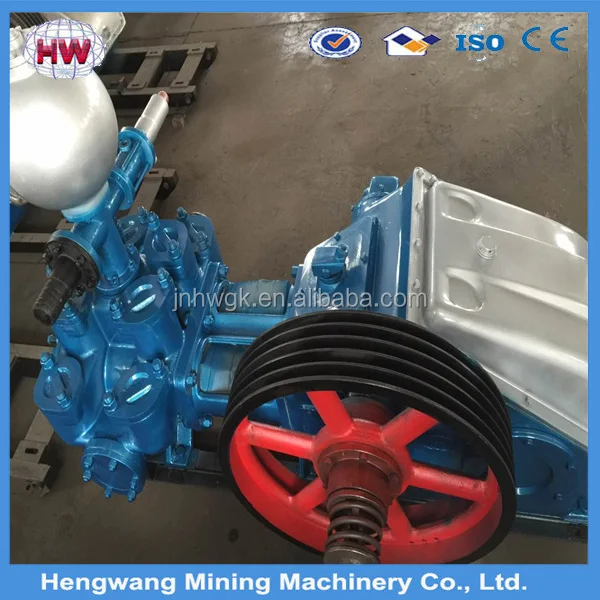

Китай (материк) буровой трёхцилиндровый насос BW 160 250 600 850 бурового насоса (60509885191)

Share on:


Price:1 500,00 $ - 2 000,00 $
Price in USD:Details

Quantity:


Product Overview

Description


   China Triplex Mud Pump BW 160 250 600 850 Mud Pump






BW MUD PUMP :




1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor

power, It has simple operation, convenient, can achieve close range or remote control.

2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy,

stable performance, good general and so on.

3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable

configuration parameters selection,The construction technology can satisfy different requirements.

4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy

geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.





 Parameters



 BW160



























































































Model



BW-160/10



Type



Horizontal three-cylinder single-action reciprocating piston pump



Cylinder diameter(mm)



70



Stroke(mm)



70







Quick(I)



Quick(II)



Slow(I)



Slow(II)



Pump speed(min-1)



200



132



83



55



Flow(l/min)



160



107



67



44



Pressure(Mpa)



2.5



4



6.5



10



Volume efficiency(%)



100



Total efficiency(%)



75



Input torque(Nm)



150



Input speed(r/min)



610



Input power(KW)



(Motor)11



Input power(KW)



(Diesel engine)14.7



Inlet tube diameter(mm)



51



Outlet tube diameter(mm)



25



Mass(Kg)



380(excluding power)



Outer dimension mm(L×W×H)



1525×830×950(with Y160M-4-B3 motor)



1920×830×1000(with Changchai ZS1110 Diesel engine)






BW250













































Model



BW250



Max.Flow



250L/min



Max.Pressure



7Mpa



Input Power



15KW



Suction Pipe Diameter



76mm



Discharge Pipe Diameter



51mm



Hole Depth(m)



≤1500(for diamond core drilling)



≤1000(for conventroxal core drilling)



Overall Dimension(mm)



1100x995x650



Weight



760kg






 BW320














































Model



BW320 mud pump



Type



Horizontal triplex single acting reciprocating piston pump



Stroke (mm)



1100



Cylinder diameter (mm)



80



Pump speed (times/min)



214     153     109     78



Flow (l/min)



320     230     165     118



Pressure (Mpa)



2.2      3.6     6.2     10



Power (Kw)



30



Shape size (mm)



1905*1100*1200



Weight (kg)



720









 BW600














































Model



BW-600



impulse(mm)



600



Cylinder bore(mm)



100/80



Maximum flow(L/min)



600



Maximum pressure(Mpa)



7



Driving power(KW)



30



Suction pipe diameter(mm)



89



Drain pipe diameter(mm)



51



Deep hole driving(m)



≤800



Outline size(mm)



1000×995×650






BW850

























































RockSmith Mud Pump Specifications







Model No.: BW850



Cylinder diameter



150 mm



Piston Stroke



180 mm



Number of Strokes



82, 58 Num./min



Displacement



850, 600 litre/min



Pressure



2.0, 3.0 mpa



Speed of V-Belt wheel



470 rpm



Power input



40/54 kW (hp)



Diameter of suction pipe



127mm (5”)



Diameter of discharge pipe



63.5 mm (2-1/2”)



Overall dimensions (LxWxH)



2000 x 1030 x 1400 mm



Weight



1450 kg






 Photos

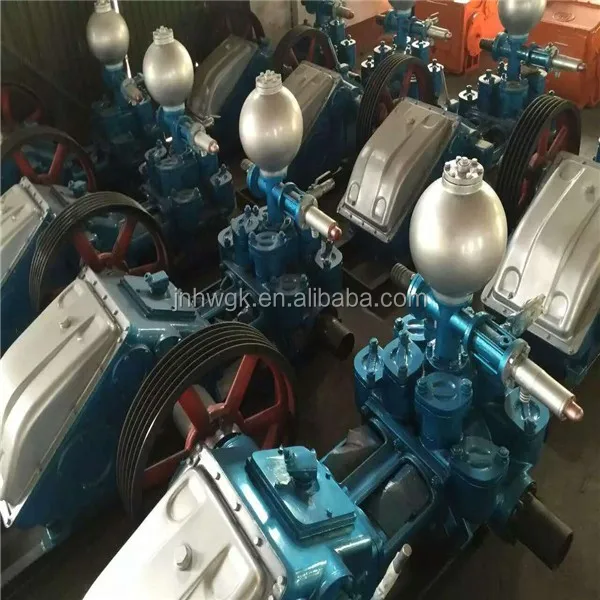

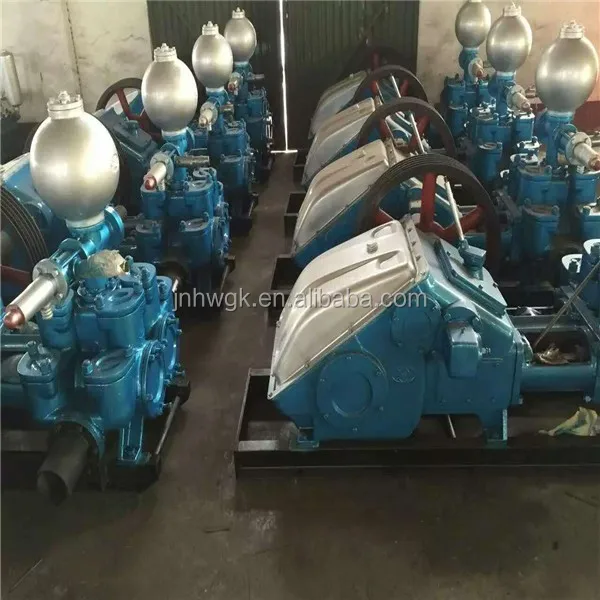

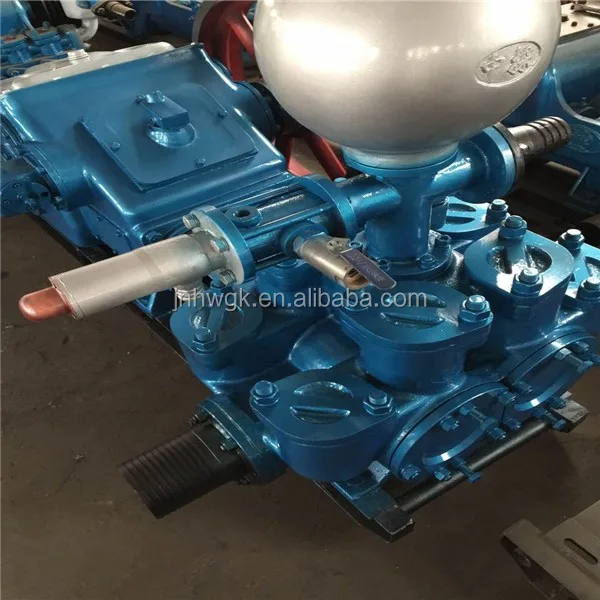

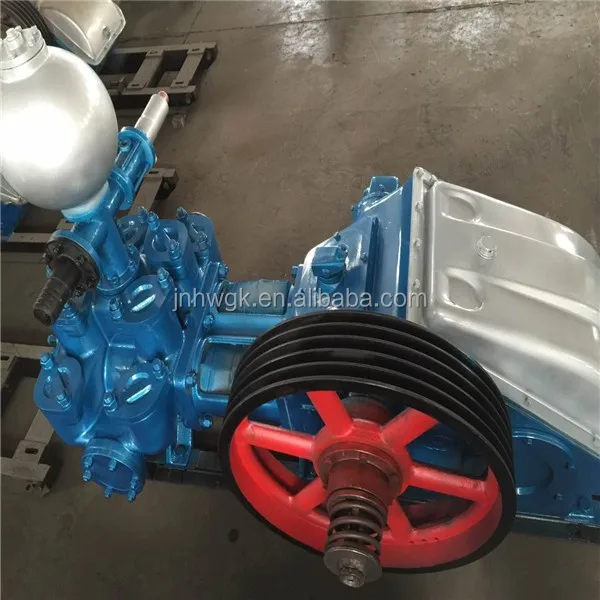

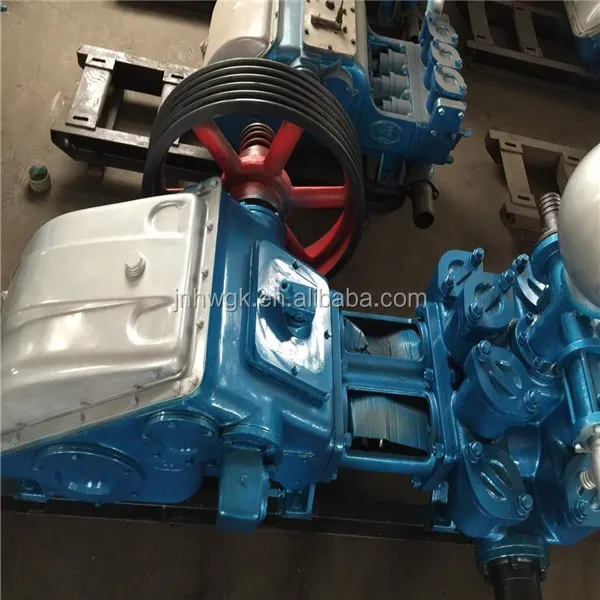

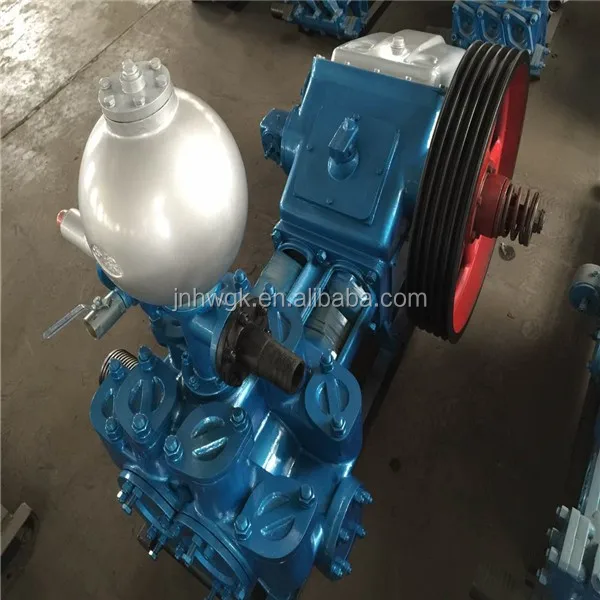

TBW-850-2B (4).jpgTBW-850-2B (5).jpgTWB-850-2B (1).jpgTWB-850-2B (2).jpgTBW-850-2B (2).jpgTBW-850-2B (3).jpg
