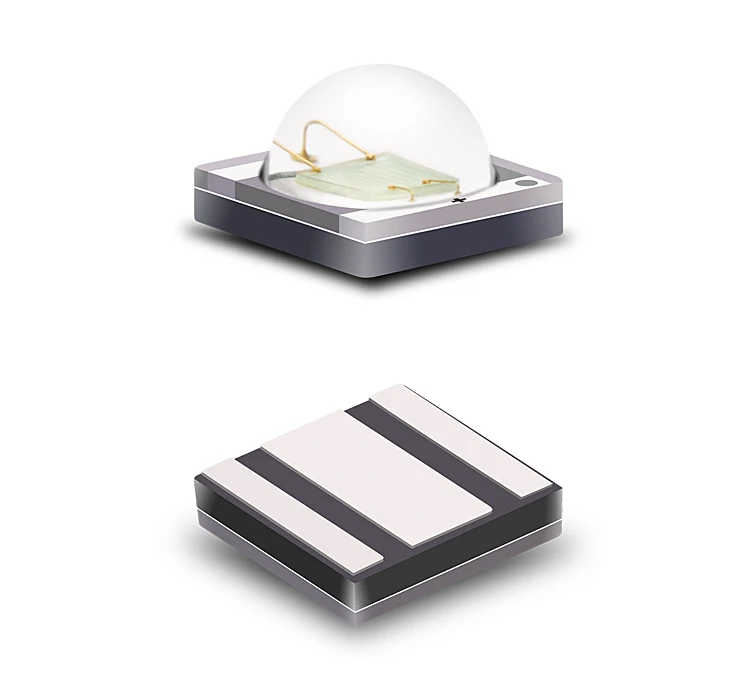

SMD Diodes LED 3535 LED Green Light Source High Power LED 3watt LED Diode 500nm 3535 Green LED Chip

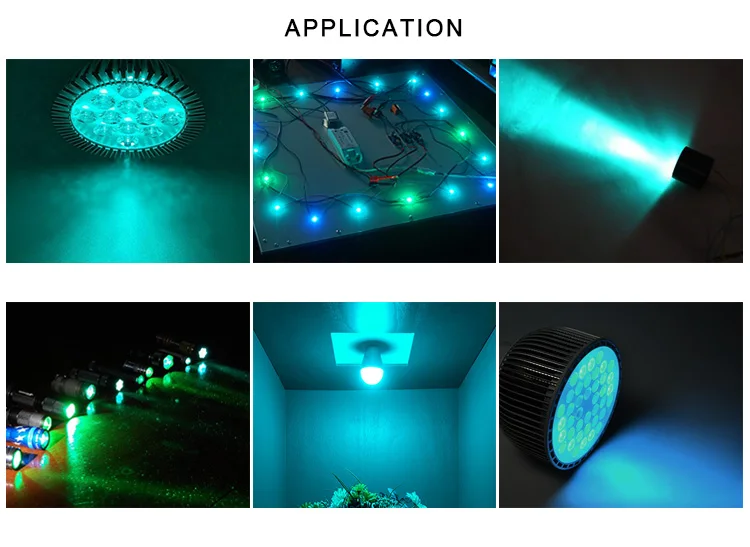

Typical Applications:

• Reading lights (car, bus, aircraft)

• Portable (flashlight, bicycle)

• Uplighters/ Downlighters

• Decorative/ Entertainment

• Bollards/ Security/ Garden

• Indoor/ Outdoor Commercial and Residential Architecture

Features:

• Well-known chip material, EPILEDS

• 99.99% gold wire bonding

• High flux per LED

• Industry best moisture sensitivity

• Low-temp & lead-free reflow soldering

• More energy efficient than incandescent and most halogen lamps

• Low Voltage DC operated

• Instant light(less than 100ns)

• RoHS, CE compliant

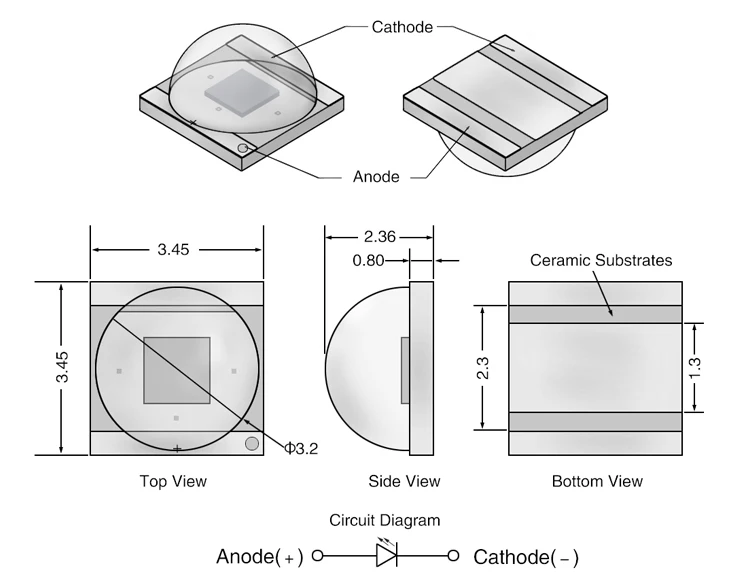

Emitter Mechanical Dimensions

Notes:

1. The Anode side of the emitter is denoted by the "+" Sign in the lead frame.

2. Electrical insulation between the case and the board is required. Do not electrically connect either the anode or cathode to the slug.

3. Drawing not to scale.

4. All dimensions are in millimeters.

5. Unless otherwise indicated, tolerances are ± 0.2mm.

6. Please do not bend the leads of the LED, otherwise it will damage the LED.

7. Please do not use a force impact or pressure on the lens of the LED, otherwise it will cause a catastrophic failure.

Flux Characteristics at 700mA, Temperature=25℃

• LEDGUHON maintains a tolerance of ±5% on flux measurements.

• Please do not drive at a rated current of more than 1 second without a proper heat sink.

Optical Characteristics at 700mA, Temperature=25℃

• LEDGUHON maintains a tolerance of ±1nm for dominant wavelength measurements.

Electrical Characteristics at 700mA, Temperature=25℃

• LEDGUHON maintains a tolerance of ±0.1v for voltage measurements

Absolute Maximum Rating

Cyan Color Spectrum Graphical Representation, Temperature=25℃

Forward Current Characteristics, Temperature=25℃

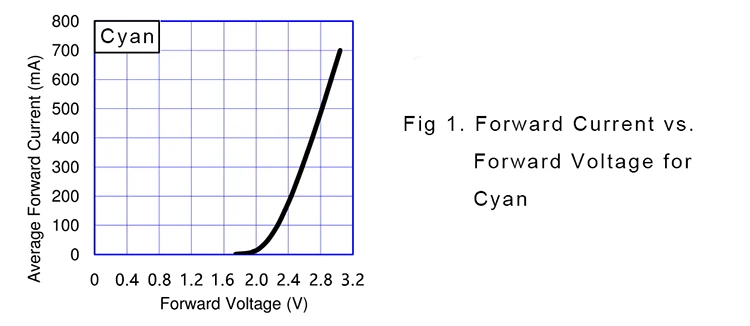

1. Forward Voltage vs Forward Current

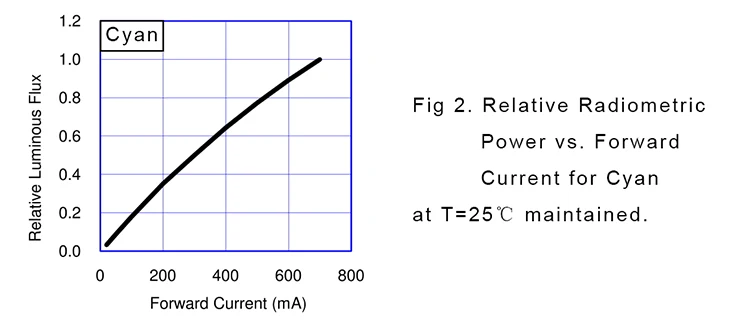

2. Forward Current vs Normalized Relative Luminous Flux

Soldering Conditions

• When soldering High Power Led, Heat may affect the electrical and optical characteristics of the LEDs.

• In soldering, do not stress the lead frame and the resin part under high temperatures.

• The silicone part should be protected from mechanical stress or vibration until the High Power Led return to room temperature after soldering.

• Preliminary heating to be at 140˜160℃ max, for 120 seconds max.

• Soldering heat to be at 260℃ max, for 3 seconds max.

• For manual soldering is not more than 3 seconds at max 260℃, under soldering iron.

Storage

• Before opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

• The LEDs should be used within one year.

• After opening the package, the LEDs should be kept at 30℃ or less and 30%RH or less.

• The LEDs should be used within one month after opening the package.

• If the moisture absorbent material(silicone) has faded away or the LED has exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60℃±5℃ for 48 hours.

Static Electricity

• Static electricity or surge voltage damages the High Power LED. It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.

• A tip soldering iron is requested to be grounded, An ionizer should also be installed where the risk of static.

• All devices, equipment, and machinery must be properly grounded, It is recommended that measures be taken against surge voltage to the equipment that mounts the High Power LED.

Cleaning

• Isoprophy Alcohol or Ethylene Alcohol is recommended in 5 minutes at room temperature. Do not use unspecified chemical may cause crack or haze on the surface of the epoxy resin.

• Before cleaning, a pre-test should be done to confirm whether any damage to the LED will occur.

• Freon solvent should not be used to clean the LEDs because of worldwide regulations.

Heat generation

• When the LEDs are illuminating, the operating current should be decided after be considering the ambient maximum temperature.

• Please consider the heat generation of the LED when it is designed the PCB.

• The LEDs must be mounted on a metal core PCB or heat sink or applied thermal pad.

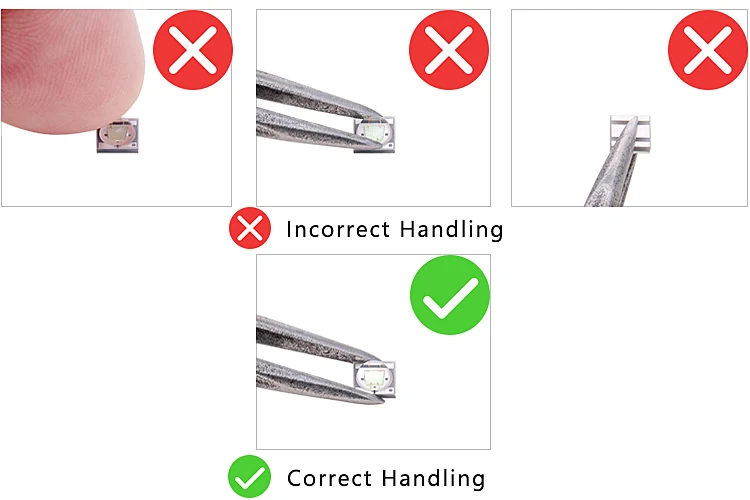

Handing LED

LEDGUHON recommends the following at all times when handing LEDs or assemblies containing these LEDs:

• When handing the LED with tools like Tweezer or Nipper, do not apply Mechanical Forces directly on the LED's surface.

• Do not touch with hand LED Lens surface directly. It may contaminate the Lens surface and affect optical characteristics.

• LED should be handled from the side because LED's molding material may be damaged with scratching on the surface, piercing molding material, and broking wire.

Attention: Electric Static Discharge (ESD) Protection

The symbol is shown above herein introduces "Electro-Optical-Characteristics". ESD protection for AIGaInP and InGaN has based chips is still necessary even though they are safe in low static-electric discharge. The material in AIGaInP and InGaN-based chips are STATIC SENSITIVE devices. ESD protection has to considered and taken in the initial design stage. If manual work is needed, please ensure the device is well protected from ESD during all the processes.

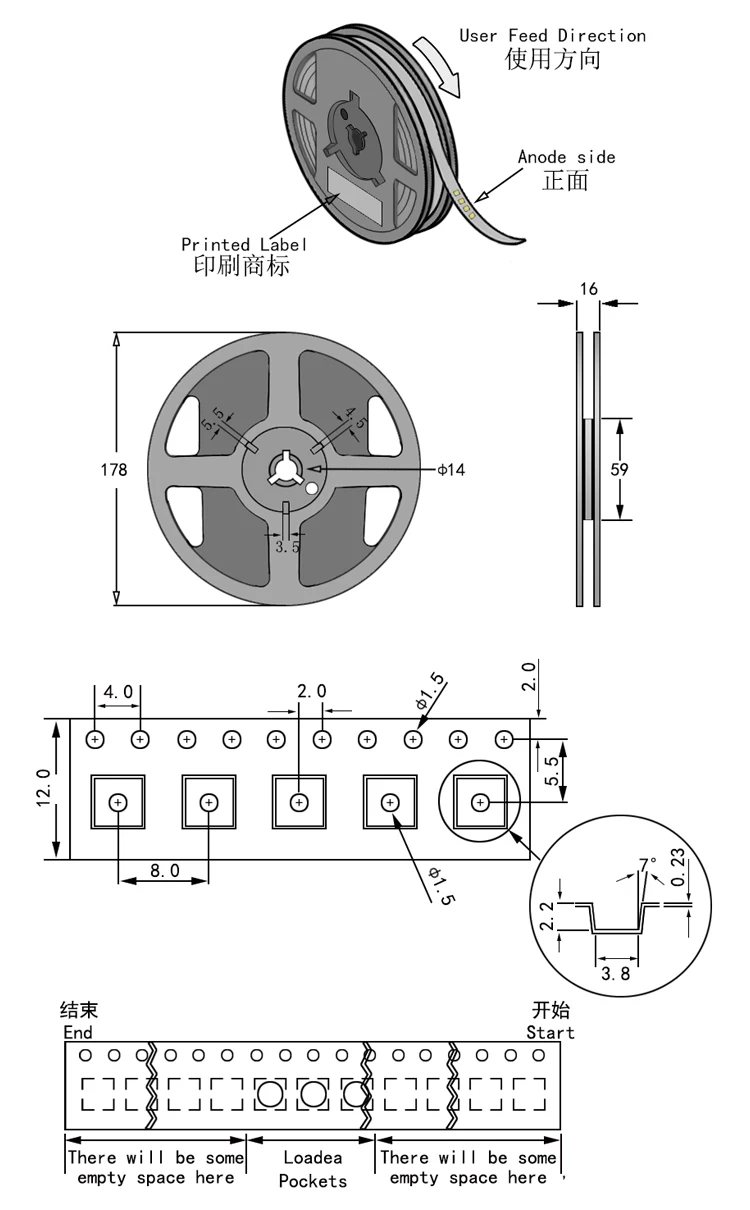

Option 1 - Tape Reel Packing

Notes:

1. Drawing not to scale.

2. All dimensions are in millimeters.

3. Unless otherwise indicated, tolerances are ±0.2mm.

• Please do not open the moisture barrier bag(MBB) for more than one week. This may cause the leads of LED discoloration. We recommend storing LEDGUHON's LEDs in a dry box after opening the MBB. The recommended storage conditions are temperature 5-30℃ and humidity less than 40% RH.
