Share on (1600268697273):


Price:$255.00 - $275.00

Quantity:


Product Overview

Description





Related Products




Product Description

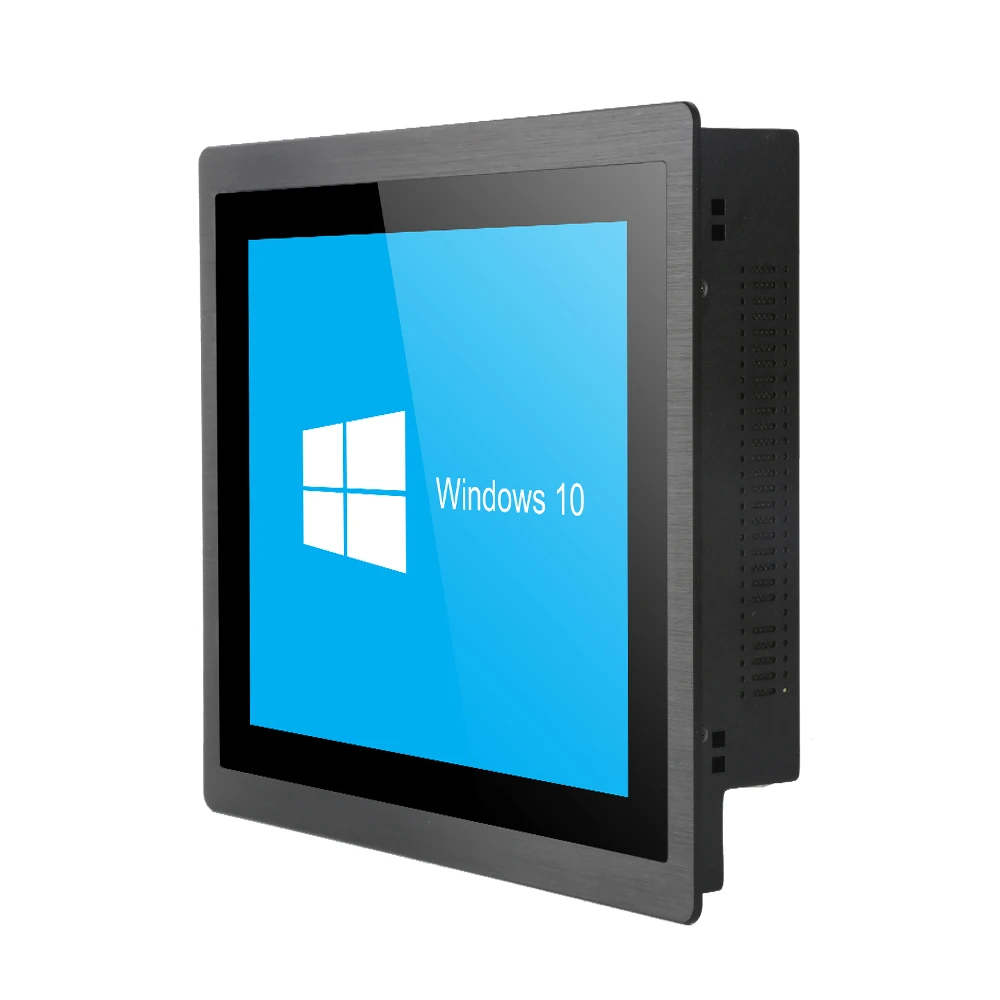

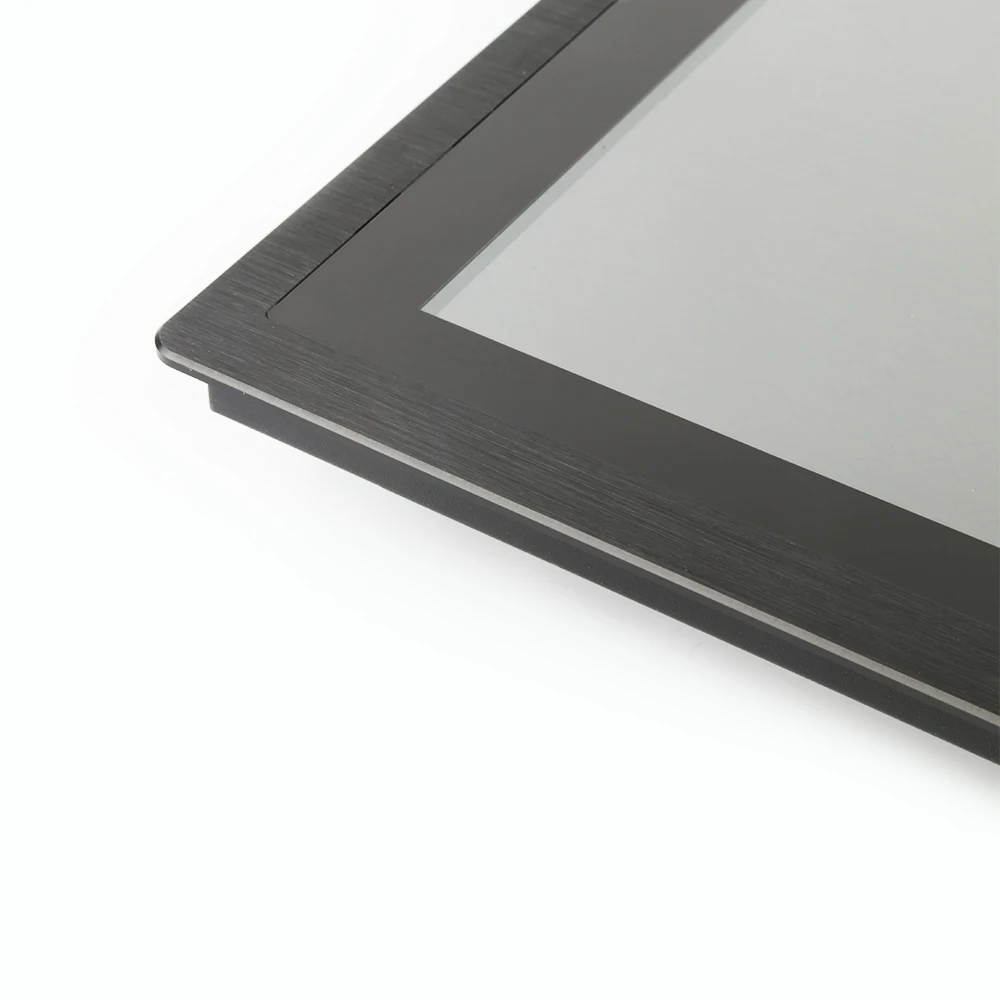

7 8 9.7 10.1 121.1 inch flat screen all in one panel pc with IP65 front aluminium case




PC
CPU
Intel® Celeron J1900 2.0GHz, Quad cores, fanless
Intel® Core i3-3217U 1.8GHz dual cores, with fan
Intel® Core i5-3317U 1.7GHz dual cores, with fan
Memory
2G DDR3 ( Max. 8G)
Hard Drive Optional
SSD: 32GB,64GB,128GB, 256GB
HDD: 160GB,320GB,500GB,1TB
Graphics
CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network
1×Realtek RTL 8111F Gigabit Ethernet controller
Wifi
Optional
4G module
Optional
I/O Interface

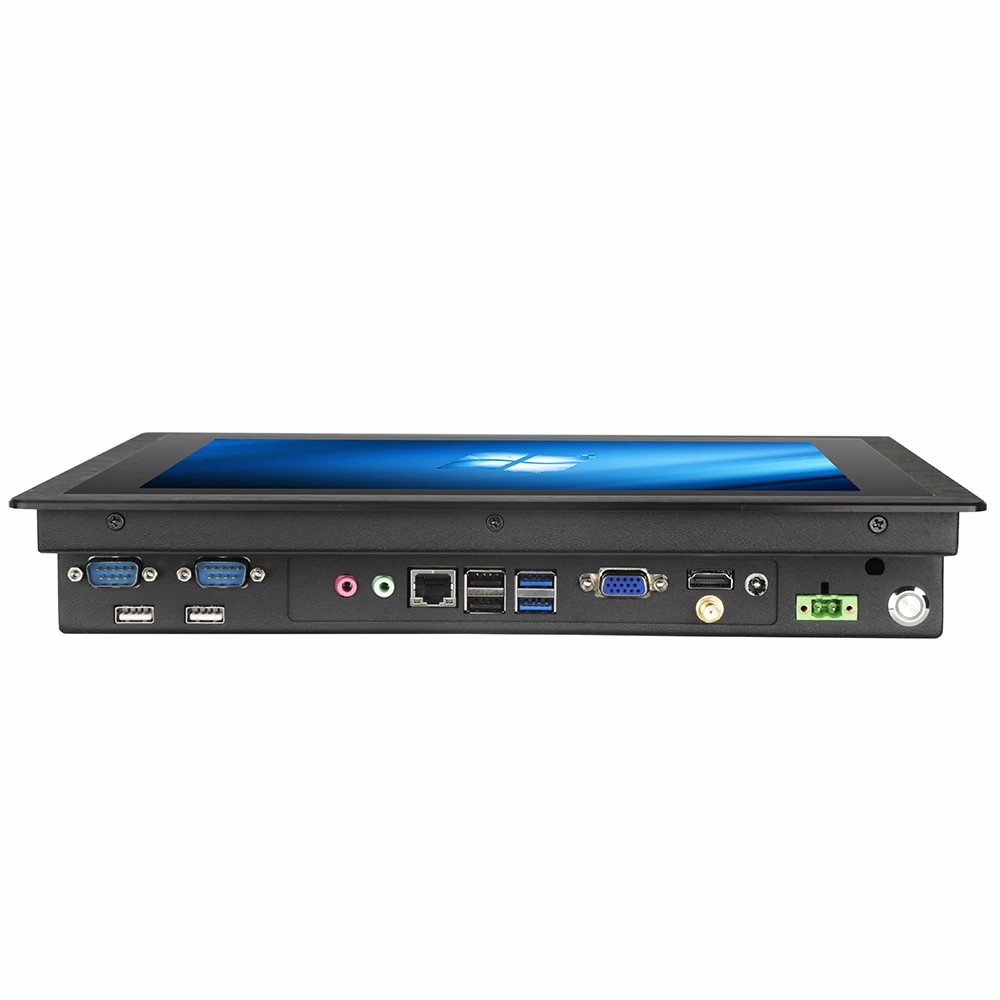

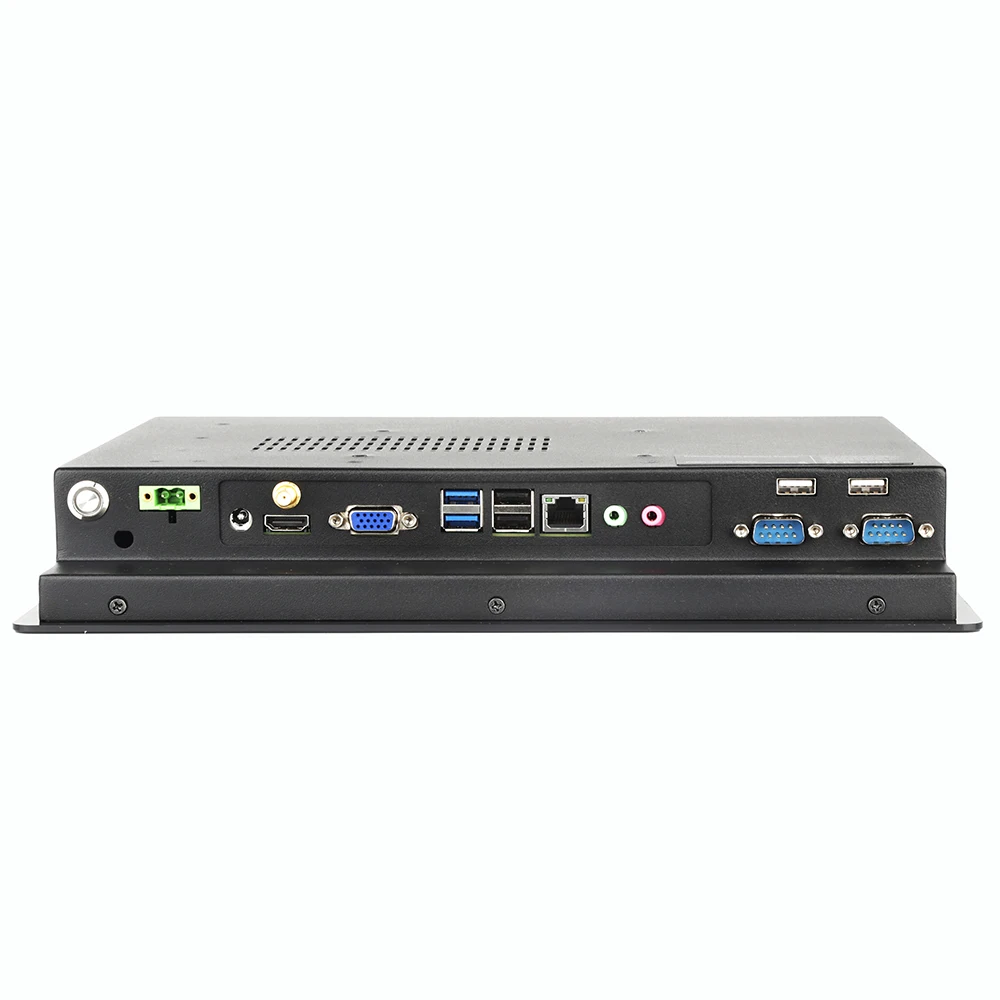

2×USB2.0, 2×USB3.0,1×Lan(RJ45),1 x COM(RS232/Serial), 1×VGA/HDMI/Audio OUT/POWER DC
Opetation System
Windows 7/8/10/Linux
LCD panel
Panel size
7"8" 9.7"10.1"12.1"
Resolution
1024x768
Brightness (cd/m²)
300
Response time
15ms
Contrast ratio
500:1
View angle
85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen Type
10 points Projected capacitive touch
Touch Interface
USB
Touch response time
<8ms
Luminousness
75-85%
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
≤18W
Operating Environment
Temperature range
operating: -25 to 75°C, storage :-30 to 80°C
Relative humidity
5%~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Accessories
Power adapter, wall mounting bracket
Other

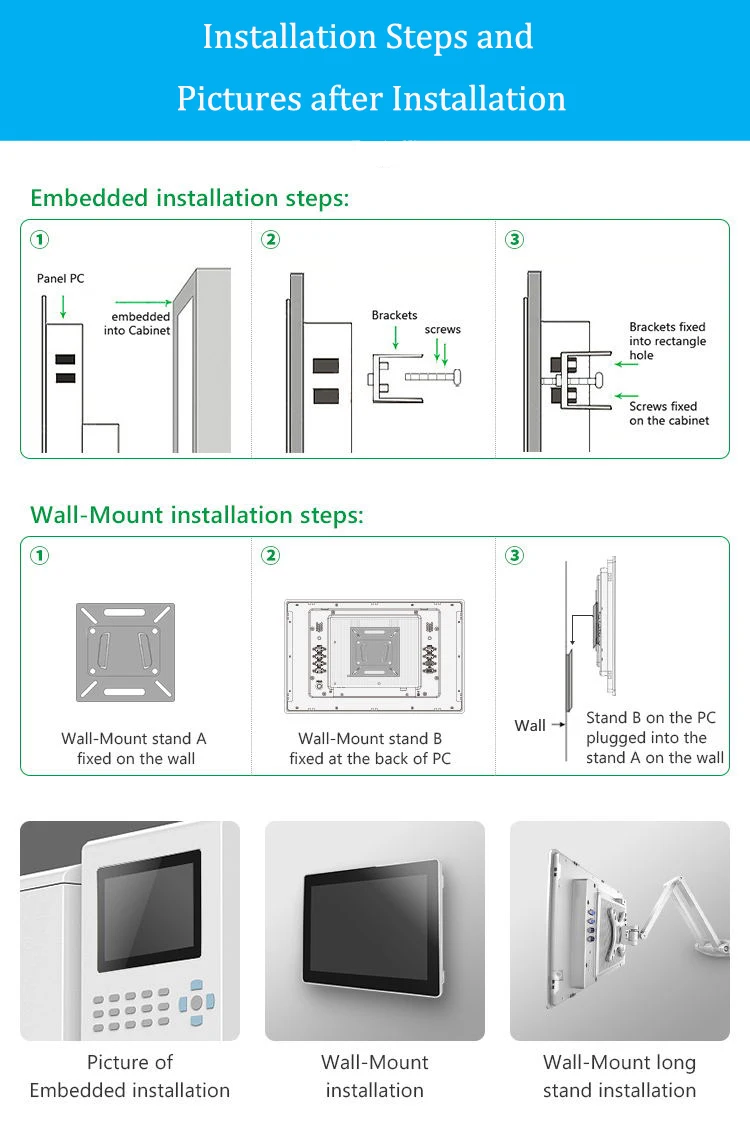

Mounting (options)

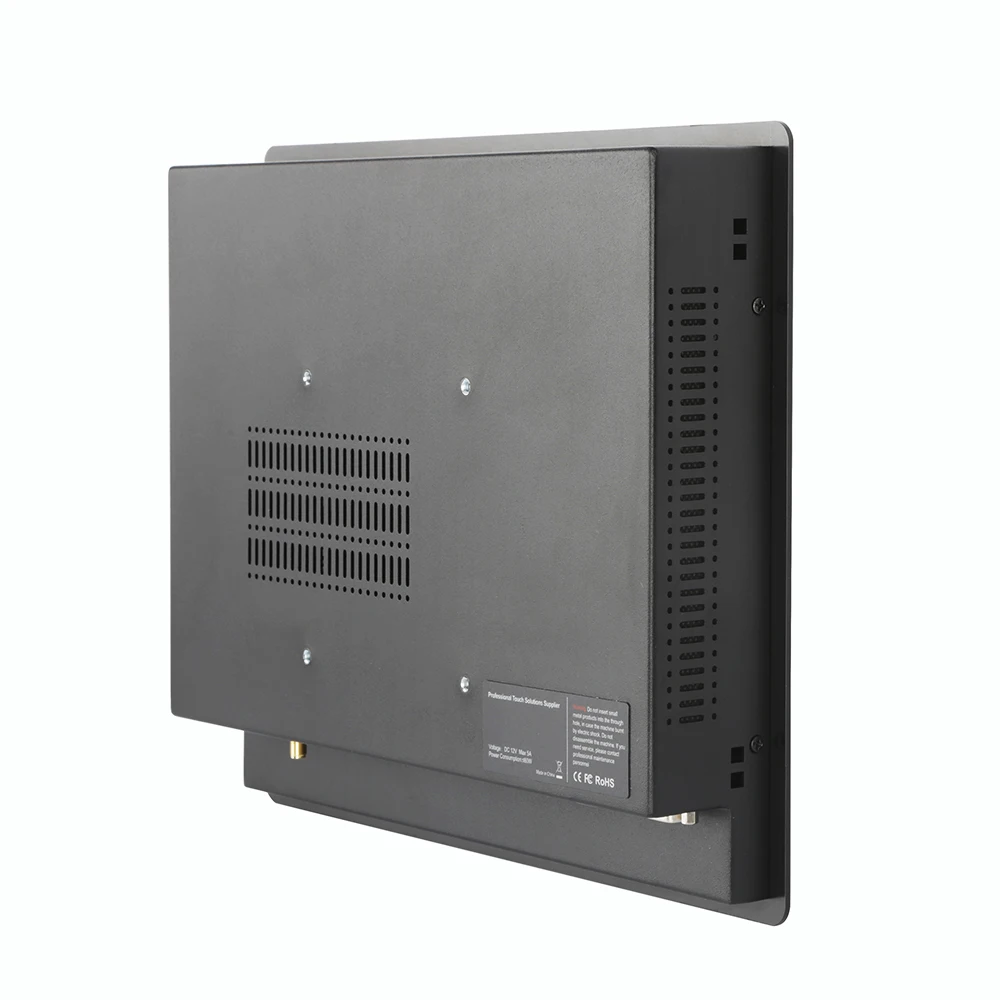

1) Wall brackets for wall-mounting, VESA 100×100mm
2) Metal desl stander to support the PC
3) Open frame mount kits( left and right side) to hold the PC
4) Embedded installation, 1 sets screws provided
Certification
CE, FCC
Warranty
1 year warranty


Product Usage






Packing&Shipping




Company Introduction


Bestview is the manufacture specialized for industrial touchscreen monitor,
open frame/rack mount monitor, industrial AIO panel pc, IP65 waterproof monitor, Field/broadcast monitor




Our Services & Strength
1.Your any inquiry or question will be replied within 24hrs.
2.OEM&ODM are well welcomed,regarding the interfaces,functions,images,structures,etc.We have professional engineer team to realize
your idea.
3.To be our agent or distributor is well welcomed.
4.You can find the right product you want,whatever the most competitive price or Highest quality!






FAQ


1.How to pay ?
For bulk order it is better to pay by TT(HSBC),to save your banking charges.
For sample and small order, Paypal and Western Union are acceptable.
2.When can get?
For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days.
OEM or ODM order,the lead time is negotiated.
3.How to get?
All items can be shipped by DHL, UPS, FEDEX, EMS,BY AIR ,BY SEA and so on ACCORDINGLY.
