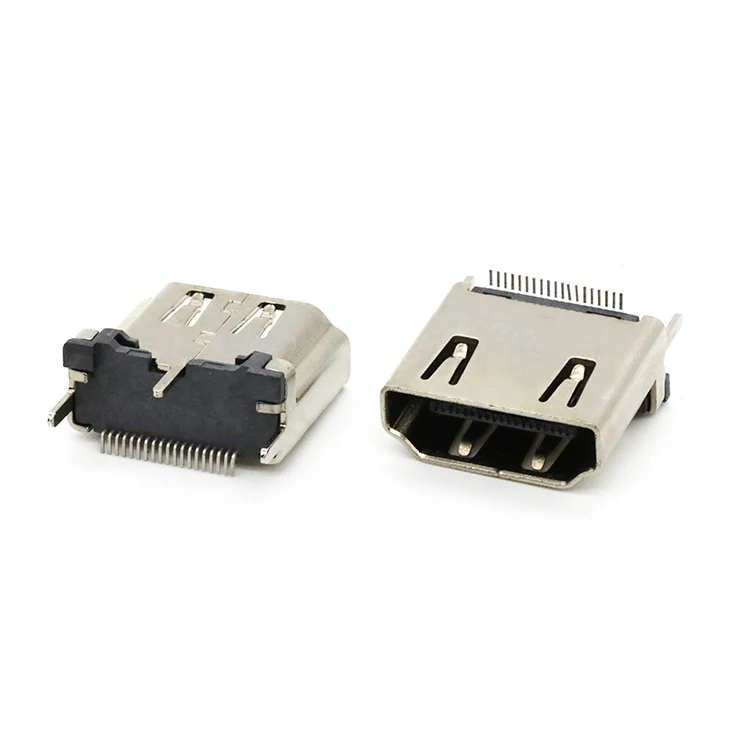

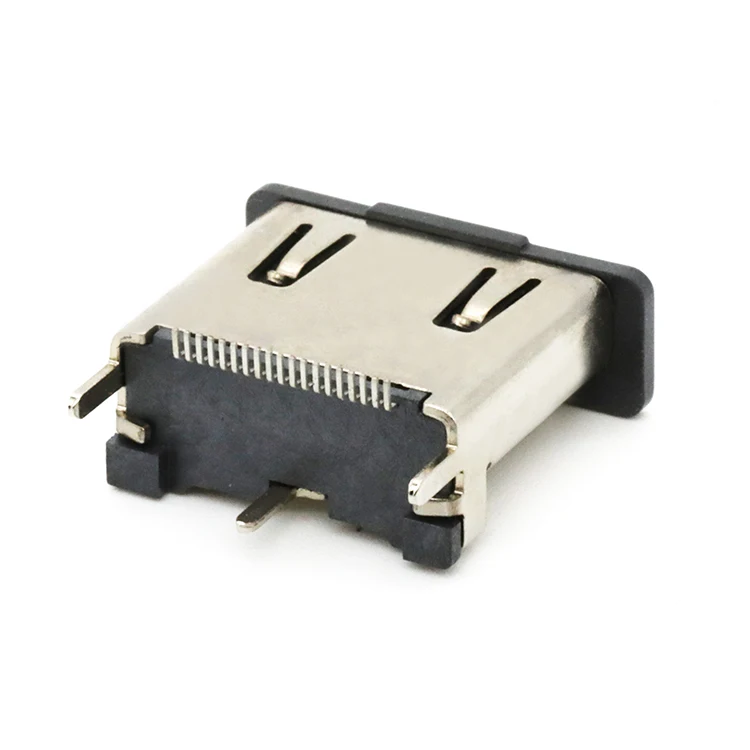

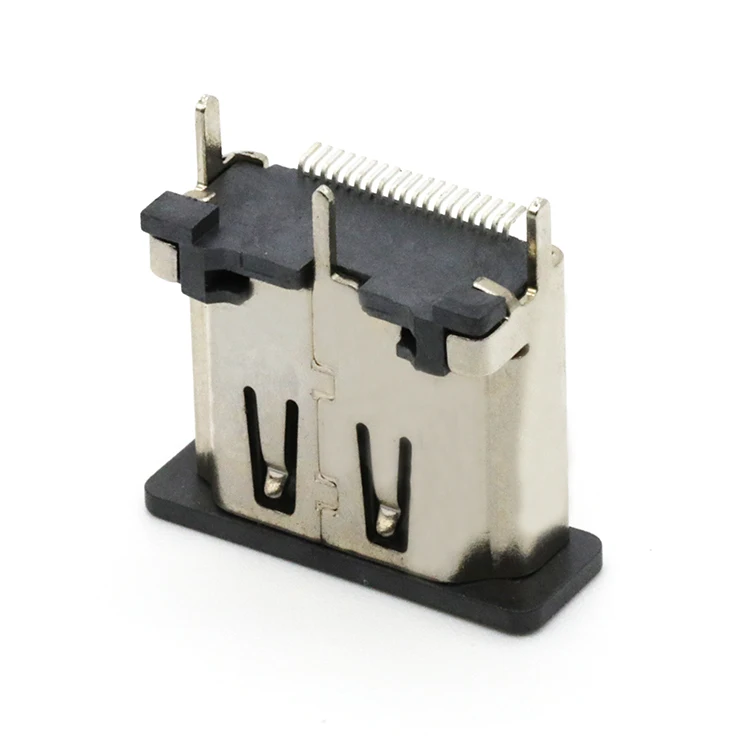

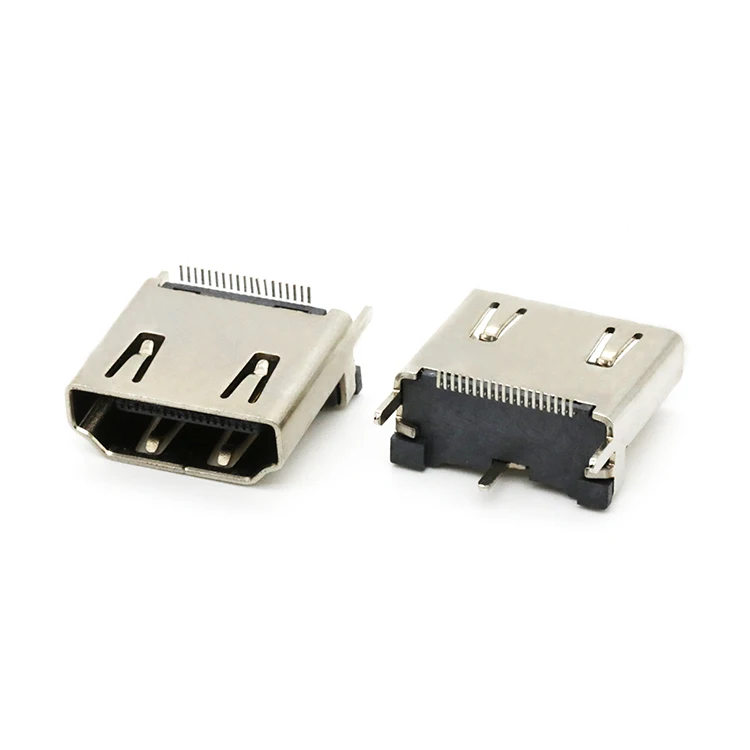

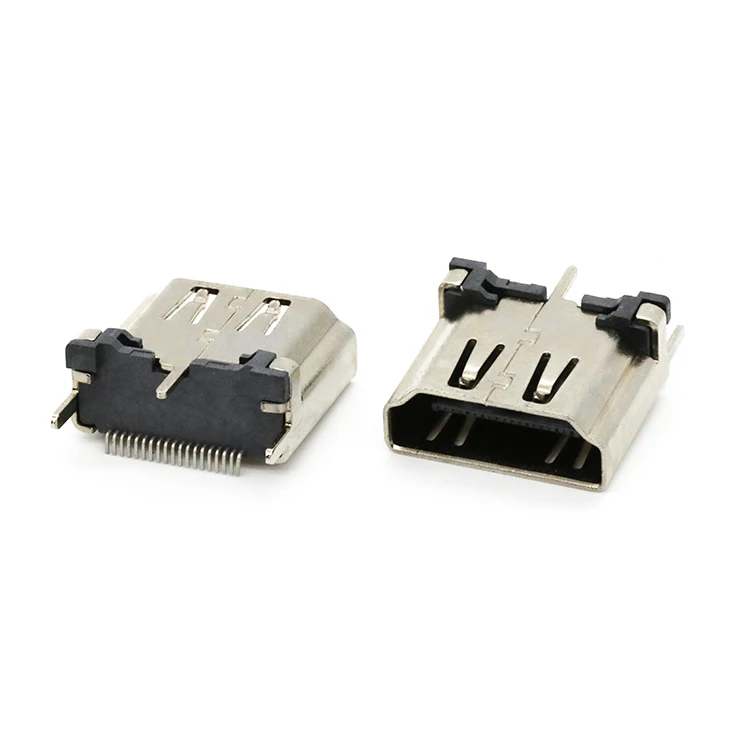

19 Pin мультимедийный интерфейс высокой четкости розетка разъем печатного монтажа крепление для вертикальной поверхности SMT позолоченные контакты
- Category: Audio & Video Connectors >>>
- Supplier: Dongguan Bestcreate Electronics Technology Co. Ltd.
Share on (1600271979784):
Product Overview
Description
Insulator | LCP UL94V-0, Black | ||||||
Shell | SPCC,T=0.50mM,Ni 30U'' Plated | ||||||
Contacts | Phospher Bronze,T=0.20mm,G/F Plated | ||||||
Current Rating | 0.5A | ||||||
Dielectric Withstand Voltage | AC 500V/MINUTE | ||||||
Contact Resistance | 10mΩ MAX. | ||||||
Insulation Resistance | 100MΩ MIN. | ||||||
Operating Temperature | -20℃~+ 85℃ | ||||||
Mating Force | 44.1N MAX. | ||||||
Unmating Force | 9.8N MIN.,39.2N MAX. | ||||||
Durability | 10,000 Cycles | ||||||
Certification | ISO9001,ROHS,SGS | ||||||
Packaging | Tape&Reel Package | ||||||
SPQ | 200PCS/Reel | ||||||

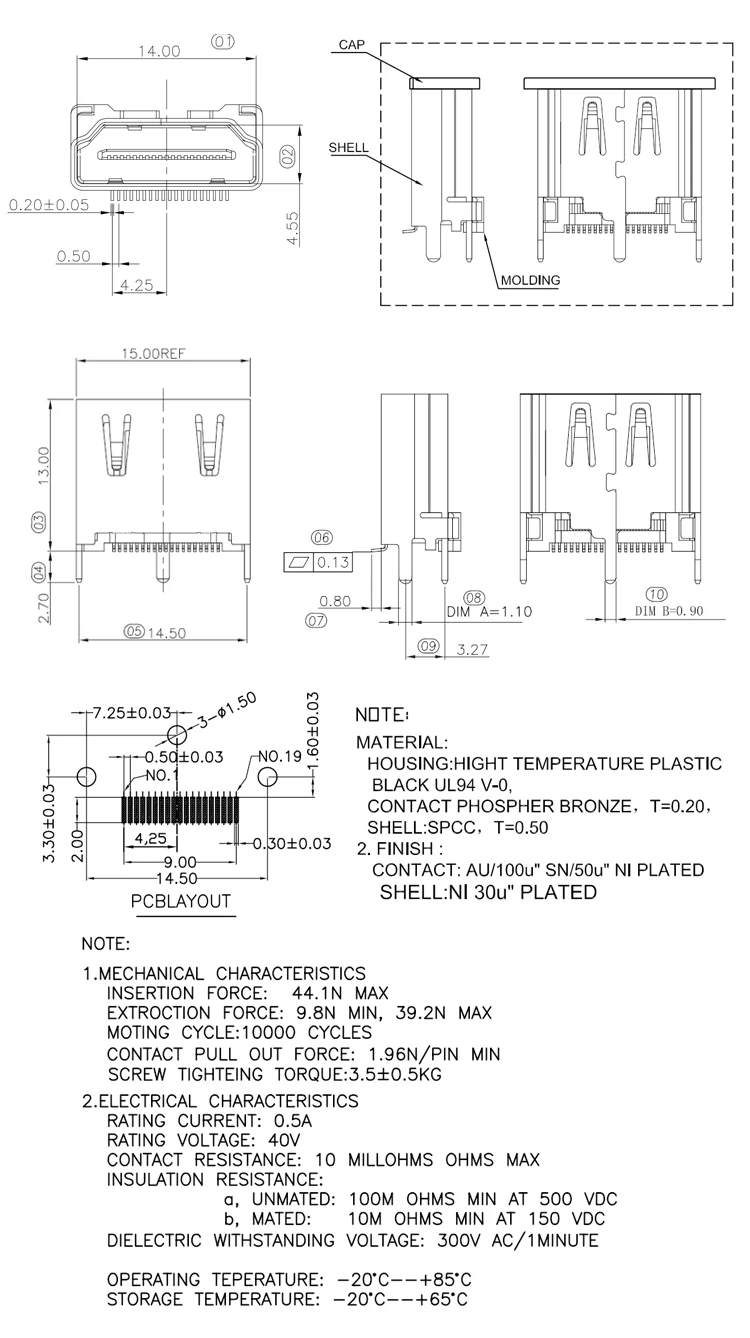

Contact me to get PDF and 3D Drawing.
