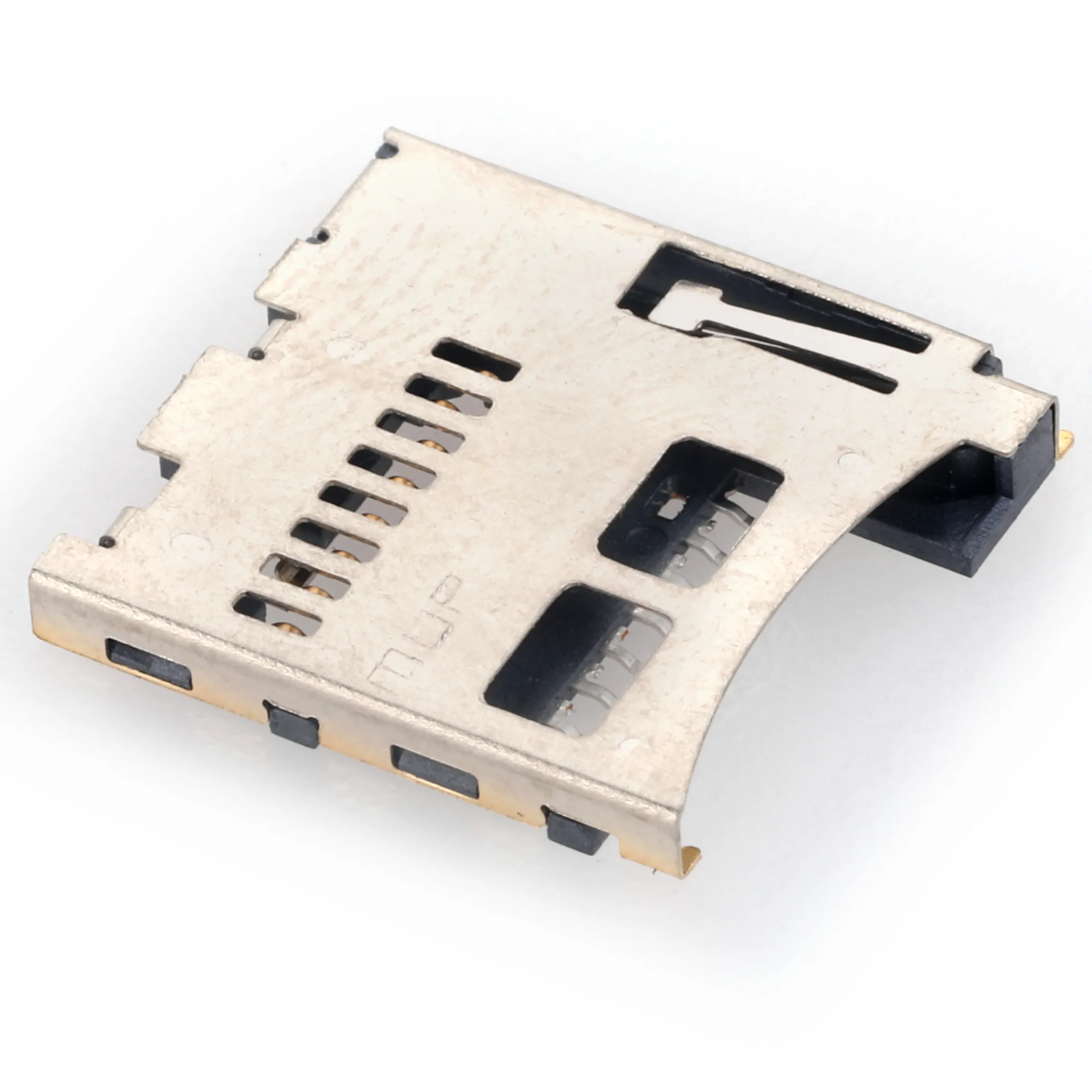

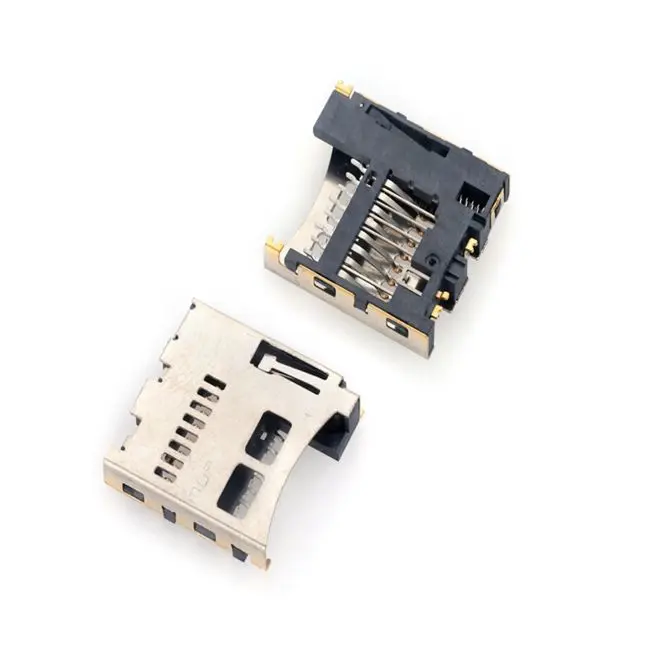

MUP M615 8PIN TF card Push push Type memory TF card reader connector used for mobile phones

Product Overview

Description

MUP-M615  8PIN TF card Push push Type  TF card reader connector used for mobile phones

SD card connector

1) 8 Pin

2) SMT Type (Without Post)

3) DIM: 15.20L * 14.00W * 1.90H mm



Production Description



1.General characteristics

   Dimensions:15.20L*14.00W*1.90H mm

   Weight:Approx 0.70g

   Durability:5000 cycles min



 2.Electrical characteristics

   Number of contact:8pin

   Contact resistance:100MΩ max

   Insulation resistance:100 MΩ min

   Switch type:Blade switch



4.Solderability

   Vaporphase:215^oC,30sec Max

   IR reflow:250^oC,5sec Max

   Manual soldering:370^oC,3sec Max



5.characteristics

  Operating humidity:10% − +95%RH

  Operating temperature:-40^oC − +85^oC





Company Information



Brief  Introduction



MOQ	♦ 3000 pcs
Price Term	♦ FOB Shenzhen
Payment Terms	♦ T/T, Paypal
Delivery	♦ UPS, DHL, FEDEX,TNT ♦ Select the most economic and efficient way. ♦ Sent the tracking number to u after delivery.
Samples	♦ Free samples will be sent on request. ♦ The samples lead time is within 3-5 days after u confirmed.
Packing	♦ Inside: reel packing   ♦ Outside: carton

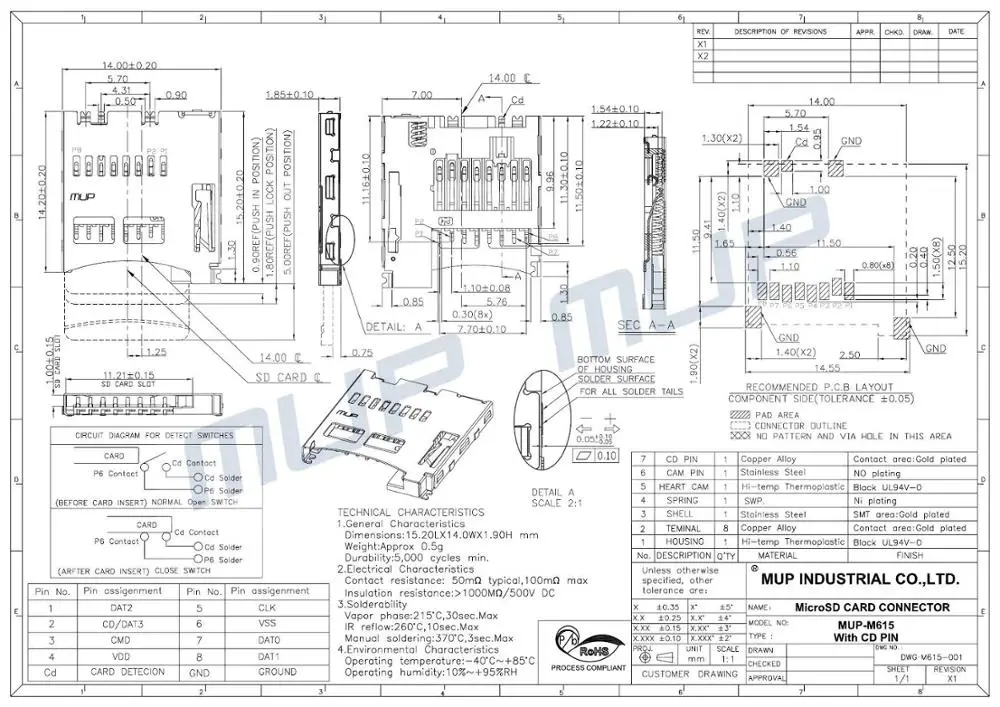

Drawing







Applications





They can be used to operate all types of computers, mouses, mobile phones, cameras, VCRs, stereo and car radio equipments, PDAs and home applications.







Delivery





 Prompt Delivery & Lowest shipping cost : We can get low discount from DHL, Fedex, UPS, TNT, EMS, etc.







Certificate







 passed the ROHS & ISO9001
