China Crawler Asphalt Concrete Paver Laying Machine RP953 with 10Meters width (1600276862875)

Share on:


Price:$150,000.00 - $165,000.00
Price in USD:Details

Quantity:


Product Overview

Description


RP953 asphalt pavers asphalt sensor paver



Product Description


 * The mature and reliable Shangchai SC9DK220 diesel engine is installed, with the strong power output and displacement of 8.8L, good starting performance.

* Using the triad powerful composite radiator, through forced concentrated heat extraction, ensuring the continuous work for a long time under the high temperature of 50 ℃.

* The left and right independent traveling drives of rubber crawler system are applied, the micro-computer control is utilized, and the constant-speed automatic control technology is adopted for the paving speed.

* Four sets of independent hydraulic drive the auger and conveyor system, through the sensing automatic control, ensuring constant material level.

* The distribution device can move vertically to adapt to diversifed paving thicknesses and reduce the material segregation and power consumption .

* The material distribution vanes are made of high chrome wear-resistant alloy and the material conveyance baseplate and the screed baseplates are made of hard wear-resistant steel plates to effectively prolong the life of machine.

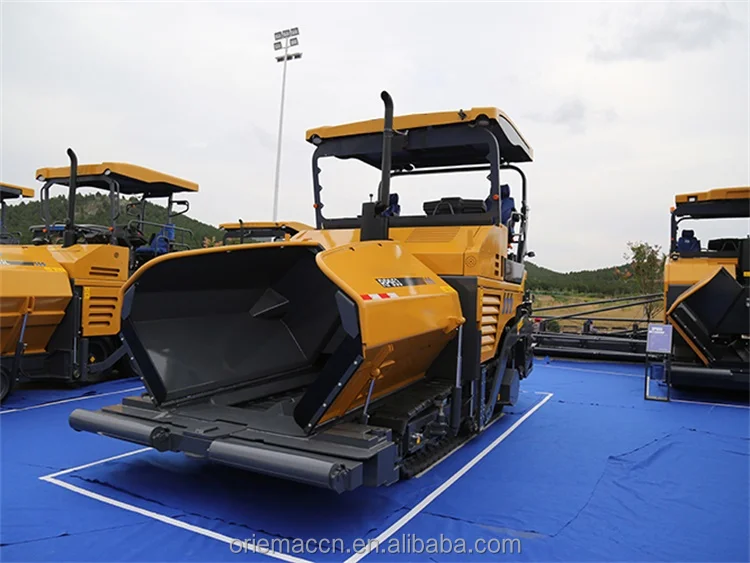

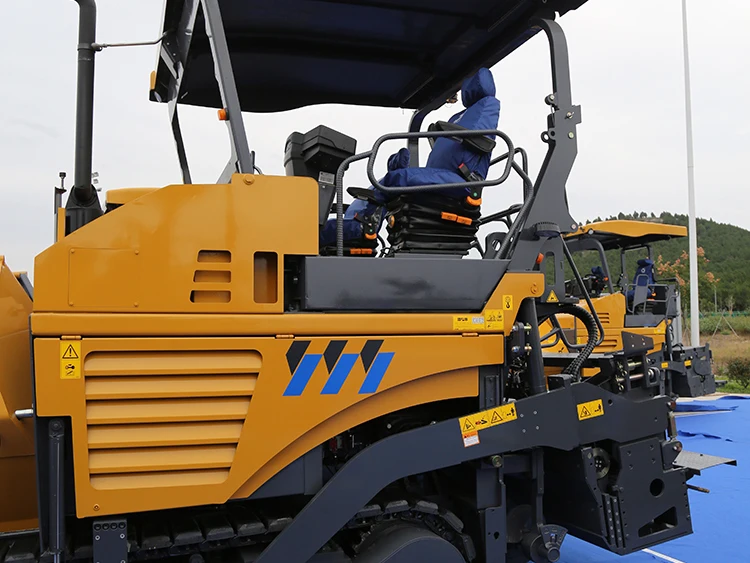

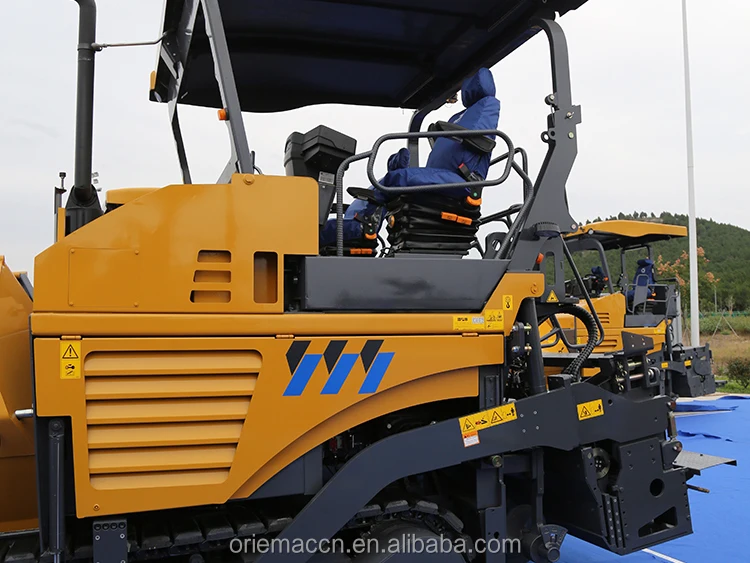

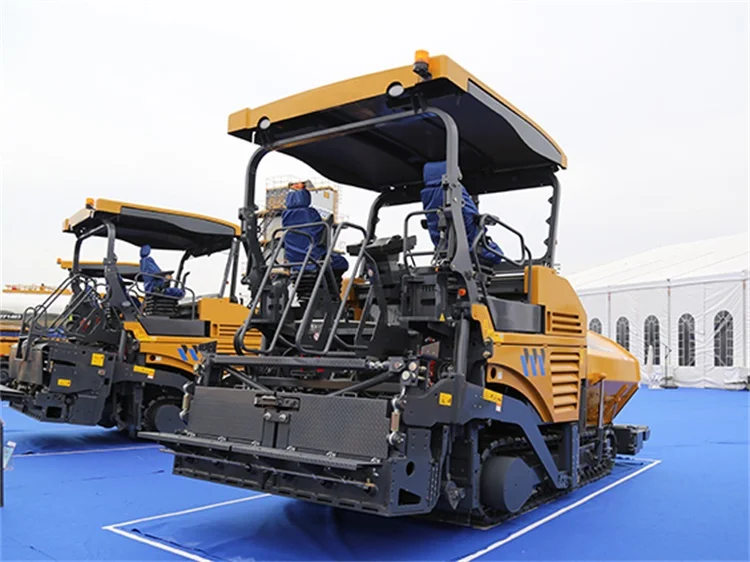

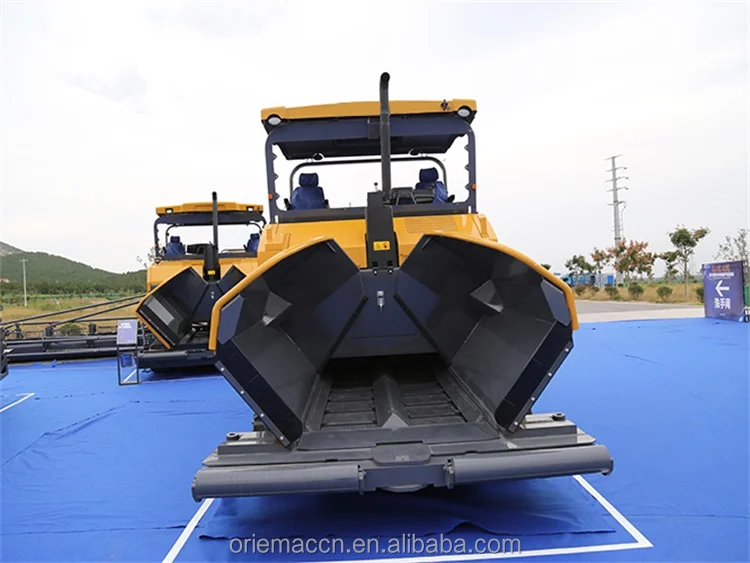

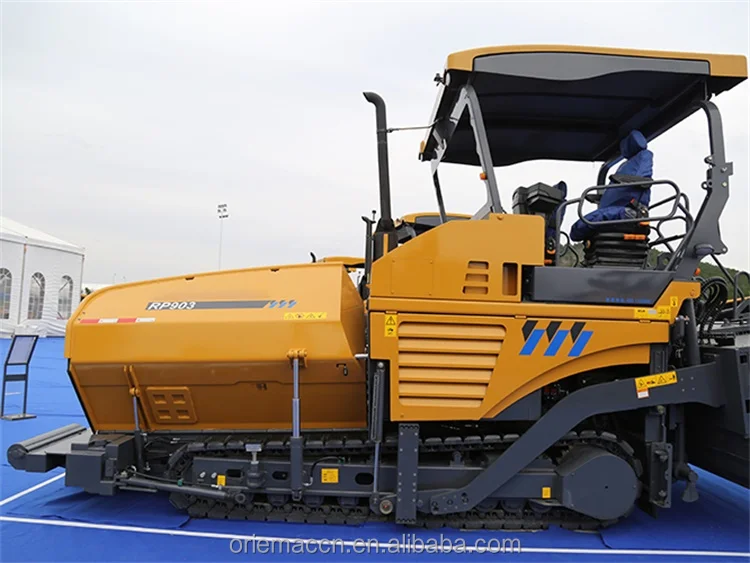

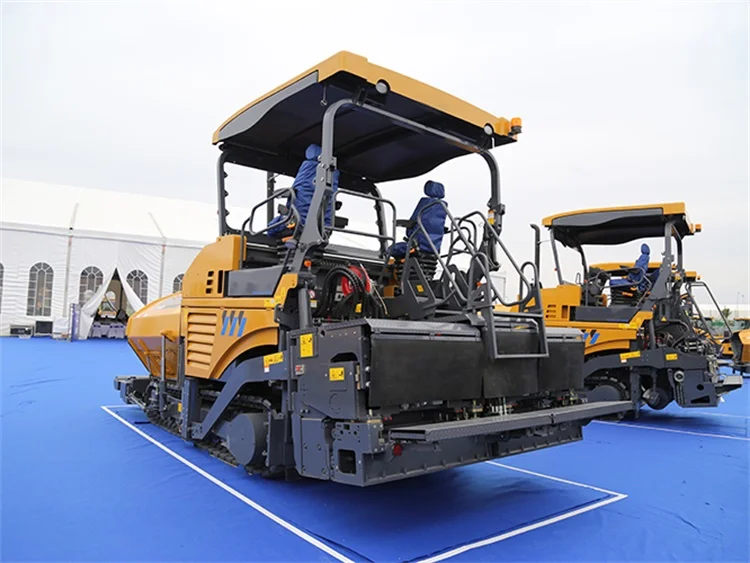

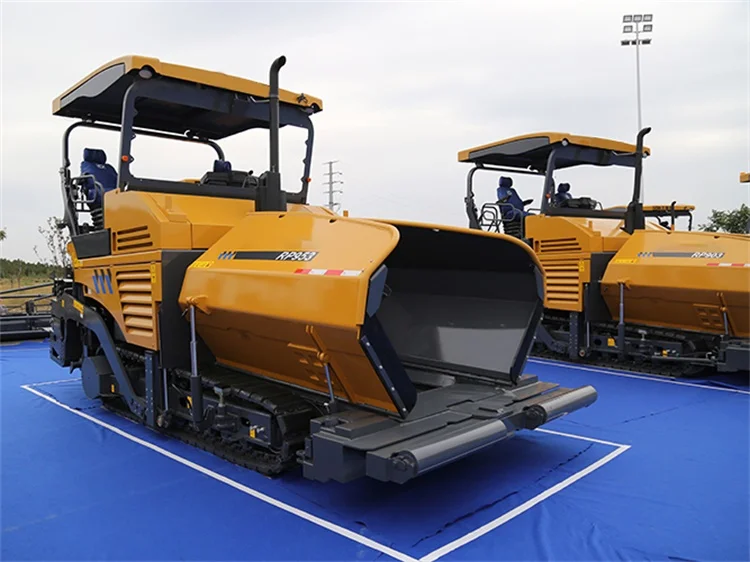

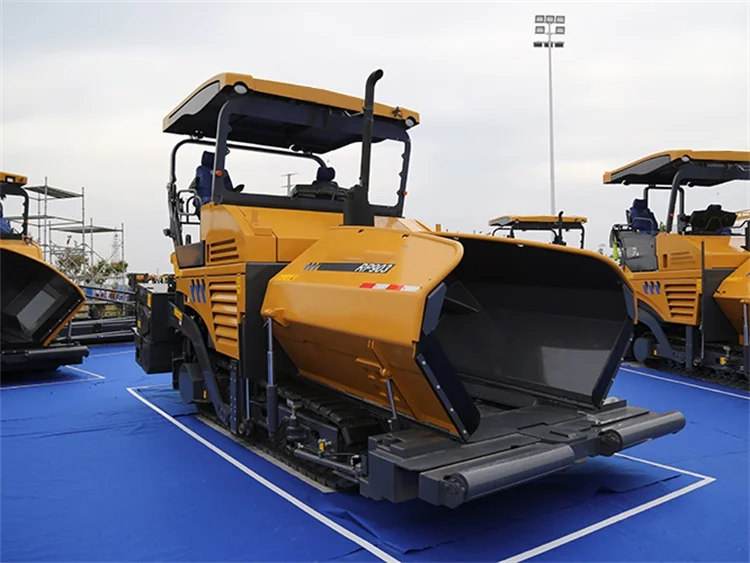

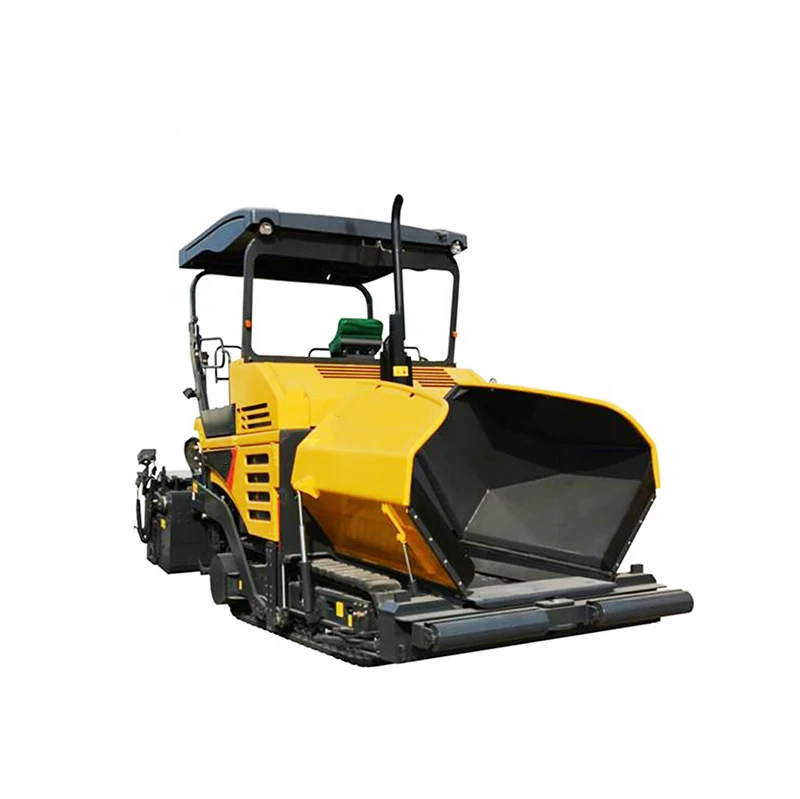

Product photos


 RP903_1.jpgRP903_2.jpgRP903_3.jpgRP903_4.jpgRP953_1.jpgRP953_2.jpgRP953_3.jpgRP953_4.jpg





Specification Chart















































































ltem


Unit


RP953


Basic Pave Width


m


2.5


Maximum Pave Width


m


10.5


Maximum Layer Thickness


mm


400


Maximum Paving Speed


m/min


18


Maximum Travel Speed


km/h


3


Hopper Capacity


t


15


Maximum Laydown Rate


t/h


900


Engine and Type


-


SC9DK


Rated Power


kW/rpm


162/2000


Shipping Dimension (LxWxH)


mm


6840*2780*3160


Shipping Weight


t


22


Full Dimension (LxWxH)


mm


6840*2780*3950


Full Weight


t


31.5
