Factory Direct Casting Foundry Single Arm Resin Sand Mixer For Sale

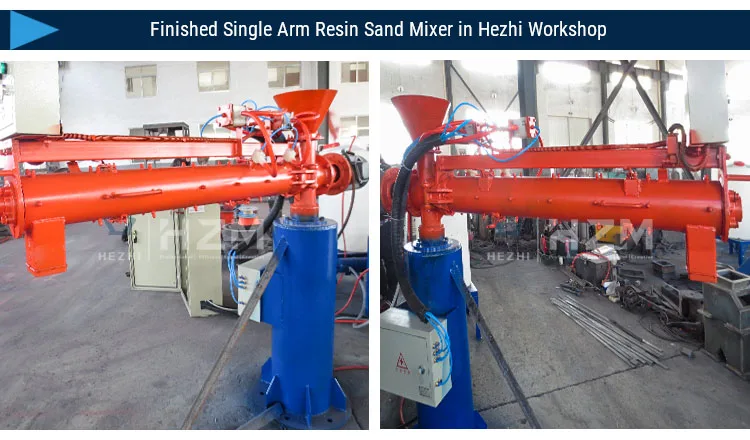

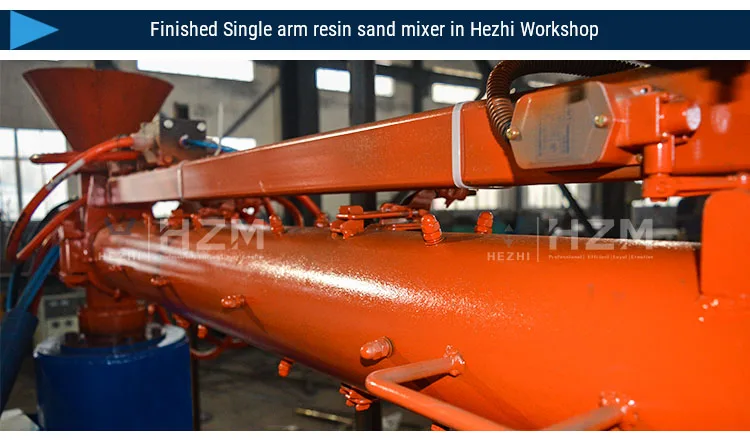

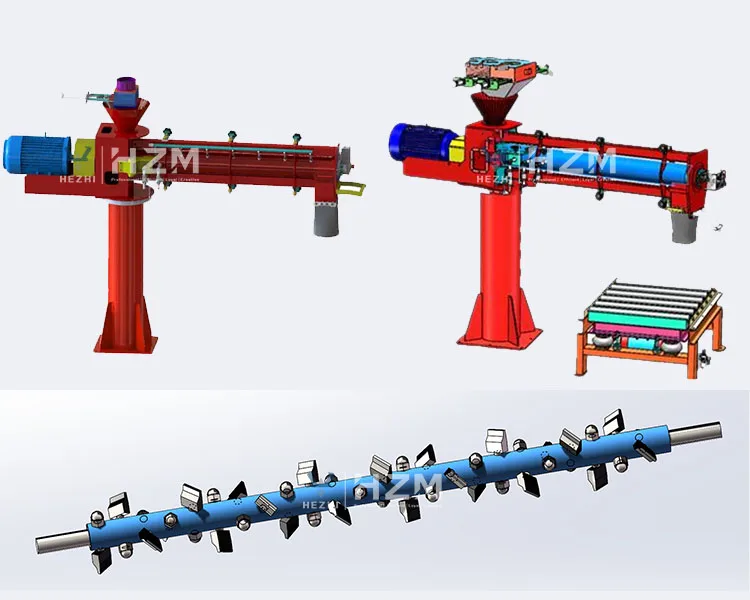

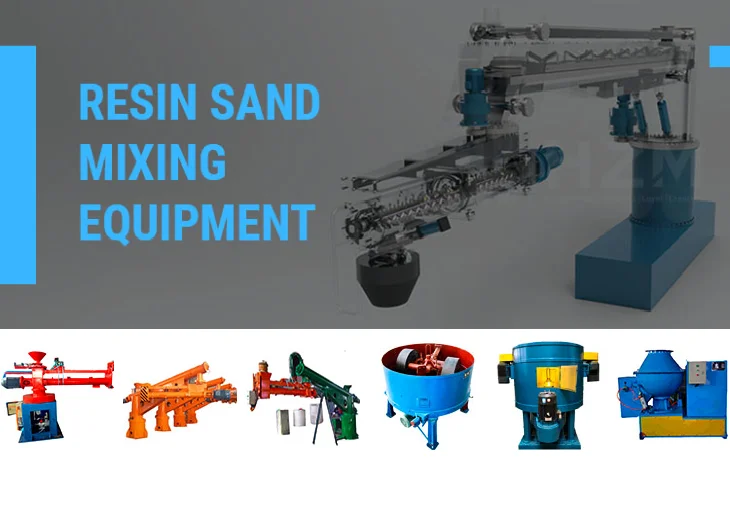

The S24 series single arm resin sand mixer is mainly used in mixing the resin no-brake sand and sodium silicate sand. Resin sand mixer applies to single piece small batch manual molding ,also can be configured to core shooter and mould & core making production line. Features of single arm resin sand mixer:Short mixing time,no head &tail sand, wide-open cage, easy to clean up the wal of sand , adjustable leaf, facilitate to operate and maintenance.

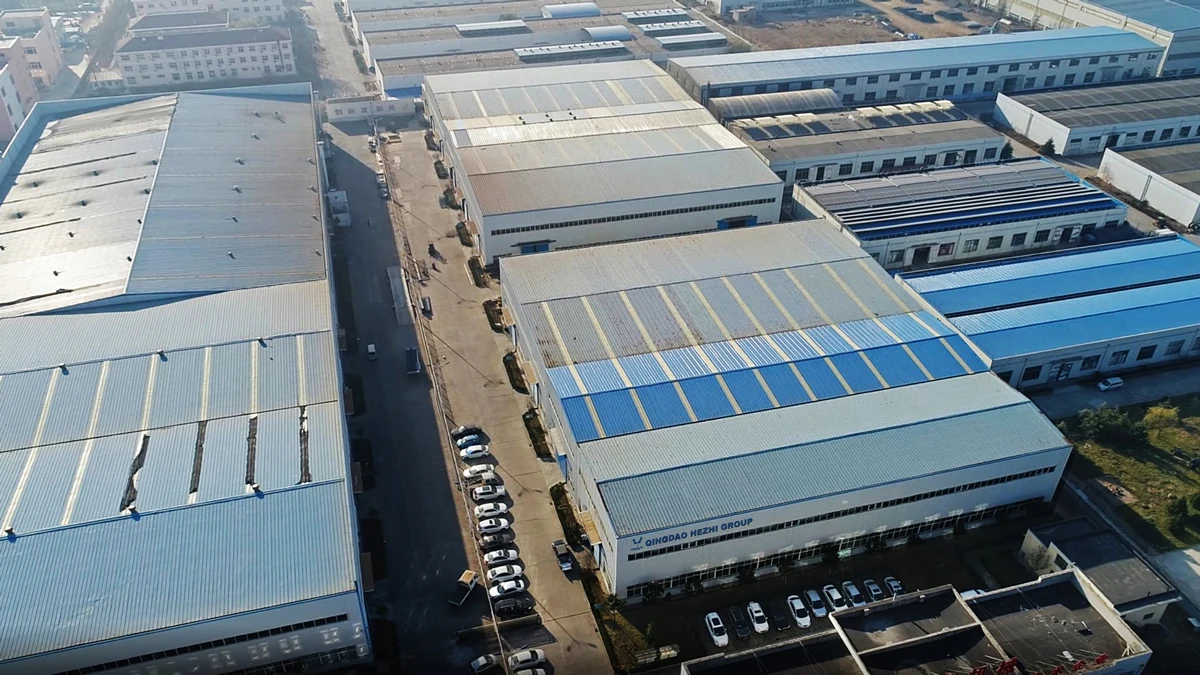

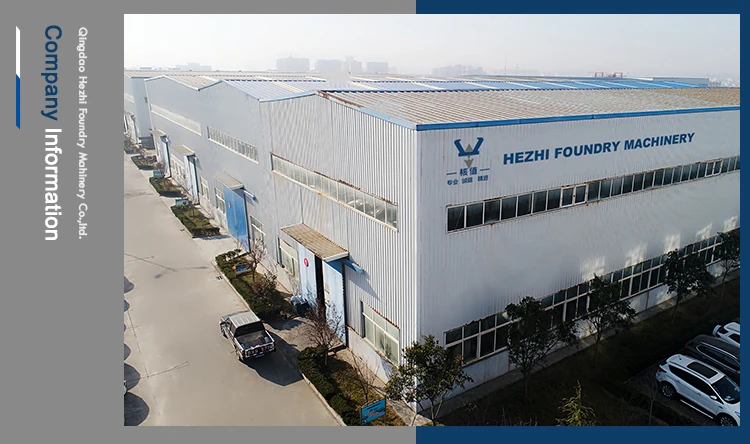

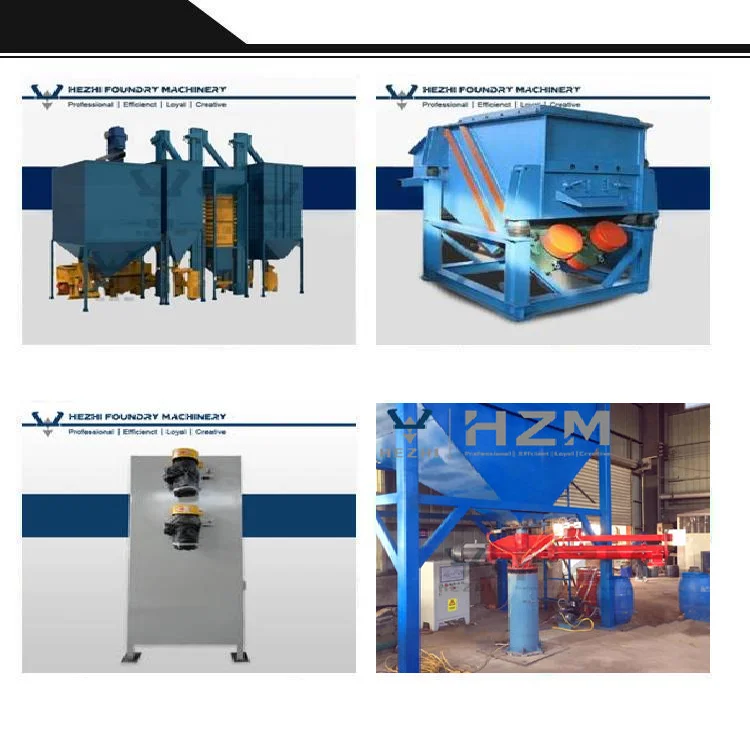

Qingdao Hezhi Machinery Co., ltd  is a manufacturer for Foundry Equipment since 2005.Products cover full-line Foundry sand mixing equipment.  We owned 3600 m2 work shop area for production with 2x10 cranes.Another 2600 m2 space is planned for extension. ISO 9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products. 3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.Our philosophy: Professional, Efficient, Loyal, Our mission: To create core value for our customer, our staff and our company.Choose Hezhi,Get factory price and reliable Foundry Equipment!

Front View

Close View

Bird View

Professional Solution

More Than 10 Years Foundry Machinery Experience

Competitive Pricing

Competitive Pricing and Rates Original From Manufacturer

High Quality

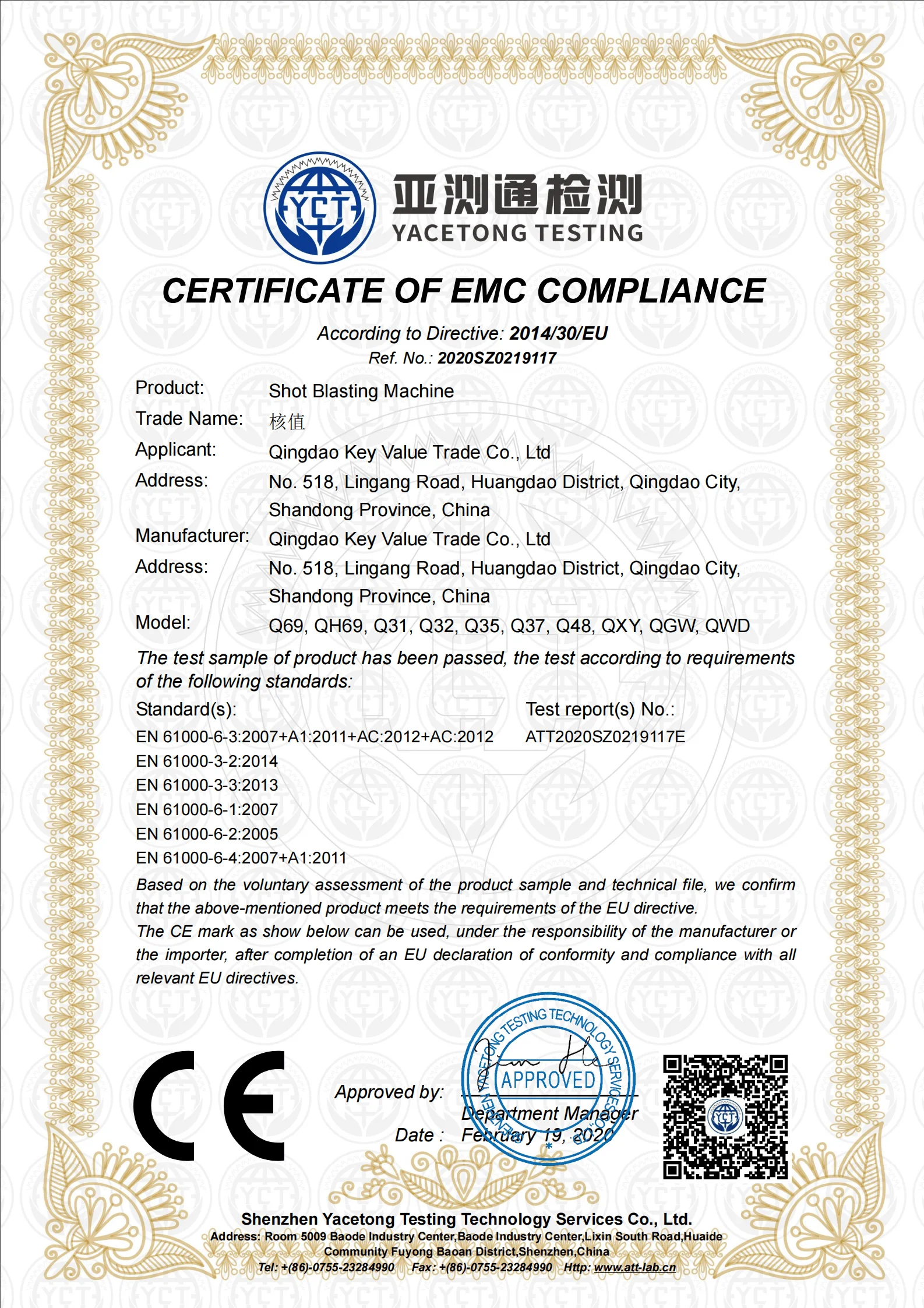

Machinery Manufacturing Compliant With ISO And CE

Excellent service

Dedicated Exporting and Shipping Logistic Service

Efficient Team

Reply and Response Customer Within 2 Hours

HMF

FOR FOUNDRY

Why is the amount of sand produced small?

1. Check whether there is sand in the sand storage
2. Re-calibrate the sand output of the sand mixer
3. The blade of the sand mixer is severely worn. Adjust the height of the worn blade or replace it with a new one.
4. The sand mixer's agitator cage has not been cleaned for a long time, resulting in agglomeration of the residual sand. When the sand is mixed, the sand mixing space is small and the sand output is small.

What kind of binder or agent applied to mixing equipment?

Phenolic resin and Furan resin and curing agent for resin sand mixing equipment.

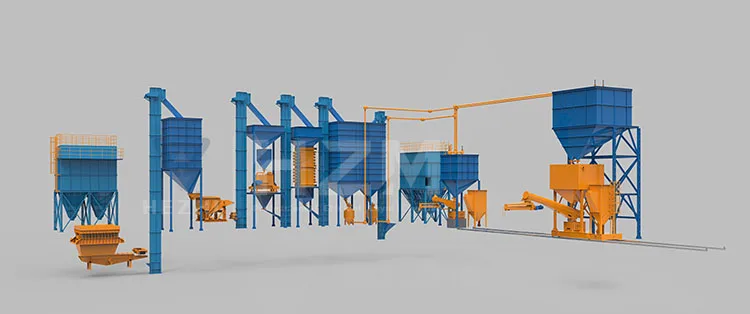

Is it possible for offer complete line or adaptable to existing line?

Yes, we have full experience to match mixing equipment to customer existing line or starting new line.

Why uneven curing?

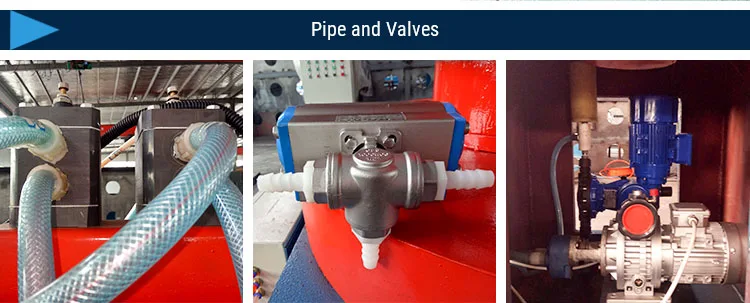

1. Whether the ratio of resin and curing agent is uniform. 2. Check for leaks in the pipe joints of the hardener pump or resin pump. 3. Whether the pressure of the air supply source meets the requirements (0.4-0.6MPa). 4. The hardener pump, resin pump, and liquid valve need to be replaced. 5. Too much impurities in resin or hardener can cause blockage of pumps and pipelines. 6. Inspect the sand mixer blades for areas that need to be replaced. 7. As the temperature of the sand, the quality of the resin, the amount of the curing agent added, and the ambient temperature all have a certain relationship, check whether the above conditions have changed.

How many days do you need to produce this machine?

Normally we have stocks for all common standard of machines. Customized machines takes 2 weeks.

What's your machine quality guarantee?

Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.

Can you install the machine overseas?How long will it take?

Most of sand blasting equipment dose not need installation. We provide detailed videos and guide for commissioning.

Do you have instant and live chat way to contact?

More questions please contact with Anna, My cell phone No. is +86 199-5325-9235
