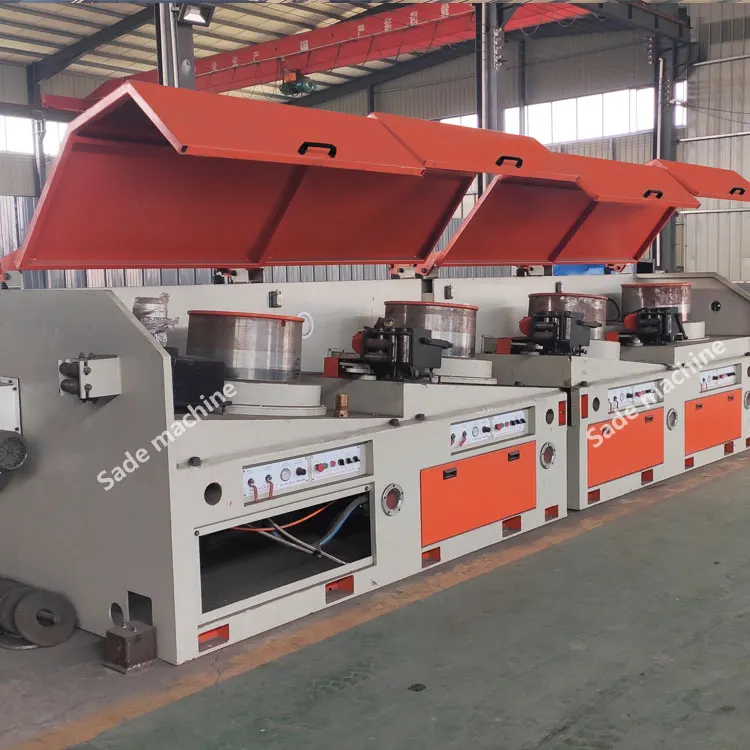

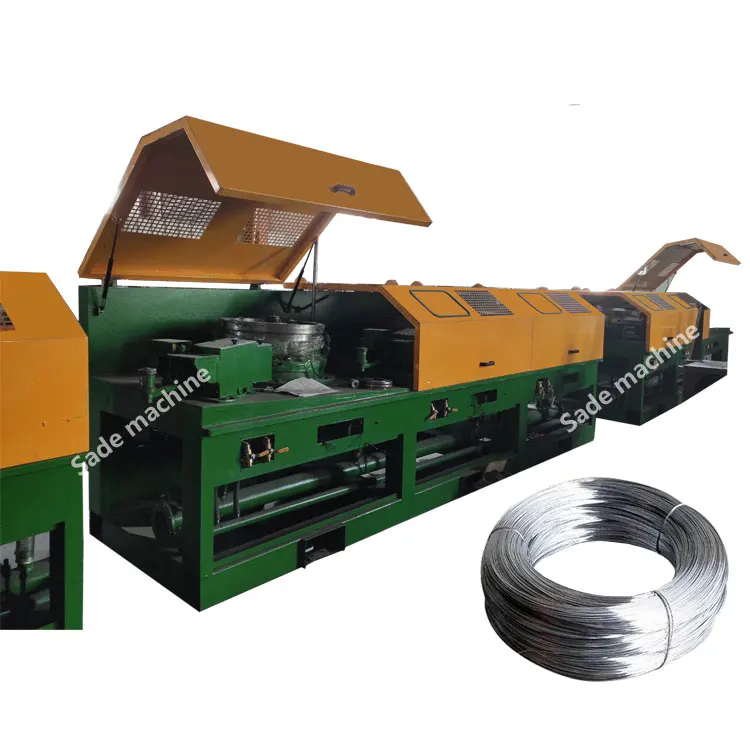

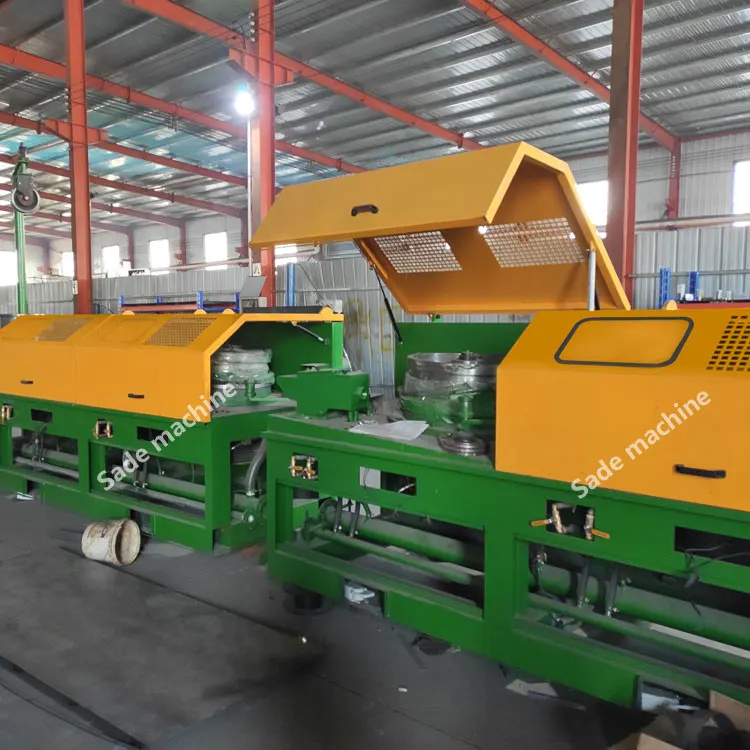

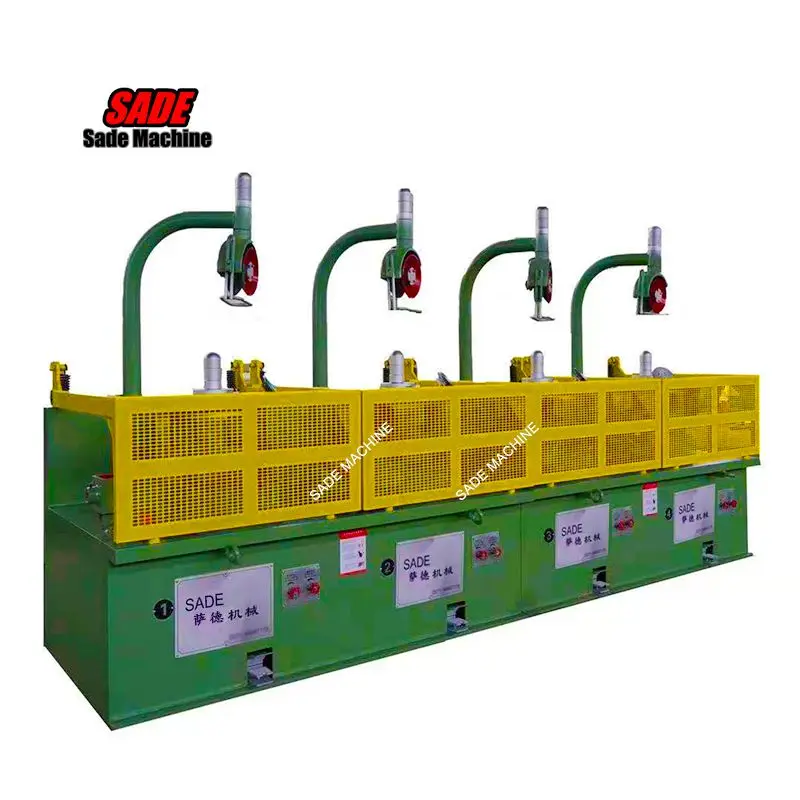

Машина для волочения для линии производства ногтей
- Category: Wire Drawing Machines >>>
- Supplier: Hebei Sade Machine Manufacturing Co. Ltd.
Share on (1600281158763):
Product Overview
Description
Product Description
This type of machine under finished product line has high quality, smooth surface and thickness Evenly, which take good cooling system, water cooling and air cooling, good quality high reliability, low shutdown. This type of machine uses PLC+ frequency conversion speed regulation, convenient operation.

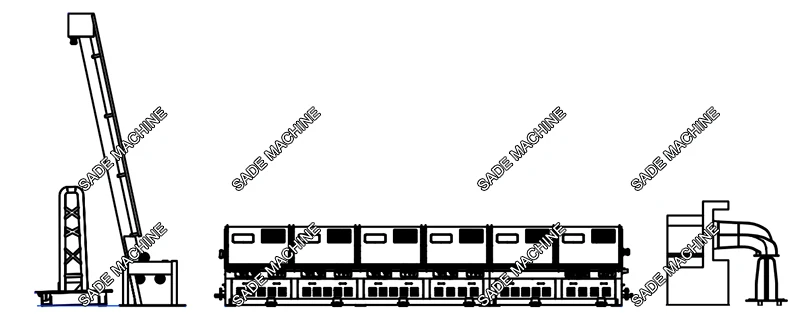

Structure includes hydraulic pay-off, hydraulic descaler, brushes descaler, main blocks, hydraulic take-up machine. Detail part can be design and require by your detail need.
Technology Parameter:
Item Des./Type | LN9-900 | LN9-800 | LN9-700 | LN10-600 | LN10-400 |
Drum Dia./mm | 900 | 800 | 700 | 600 | 400 |
Drawing Passes/time | 9 | 9 | 9 | 10 | 10 |
Max. Inlet Wire Dia./mm | 8-14 | 8-10 | 6.5-8 | 5.5-6.5 | 1.8-2.5 |
Min. Outlet Wire Dia./mm | 3-5 | 3-4 | 2.5-3 | 1.8-2 | 0.75-1 |
Drawing Speed/ m/min | 300 | 360 | 480 | 750 | 840 |
Inlet Wire Strength/kg/mm2 | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
Total Compressibility/% | 85.94-87.24 | 84-85.94 | 85.21-85.94 | 89.29-90.53 | 87.24 |
Average Compressibility/% | 19.58-20.48 | 18.42-19.58 | 19.13-19.58 | 21.00-21.02 | 18.61 |
Motor Power/kW | 90-110 | 55-90 | 55-75 | 22-37 | 7.5-15 |

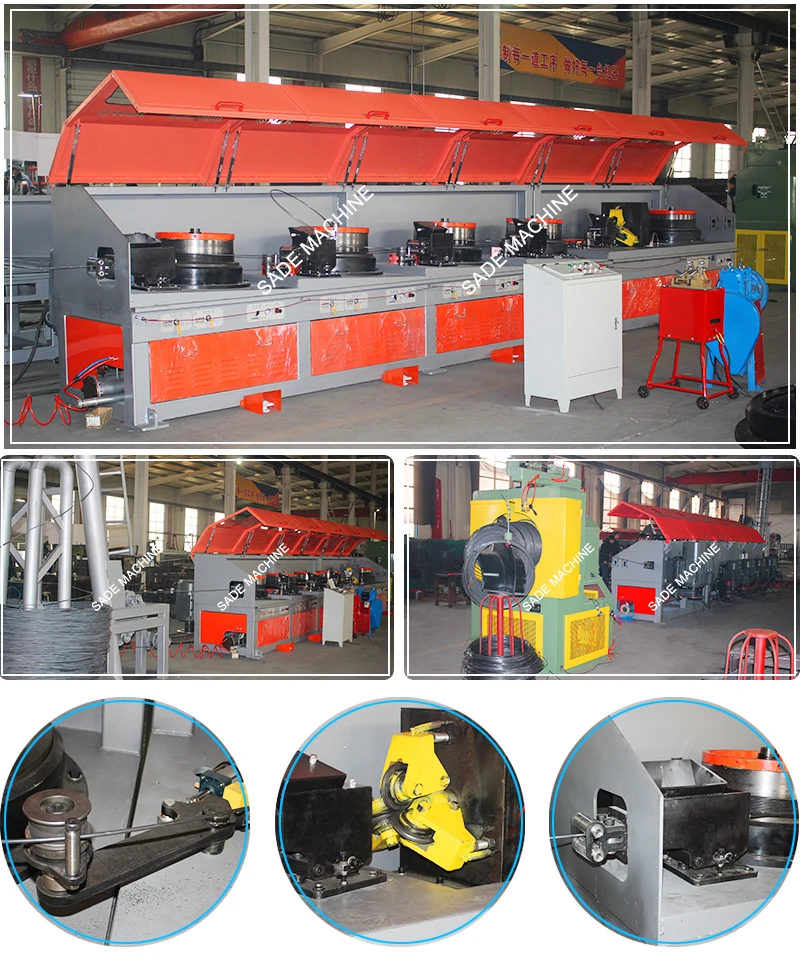

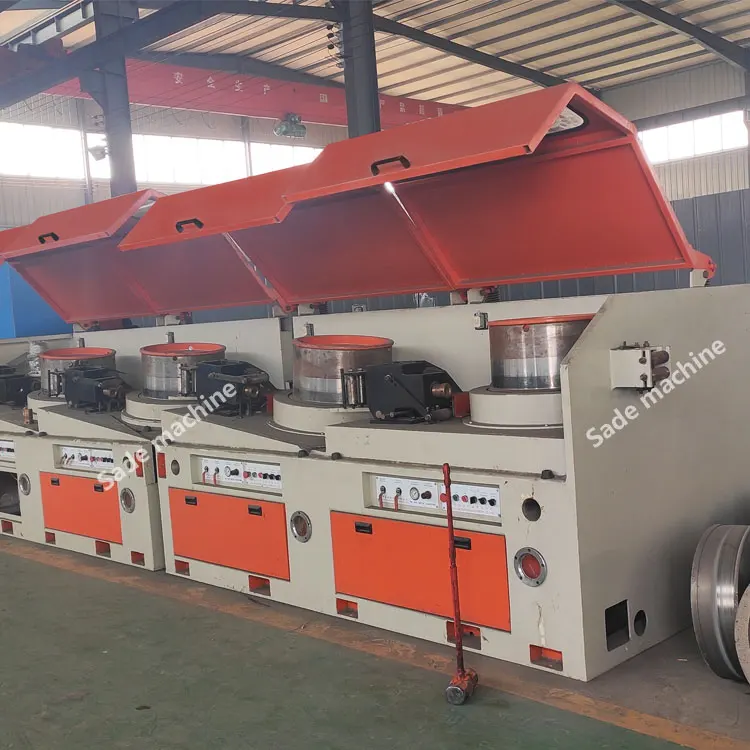

Details picture
Structure includes hydraulic pay-off, hydraulic descaler, brushes descaler, main blocks, hydraulic take-up machine. Detail part can be design and require by your detail need.

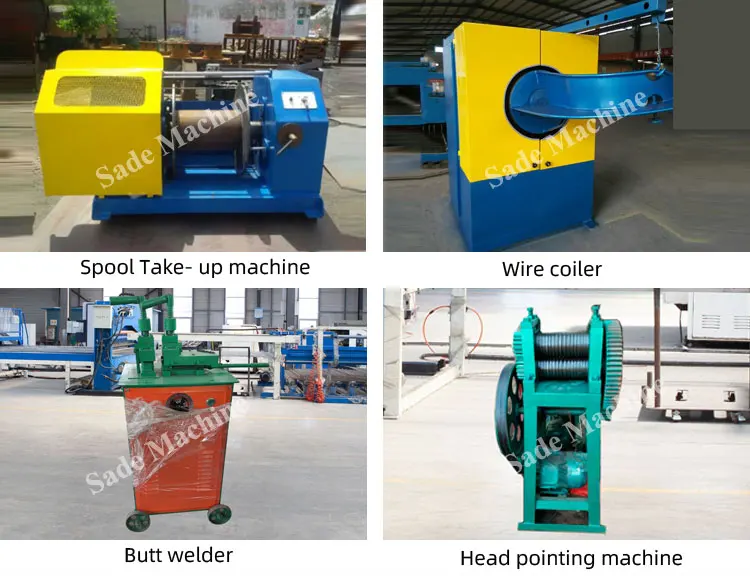

RECOMMEND MACHINES :
Our Services

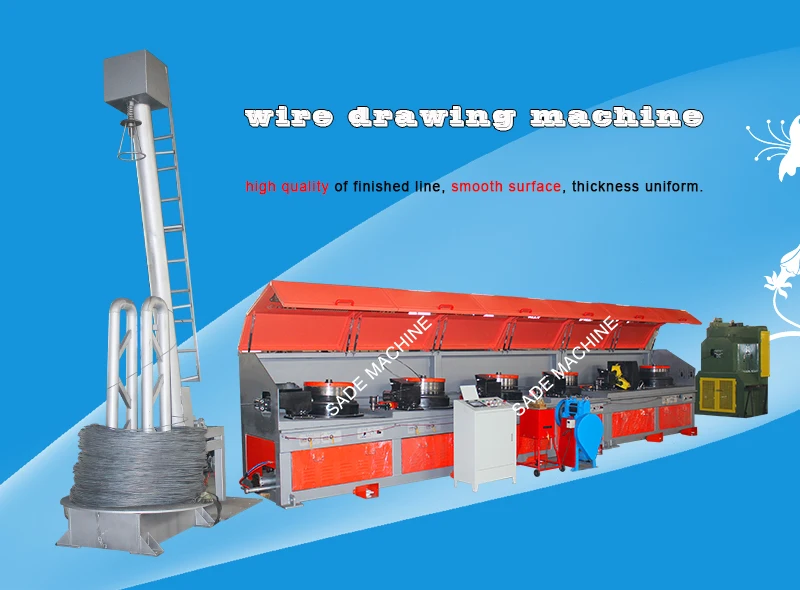

New type descaling machine:
Advantage :
1.Water cooling reduces the heat generated in the drawing process and reduces
Mold loss, improve wire quality.
2. high quality of finished line, smooth surface, thickness uniform.
3. Tungsten carbide spray the drums, long service life
4. High speed with inverter speed adjustable
