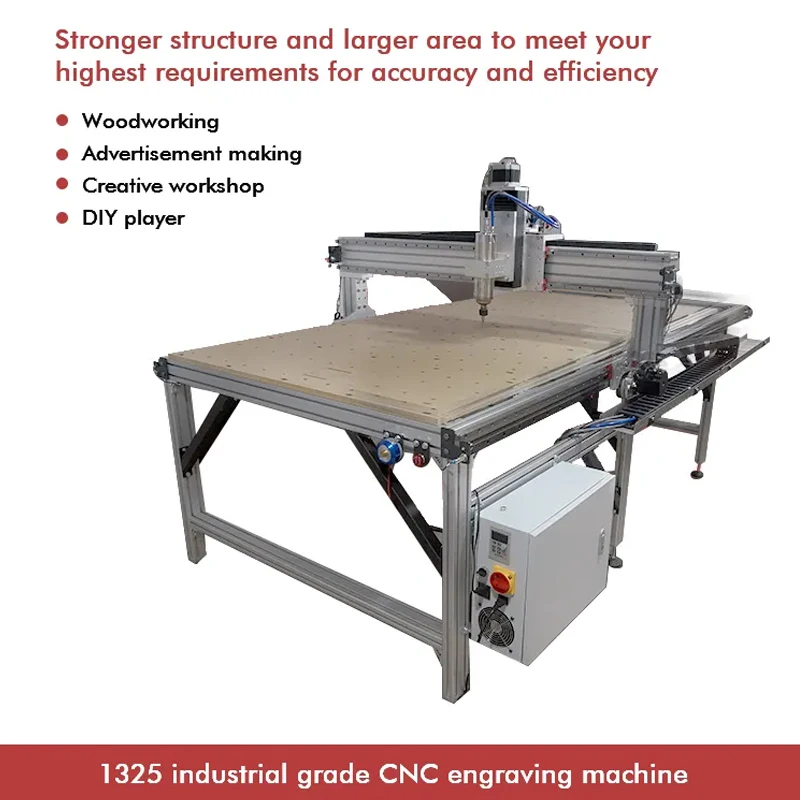

4x8 ft Desktop 3D CNC Wood Carving Machine 1325 Wood Working CNC Router
- Category: Woodworking Machinery >>>
- Supplier: Henan Lunyee Industrial Automation Equipment Co. Limited
Share on (1600284397379):
Product Overview
Description
1325 cnc 3kw spindle motor cutting carving machine marking metal machine
Product Description
Feature:
| Product parameters | |||
| Product number | GKCNC pro 130*60 | GKCNC pro 130*130 | GKCNC pro 130*250 |
| Operating Voltage | 220V | 220V | 220V |
| Spindle power | 1.5KW/2.2KW | 1.5KW/2.2KW | 1.5KW/2.2KW |
| Stepper motor | 57 extended / 86 optional | ||
| Spindle speed | 0-24000RPM | 0-24000RPM | 0-24000RPM |
| Chuck size | 1-7mm/1-13mm | 1-7mm/1-13mm | 1-7mm/1-13mm |
| Cooling method | Water cooling | Water cooling | Water cooling |
| Interface Type | USB | USB | USB |
| Operating system | Windows7/8/10 | Windows7/8/10 | Windows7/8/10 |
| Control System | Mach3 | Mach3 | Mach3 |
| Processing material | Wood, plastic, aluminum copper, jade, iron, etc. | ||
| X/Y axis track | Line rail + rack | Line rail + rack | Line rail + rack |
| Z axis track | Line rail + ball screw | ||
| Positioning accuracy | 0.025MM | 0.025MM | 0.025MM |
| Precision | <0.1MM | <0.1MM | <0.1MM |
| Processing speed | 0-5000/10000MM/min | 0-5000/10000MM/min | 0-5000/10000MM/min |
| Processing size | 130*60*15cm(Z) | 130*60*15cm(Z) | 130*60*15cm(Z) |
| Machine weight | 160KG | 150KG | 240KG |
| Bracket weight | 40kg | 50KG | 60KG |

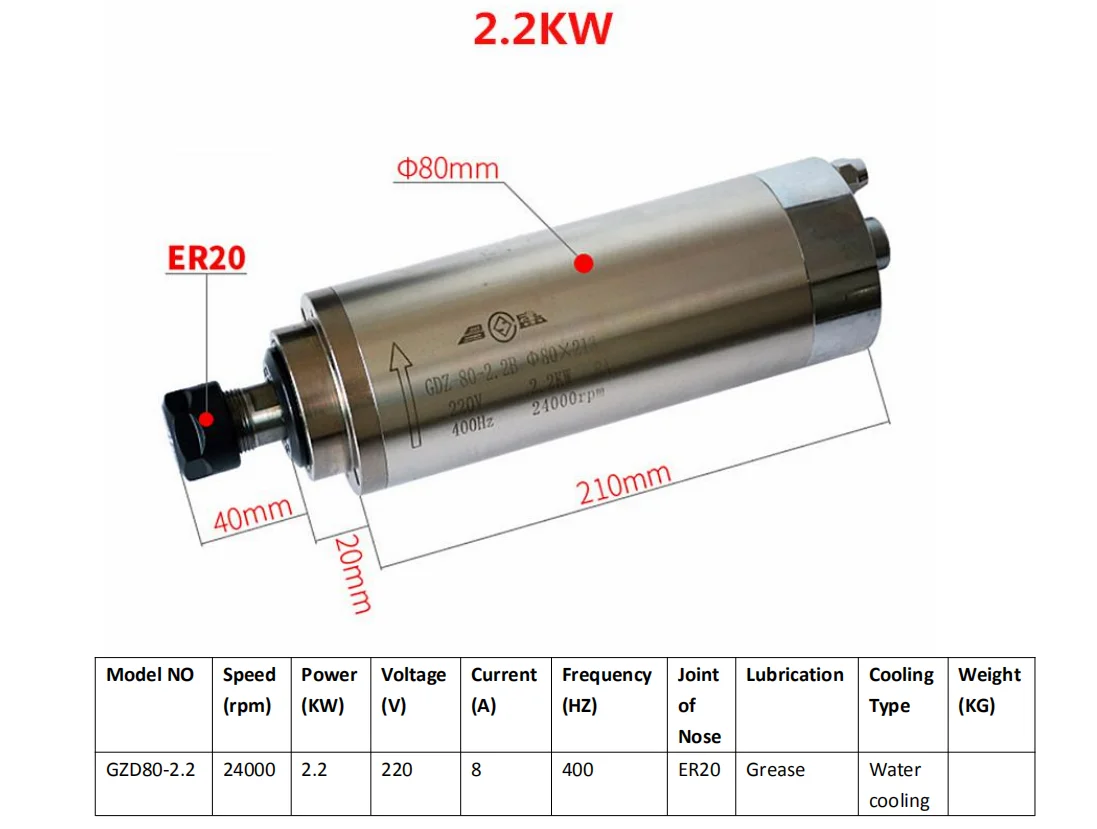

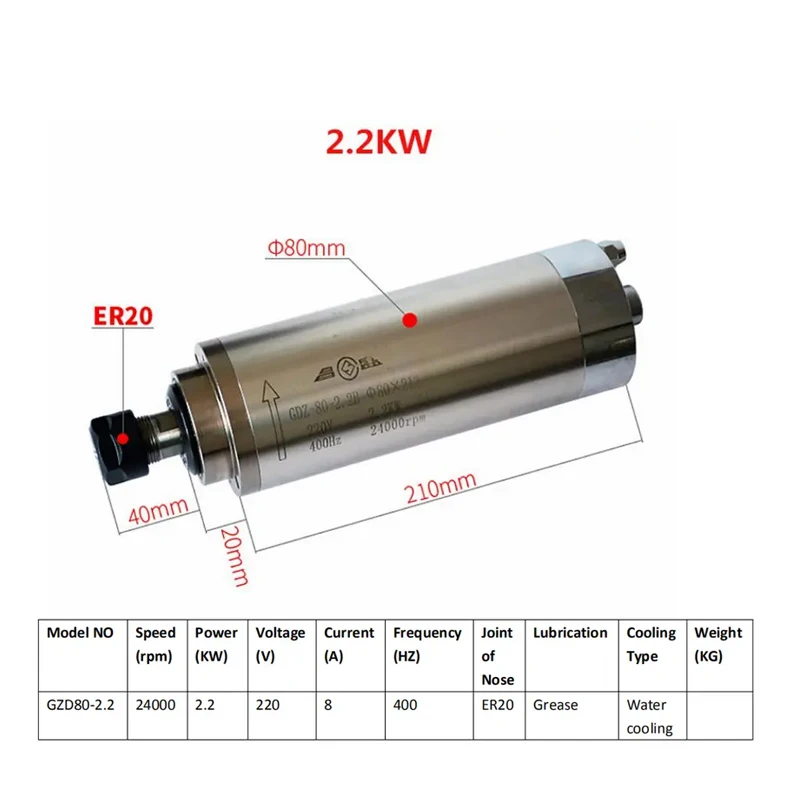

2.2KW Spindle motor:
Product details:

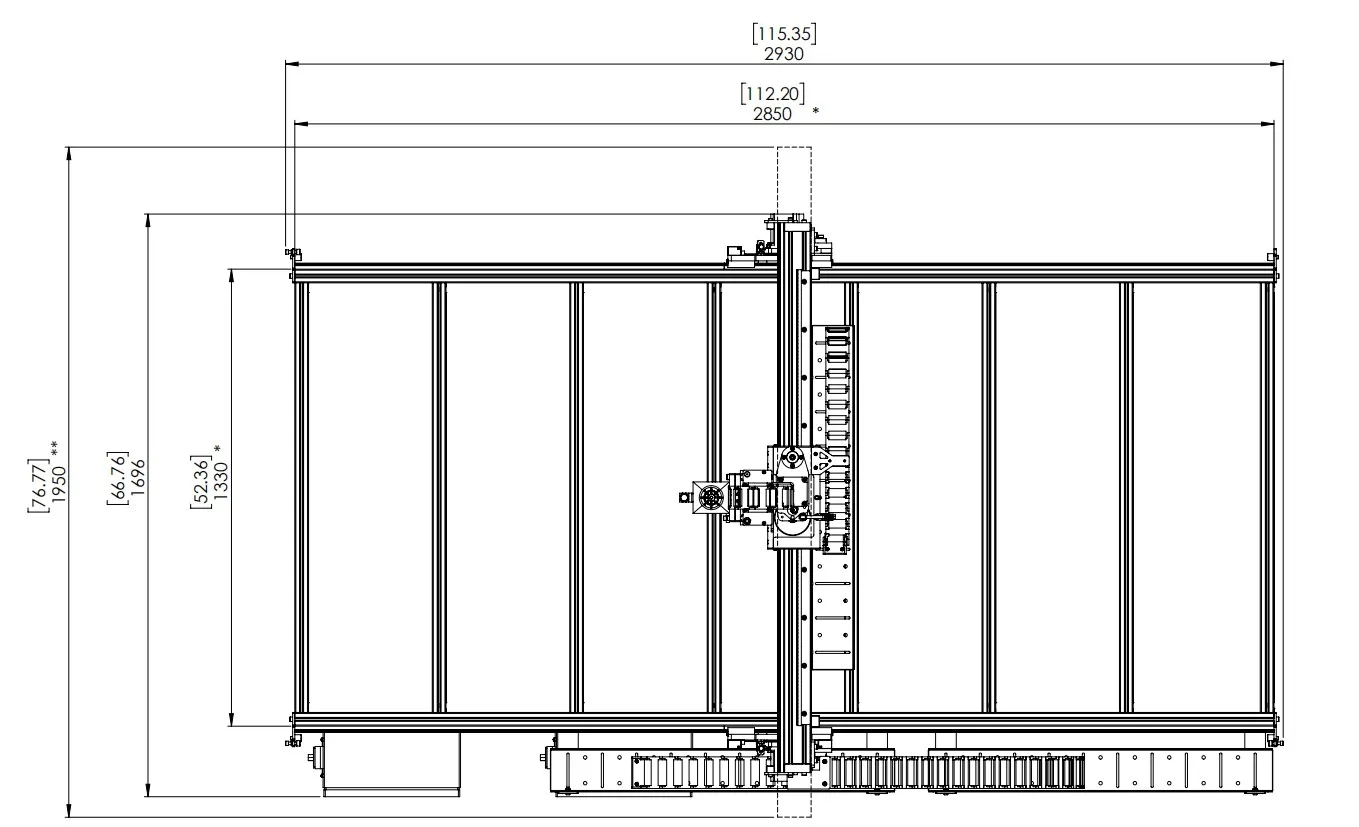

The 1325 CNC touter machine size:

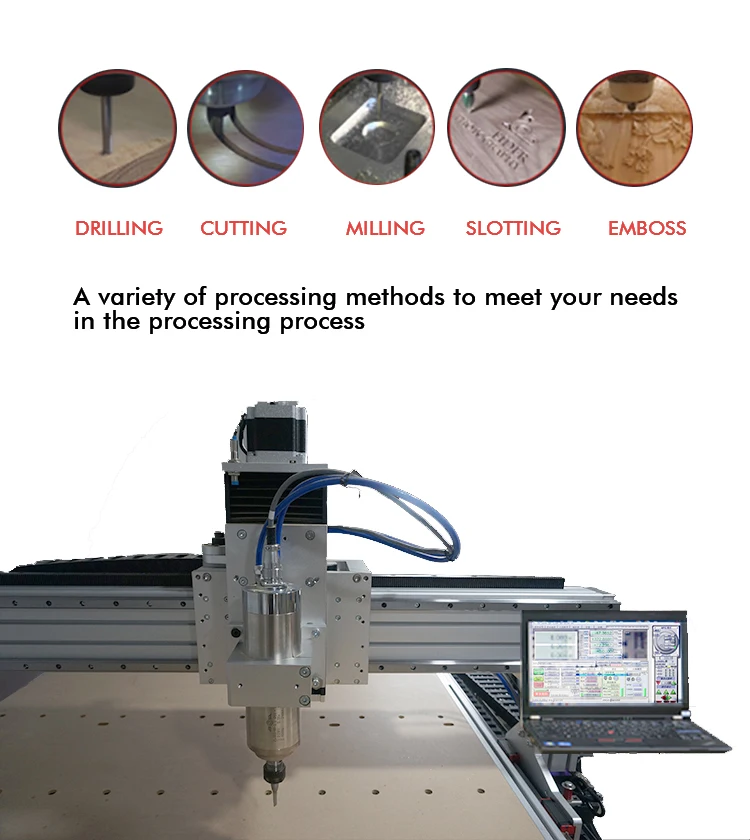

Engraving effect:
Packaging & Shipping
Packaging Details
1.Inside :Plastic bags with foam For Machine.
2.Middle :Individual Carton packaging
Company Information
WE FOCUS ON CUSTOMER SATISFACTION!
Zhengzhou Lunyee Industries Development Co., Ltd. is a leading manufacturer for factory automation(FA) products!We are dedicated in power transmission and motion control solutions!
We have a professional technical team, from research and development, design, production, assembly to after-sales one-stop service.
We manufacture power transmission products like AC and DC(brush/brushless) gear motor,high precision planetary gearbox(spur/helical gear)for servo motor and stepping motor,linear motion products like linear bushing,linear guide, ball screw,locking nut and coupling and so on!
And for the CNC machine, we manufacture DIY laser engraving machine and industrial humidifier.
FAQ
Q: Does this machine need to be assembled when I received it?

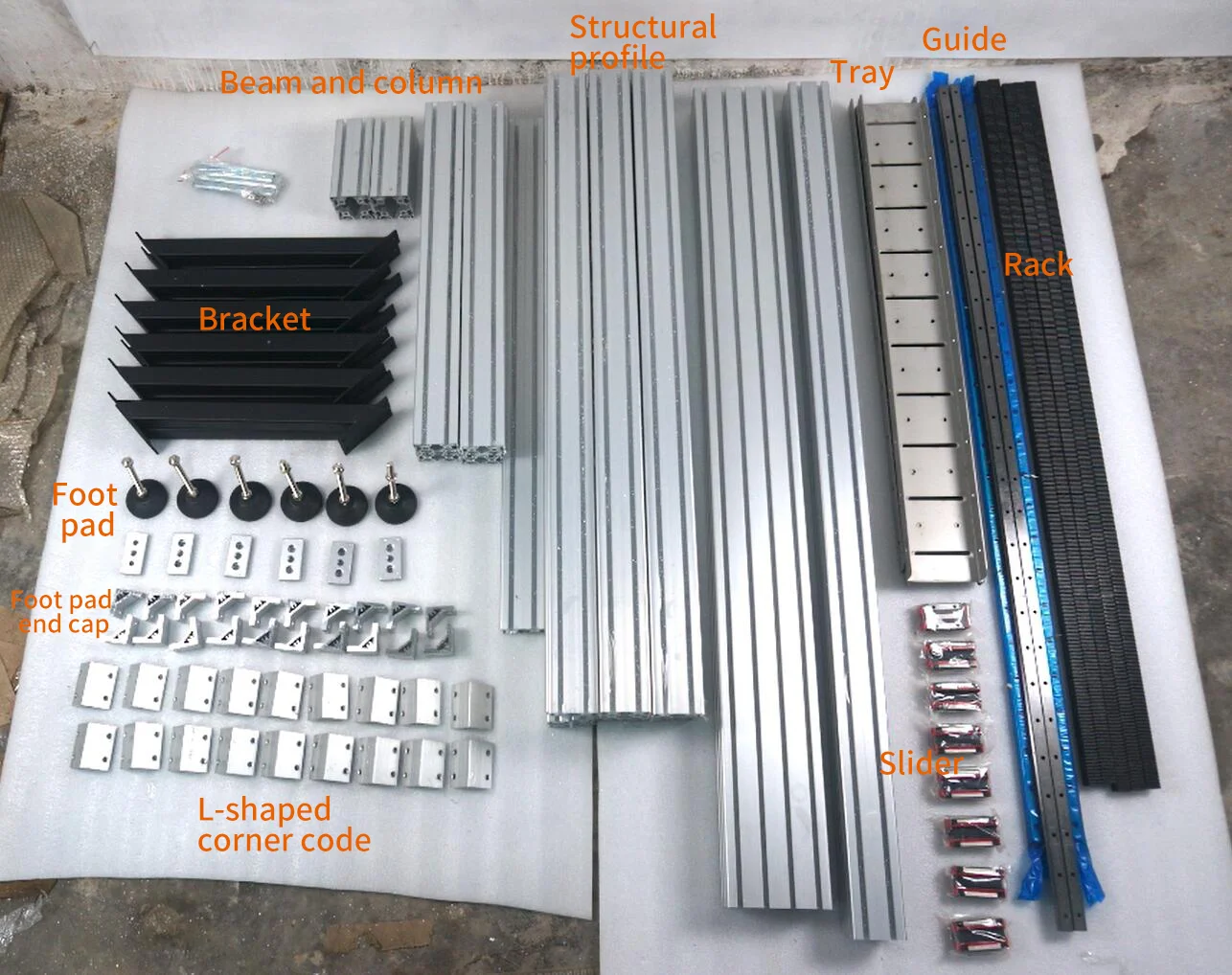

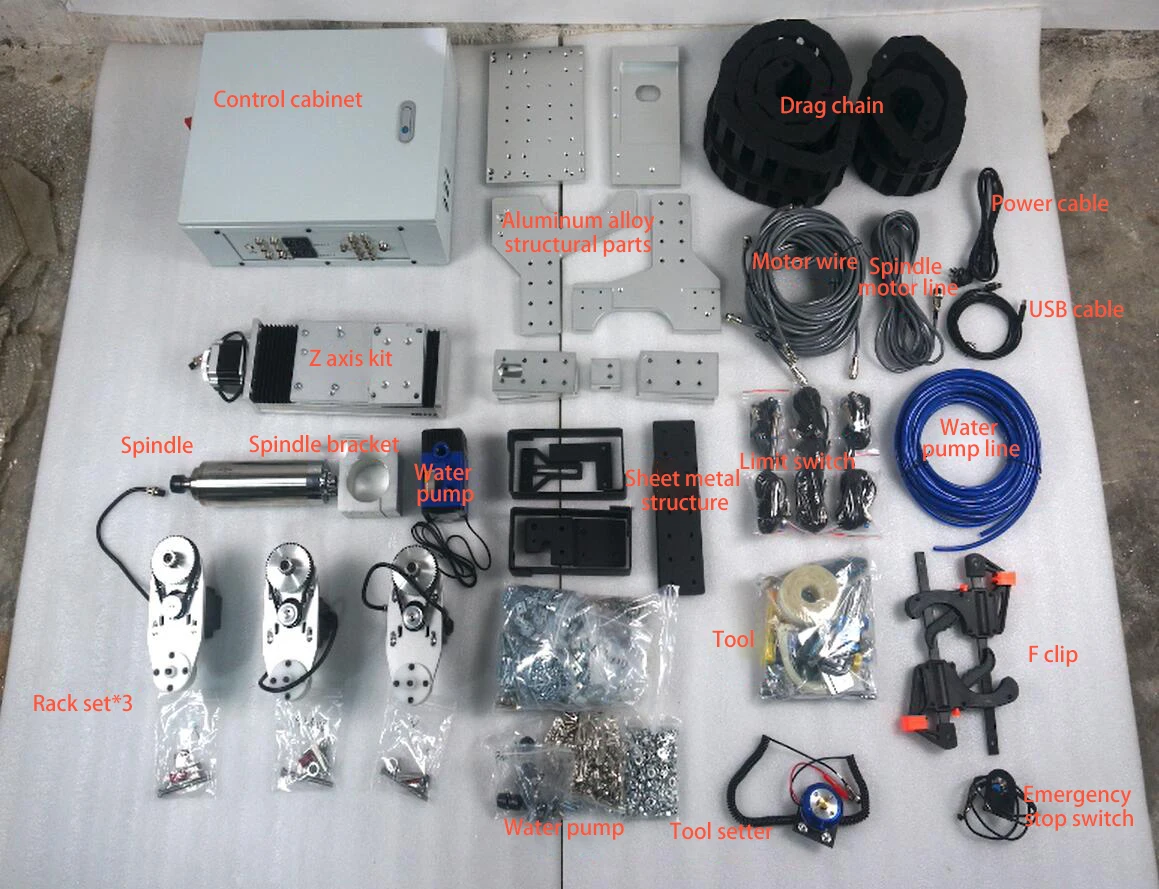

A: This machine comes as a kit. You need to assemble it yourself. All tools and part are included in the kit.
Q: Are there software and instructions can I get it?
A:You can get the software ,contact us.
Q: Whick type computer system can run its software?
A:The software only support the Windows system.
Q: What's the laser's lifetime?
A: The laser module have over 6,000 hours lifetime.
Q: What material can it engrave?
A:Wood, bamboo, plastic, paper, leather, rubber.
Q:What material can it cut?
A:cork wood, paper, thin leather.
Q:Can I use it to cut or engrave on metal?
A:It can not engrave or cut on any metal.
Q: Can I regulate the laser power or the laser power is adjustable?
A: Sorry that the Fixed laser power is not adjustable, but the engraving speed is adjustable.
Q: How long can the machine work continuously?
A: It can work continuously about 45 minutes, after the laser mould cool down(about half of an hour), then start work again. Long time work continuously with shorten the laser module liftetime.
Q: When I receive it, how to let it work?
A: Fist of all, you need to plug the stepper motor power cable to the controller board, then installl the software and the driver, power supply the machine,that's all.
