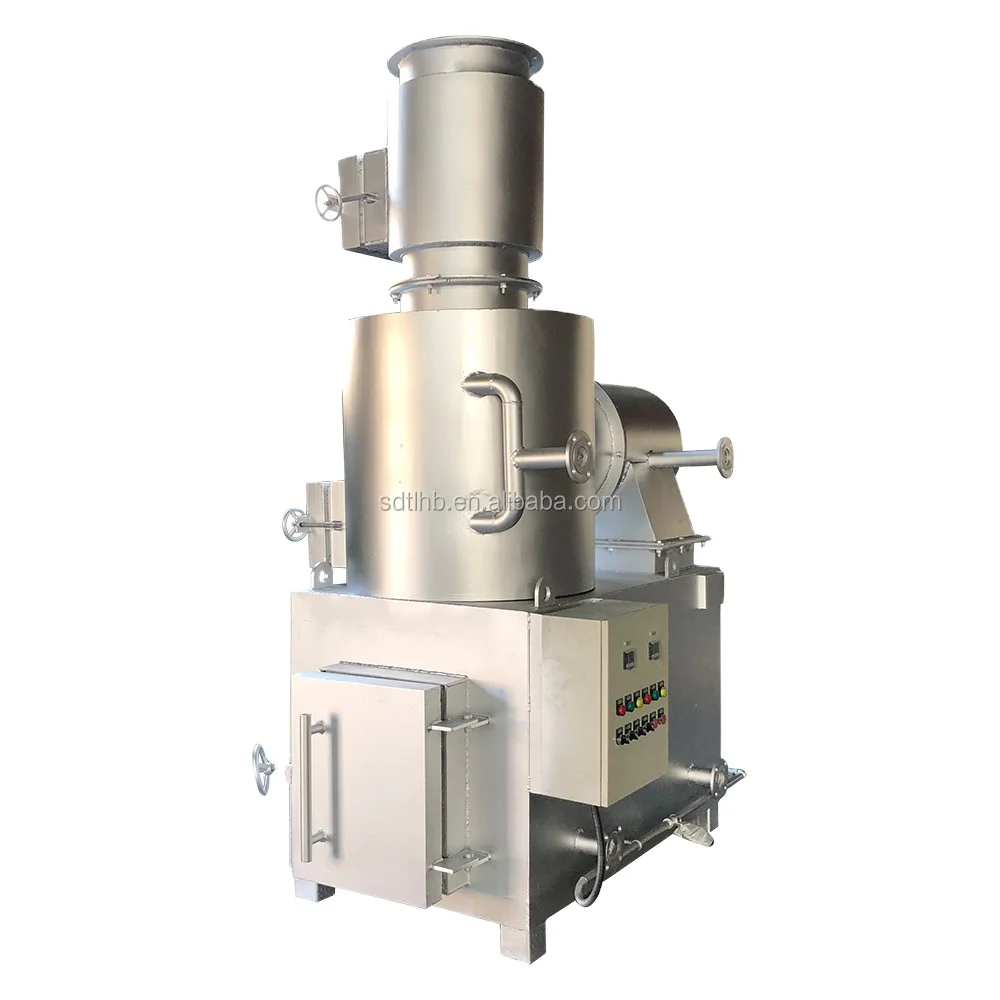

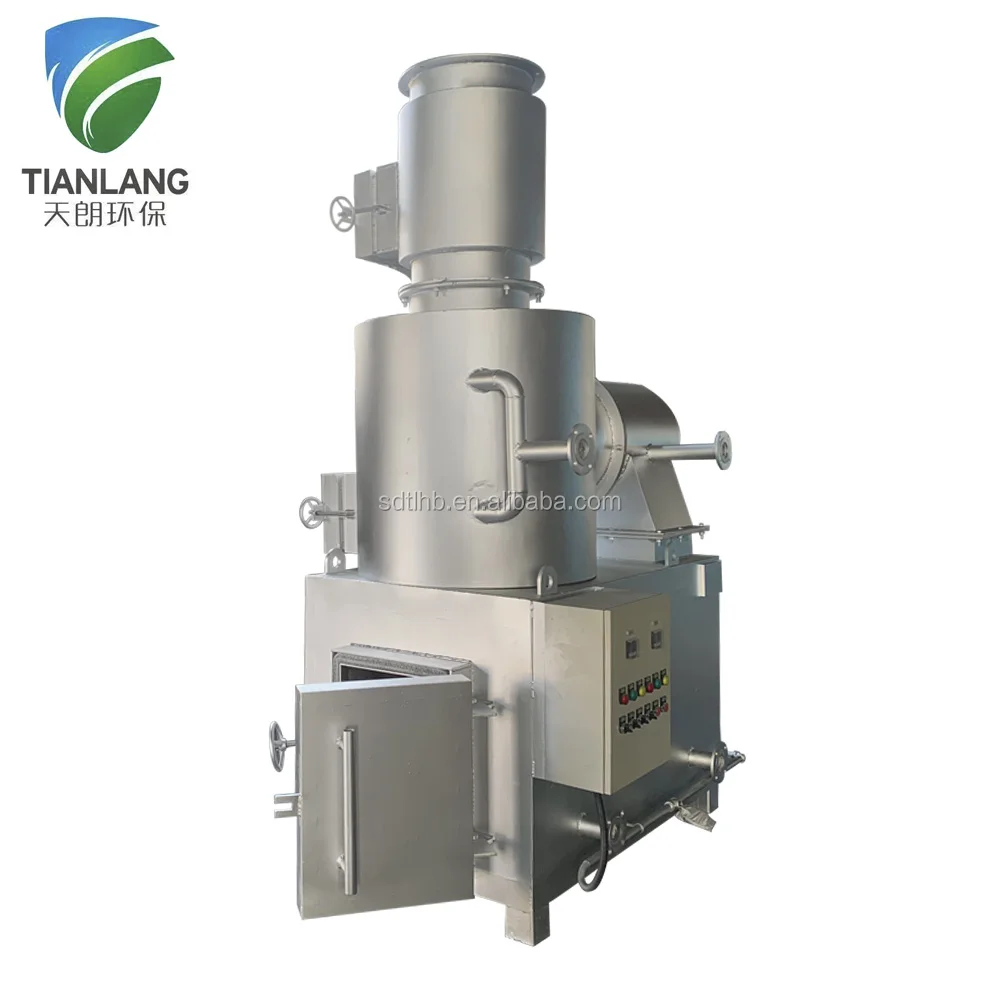

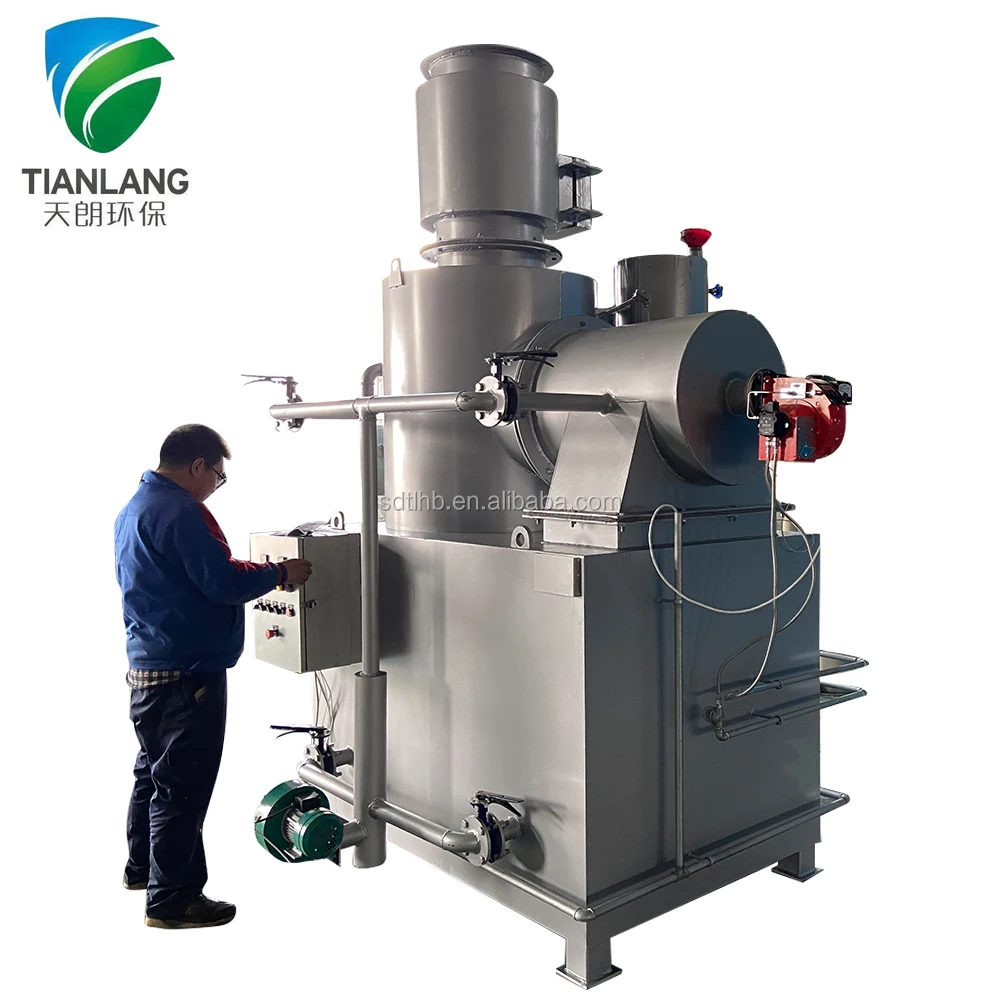

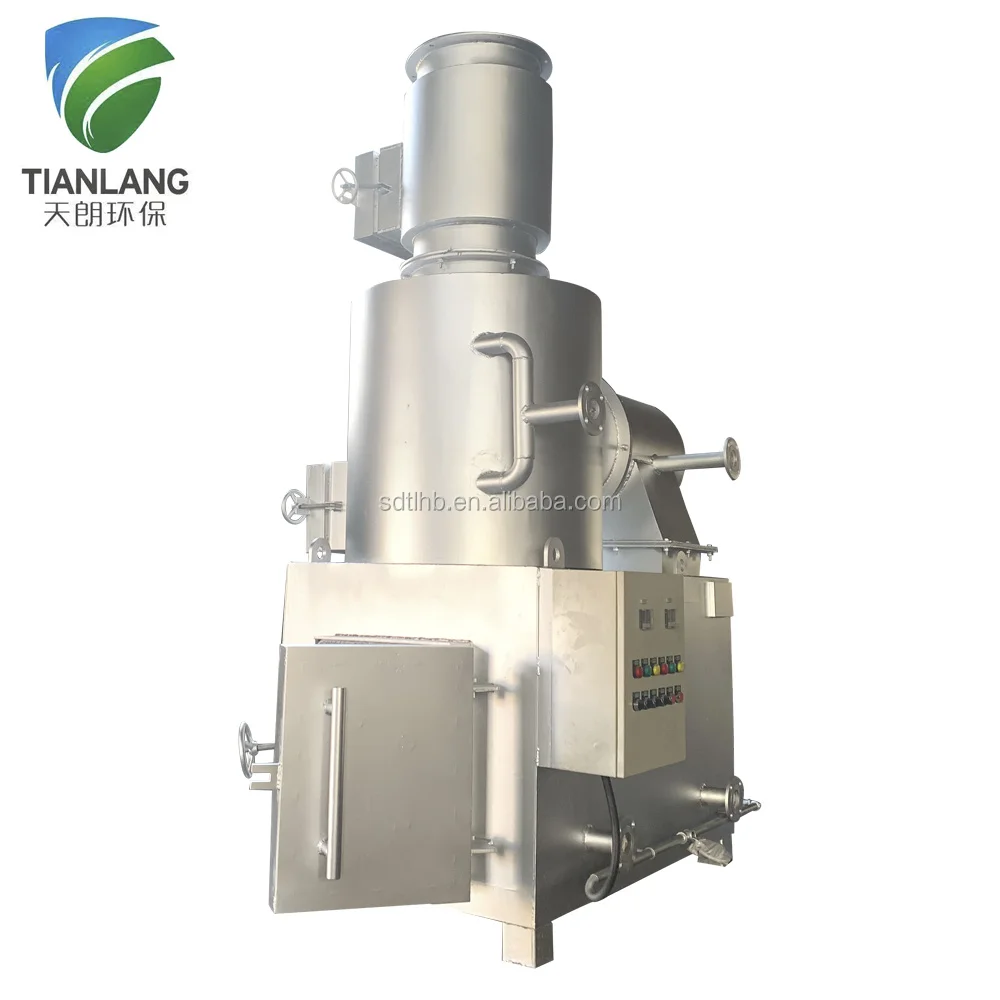

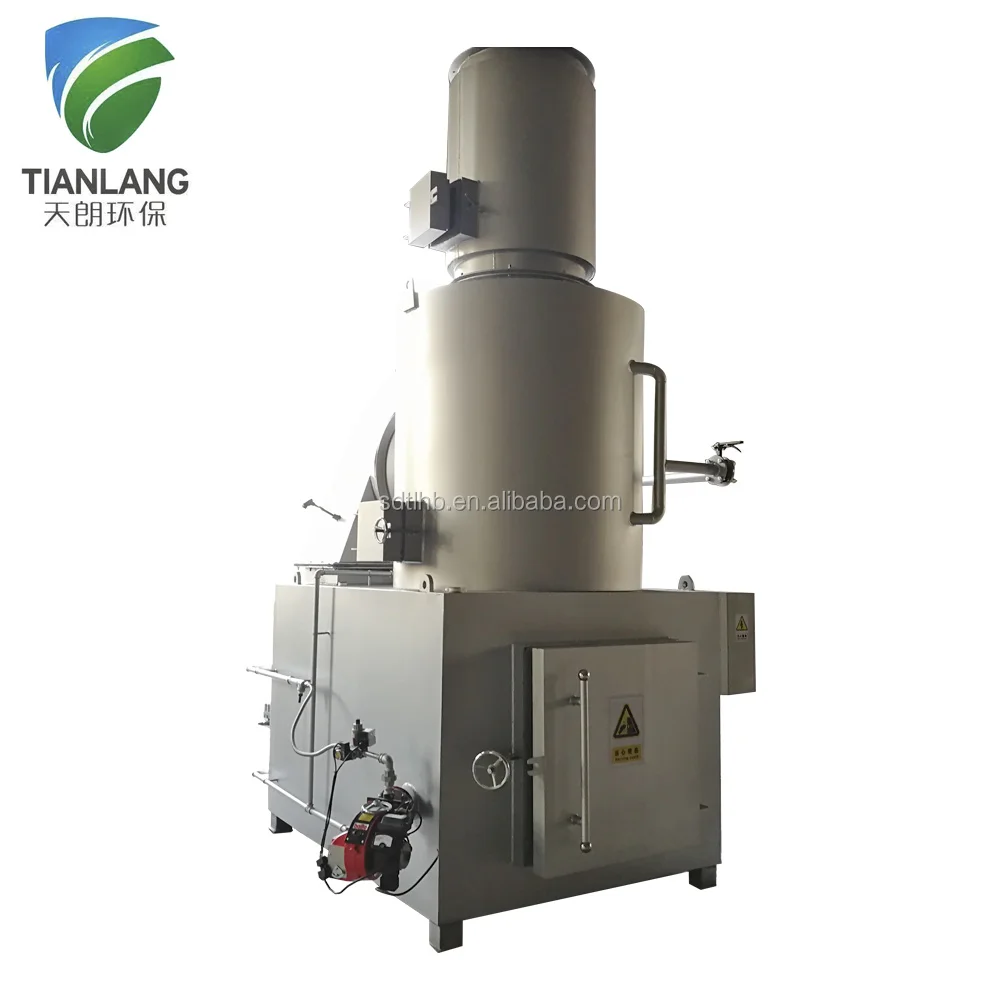

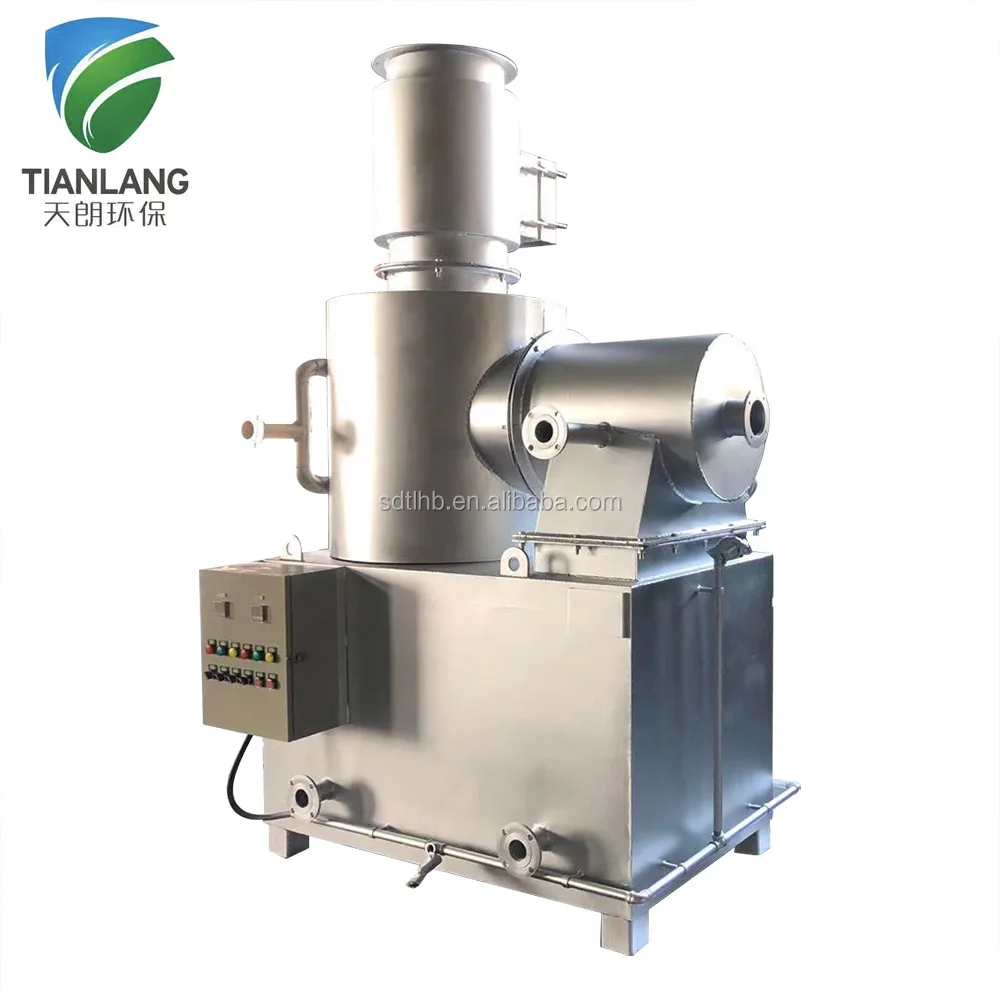

High quality shops waste treatment household waste treatment equipment leaves waste incinerator is a kind of waste treatment method, Incinerators reduce the solid mass of the original waste by 80–85% and the volume reduced by 95–96%. The highest temperature of incinerator runing can reach 1100-1300 degrees Celsius, which can achieve the effect of sterilization and disinfection. There will be no smoke, no smell, no pollution after waste be burning.
It features unique and advanced merits with compact size, high burning effect, reasonable burning technology, high degree of non-harm etc. It is an ideal choice for waste treatment of hospitals, hotels and various areas.

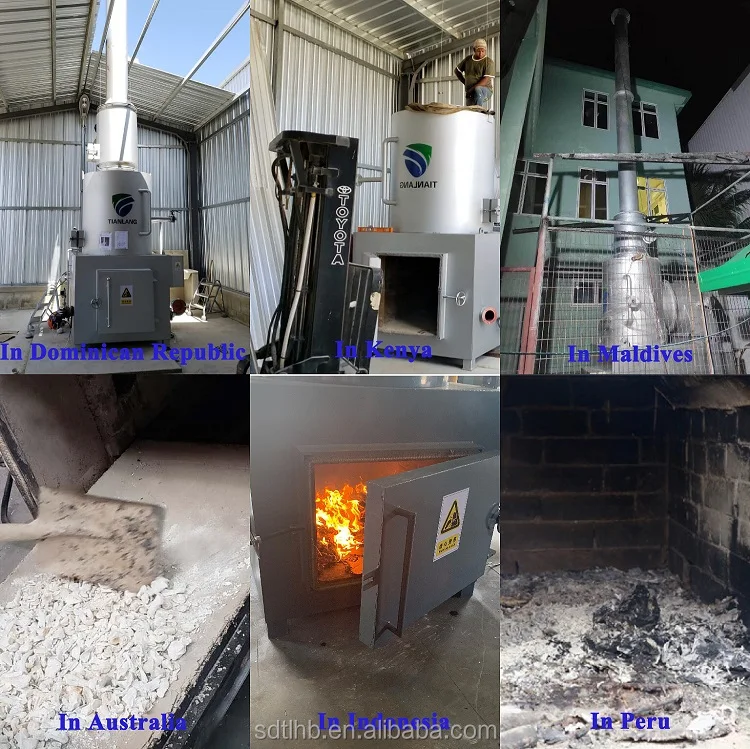

Product application
1. Medical waste: syringes, neddles, gloves, straps, gauze, blood vessels, organs and other infectious waste. 2.Industrial waste (polymer waste): Plastic PE, PU, rubber (tire), Styrofoam, PET bottle, fiber, foam, cloth, bags, resin, acrylic, leather, Wood flour, urea powder, melon cloth, tapes, paints, polymers and so on. 3.General domestic garbage: cardboard, paper scraps, sawdust, leaves and so on. 4.Special waste: waste oil, waste solvents, oil sludge, ash dust, iron paint, mold filter residue and so on.
5.Animal carcass cremation: pet, dog,cat,chicken,cow,pig and so on.
Working principal:

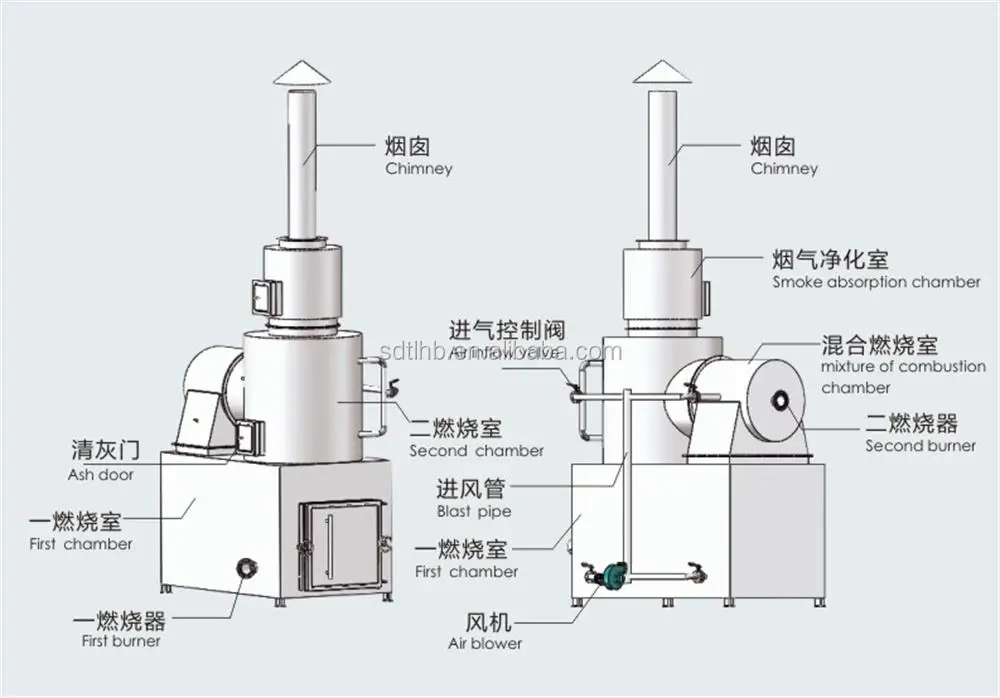

There are four chambers, two combustors for friendly environment in waste incinerator. There will be no smoke, no smell, no pollution after be burning.
it was devided into : 1.primary combustion chamber It is Primary pyrolysis gasifying, Organic matters in the waste would be decomposed into combustible gas in pyrolysis gasifying method. 2.second combustion chamber The temperature of secondary combustion chamber should be controlled above 850℃, and the residency time more than 2s. 3.mixture of combustion chamber Turbulent combustion would remove black smoke and peculiar smell thoroughly. Dioxin and other toxic and harmful objects would be inhibited to produce from the source. 4. smoke purification chamber There is an gas absorbtion chamber, it can absorb the gas again. 5.chimney it can cool down the tempreture of gas.
Product adventages
1. It is easier to operate than other manufacturers' incinerators.There is an air blower inside of burner. It is for protection burner. And the air blower is automatic. no need to operate it. When you close the burner, the air blower will be stop automatically at a certain time.
2. Environment friendly,Dual chamber design, no smoke, no smell, no pollution. 3. The highest temperature can reach 1100-1500 degrees Celsius, which can achieve the effect of sterilization and disinfection 4. long service time. Material of construction-Heavy duty steel. Insulated and refractory lined chambers. 5. be portable and cover a small area. 6. Low running & maintenance cost.
Technology data:
Model
Name
TLFS-30
TLFS-50
TLFS-100
TLFS-150
TLFS-300
TLFS-500
Capacity
30kg/batch
50kg/batch
100kg/batch
150kg/batch
300kg/batch
500kg/batch
Size
(L×W×H)mm
1460*900*2350
1800*1150*3000
1800*1300*3300
2000*1400*3500
2200*1550*3800
3000*2000*4800
Waste inlet(mm)
480×600
620×800
680*900
760×960
900×1100
1080×1280
Chimney
(mm)
Outer diameter Ø280
Outer diameter Ø280
outer diameter Φ300
Outer diameter Ø300mm
Outer diameter Ø400
Outer diameter Ø400
Air blower
0.37kw
0.37kw
0.37kw
0.5kw
0.5kw
1.1kw
First burner
0.11kw
0.11kw
0.11kw
0.11kw
0.22kw
0.22kw
Second burner
0.11 kw
0.11 kw
0.11kw
0.22 kw
0.37kw
0.37 kw
Voltage
380V/220V
380V/220V
380V/220V
380V/220V
380V/220V
380V/220V
Weight(kgs)
3500
5500
8000
10000
12000
18000

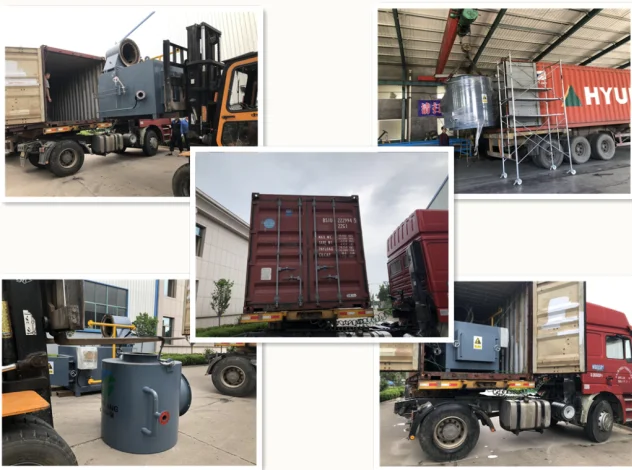

Packaging & Shipping
Our Services
Company Information
Certifications
How we do

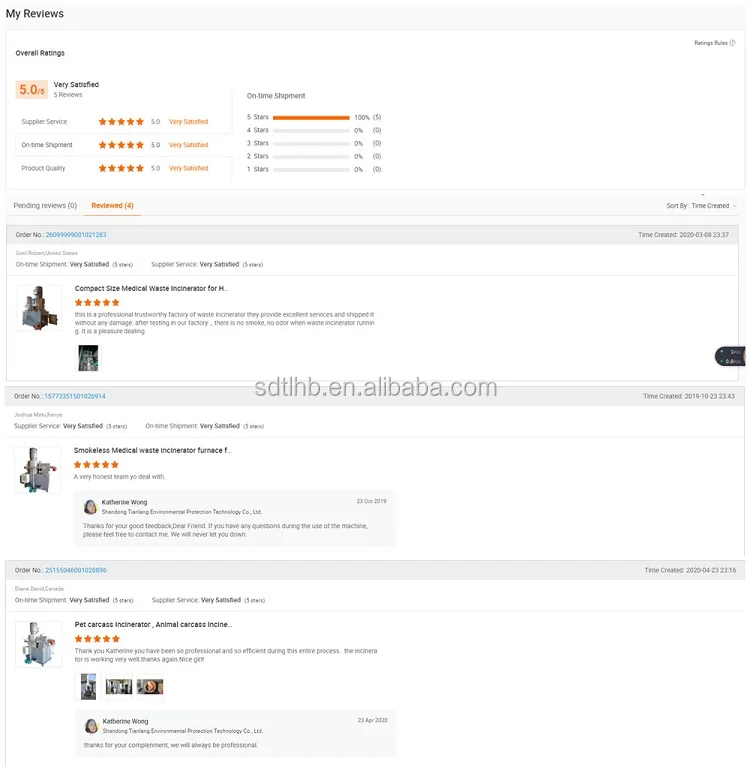

Our customers
FAQ
Q: How to buy your idea products? A: You can provide us the waste kind and waste quantity(connect us for more details). we will recommand you the suitable model incinerator.
Q: How to pay? A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
Q: What is the delivery time? A: It depends on order quantities. Generally speaking, the delivery time will be within 3 to 4 weeks.
Q: How to pack the products? A: We use standard package.
Q: How to install after the equipments arriving destination? A: We will provide detailed illustrations to you. And we will send a technicians to guide for installation and debugging. after debugging equipment, he will teach your workers how to use it and how to maintain it.
Q: How about the warranty? A: If there is any malfunction of the equipment during the warranty period, our company promises to propose a solution within 24 hours. If it is caused by non-human causes, our company provides repairs free of charge and guarantees that the equipment is running well again.
Q: What's the certification do you have? A: We have CE, ISO9001, OHSAS18001, ISO14001 Certifications
