Samwha dsp SDM A96T 91x91mm Hot Sale Can Be Wholesale Dc Ac Ammeter Digital Voltmeter
- Category: Panel Meters >>>
- Supplier: Zhejiang Hannuo Electric Co. Ltd.
Share on (1600286606552):
Product Overview
Description
Product Description
General
Designed to monitorize current of electrical charge of any system.
Usage and Working Principle
Make the connections according to the diagram. Make the connections of current transformers used for ampermeter before the electrical charge which required to measure in the system. Current transformers don’t sense the current of electrical charge which connected before them.
Put max 5A charge.Otherwise, device might be damaged or might give error.
Push ”menu” button for2 seconds when the power is on. Set the current transformer value by “up”-“down” buttons and re-push ”menu” button for 2 seconds to record your setting. You can see the current of system.
Put max 5A charge.Otherwise, device might be damaged or might give error.
Push ”menu” button for2 seconds when the power is on. Set the current transformer value by “up”-“down” buttons and re-push ”menu” button for 2 seconds to record your setting. You can see the current of system.
Maintenance
Switch off the device and release from connections. Clean the trunk of device with a swab. Don’t use any conductor or chemical might damage the device.
Make sure device works after cleaning.
Make sure device works after cleaning.
Warnings
Please use the device according to the manual.
Don’t use the device in wet.
Include a switch and circuit breaker in the assembly.
Put the switch and circuit breaker nearby the device, operator can reach easily.
Mark the switch and circuit breaker as releasing connection for device.
Don’t use the device in wet.
Include a switch and circuit breaker in the assembly.
Put the switch and circuit breaker nearby the device, operator can reach easily.
Mark the switch and circuit breaker as releasing connection for device.
Specifications | ||
Operating Voltage(Un) | 140V - 270V AC | |
Operating Frequency | 50/60 Hz | |
Operating Power | <4VA | |
Operating Temperature | -20°C.....+55°C | |
Voltage Measuring Range | 1V - 500V AC | |
Measurement Range | 100mA-5.5A AC | |
C.T. Ratio | 5/5A......5000/5A | |
Measurement Precision | ±%1 | |
Display | (3 digit) 6x Displays + 9 Leds | |
Connection Type | 3*4 digit 14mm displayPlug-in terminal | |
Cable Diameter | 1,5mm² | |
Weight | Max. 300gr. | |
Panel Hole Sizes | 91x91mm | |
Mounting | Panel front mounted | |
Operating Altitude | <2000meter | |

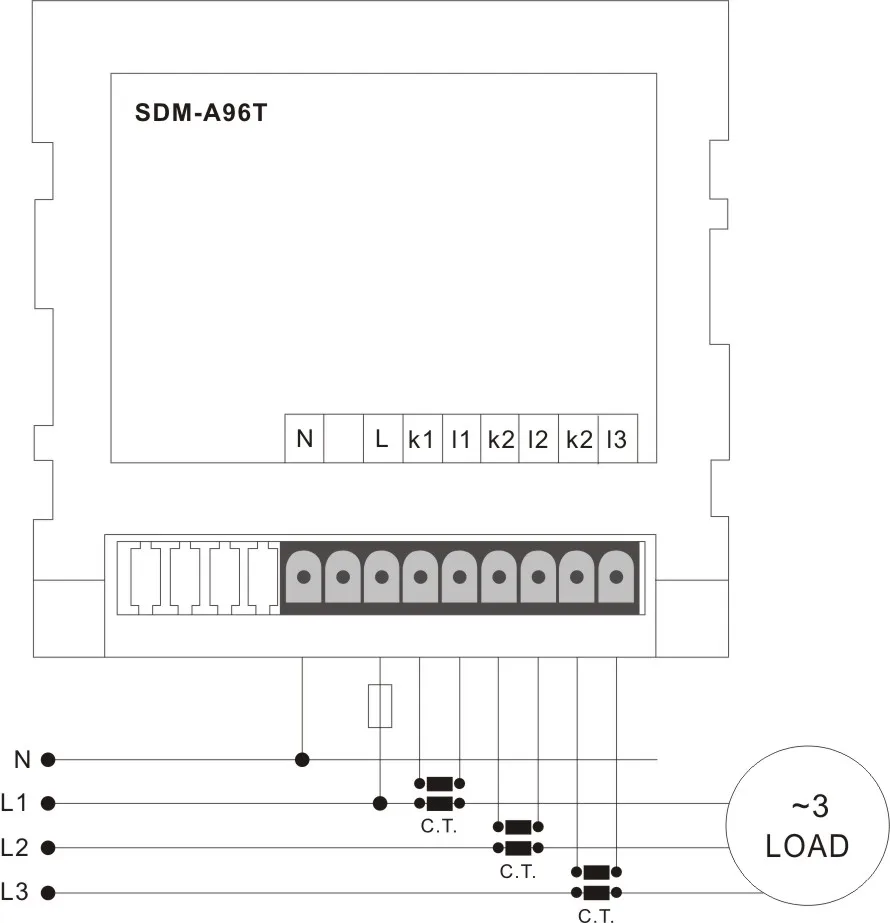

Connection Diagram

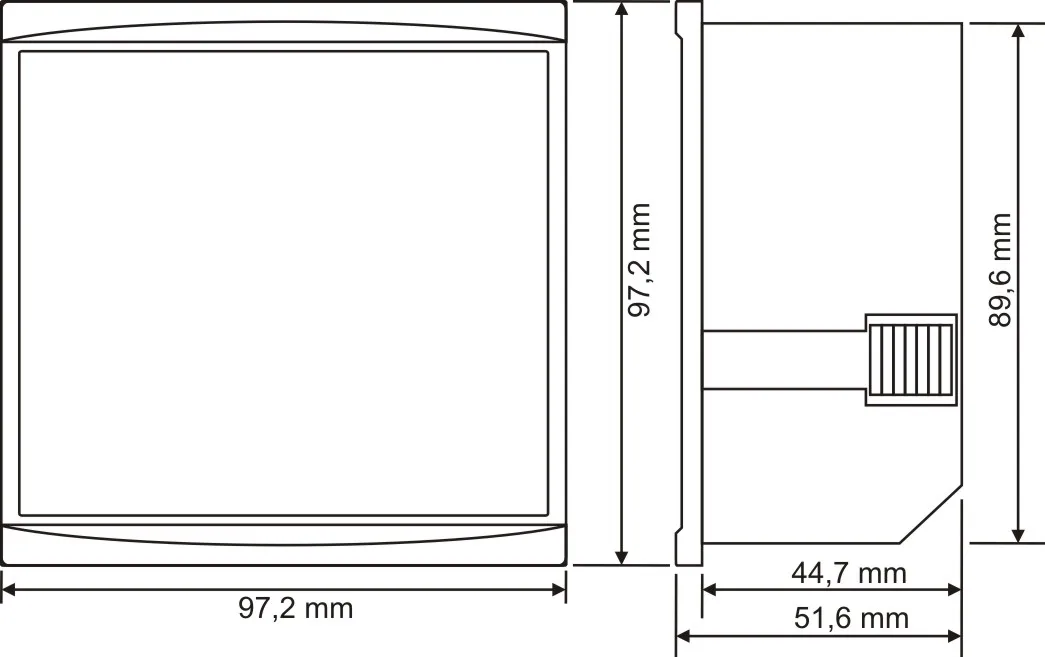

Dimensions
