VHD High Quality 4K@60fps 12X Optical Zoom HDBaseT PTZ Skype Zoom Live Streaming IP Video Conference RS232/RS485 Camera
- Category: Office Equipment >>>
- Supplier: ValueHD Corporation
Share on (1600288910404):
Product Overview
Description
Product Description
Product Name | VHD High Quality 4K@60fps 12X Optical Zoom HDBaseT PTZ Skype Zoom Live Streaming IP Video Conference RS232/RS485 Camera |
Resolution | 4k/30, 4k/29.97, 4k/25, 1080p/60, 1080p/59.94, 1080p/50, 1080i/60, 1080i/59.94, 1080i/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50 |
Sensor | 1/2.5 inch, CMOS, 8.51 million effective pixels |
Lens | 12x, f=4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
Low Illumination | 0.5 Lux @ (F1.8, AGC ON) |
Shutter Speed | 1/30s~1/10000s |
DNR | 2D & 3D DNR, ≥55dB |
Horizontal field of view | 71° ~ 8.2° |
Vertical field of view | 42.7° ~ 4.5° |
Pan Rotation | ±170° (speed: 1.6° ~ 76° /s) |
Tilt Rotation | ±30° (speed: 0.5° ~ 15° /s) |
Qty of Preset Positions | 255 |
Accuracy of Preset Positions | 0.1° |
Horizontal / Vertical Flip | Support |
HD Output | 1xHDMI 1.4; |
Multi-function Interface | 1xHDBaseT: video, audio, POE, control |
Audio Interface | 1xLine In, 3.5mm DC Jack |
Network Interface | 1xRJ45: 10M/100M/1000M Ethernet interface |
Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS232 Out: 8-pin Min DIN, max distance: 30 meters, for VISCA protocol networking; 1xRS485: 2-pin Phoenix port, maximum distance: 1200 meters, VISCA/Pelco-D/Pelco-P protocol; |
Power Jack | JEITA type (DC IN 12V) |
Video Compression Format | MJPEG / H.264 / H.265 |
Image Code Stream | Double streams outputs simultaneously |
Supported Operation Systems | Windows 7/8/10, Mac OS X, Linux |
Power Consumption | 12W (max.) |
Operating Temperature | -10 ~ 40° C |
Storage Temperature | -40-60℃ |
Size | 238mm x 166.35mm x 131.8mm |
Weight | 1.355Kg |
Product performance description
4K ultra HD
It adopts a 1/2.5 inch high-quality UHD CMOS sensor
with a maximum of 8.51 million pixels, which can
realize 4K (3840x2160) ultra-high-quality images.
And backward compatible with 1080P, 720P multiple
resolutions.
with a maximum of 8.51 million pixels, which can
realize 4K (3840x2160) ultra-high-quality images.
And backward compatible with 1080P, 720P multiple
resolutions.
Low illumination
Clear image in low illumination conditions with image SNR 55dB or
more;
more;
Ultra high frame rate
The output frame rate can reach 60fps under 4K;
Remote control
Using RS232 and RS485 to control the camera.
Wide applications
Education, tele-medicine, meetings, video conference, etc.

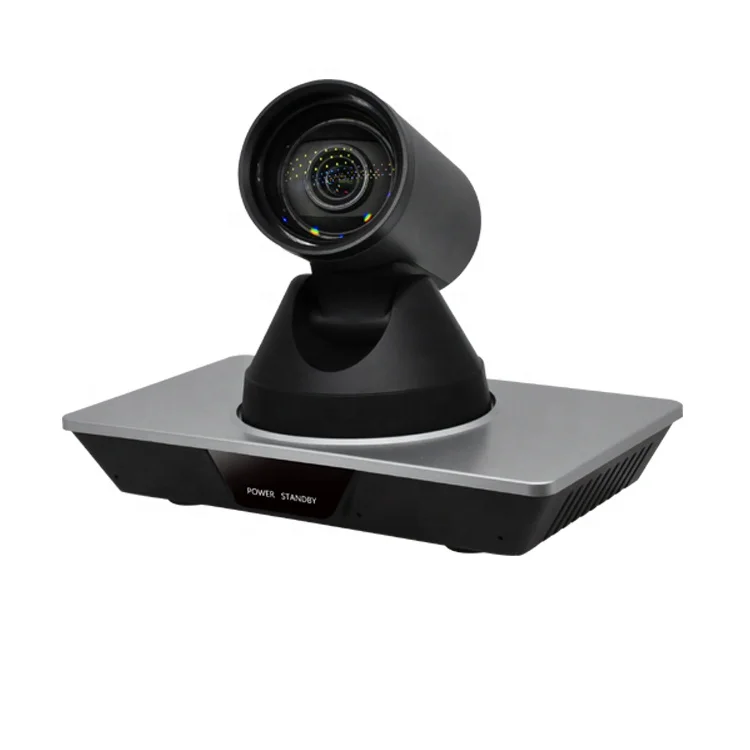

Details Images
HD Video Conference Camera has full-featured USB interface, compatible with USB3.0, supports audio, supports encoding output with perfect applications, support low-power sleep function.
Led indicators on the face to show video conference camera's status.
Color matching: grey & black. Customized colors are available.

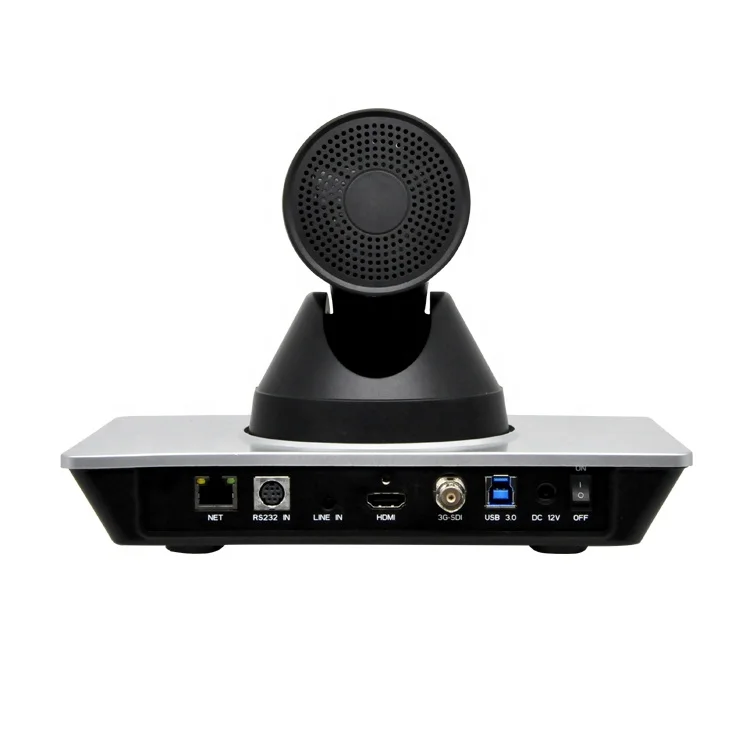

Rich interfaces to meet different requirements.
Product Usage
Product usage introduction
Video conference cameras can be widely used for church, education, tele-medicine, broadcast, live stream, conference rooms, etc. to save your energy, cost and time.
Description of product use effect
Using high-quality telephoto lens, the optical zoom of HD video camera is up to 12x, and the digital zoom can support 16x. You can
have clear images definitely.
have clear images definitely.
Packing&Shipping
Nuetral packaging: gift box + cartons
Customized packaging is available!
Company Introduction
Get to Know About VHD
ValueHD Corporation is a professional AV integration and conference solution supplier, Stock No.: 871053. Since founded in 2008, VHD has been focusing on the high-definition video camera and its accessories. Its products range from HD video conferencing camera, to 4K cameras with intelligence analysis capabilities, MCU, All-in-one camera, microphone and etc.
VHD's core competence lies in deep understanding of the industry user needs, many years of experience in video
communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.
We welcome customers from all over the world! OEM/ODM available, turn your idea into reality!
ValueHD Corporation is a professional AV integration and conference solution supplier, Stock No.: 871053. Since founded in 2008, VHD has been focusing on the high-definition video camera and its accessories. Its products range from HD video conferencing camera, to 4K cameras with intelligence analysis capabilities, MCU, All-in-one camera, microphone and etc.
VHD's core competence lies in deep understanding of the industry user needs, many years of experience in video
communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.
We welcome customers from all over the world! OEM/ODM available, turn your idea into reality!
Our Services & Strength
R&D Ability
With professional engineers and advanced test equipment, we can process each program fast and efficiently.
QC Ability
Strictly following ISO9001 QS standard, we make strict inspection from raw materials to finished products to ensure the quality and each customer receive reassured products.
Cost Control Ability
Sticking to integrity to win the trust and support from suppliers, we get better price and delivery from our suppliers to provide cost-driven but nice products to customers.

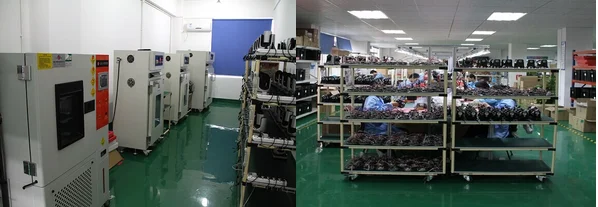

Production Ability
Highly skilled and experienced workers and mature technology, we can manufacture cameras monthly.
Gold After-sale Service
We have a special after-sale team that can timely solve your any queries and issues when using our products.
We have a special after-sale team that can timely solve your any queries and issues when using our products.
Certifications
Exhibition
FAQ
1. Q: Are you Manufacturer or Trading company?
A: Manufacturer with more than 10 years experience.
2. Q: What's your main products?
A: We have been focusing on the production of HD&4K video cameras and its accessories since our foundation in 2008.
3. Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.
4. Q: Can we visit your factory?
A: Yes, warmly welcome to visit our factory anytime, our factory is only half an hour driving from the Baoan Airport.
5. Q: If there is any problem about your products, should we have a refund or replacement?
A: If there is any problem within one year, you will get a brand new replacement.
6. Q: What is your delivery time?
A: For samples, within 2 working days after payment received. For bulk order, it depends on your quantity and requirements on OEM / ODM.
A: Manufacturer with more than 10 years experience.
2. Q: What's your main products?
A: We have been focusing on the production of HD&4K video cameras and its accessories since our foundation in 2008.
3. Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.
4. Q: Can we visit your factory?
A: Yes, warmly welcome to visit our factory anytime, our factory is only half an hour driving from the Baoan Airport.
5. Q: If there is any problem about your products, should we have a refund or replacement?
A: If there is any problem within one year, you will get a brand new replacement.
6. Q: What is your delivery time?
A: For samples, within 2 working days after payment received. For bulk order, it depends on your quantity and requirements on OEM / ODM.
