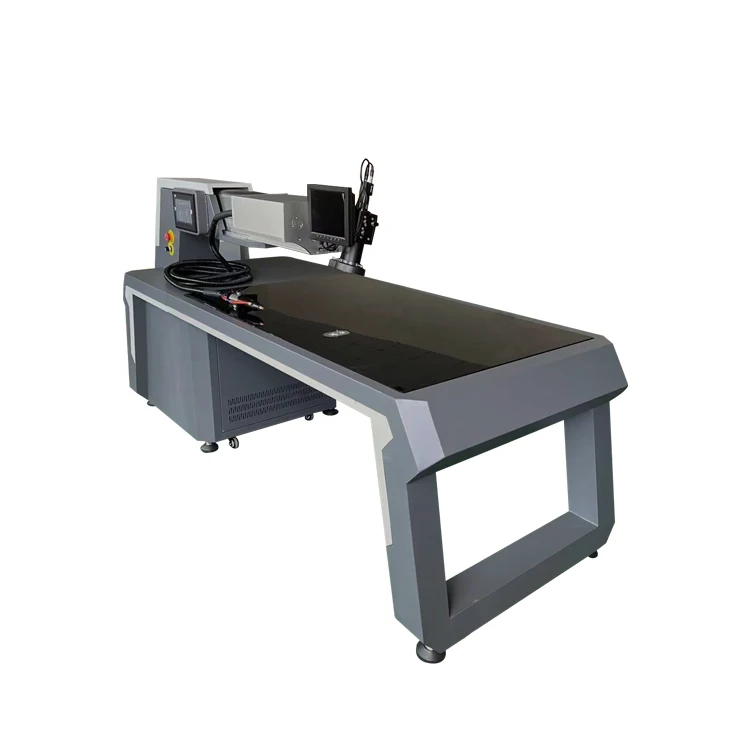

Newest design top quality double optical path laser advertising welding machine 500W
- Category: Other Welding Equipment >>>
- Supplier: Huizhou Yunchuang Laser Technology Co. Ltd.
Share on (1600289583921):
Product Overview
Description
Products Description

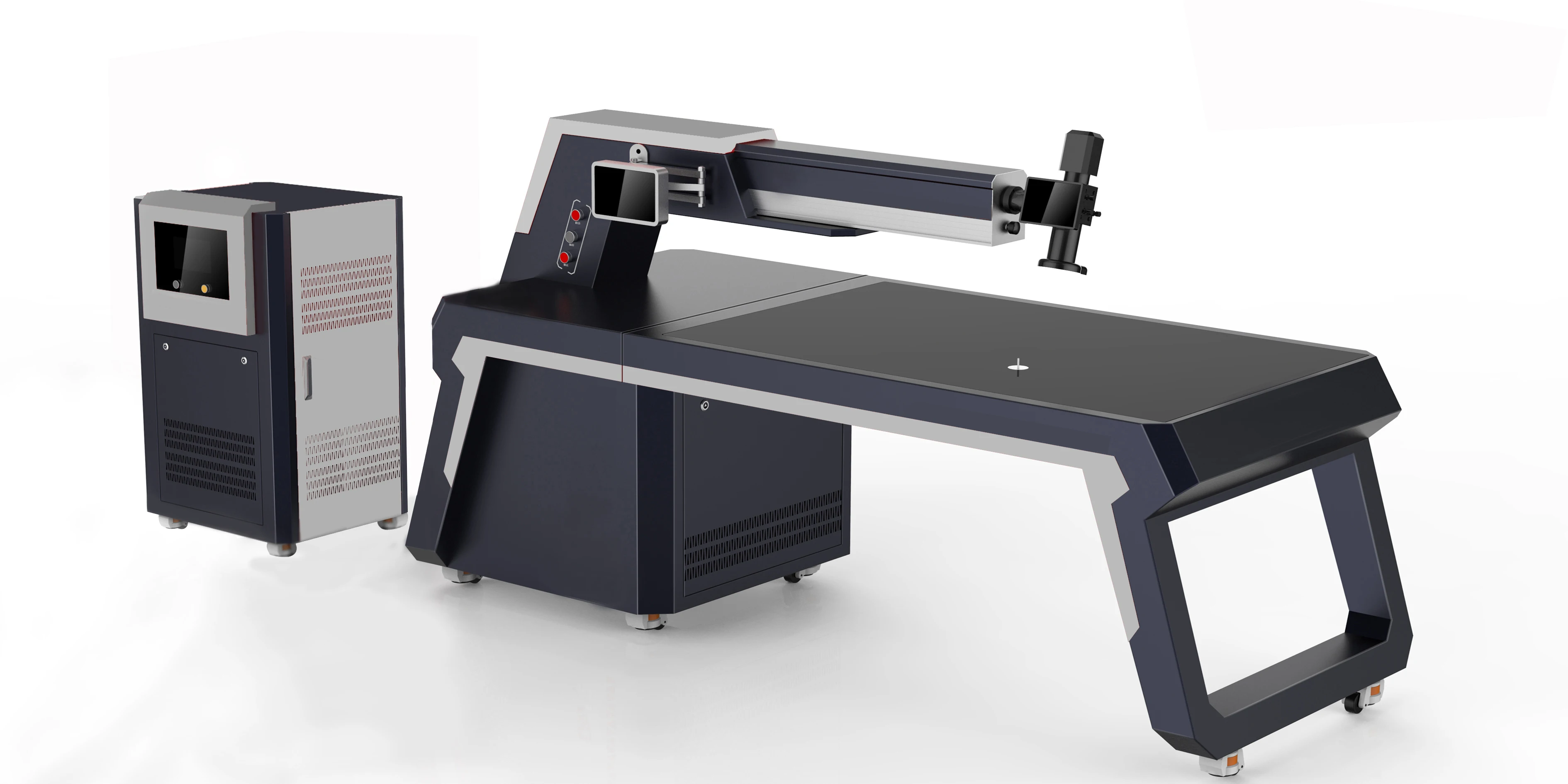

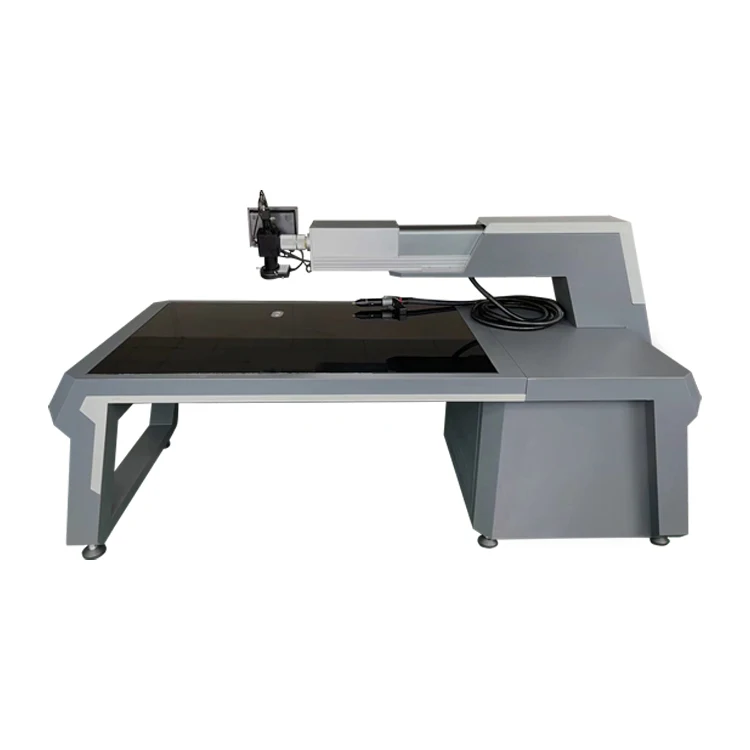

Product Name: Double Light Road 500W Cream Laser Welding Machine
internally by heat transfer guiding material, and the material is melted to form a particular molten pool.
The welding speed is fast, the solder is small, the appearance is beautiful and strong, and the welding is firm and beautiful.
Used super tempered glass working table.About 12mm thickness,with explosionproof film and paint,flat and smooth.
Advantages
Machine Can weld all minor parts very effectively, making up for the shortcomings of traditional soldering and argon arc
weldingtechnology. No thermal strain, no need post-treatment, environmentally friendly, which greatly improves the connectionstrengthand quality of the metal letters and signboard.
Technical parameters
Product model | YC-GG300WD | YC-GG500WD | YC-GG300WS | YC-GG500WS | |||
Mechanical Part | The laser cavity length1200mm ，Laser Head rotary 360 degree。 | ||||||
Work Table Size | 2000*9000MM | ||||||
Bearing weight | ≤200KG | ||||||
Voltage | 220V±10%/50/60Hz | 380V±10%/50/60Hz | 220V±10%/50/60Hz | 380V±10%/50/60Hz | |||
Laser Mode | Nd:YAG Pulsed xenon lamp | ||||||
Adjustable facular size | 0．2-3．0mm | ||||||
Laser wave length | 1064nm | ||||||
Single power energy | 90J | 120J | 90J | 120J | |||
Frequency | ≤100Hz | ≤100Hz | ≤100Hz | ≤100Hz | |||
Focal Length | 180-230mm | 180-230mm | 180-230mm | 180-230mm | |||
Cooling | Water cooling | ||||||
Power | <7KW | <12KW | <7KW | <12KW | |||
Positioning | CCD | ||||||
Machine size Table size Water chiller size | 2300*900*1200mm 2000*900*800mm 950*500*650mm | 2300*900*1200mm 2000*900*800mm 1300*750*670mm | 2300*900*1200mm 2000*900*800mm 950*500*650mm | 2300*900*1200mm 2000*900*800mm 1300*750*670mm | |||
Gross weight | 300KG | 430KG | 320KG | 450KG | |||
More details

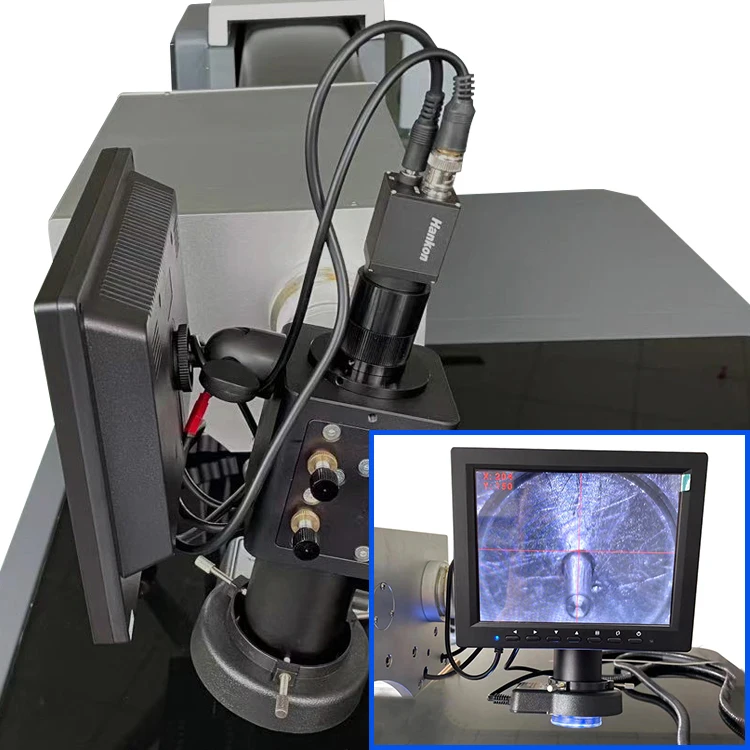

Adapting CCD micro-monitor, the welding effect isclear and intuitive.

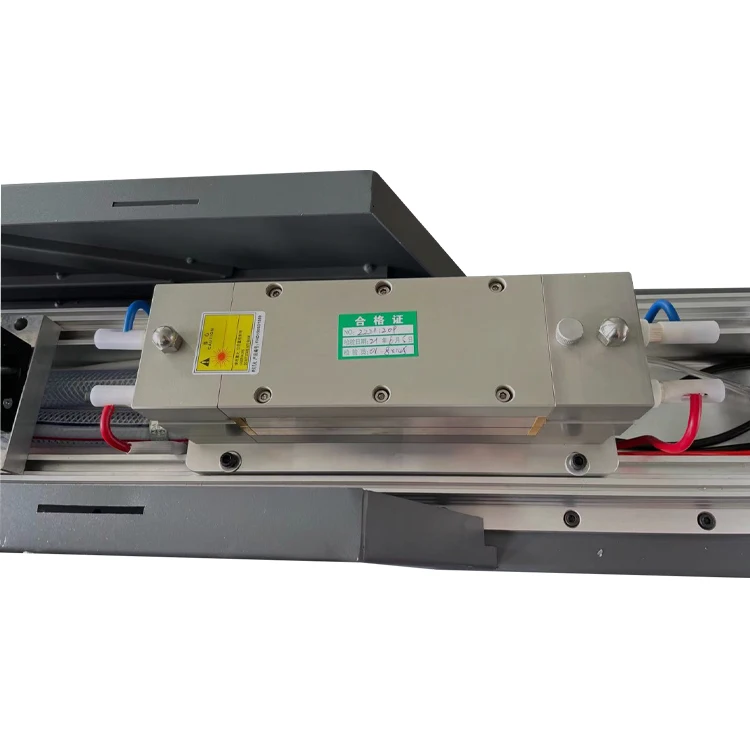

Aadopt the domstic super 7*145 laser rods,every piece all have the LQC qualification certificate.With High gain, low
laserthreshold, high laser power, beautiful solder joints, stable activity, good thermal conductivity and thermal shock
properties.
laserthreshold, high laser power, beautiful solder joints, stable activity, good thermal conductivity and thermal shock
properties.

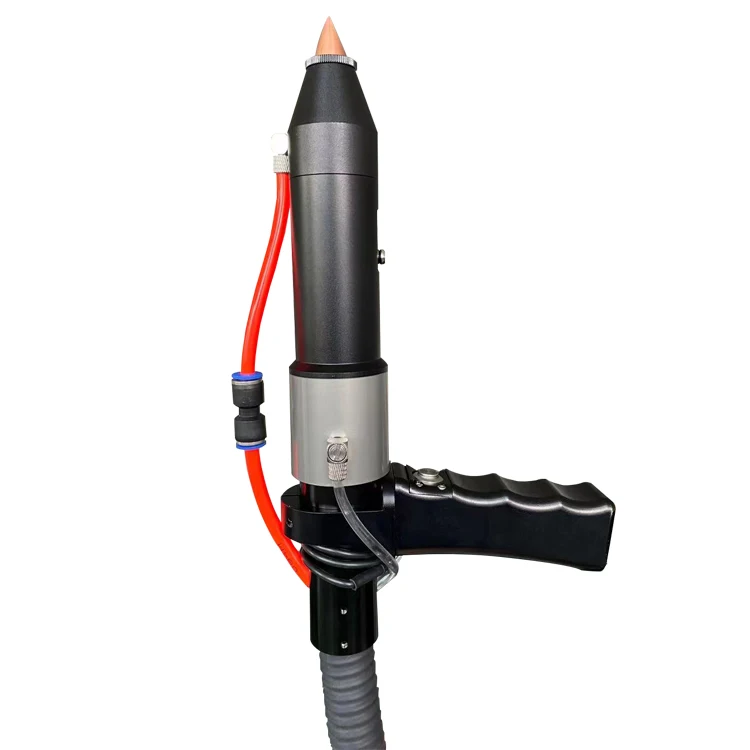

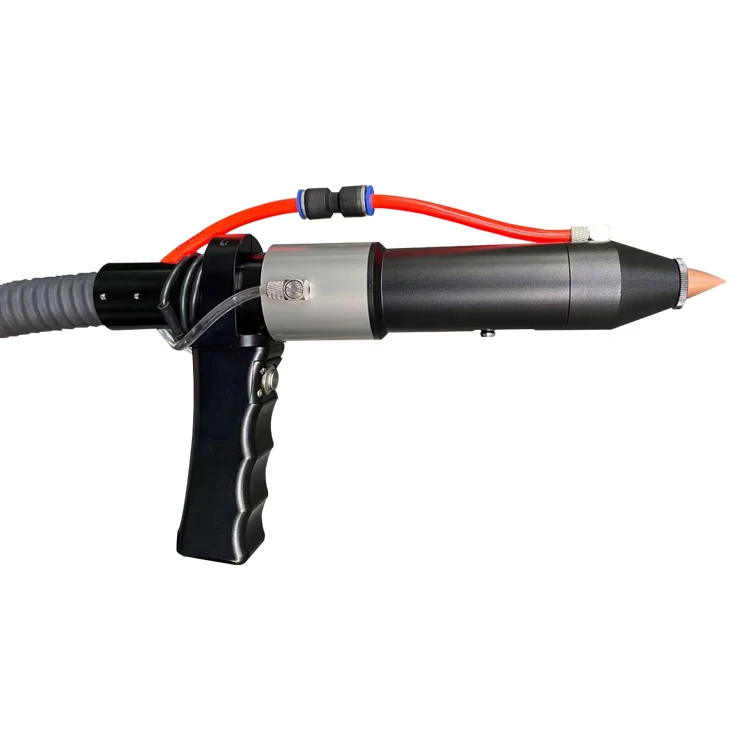

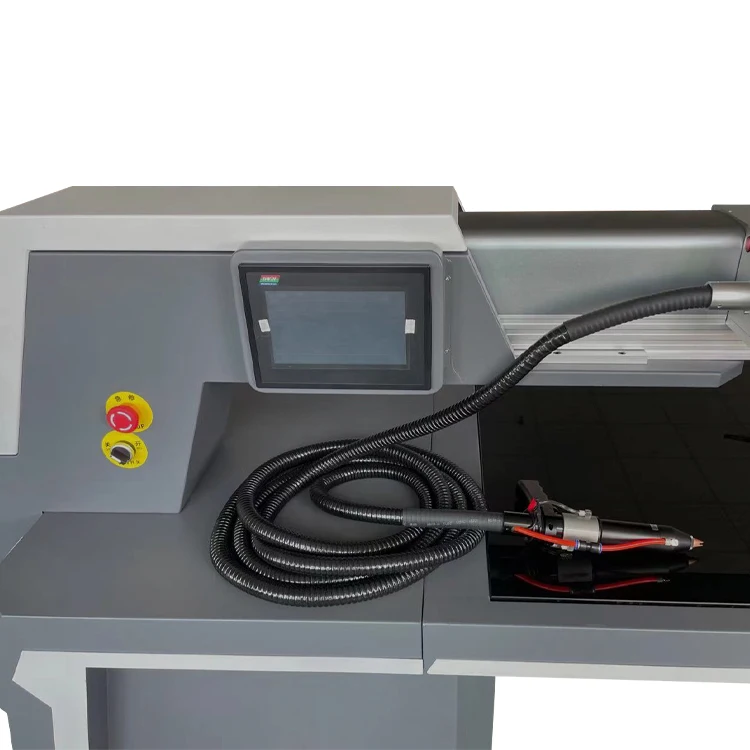

Hand-held moving optical path, flexible, extending focusing lens F = 200MM, 5m long handheld tube, suitable for different metals
welding, more convenient.
welding, more convenient.

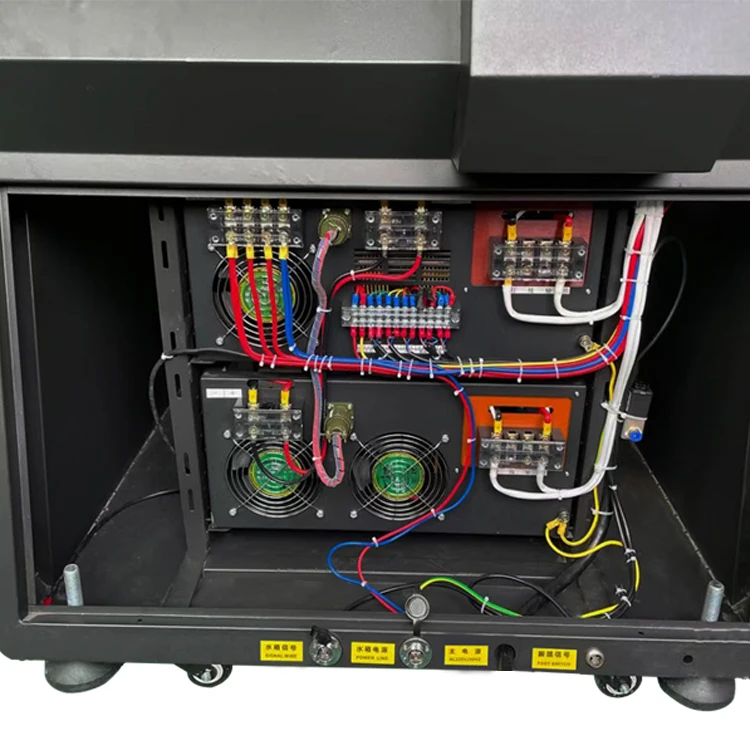

High power double laser power and import IGBT bipolar transistors. Make the power pulse xenon lamp more constant, high frequency
continuous welding, it is not easy to decline, and long life.
continuous welding, it is not easy to decline, and long life.

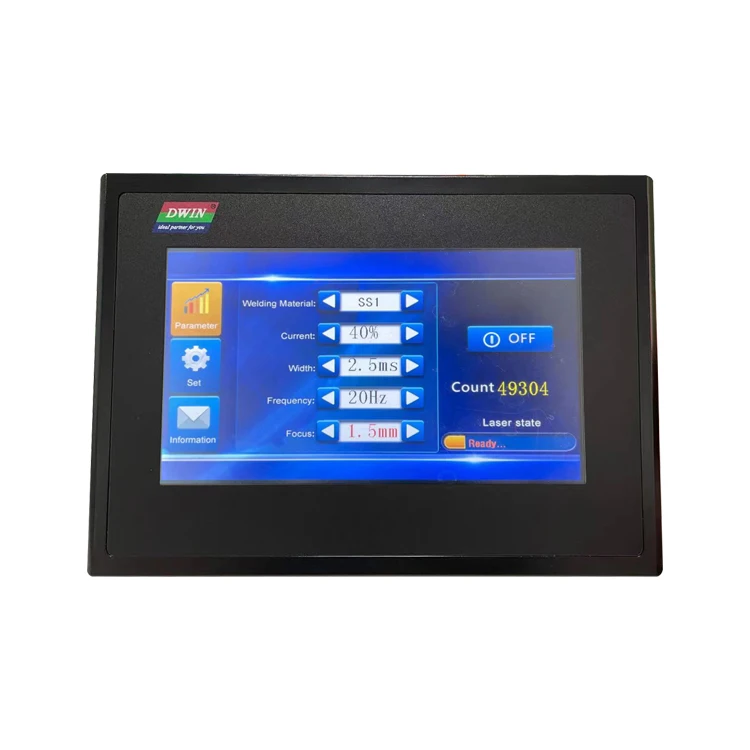

Controller:Independent high-definition touch control screen(multifunctional language), control pulse current,the settingparameters
will be automatically saved(english and chinese for option).
will be automatically saved(english and chinese for option).

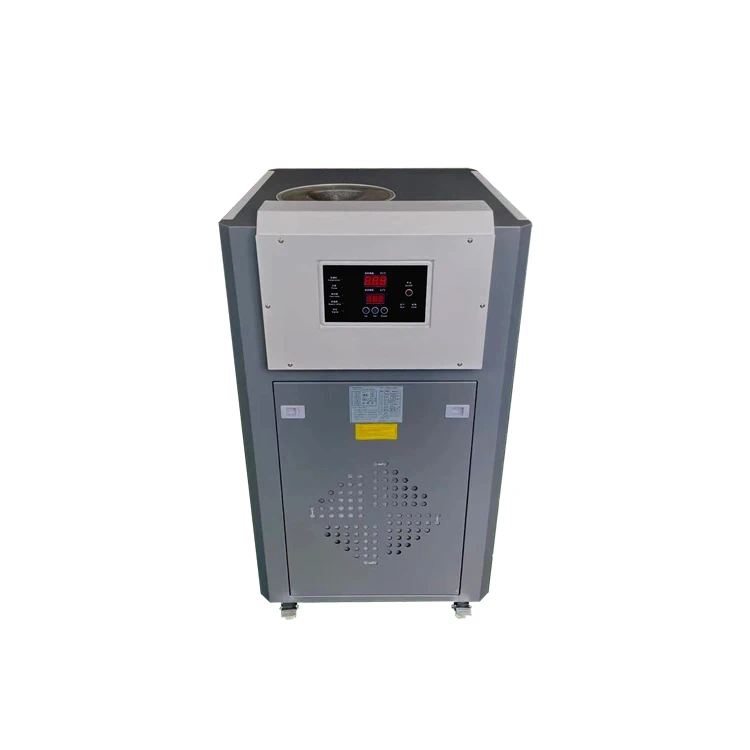

High-power constant-temperature refrigeration water tank,with high control accuracy, Germany EBM electronic fan as a part of
thematching condensation, large air volume, low noise and filtration devices, effective filtration ofwaterimpurities.
thematching condensation, large air volume, low noise and filtration devices, effective filtration ofwaterimpurities.

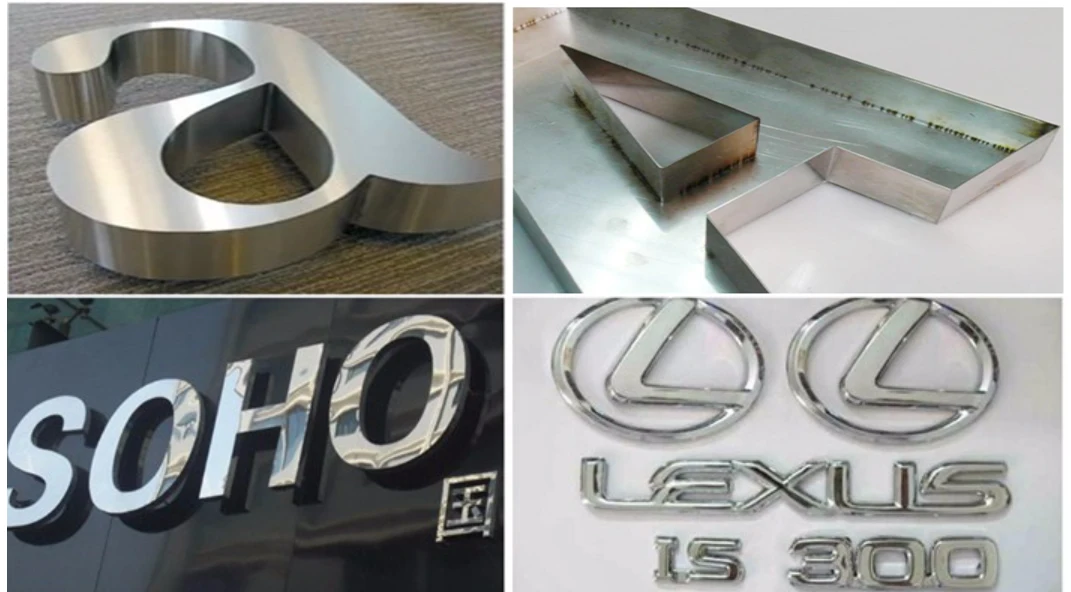

Welding sample
Applicable material
Aluminum, S/S, Iron, Galvanized sheet, Titanium, Brass, Copper, and etc.
Applicable industry
Widely used in all kinds of stainless steel ,LED channel letter ,LOGO identity,signage,advertising products such as
rapid,precision welding.
Aluminum, S/S, Iron, Galvanized sheet, Titanium, Brass, Copper, and etc.
Applicable industry
Widely used in all kinds of stainless steel ,LED channel letter ,LOGO identity,signage,advertising products such as
rapid,precision welding.
Packaging & Shipping
Packaging: Standard plywood package, professional package for international trade
Shipping: We will send out the machine by sea way to your nearest port general .
If you want to send by DHL or any other shipping way,please contact us in advance.
For shipping purpose, please tell us your phone number and detail contact information after you confirm the order.
Shipping: We will send out the machine by sea way to your nearest port general .
If you want to send by DHL or any other shipping way,please contact us in advance.
For shipping purpose, please tell us your phone number and detail contact information after you confirm the order.
