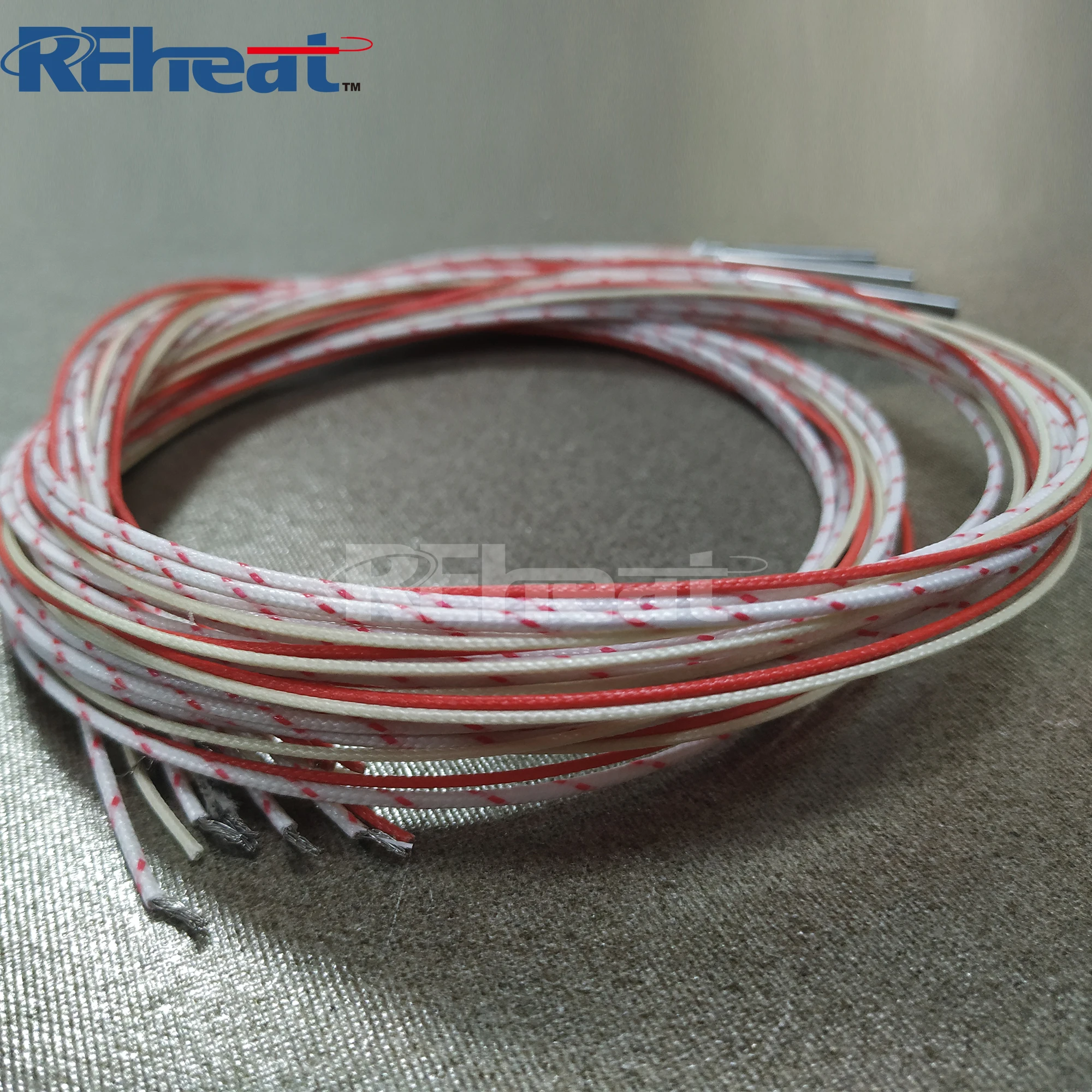

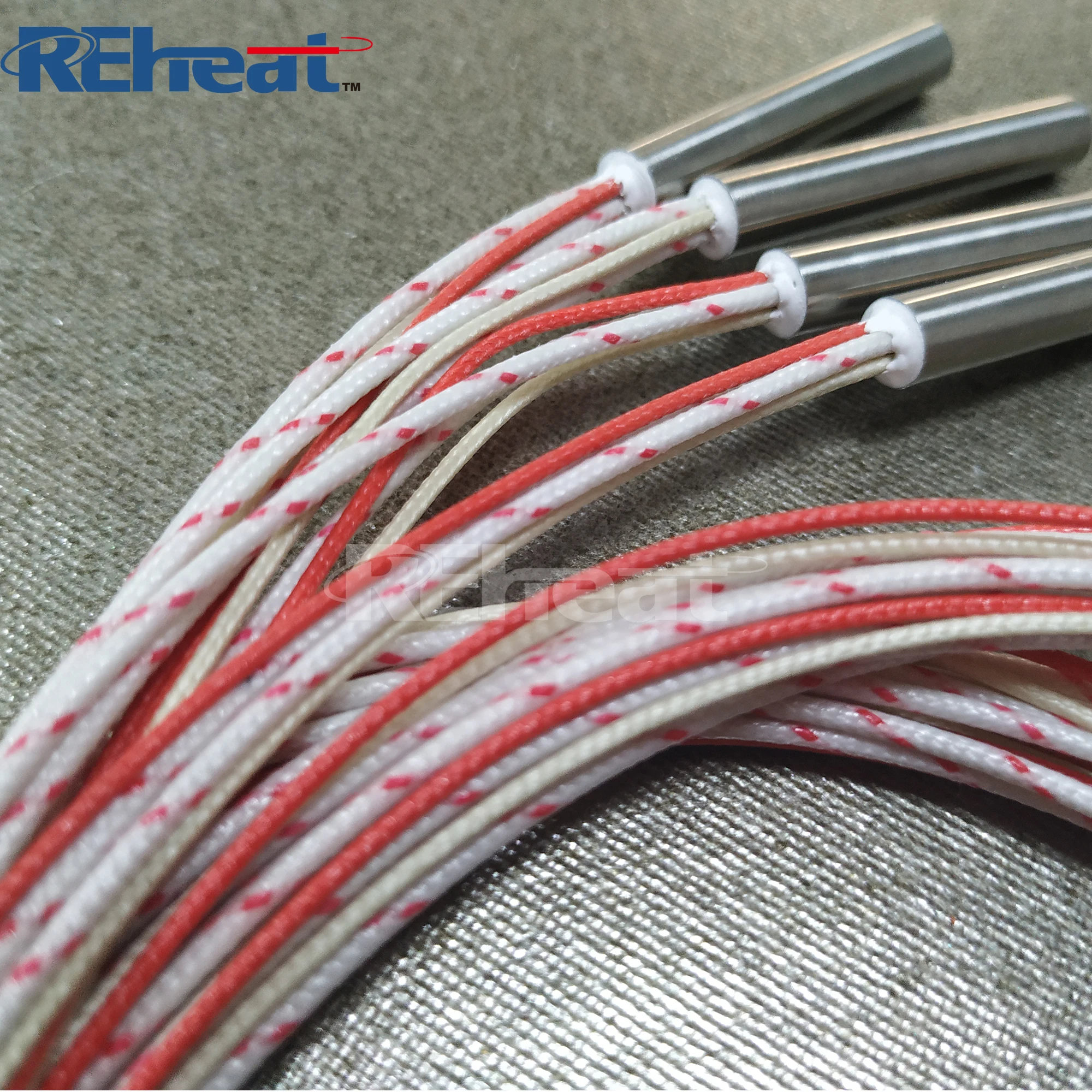

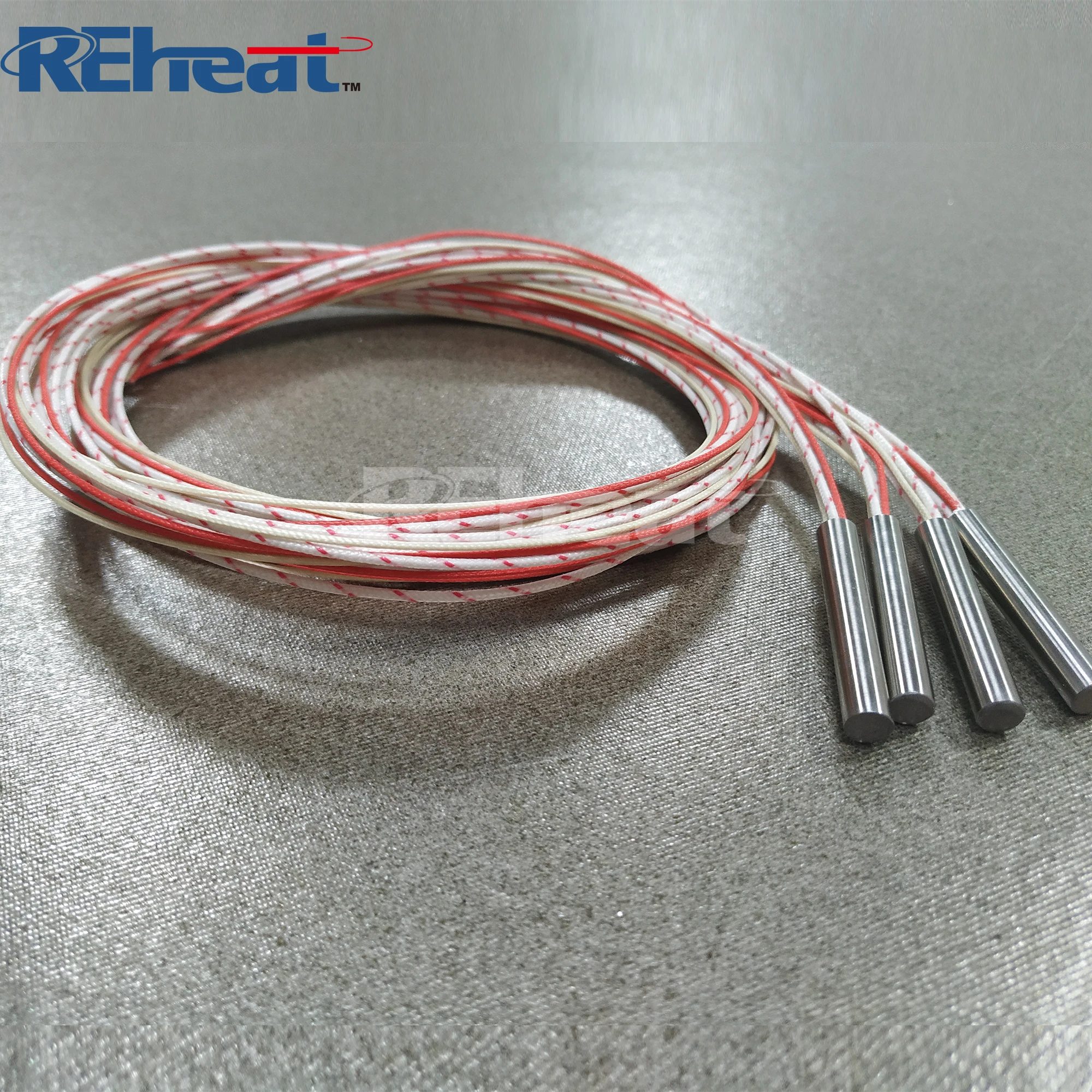

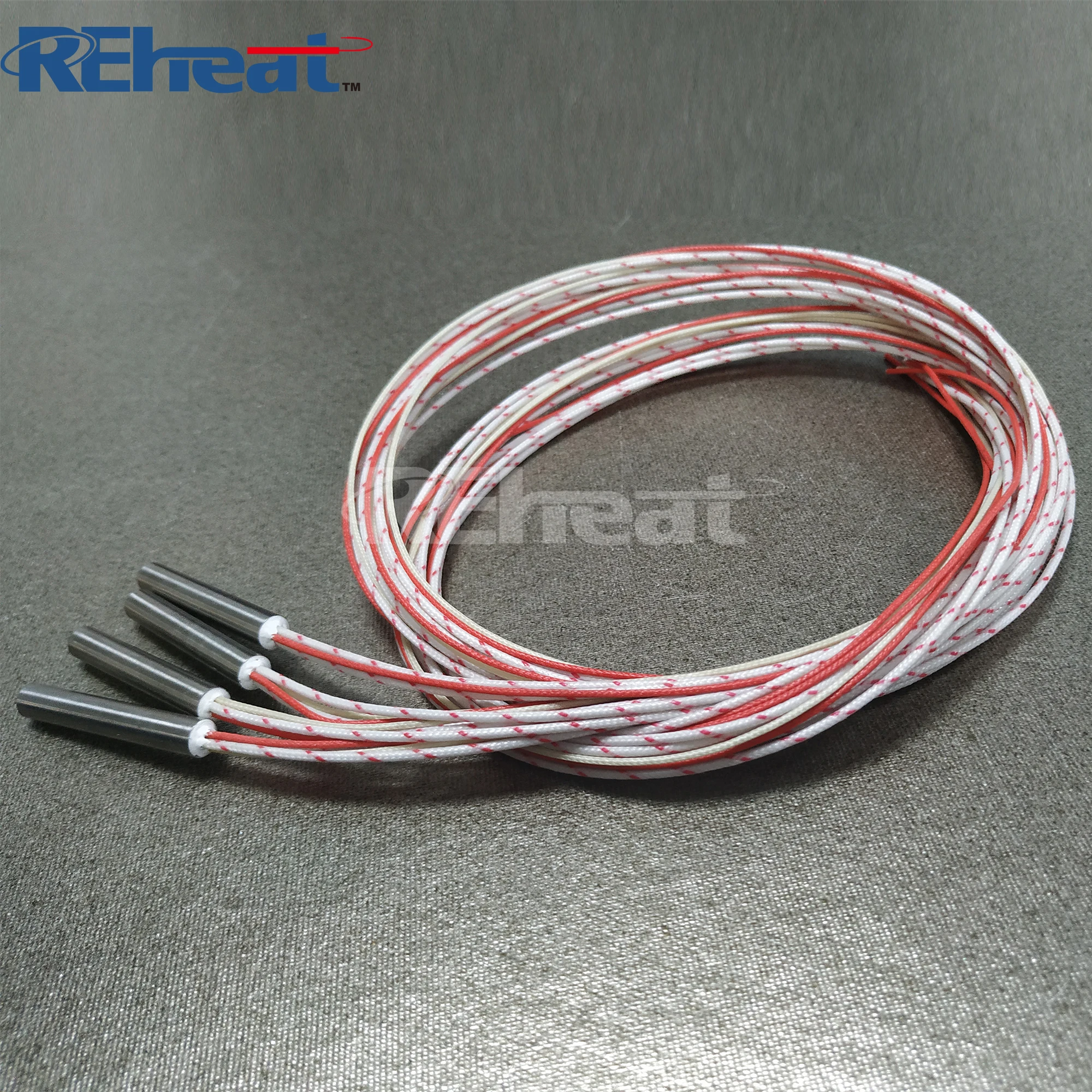

Cartridge Heater with Thermocouple

220V 100W cartridge heater with thermocouple manufactured in two basic forms - high density and low density. Cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.








High Standard Raw Material
Cartridge heater sheath
SS304/310/316L, Incoloy 800
Max. Sheath Temperature
820℃
Heating Wire (Resistance)
Ni80Cr20
Insulation
High purity MgO powder



Lead wire
Fiberglass (Max. Temp. 180℃) - Standard
Tflon (Max. Temp. 250℃)
High temp. fiberglass (Max. Temp.450℃)
Ceramic beads(Max. Temp. 800℃)


Lead protection
Silicone fiberglass - Standard
Stainless steel braid
Stainless steel hose
Diameter
3-32mm
Diameter Tolerance
-0.03 ~ -0.08mm (L ≤ 300mm)
-0.05 ~ -0.1mm (L＞300mm)
Length
25-2500mm
Length Tolerance
±1.5%, min ±1mm
Voltage
5-480V, or other customized voltage
Wattage Tolerance
-10%, +5%
Insulation Resistance (cold)
≥500MΩ
Maxium Leakage Current (cold)
≤0.5mA(2000V)


Application


Typical Applications
>>  Die, Platen Heating
>>  Semi Conductor Industry
>>  Hot Melt Adhesive
>>  Paper Industry
>>  Preform moulds
>>  Textile Industry - heating of cutting knives
>>  Medical Equipment
>>  Seal Bars




Cartridge heater / heating elements are widely used in many industrial applications.

Main applications of cartridge heater
* 3D Printer: Heating Element
* Injection Moulding: Internal heating of nozzies
* Hot runner Systems: Heating of manifolds
* Packaging Industry: Heating of cutting bars
* Packaging Industry: Heating of hot stamps
* Laboratories: Heating of analytical equipment
* Medical: Dialysis, Sterilization,Blood Analyzer,Nebulizer, Blood/Fluid Warmer, Temperature Therapy
* Telecommunications: Deicing, Enclosure Heater
* Transportation: Oil/Block Heater, Coffee Pot Heaters
* Food Service: Steamers,Dish Washers
* Industrial: Packaging Equipment, Hole Punches ,Hot Stamp




How to Order


Please provide below information for quotation:
1. A Tube Diameter
2. B Tube Length
3. C Cable length (Standard is 250mm. Please advise if required longer lead wire)
4. Volt & Watt
5. Heating temperature
6. Installation (none, flange, screw), and position of accessories
7. Ceramic end cap required or not
8. K or J type thermocouple (grounded or ungrounded)
8. Quantity


· Sample request time
3-7 work days according to your request
· MOQ
3pcs
· Packing
PP bag with rating mark, bubble wrap, carton box
· Delivery
Courier to door





Product Packing


PP bag
Bubble Wrap
Film Wrap


Custom Posibilities


Custom Options
Construction
External lead (standard) / Internal lead
Seal
No seal / glue / high temp. glue
Lead protection
Fiberglass sleeve / Stainless steel braid / hose (Armor)
Installation
None / Flange / Thread (screw)
Temperature control
Built in K/J type thermocouple
Heating section
Heating section length/ Distributed wattage
Don't know how to choose?  CONTACT US for suggestions.

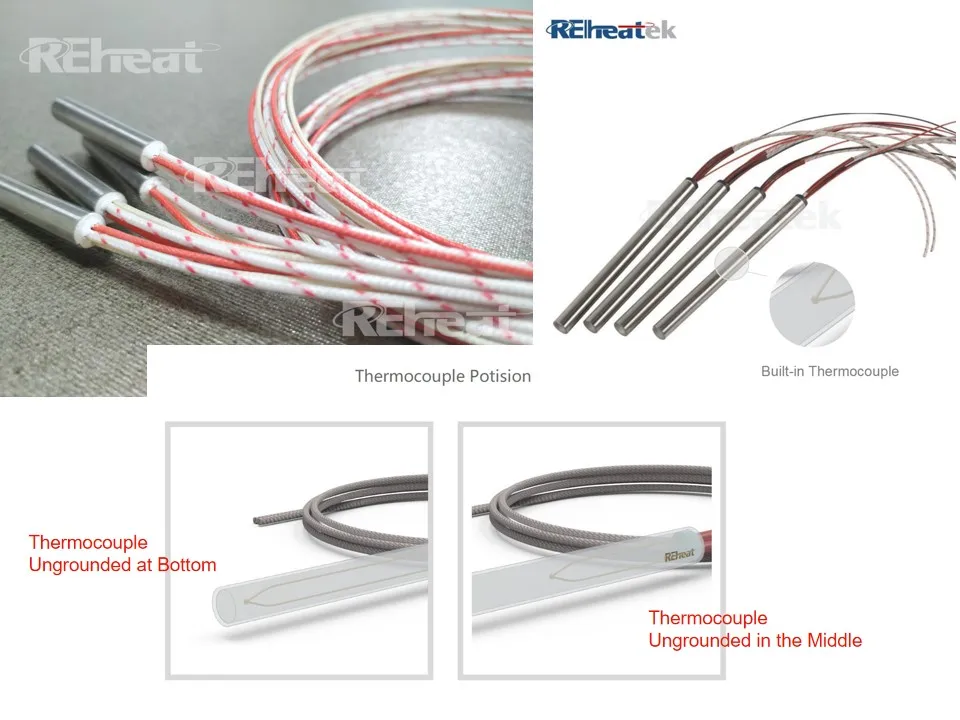

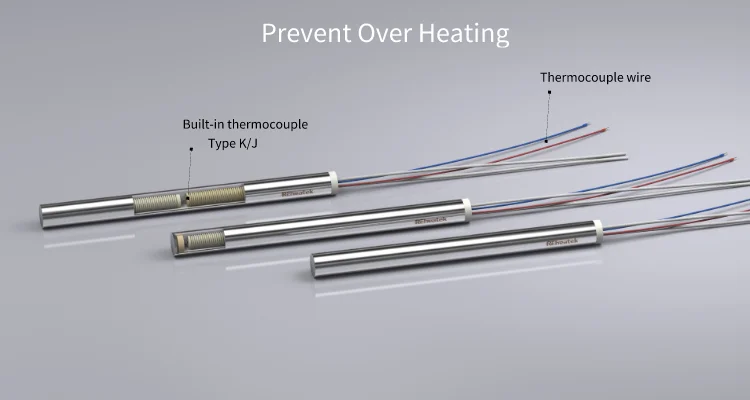

Cartridge heater with built in thermocouple / sensor / temperature control
Cartridge heater can be made with built-in thermocouple / sensor / temperature control to realize over heating protection.
This is widely applied to high watt density cartridge heaters.
Option: Type K/J thermocouple.



Installation Options

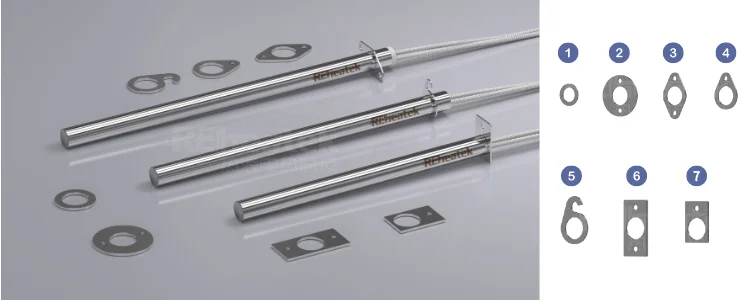

Option 1 - Welded Flange
Cartridge heaters can be welded with stainless steel flange for easier installation.
Please find below flange options.

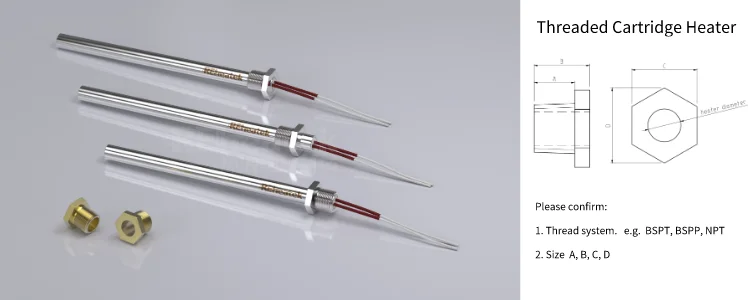

Option 2 - Threads (screw)
Cartridge heaters can be welded with stainless steel threads.
Please find below picture to customize threaded cartridge heater.




Related Products














Shipping




FAQ



Q: What is the lead time for Reheatek products?
A: Samples - within 3 working days with materials in stock Mass production -usually 7-14 days (Depends on quantity and raw material situation. Please further discuss with our team. )

Q: What is the MOQ for Reheatek products?
A: Reheat products produced with common materials can be ordered at 1pc. If infrequently used materials
required, it depends on the situation of the materials.

Q: Do you manufacture custom parts?
A: Yes. We have thousands of designs in our files of custom heaters and sensors designed for every imaginable application. Our Sales and Engineering teams are here to help you design a product that fits your needs.

Q: If we have heating projects, how to progress project design or select a product?
A: We have professional sales to provide pre-sale consulting services and engineering team for technical support. Any
questions about products or technical questions please communicate with our sales team and provide specific applications and requirements.
