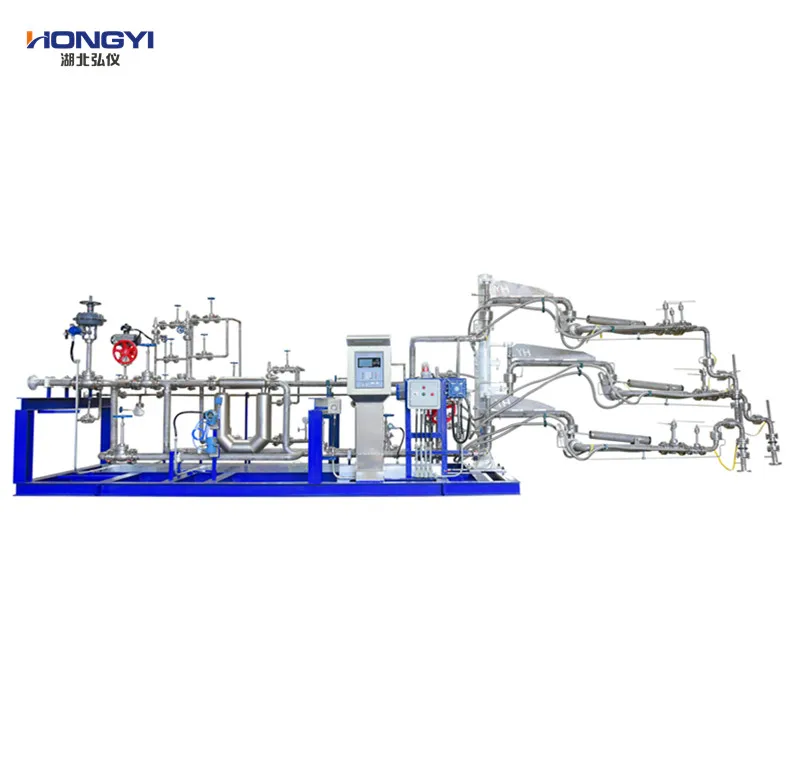

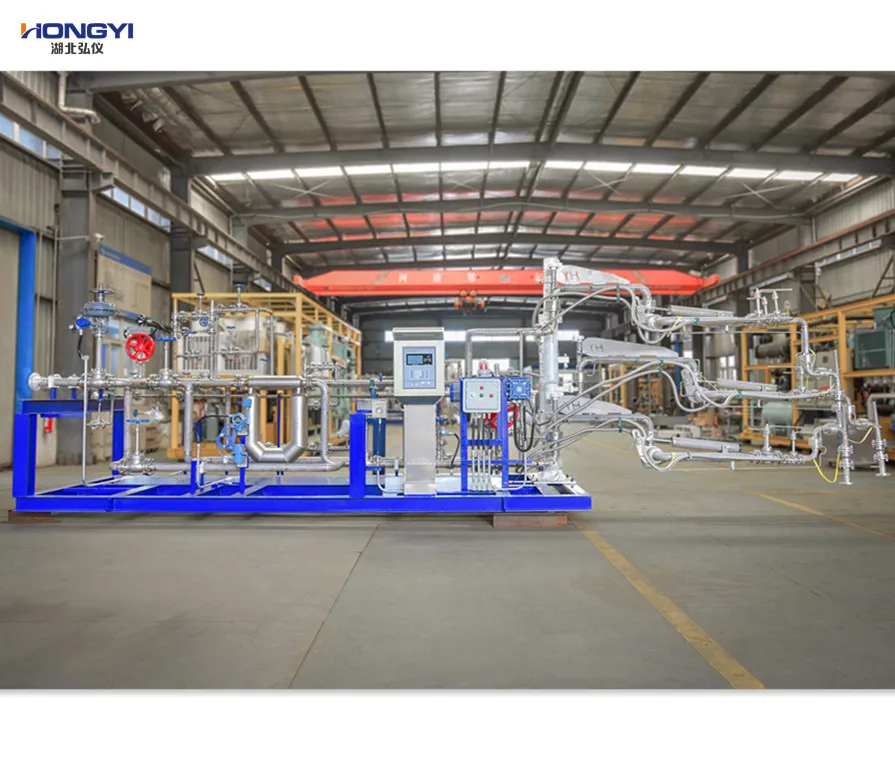

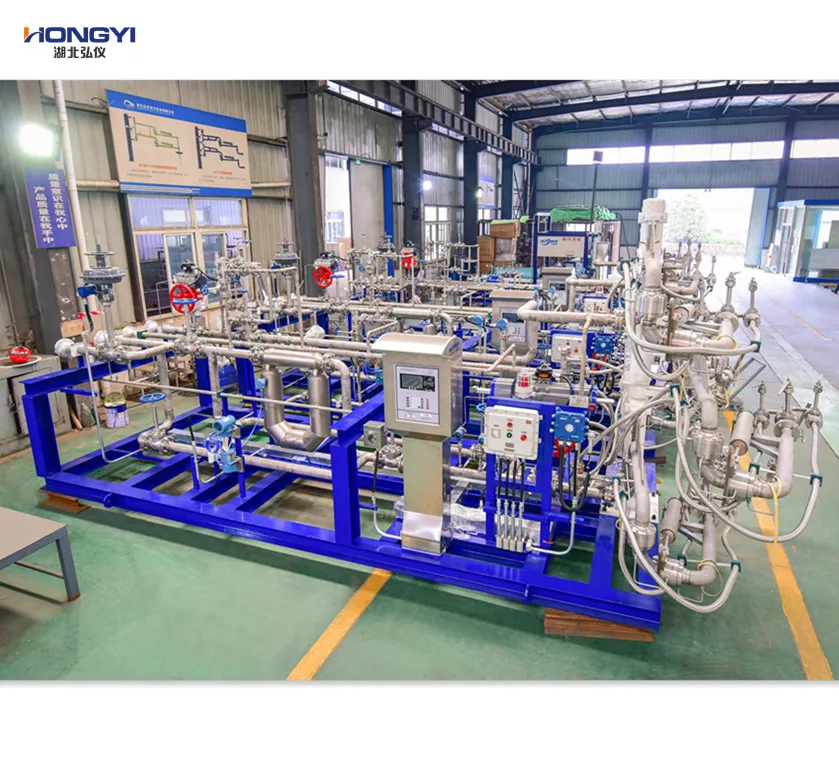

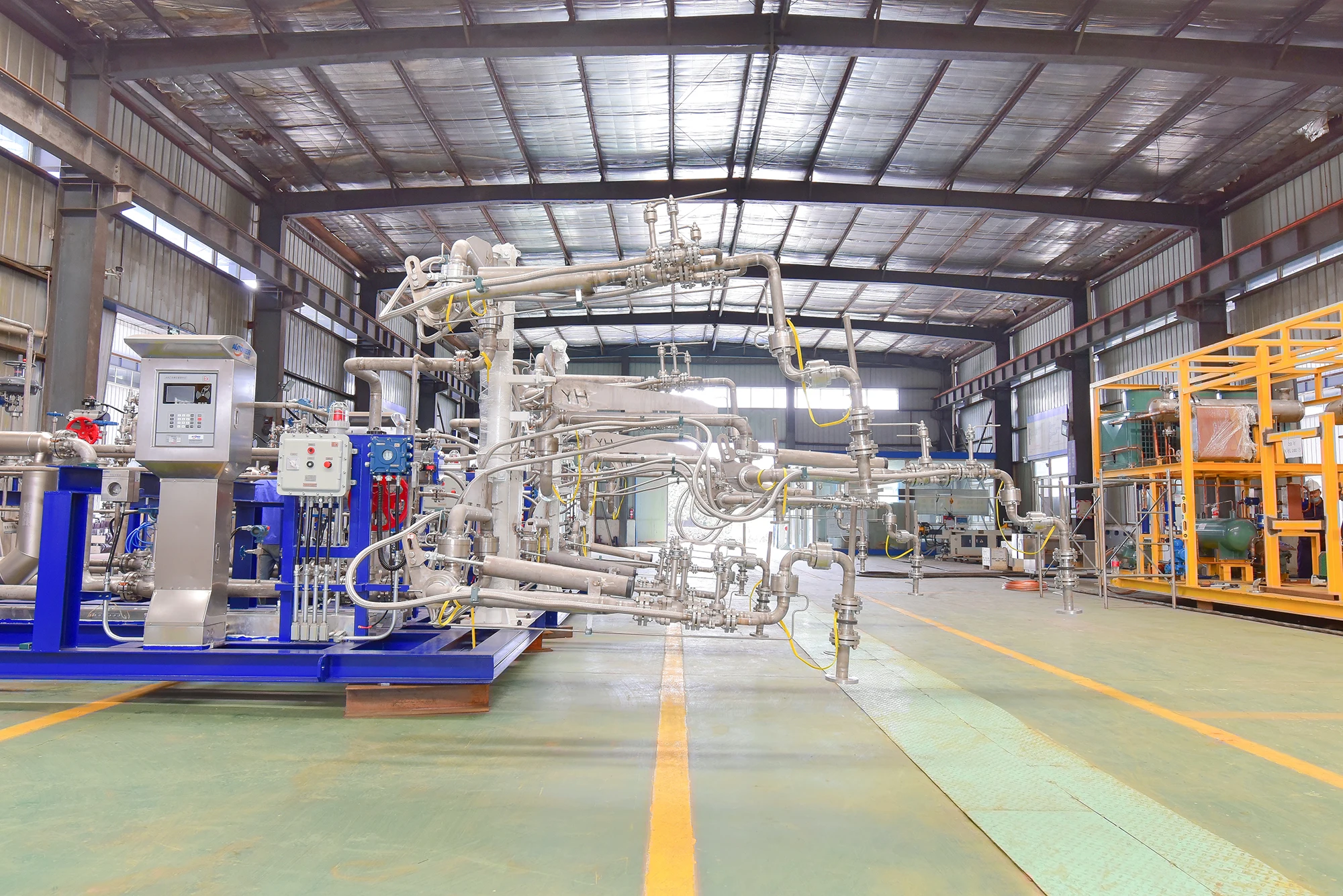

Manufacture High quality LNG/LPG loading/unloading skid mounted solution with loading arm flow meter control valve

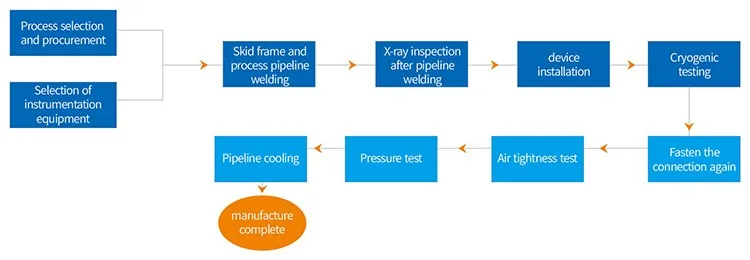

Based on the particularity of low temperature and related properties of LNG media, LNG skid-mounted instruments and equipment are integrated into a metal framework. The manufacturing steps are complex and are mainly divided into the following manufacturing steps:

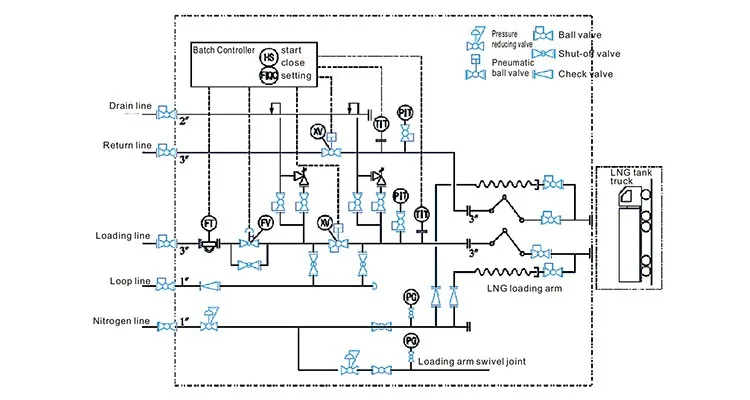

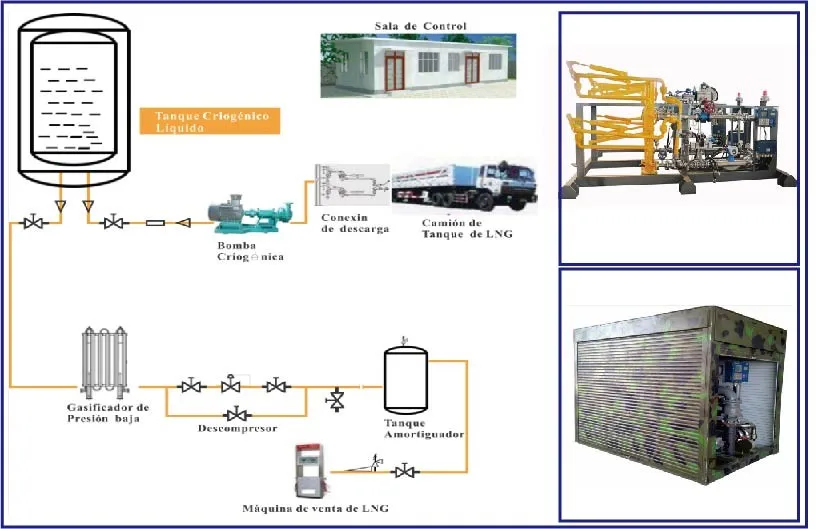

There are many process pipelines for LNG loading and the process flow is relatively complicated. The main pipelines are: loading line, return line, cold circulation line, bleed line, nitrogen line and so on. The flow chart is as follows:

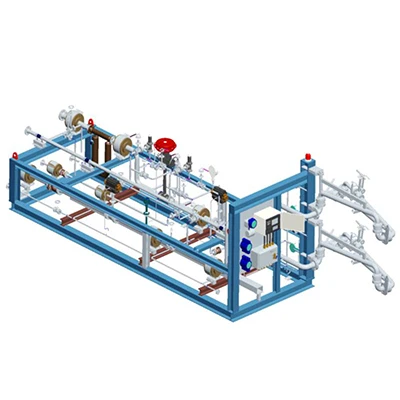

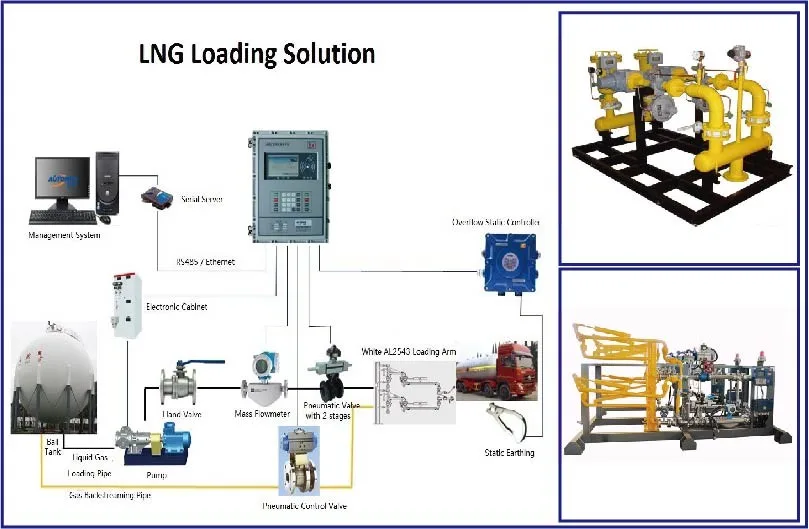

Due to the complexity of the process, LNG loading has more automatic control instruments in its armor. It consist of loading arm with recovery pipe, flow meters, static grounding protector, pressure transmitters, Flow control valve, emergency shut-off valve, related piping and batch controller.

Skid mounted main parameters

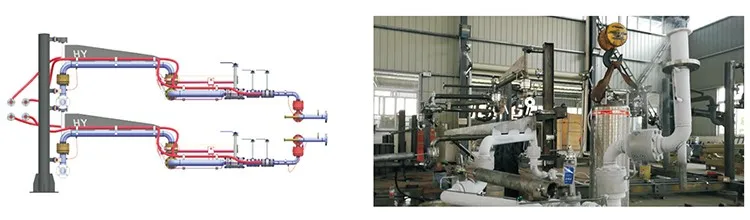

(1)LNG loading arm

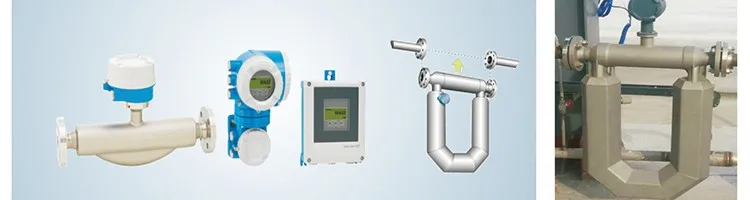

(2) LNG flow meter

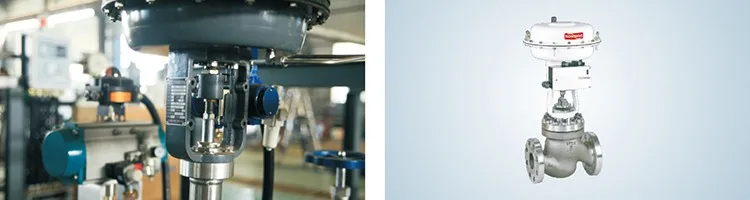

(3) LNG Valve

(4) Temperature and pressure transmitter

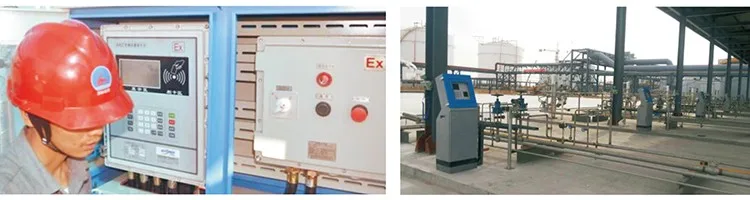

(5) LNG batch controller

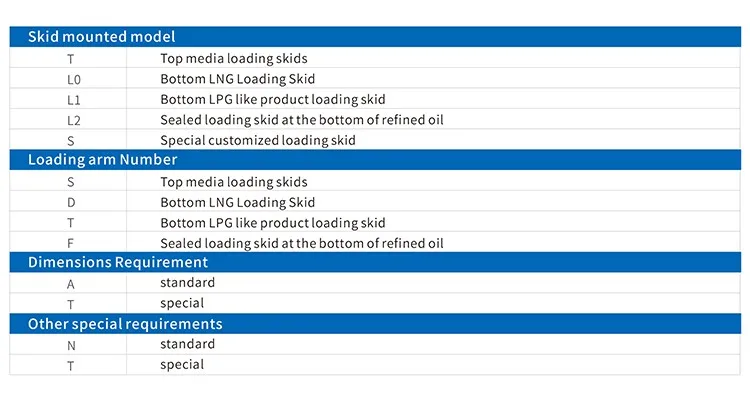

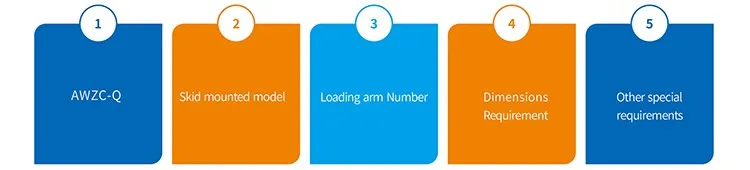

Skid mounted system selection

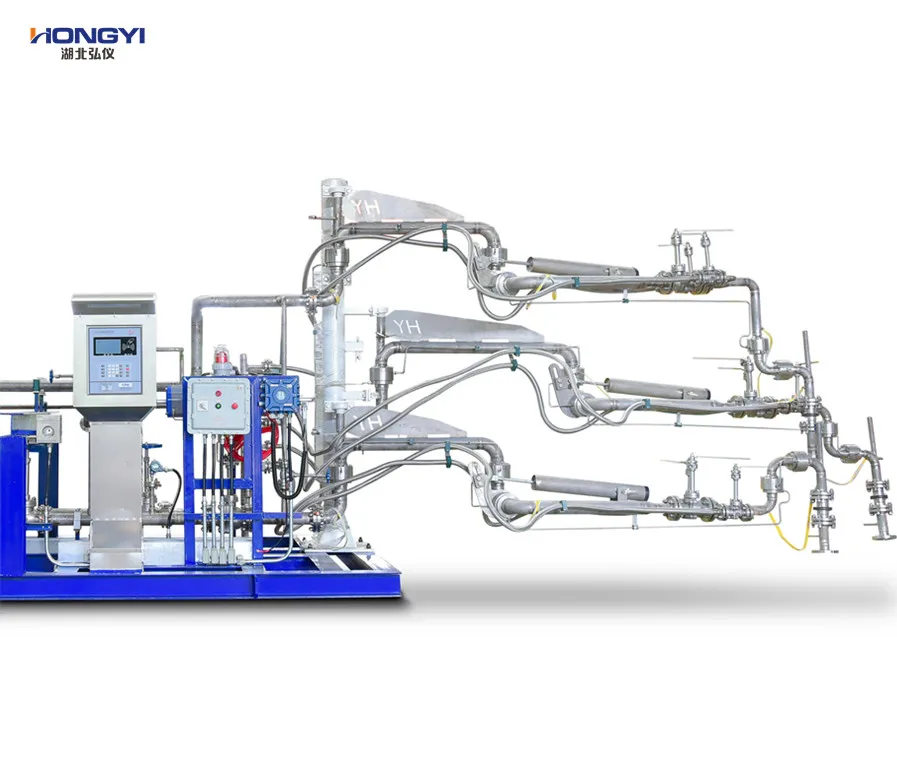

HUBEI HONGYI ELECTRONIC & TECHNOLOGY CO., LTD Supply high quality top loading arm or bottom loading arm system which including top loading arm or bottom loading arm should have sufficient horizontal range to reach the farthest compartment without re-spotting the vehicle. Sufficient vertical movement and drop-pipe lengths to service vehicles of varying heights is also necessary. A properly designed top loading arm or bottom loading arm system can achieve this requirement. Top loading arm and bottom loading arm can also be used for tight-fill and vapor recovery applications when used with specially designed and engineered components, such as vapor plates, tapered hatch plugs, and inflatable hatch seals.
