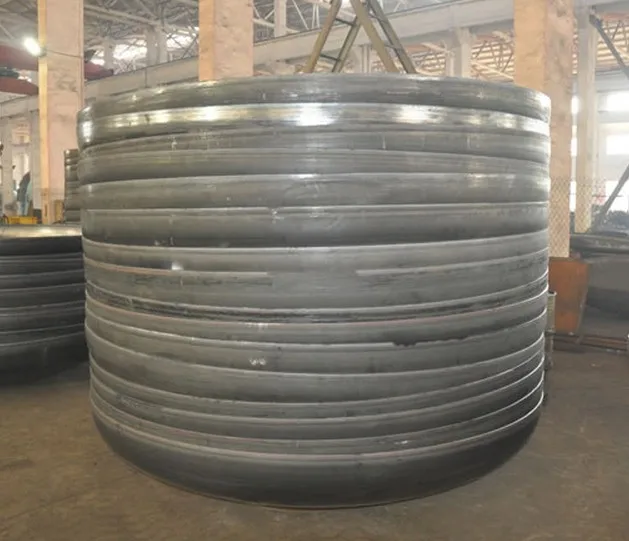

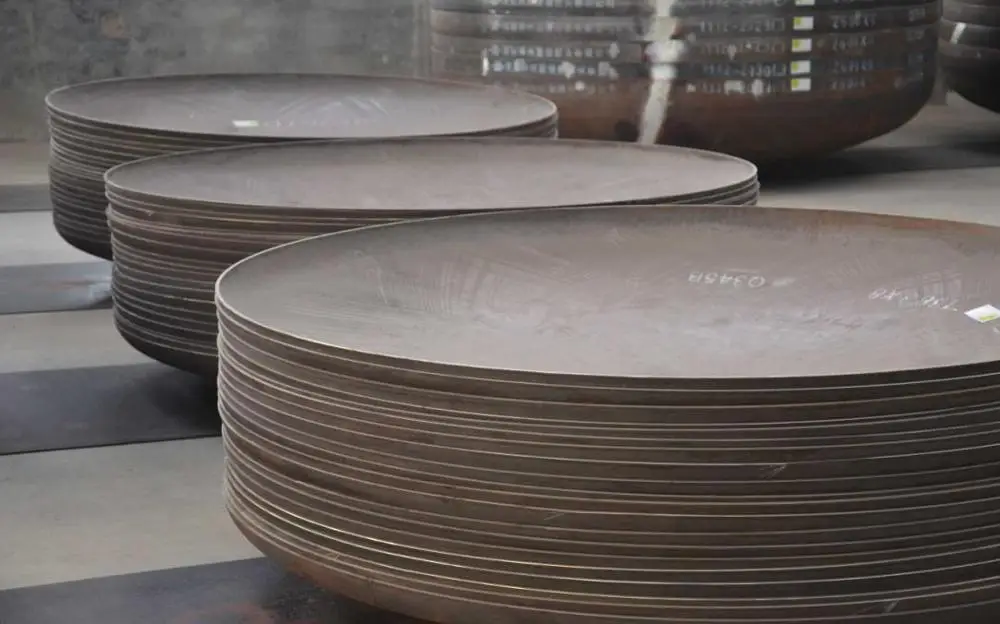

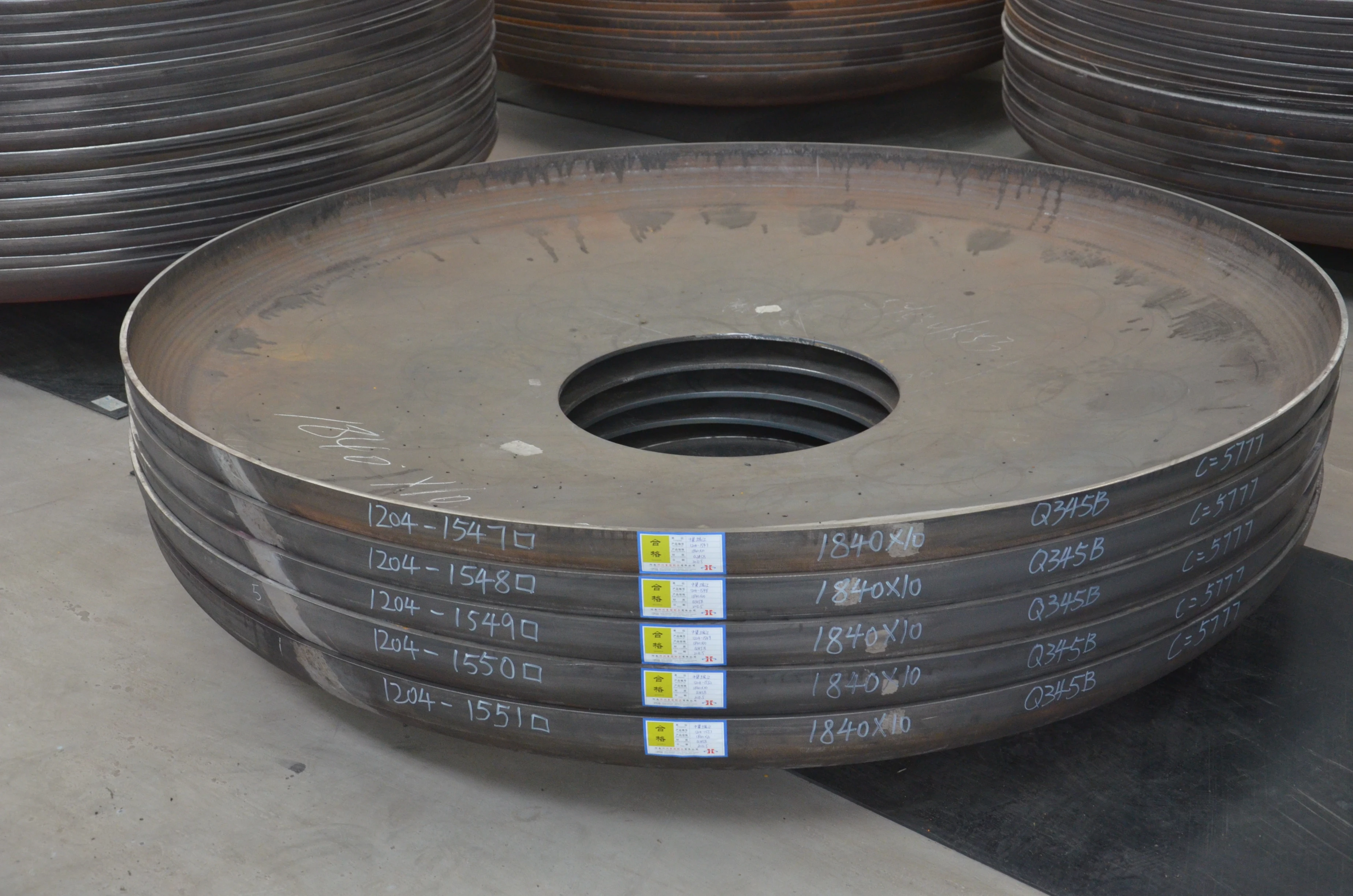

Высококачественный наконечник для бака сжиженного углеводородного газа

Product Overview

Description



At SHENZHOU, we specialize in the fabrication of conventional tank heads, from carbon, alloy, and low alloy steels, stainless clad,titanium, nickel, Aluminum and SA516 grade 70 carbon steel. Our products are primarily intended for use as pressure vessels, tanks, and boilers, and manufactured to all applicable GB, ASME, DIN, and GOST standards.





Tank heads can be fabricated in configurations such as, dished or flanged only, standard flanged and dished, ASME flanged and dished, or ASME 2:1 semi elliptical. We possess the welding capabilities to accommodate almost any design or applicable standard, our certified welders and advanced welding equipment are prepared to provide stick-electrode, semi-automatic, gas shielded, and submerged arc welding. Manufacturing seamless tank heads from 6" up to 260" in diameter, in thicknesses from 3/19" to 15", with various prepped edges, such as trimmed, untrimmed, beveled, or tapered. We also offer stress relieving and blasting services including post weld heat treating, normalizing, and annealing. A wide array of specialized testing is also available, with full test data reporting.





DN	Straight edge	Gradient	Tolerance of total depth(height)
DN≤2000mm	h=25	outer:1.5inner:1.0	(-0.2~+0.6)%DN
DN≥2000mm	h=40	outer:2.5 inner:1.5	(-0.2~+0.6)%DN
Others		outer:6%h &≤5    inner:4%h &≤3	(-0.2~+0.6)%DN





The  Professional and modernized cold pressing production line



 The cold pressing machine





The  Edging machine



The Cap press machine



The NC Cutting machine



The Welding fixture



The (P+T) Automatic welding equipmet





The Frequency converting control polishing equipment



The Scrubbing machine



The  Edge milling machine



The  transloading equipment







The Inspection equipments



The Products display
