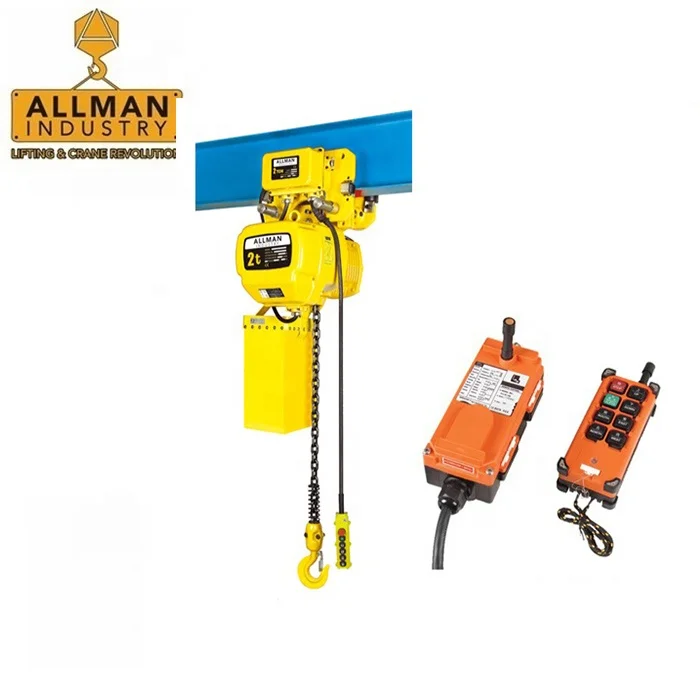

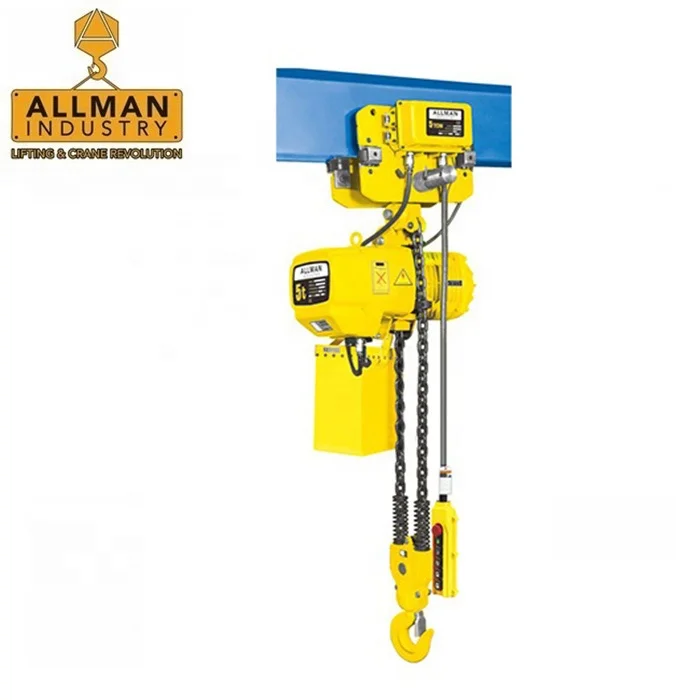

1 Ton Electric Chain Hoist 220V Electric Chain Hoist with Trolley
- Category: Hoists >>>
- Supplier: Nantong Allman Industry Co. Ltd.
Share on (1600293287439):
Product Overview
Description
Products Description
3 meters lifting height and power supply cable as standard accompanies, can be made as your request.
Emergency stop button on the push button, push down it, the motor circuit will be cut off.
Canvas chain container is standard accompanies. Steel chain container is available if lifting height is more than capacity of the standard container volume.
Details
Aluminum Alloy Shell
Strong and light, with special heat sink, fast heat dissipation, continuous use, efficiency up to 40%, overall sealing structure.
Stop

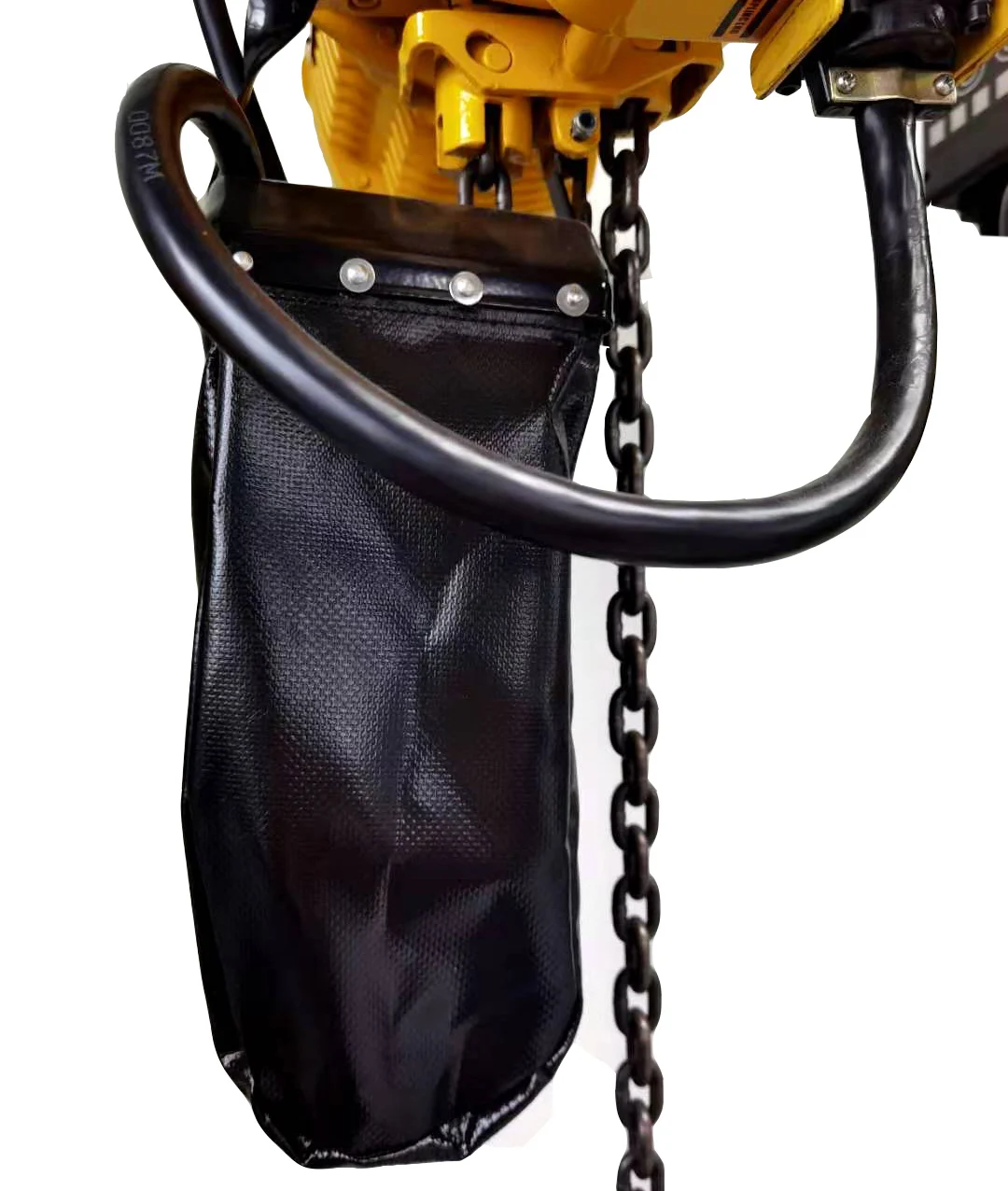

Chain and chain bag
Chain bag is light, attractive and durable.
Electrical components
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Motor
Hook & Hook Latch
Product Paramenters
Model | AMEH | ||||||||||||||||
0.25-01S | 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | |||||||||
Capacity(t) | 0.25 | 0.5 | 1 | 1.5 | 2 | 2 | 2.5 | 3 | 3 | ||||||||
Lifting Speed (m/min) | 7.2 | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | ||||||||
Motor Power(kw) | 0.8 | 0.8 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | ||||||||
Rotation Speed(r/min) | 1440 | ||||||||||||||||
Insulation Grade | F | ||||||||||||||||
Power Supply | 3P 220V-690V | ||||||||||||||||
Control Voltage | 24V/36V/48V | ||||||||||||||||
No. of Chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | ||||||||
Model | AMEH | ||||||||||||
03-03S | 05-02S | 7.5-03S | 10-04S | 15-06S | 20-08S | 25-10S | |||||||
Capacity(t) | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 | ||||||
Lifting Speed (m/min) | 2.2 | 2.7 | 1.8 | 2.7 | 1.8 | 1.4 | 1.1 | ||||||
Motor Power(kw) | 1.5 | 3.0 | 3.0 | 3.0×2 | 3.0×2 | 3.0×2 | 3.0×2 | ||||||
Rotation Speed(r/min) | 1440 | ||||||||||||
Insulation Grade | F | ||||||||||||
Power Supply | 3P 220V-690V | ||||||||||||
Control Voltage | 24V/36V/48V | ||||||||||||
Np.of Chain | 3 | 2 | 3 | 4 | 6 | 8 | 10 | ||||||

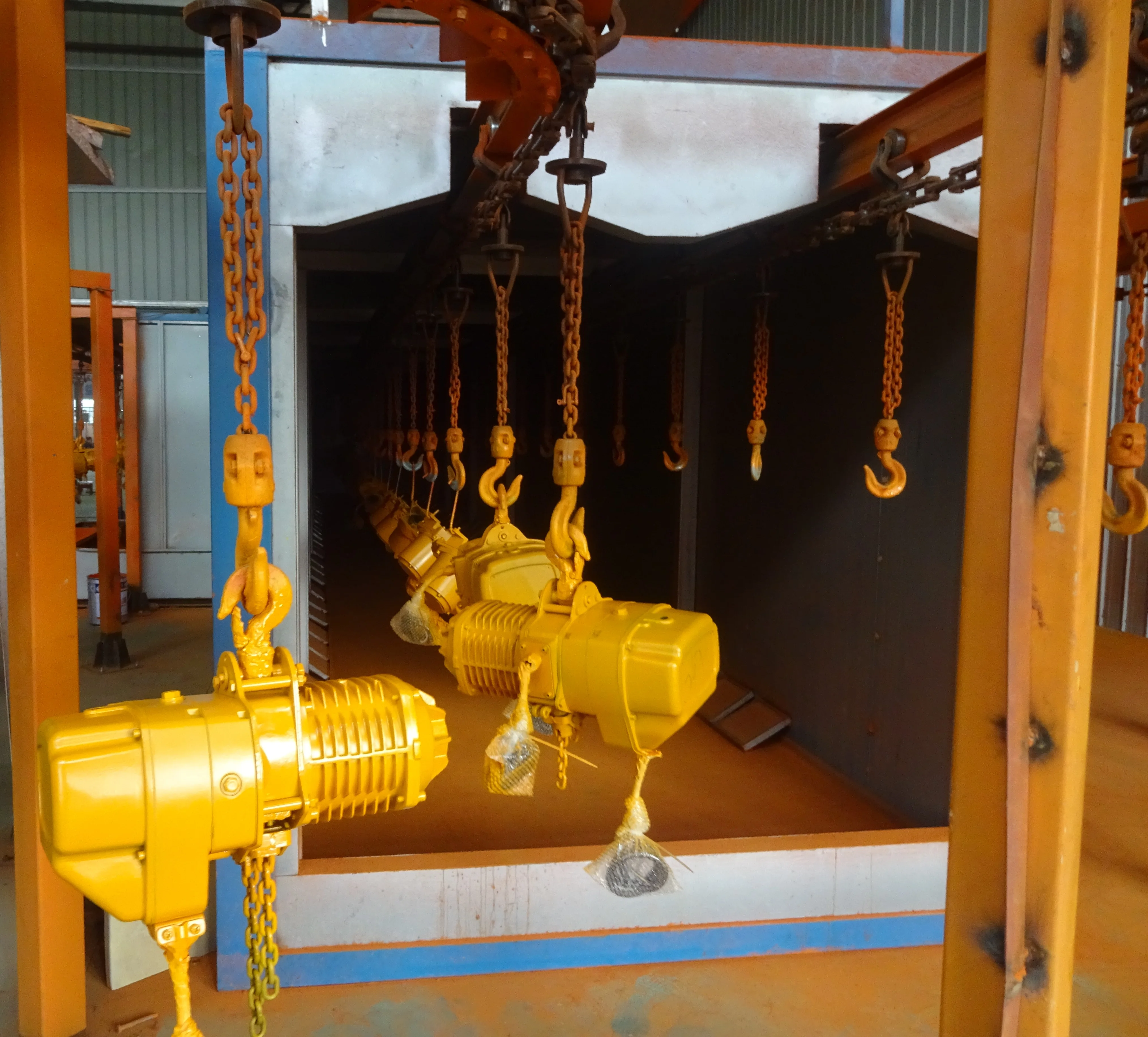

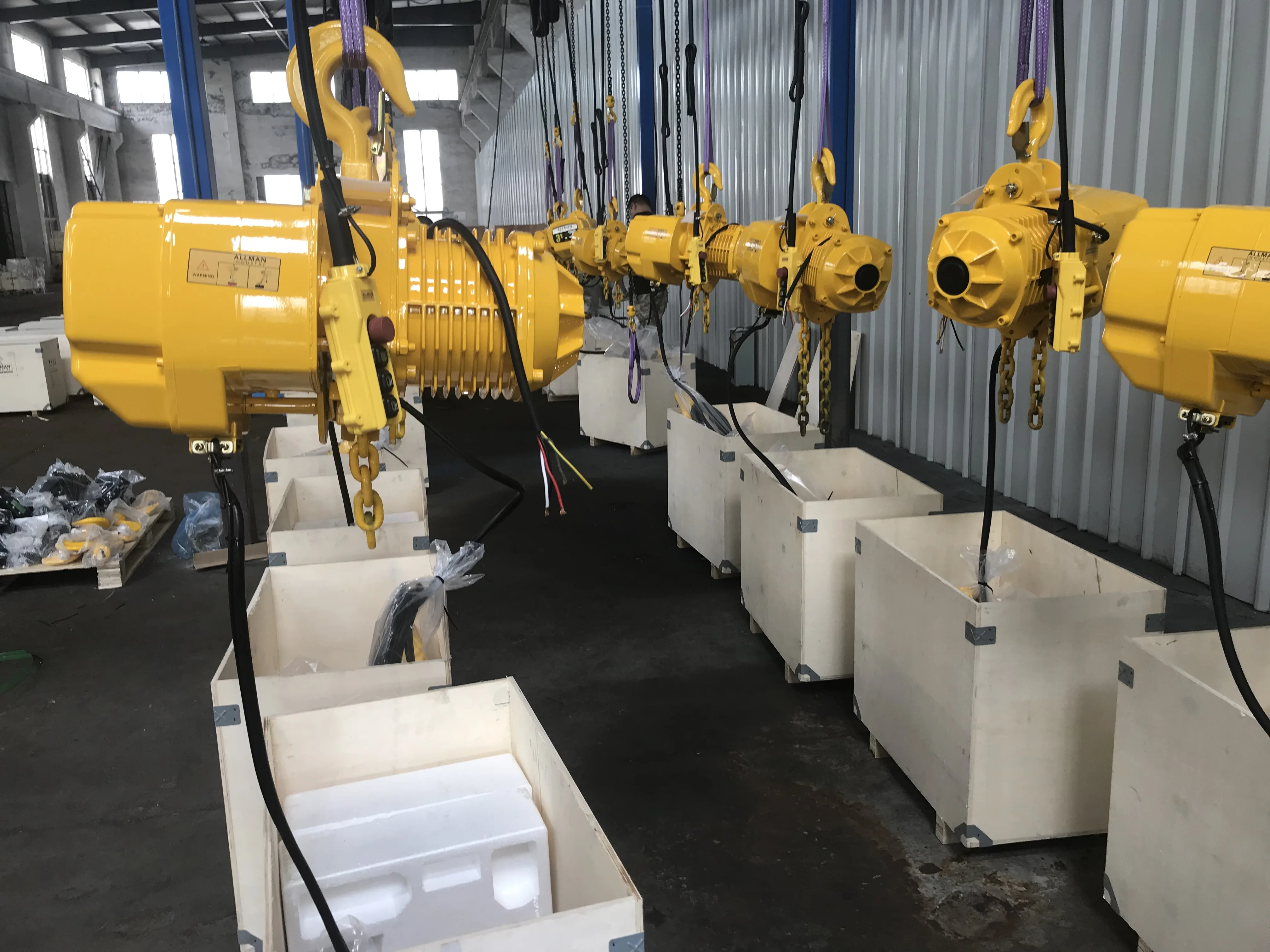

Product Process
Product packaging
More Product
Company Profile

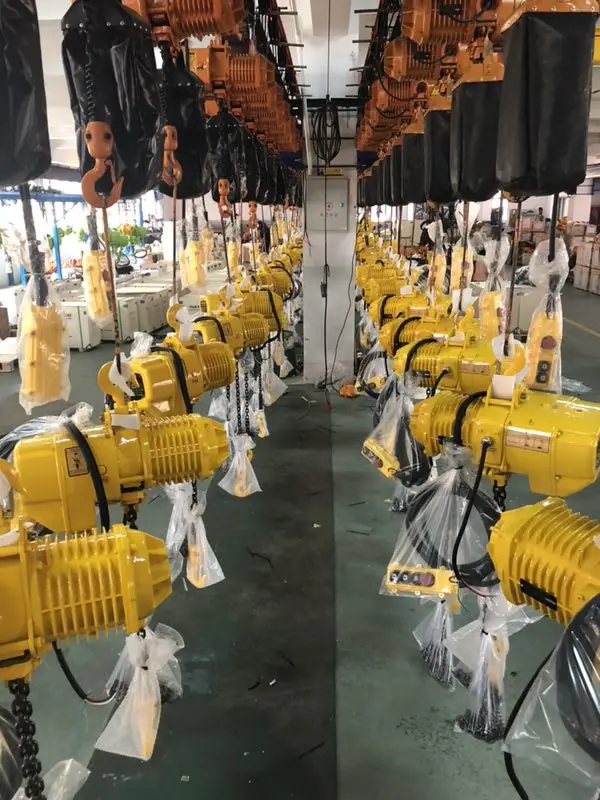

Workshop
