Product Overview

Description

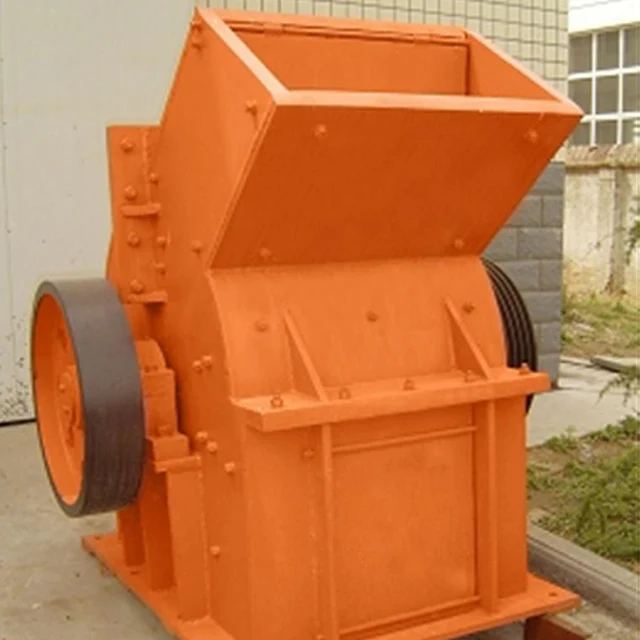

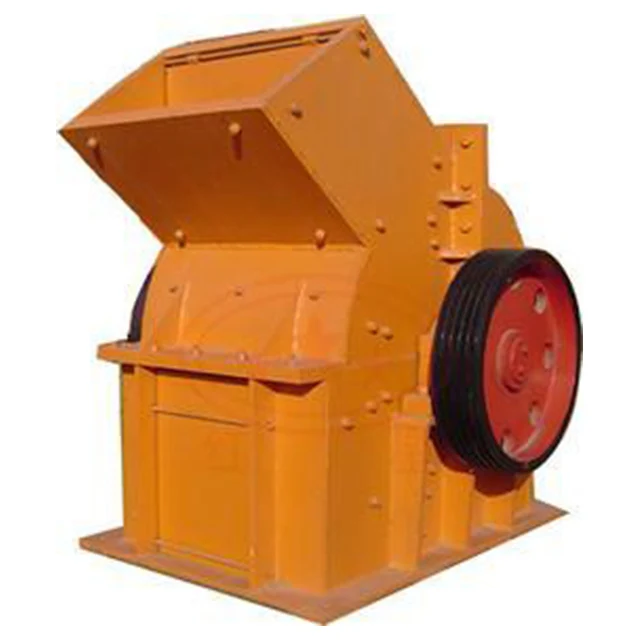

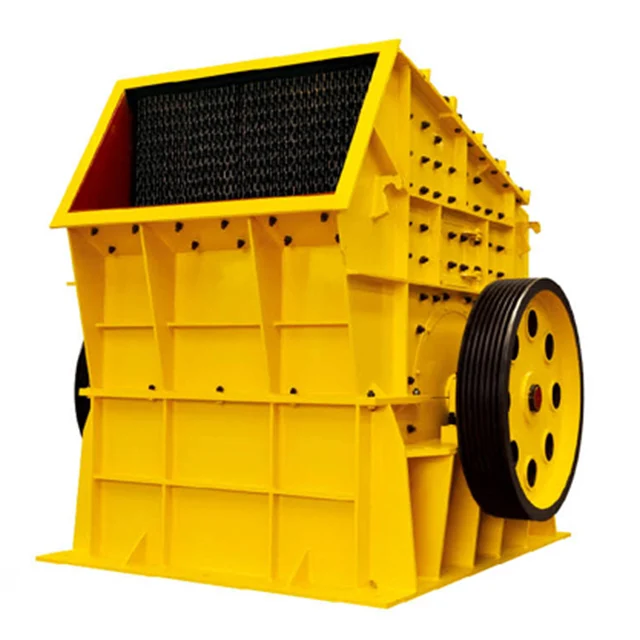

Equipment introduction
The hammer crusher is composed of a hammer crushing cabinet body, rotors, hammer heads, impact liners, and sieve plates. It is mainly used to crush medium-hardness materials in industrial sectors such as cement, chemical industry, electric power and metallurgy. The hammer crusher mainly relies on impact energy to complete the crushing of materials. When the hammer crusher is working, the motor drives the rotor to rotate at high speed, and the material enters the crusher evenly. The high-speed rotating hammer head impacts, shears and tears the material, causing the material to be crushed. At the lower part of the rotor, there is a sieve plate. The particle size of the crushed material that is smaller than the sieve size is discharged through the sieve plate. The upper part continues to be hit and grinded by a hammer until it is crushed to the desired discharge particle size and finally discharged out of the machine through the sieve plate.
Technical advantages
1. Advanced design process, strong structure and impact resistance.
2. The feeding size is large, the yield is high, and the shape is good.
3. Super crushing, standard and fine crushing in one step.
4. The output is increased by 30% annually, and the needle-shaped (powder) is less than 20%, which is more energy- saving.
5. The hammer head and screen plate are made of chromium-manganese alloy material, which has stronger impact resistance and wear resistance.


Specifications and Parameters
Models
Maximum feed side length (mm)
Discharging granularity (mm)
Output (t)
Motor power (Kw)
Weight (t)
Dimensions (mm)
PC0808
400
≤40
30-50
45
4
1518*1710*1600
PC0810
500
≤40
60-90
75
5.1
1918*1850*1904
PC1010
600
≤40
80-120
90-110
5.3
1978*2089*2022
PC1210
600
≤40
90-150
110-132
6.8
1978*2260*2057
PC1312
700
≤40
120-180
132-160
8.5
2072*2322*2217
PC1513
700
≤40
130-250
160-180
12.5
2236*2596*2340
PC1515
800
≤70
180-350
220-250
19
2612*2780*2861
PC1815
800
≤70
200-400
250-280
24
2808*2878*3080
PC1817
900
≤70
280-480
2*160
28
3022*3200*3168
PC2018
900
≤70
350-550
2*220
37
3222*3400*3368
PC2022
1000
≤70
400-600
2*315
130
3622*3500*3768
