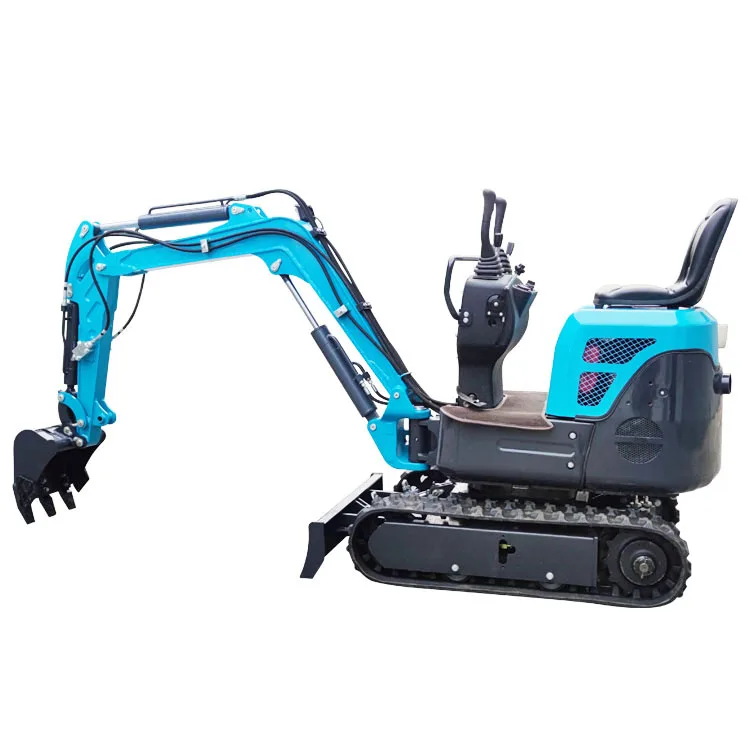

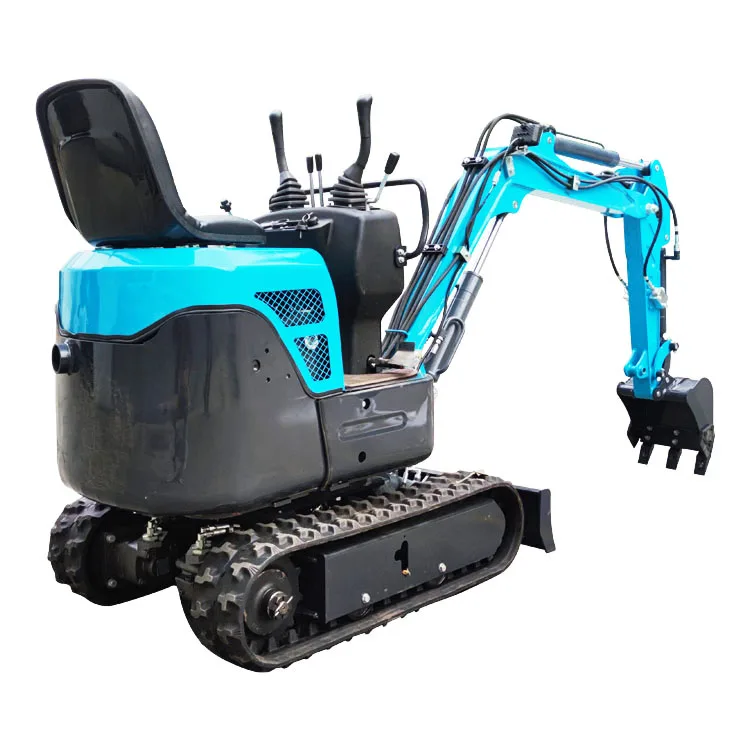

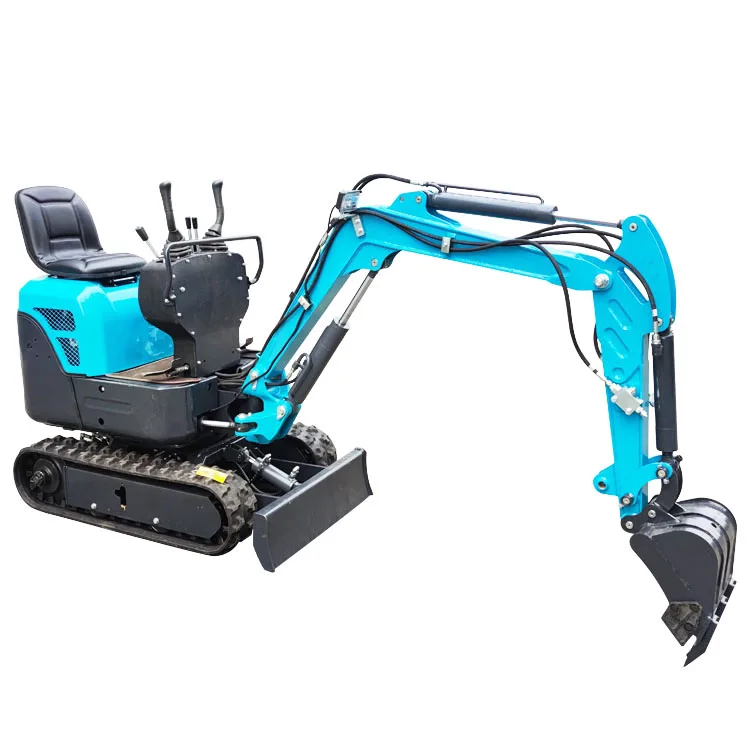

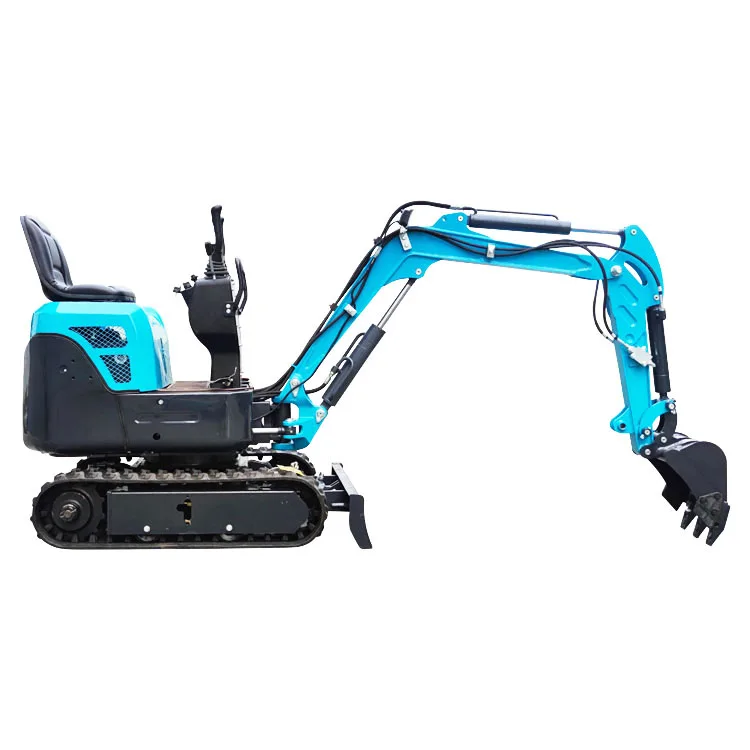

Hot sale free shipping mini excavator small digger EPA EURO 5 QILU 1 ton agricultural excavator
- Category: Earth-moving Machinery >>>
- Supplier: Shandong Qilu Industrial Co. Ltd.
Share on (1600295696017):
Product Overview

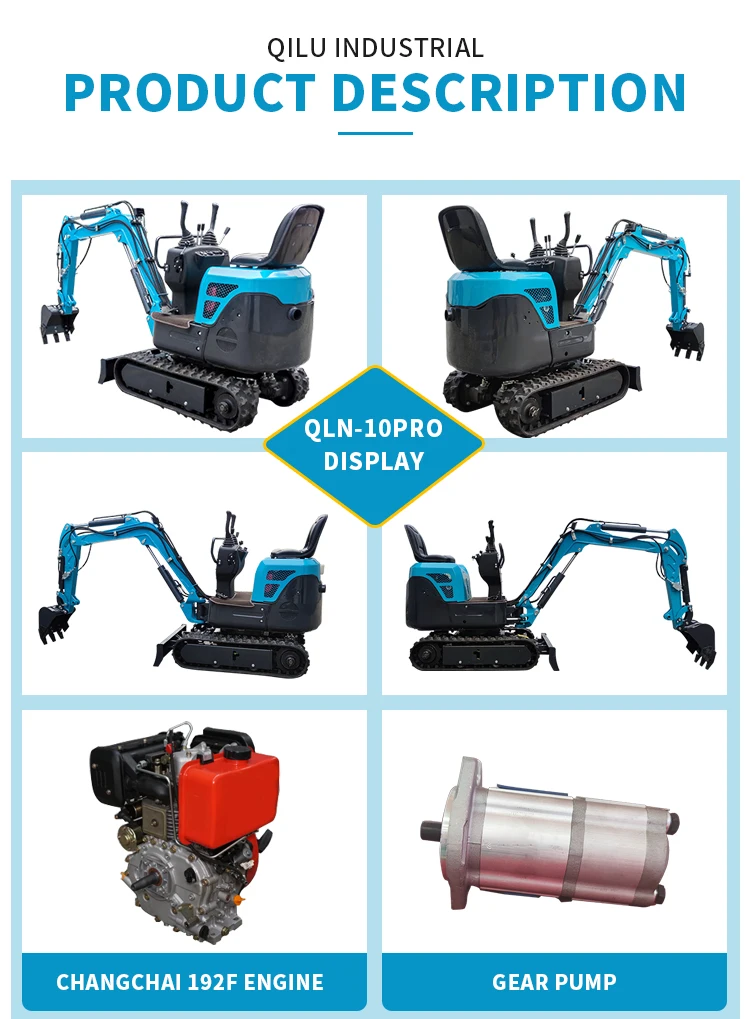

Description
Product Paramenters

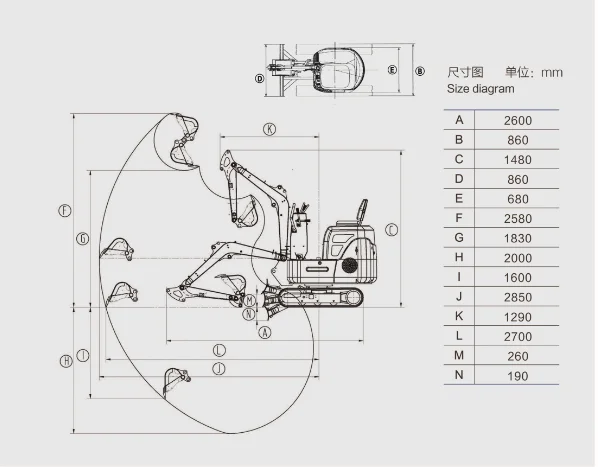

NO. | Overall size | Unit | Standard |
A | Total Length | mm | 2600 |
B | Total Width | mm | 860 |
C | Total Height | mm | 1480 |
D | Bulldozer blade Width | mm | 860 |
Bulldozer blade Height | mm | 210 | |
E | Clawler center distance | mm | 680 |
Clawler length | mm | 1200 | |
Crawler width | mm | 180 | |
Platform ground clearance | mm | 370 | |
Standard bucket width (With/without edge tooth) | mm | 360(310) | |
Wheel spacing | mm | 670 | |
Max. Digging Height | mm | 2580 | |
G | Max. Dumping Height | mm | 1830 |
H | Max. Digging Depth | mm | 2000 |
I | Maximum depth of vertical arm excavation | mm | 1600 |
J | Max.Digging distance | mm | 2850 |
K | Mini. Turning radius of front end | mm | 1290 |
L | Max.Digging distance on the ground | mm | 2700 |
M | Max.Bulldozing height | mm | 260 |
N | Max.Bulldozing depth | mm | 190 |
Operating Weight | kg | 850 | |
Bucket Capacity | m³ | 0.022 | |
Engine | 192FA | ||
Displacement | L(cc) | 0.499 | |
Rated Power | KW/rpm | 8.2 | |
Swing speed | r/min | 11 | |
Gradeability | ° | 25(30) | |
Ground pressure | kpa | 0.35 | |
Bucket digging force | KN | 6.5 | |
Fuel tank capacity | L | 5.5 |

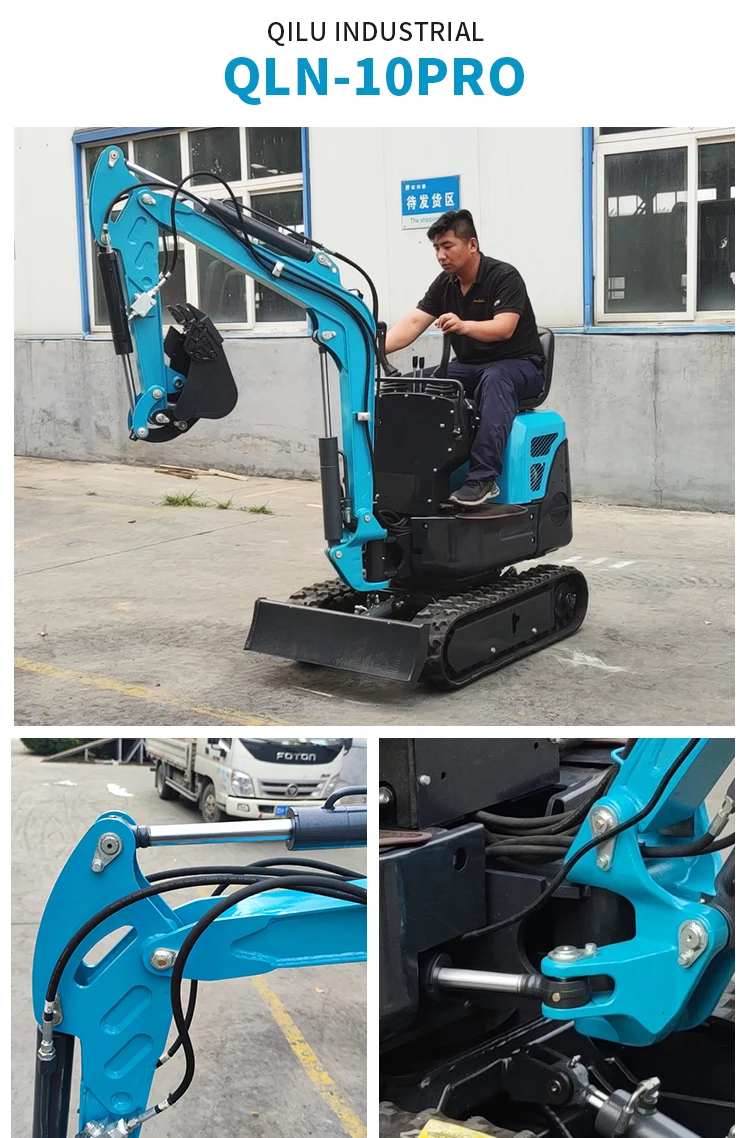

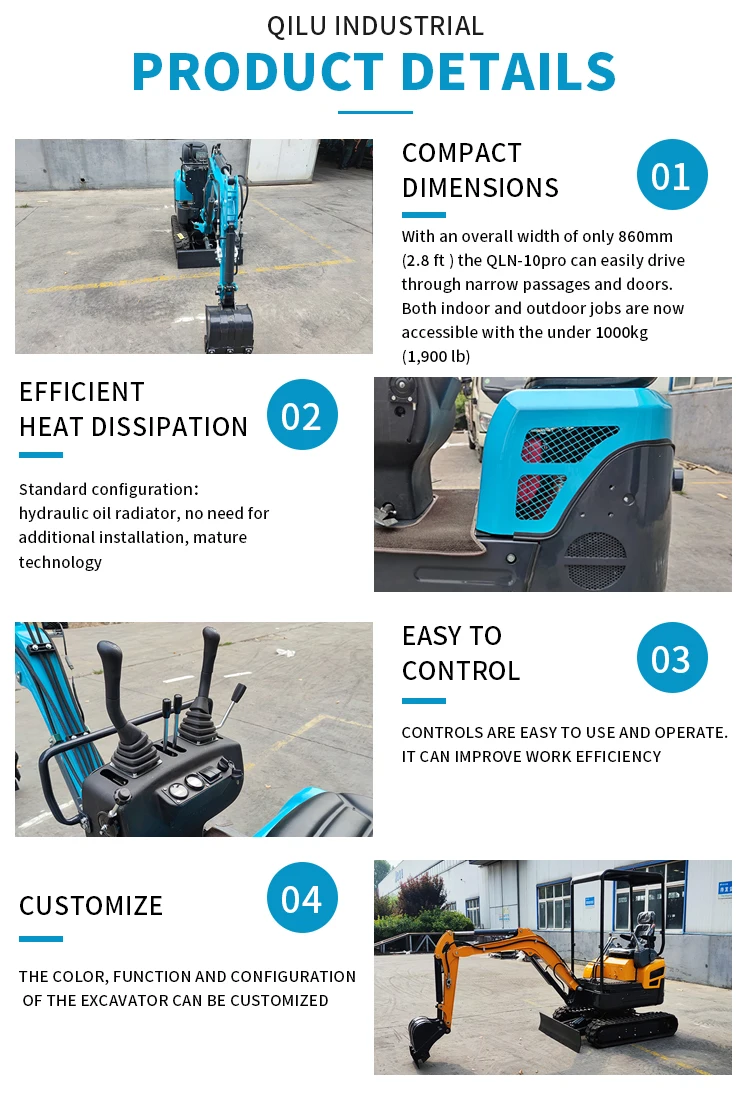

Details Images

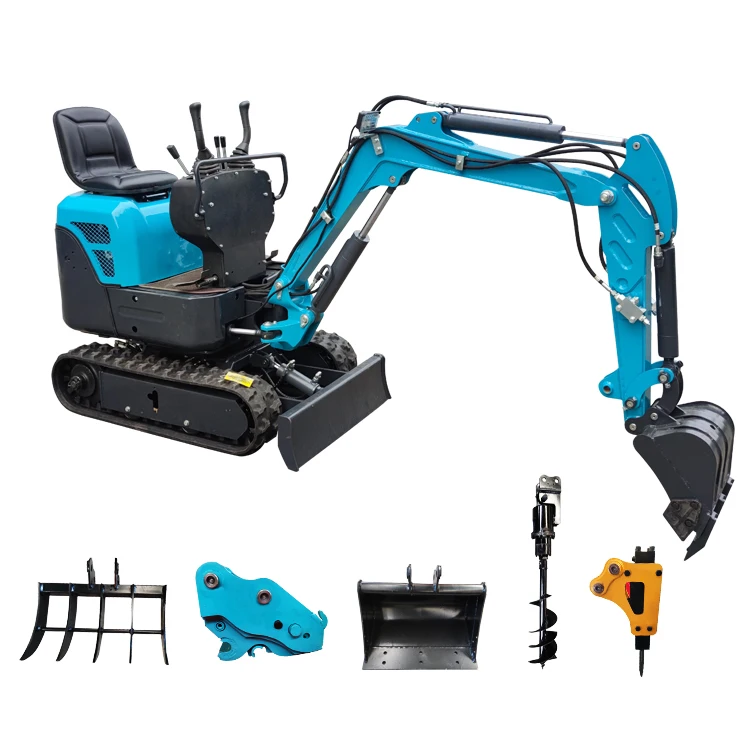

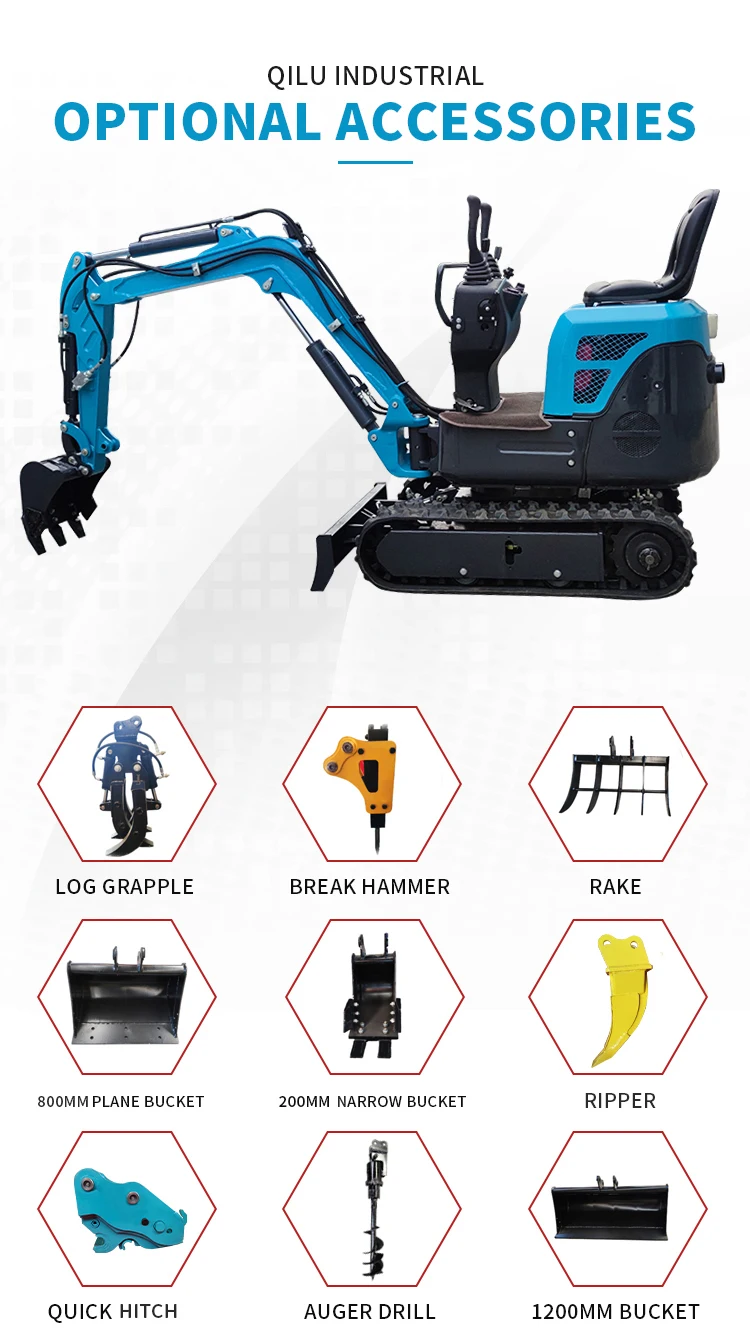

Optional Attachments

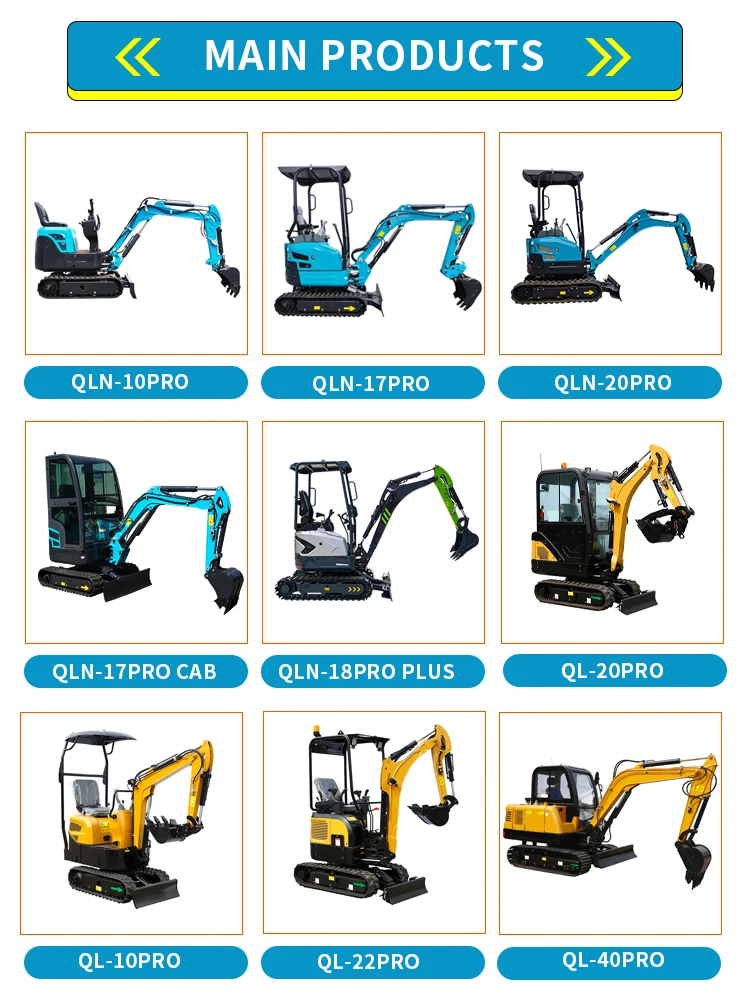

Other Products

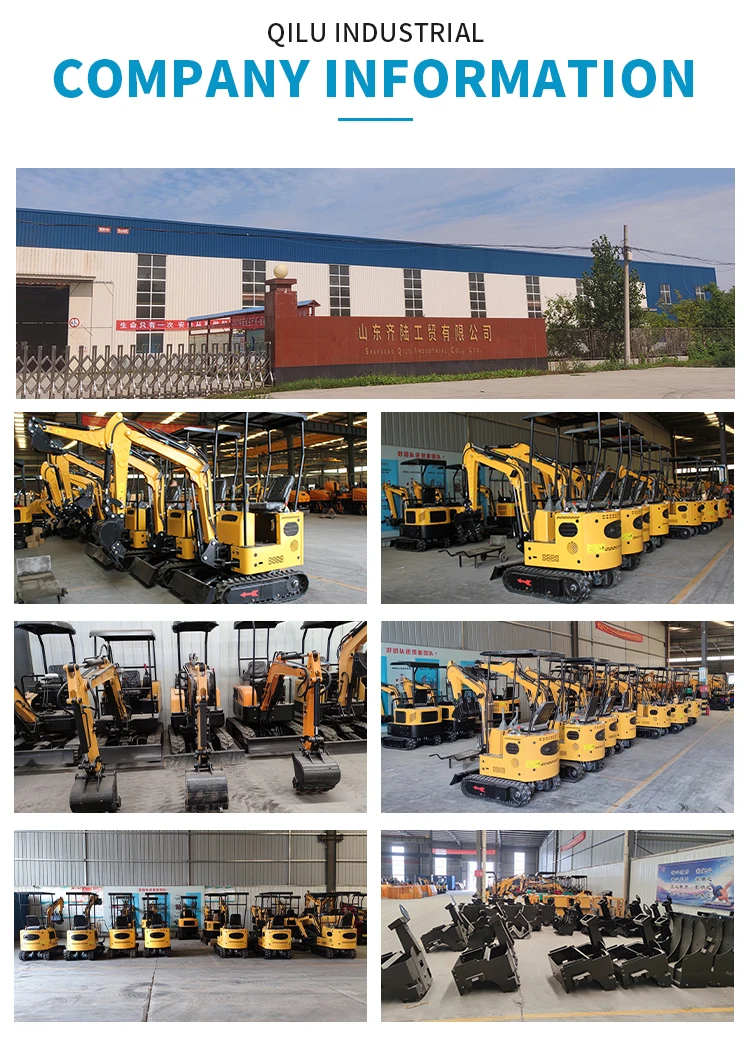

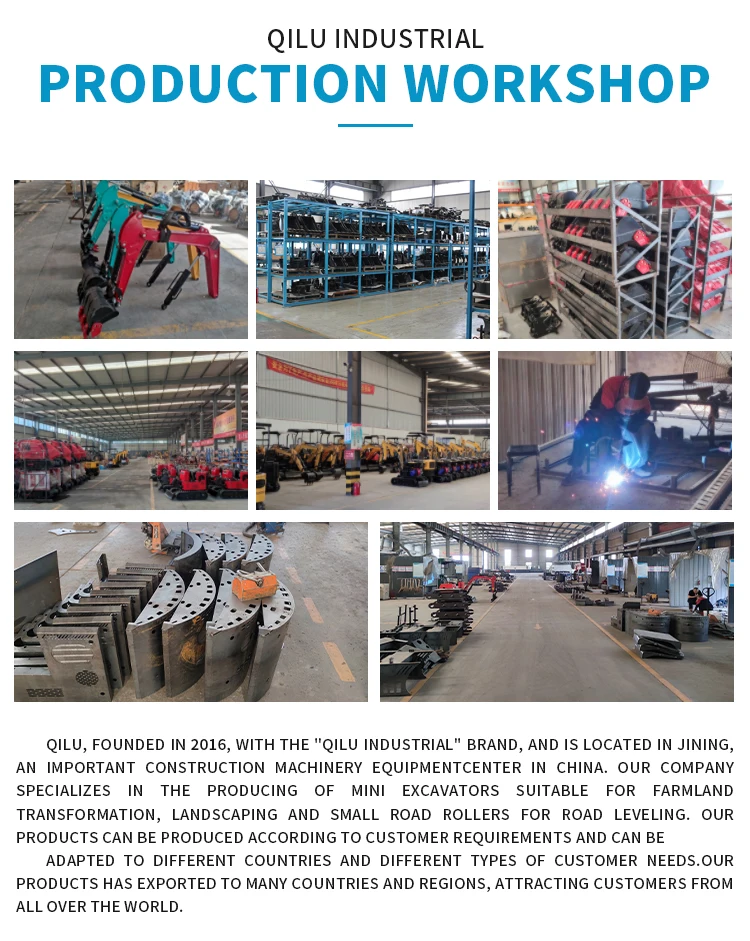

Company Profile
Packing & Delivery
Contact Us
FAQ
Q:Are u a manufacturer?
A:We are a professional manufacturer specializing in manufacturing excavators . We supply excavators for the wholesalers and dealers from different countries.
Q:Can you do OEM?
A:Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.
Q: What's your MOQ of this term?
A: 1 set.
Q: How long is your warranty?
A:Guarantee for 12 mounths starting from products arriving the destination port or 2000 working hours.
Q: What's your delivery time?
A: Delivery timely about 7 days after receiving the deposit.
A: Delivery timely about 7 days after receiving the deposit.
Q:Which incoterms 2010 terms can we work ?
A：Normally we work on FOB, CFR, CIF.
