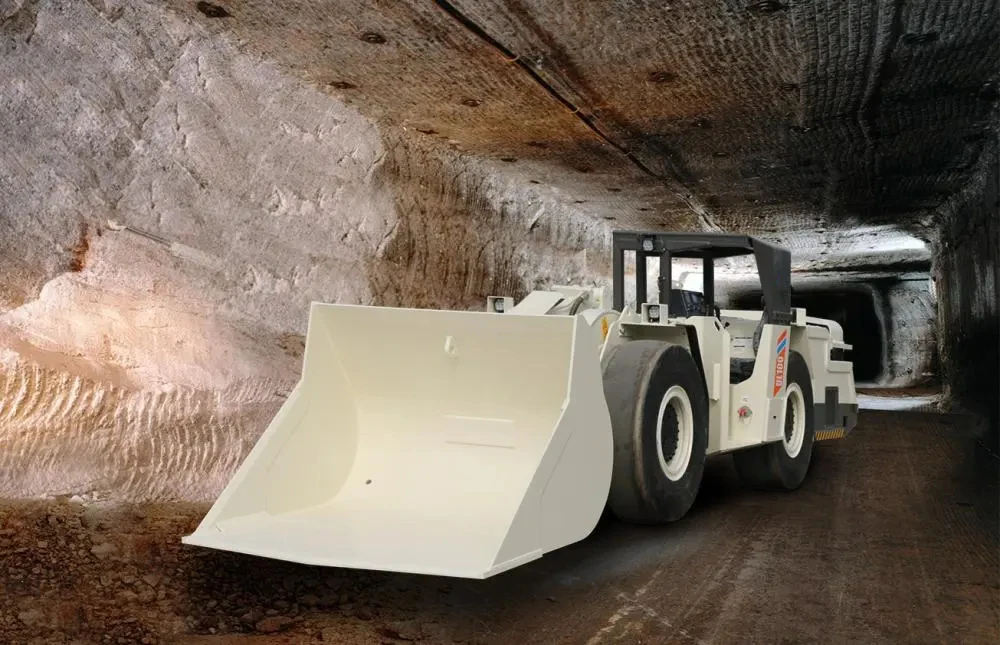

UL100 Diesel Underground Loader
SAFE & RELIABLE
UL100 is a safe, durable and efficient underground shoveling equipment, suitable for underground roadway and engineering construction tunnel mining operations with a working face greater than 3.8×3.8 meters, with a standard bucket capacity of 4.5m³ and a maximum shoveling force of 225KN.
ECONOMIC & EFFCIENT
UL100 is powered by the powerful turbocharged, electronically controlled high pressure common rail Honghong TAD1150VE engine, with the maximum torque up to 1581N•m. The transmission system is equipped with DANA full system torque converter, transmission and transaxle adjusted by depth. The system has good stability and higher working efficiency.

COMFORTABLE & FLEXBLE
The cab adopts a more shockproof comfortable rear fully enclosed, equipped with air conditioning, standard control handle, gas pedal and seat are ergonomic, comfortable sitting position and flexible operation can effectively reduce the working intensity of the operator;
Normally closed wet drive axle, limited slip reducer, braking is not loose and prevent slipping, big arm safety lock, 3 safety brake valves, convenient operation/maintenance personnel to deal with emergencies, safer operation:
EASY MAINTENANCE & LOW COST
Standard exhaust gas purification, bucket cutting edge with wear-resistant Hardox 500 steel plate, Eaton hydraulic hose, German standard PVBR wire, IP67 waterproof and dustproof connector, two 10 micron hydraulic oil filtration delivery, centralized lubrication, up to 90% of conventional maintenance can be floor maintenance, to serve customers from a professional perspective:
UL100 always adheres to the concept of safety, reliability and efficiency to provide customers with the best solutions.


Model
UL100
  UL70
UL50
Standard Bucket
5.2 yd³(4m³)
  3.9yd³(3m³)
2.6yd³(2m³)
Tramming Capacity
10T
  7T
5T
Weight
30tT
  22T
14T


Product Paramenters


Parameter Configuration
Rated load (kg) 10000
L* W* H (mm) 9700*2550*2350
Maximum shovel force (kN) 225
Maximum traction (kN) 235
Tipping load(kN) 200
Standard bucket capacity(m3)\t 4


Forward and Backward Speed
1st gear(km/h)\t 4.5
2st gear (km/h) 10
3st gear (km/h) 20
4st gear (km/h) 25


Bucket Motion Times
Raising time(s)\t 6.5
Lowering time (s) \t 5.0
Tipping time (s)\t 3.2


No-load Mass
Gross weight (kg) 30100
Front axle load (kg) 13450
Rear axle load (kg) 16650


**The weight of the equipment will vary according to the options

Diesel Engines
Model Volvo TAD1 150VE
Rated output power(KW) 235 Number of cylinders 6 Displacement (L) 10.84 Cooling method Water cooling
Air filter Donaldson
Emission Standards Tier 3
Average fuel consumption(L/H 23.5 Fuel tank volume(L) 380

Turning Radius
Max. steering angle(°) ±42.5
Min. transformation inner diameter(mm) 2700
Min. Transition Outer Diameter(mm) 7100
Drive Axle
Front axle DANA 20D
Rear axle DANA 20D

Tire
Model/Size 18.00 R25

Hydraulic System
Hydraulic Pump REXROTH
Control Valve POMKE
Filter(μm) 10
Steering Cylinder LGMRT
Tipper cylinder LGMRT
Lift Cylinder LGMRT

Braking System
Brake Normally closed wet type
Accumulator Aurel
Brake element MICO

Electric System
Electronic control components Schneider
Generator 24V,55A
Battery Exed120Ah
Starting motor 24V,5.5KW
Illumination LED 8*35W


Safety Device
Main switch lock/brake button/emergency stop button
Security roof(ROPS&FOPS)
Handheld Fire Extinguisher
Seat Belt
Reversing Alert


Optional Item
Bucket 4.0m³ 5.0 m³
Automatic centralized lubrication
Drive axle DANA 16D2149
Tubeless tires
wireless remote control
Exhaust gas purifier
(DOC+DPF).etc,




Details



High Reliability
Renowned and reliable hydraulic compo-nents are used,including:
PERMCO hydr-aulic pumps,
EATON hydraulic hoses
REXROTH valves
DANA power train components.





Ergonomical Operation
All instruments, gauges and alarms are integrated into one control panel;The positions of the steering wheel and the working level are ergonomically desig-ned.The blind zone area is largely reduced thanks to the wider visual angle from the canopy.



Easy Maintenance

Centralized pressure measuring;80% of the maintenance is done on the ground level, minimzing the need for cimbing onto the top of the machine.
