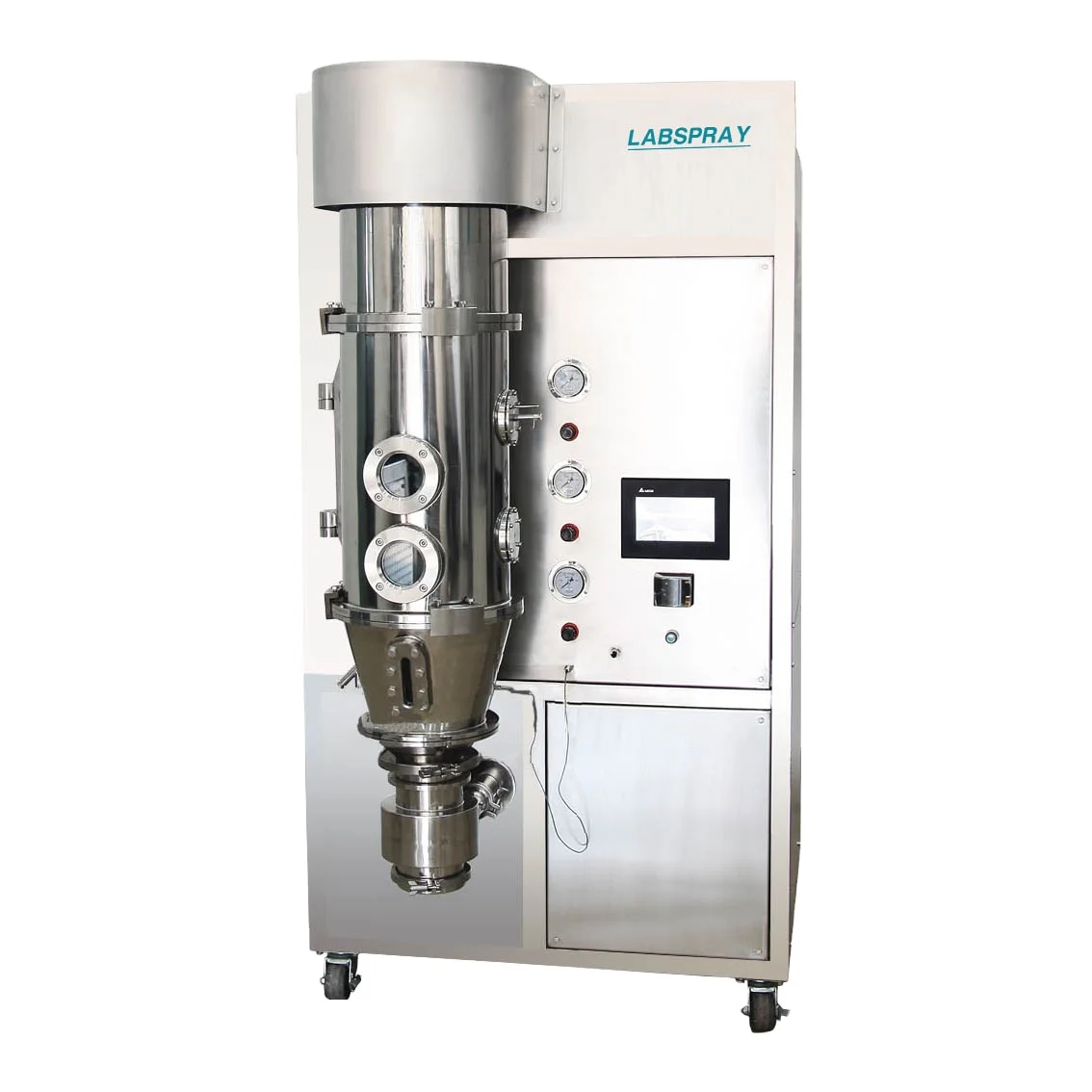

SD 5000 Vacuum Inert Loop Spray Dryer

Product Overview

Description



Features



      SD-5000 laboratory vacuum low temperature spray dryer is divided into a desktop spray dryer main unit and vacuum components. The modular design facilitates the switching between high temperature spray drying and vacuum low temperature spray drying;

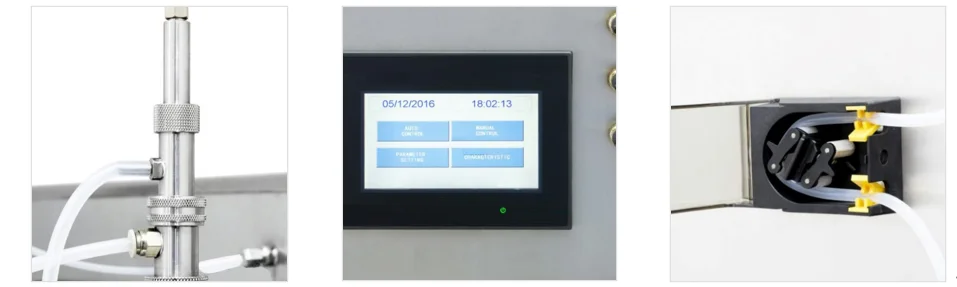

     The spray head is a concentric spray head. Make sure there is no eccentricity during spraying and it will spray to the side of the bottle wall. After the spray head is installed, it can move up and down to facilitate the adjustment of the spray position and improve the spray drying effect;

     SD-5000 laboratory vacuum low temperature spray dryer uses a color touch screen operation, real-time regulation of PID constant temperature control, so that the temperature control in the full temperature zone is accurate, the heating temperature control accuracy is ±1℃, and the feed rate of the peristaltic pump can be adjusted at any time.

     The entire experimental process of spray drying is completed in a vacuum environment, which greatly reduces the material drying temperature and solves the problem of spray drying of heat-sensitive materials;

     The atomization structure of the two-fluid spray is made of high-quality stainless steel materials, with a compact design, no auxiliary equipment, easy to use, and as long as new.

     The instant spray drying is completed under low temperature (minimum 50℃) conditions, and the moisture content after drying is less than 1%. Under such drying conditions, substances that are easily oxidized, volatile, and heat sensitive can maintain chemical structure and biological activity well ;
