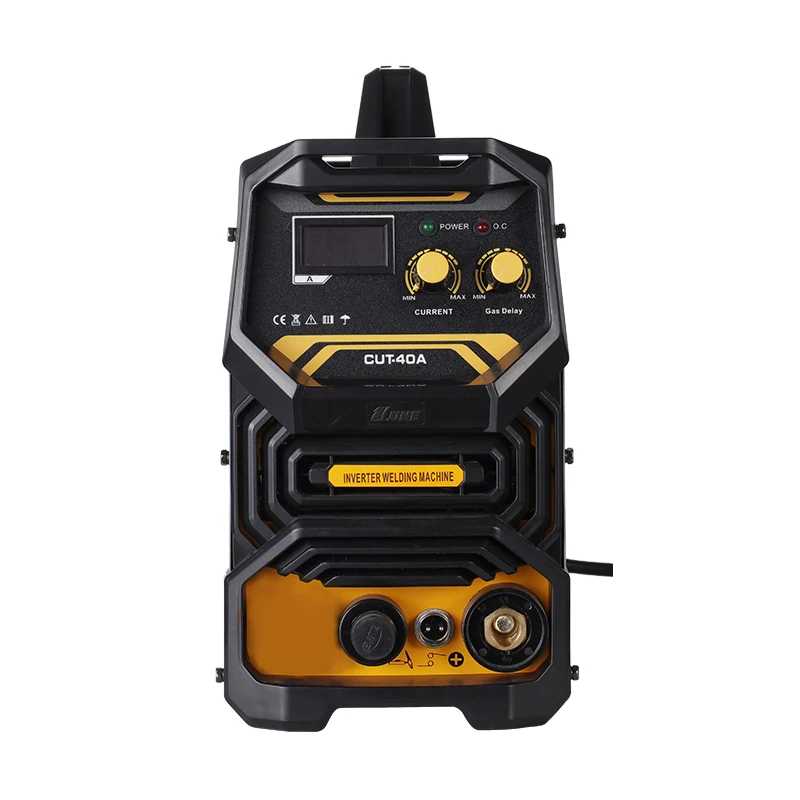

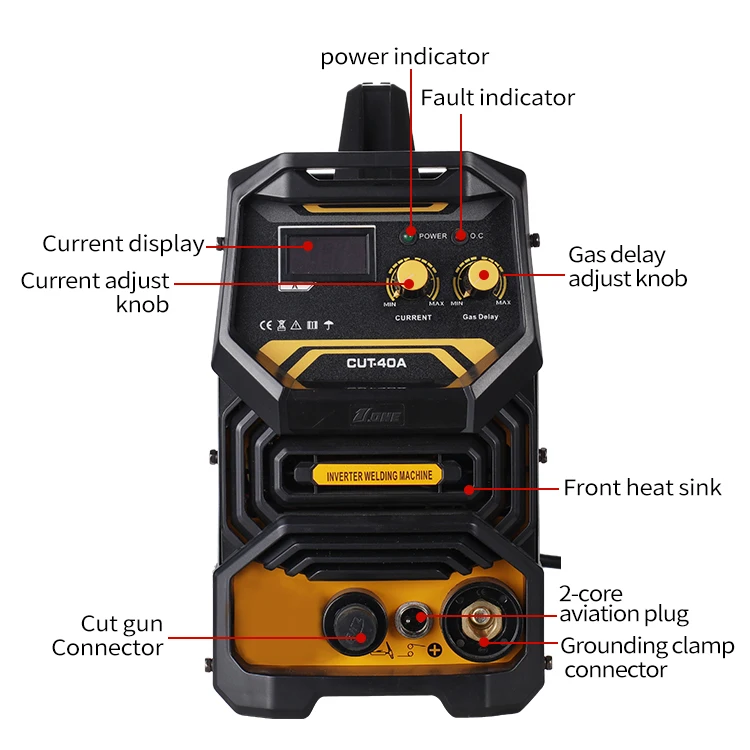

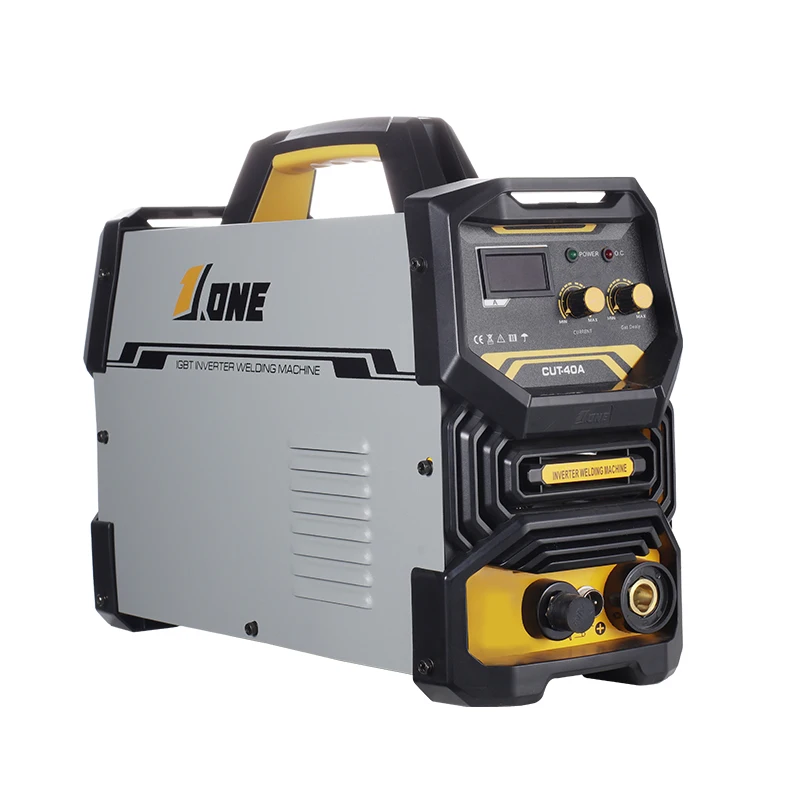

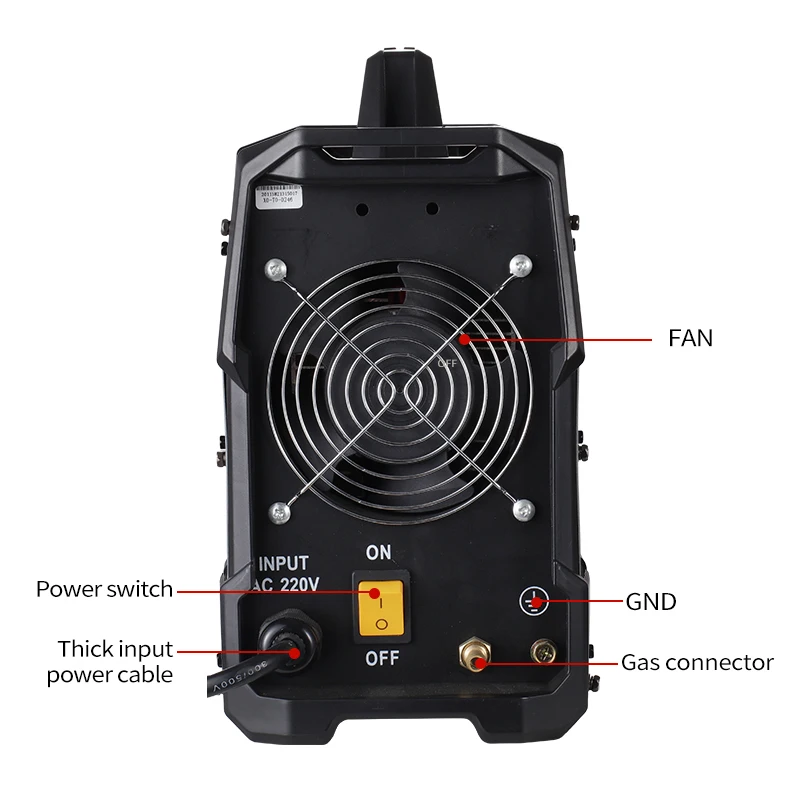

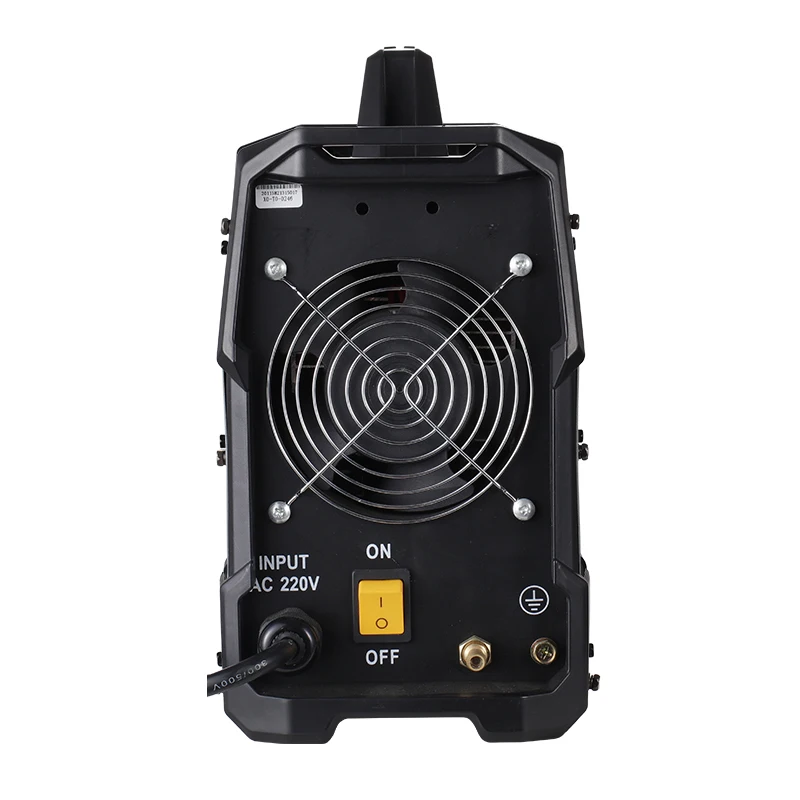

JONE cut 40 inverter plasma cutting machine

Product Overview

Description

Model	CUT-40
Type	IGBT 1 PCB
Real Amp(A)	40
AC Input Voltage(V)	AC 220V(110V Support)
Rated Input Power Capacity(KVA)	5
Input Frequency(Hz)	50/60
Non-load Voltage(V)	60
Output current range(A)	20-40
Rated Duty Cycle(%)	60%
Efficiency(%)	85%
Class of Insulation	F
Protection class of case	IP21
Arc-starting	Touch
Cutting thickness(mm)	12
N.W./G.W.(kg)	4.8/7.1
Input power cable(m)	1.8
Machine Size(LxWxH mm)	375*150*240
Package Dimension(LxWxH mm)	455*270*345 kraft box+foam
Accessories	1.2m 16mm 300A clamp cutting gun PT-31 4m mask, brush, manual
