EDON DC inverter plasma cutter CUT-40 IGBT CUTTING MACHINE
US $65.00-$91.00

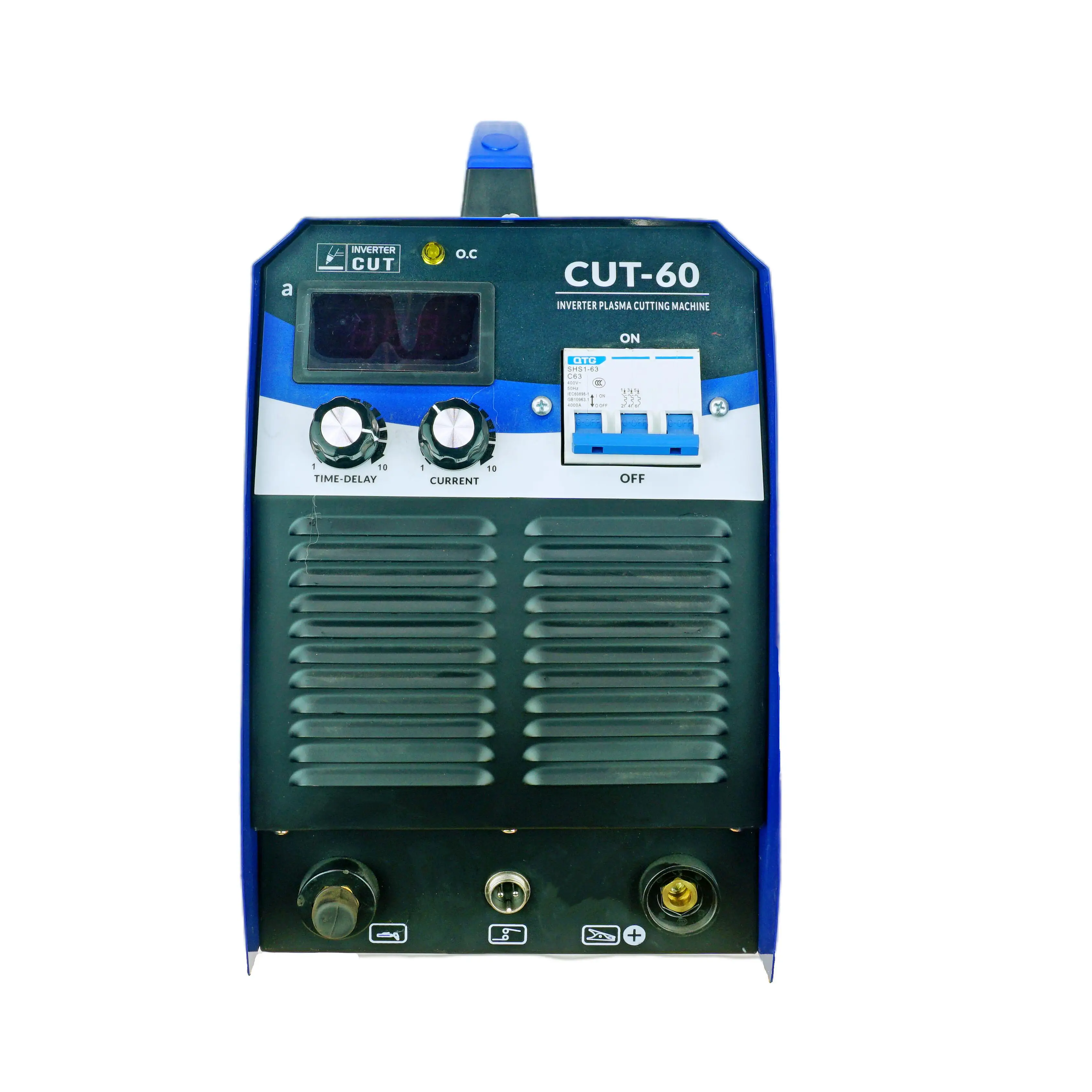

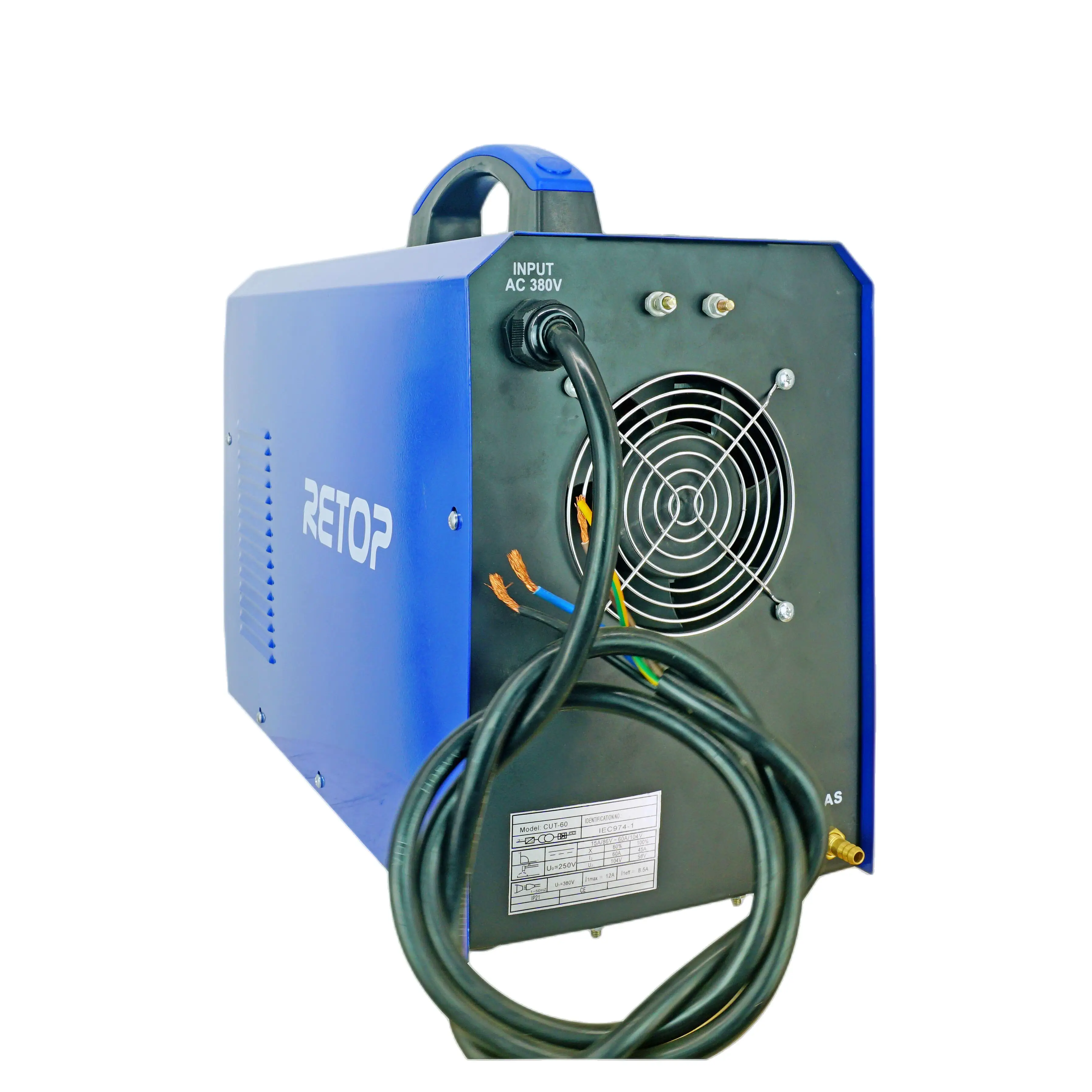

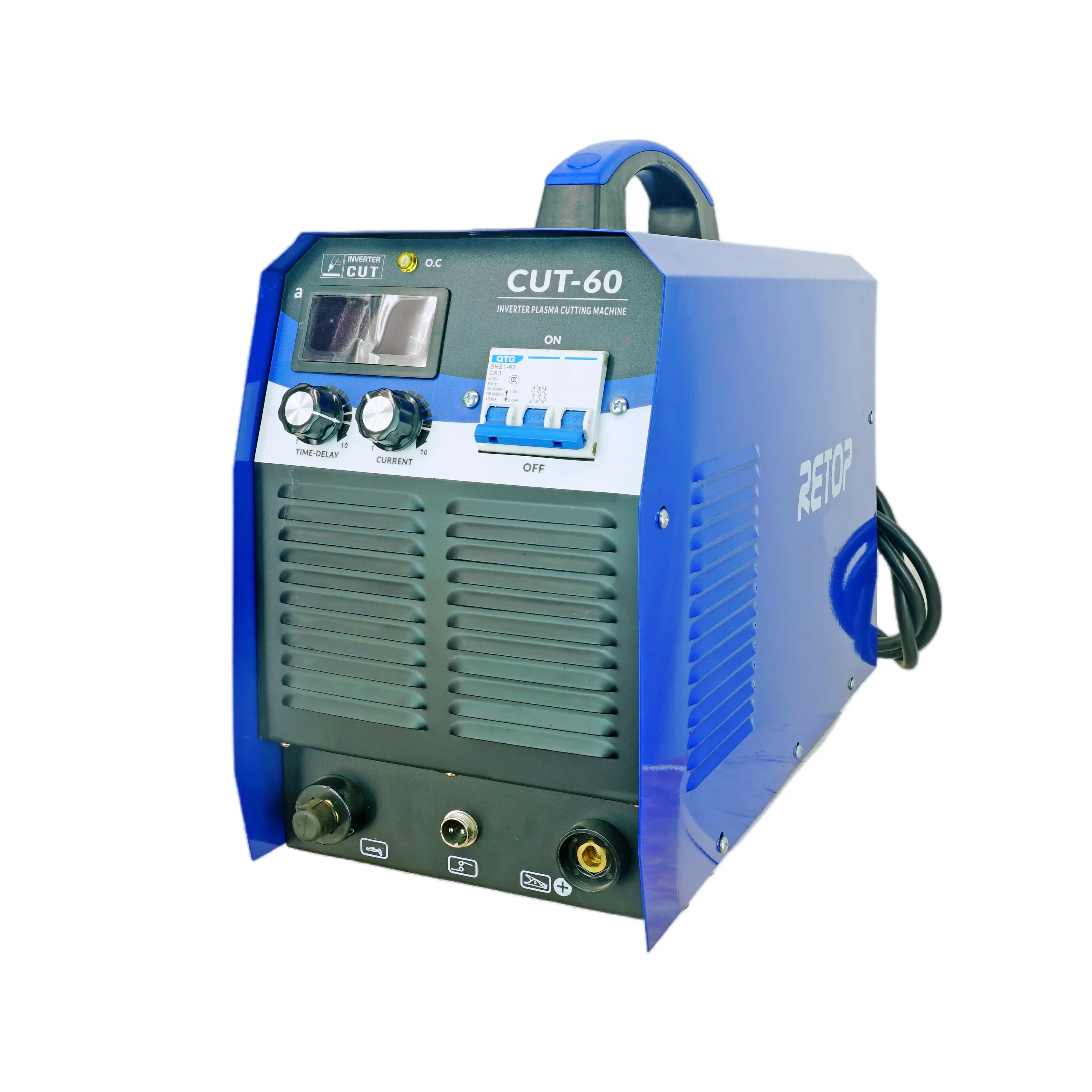

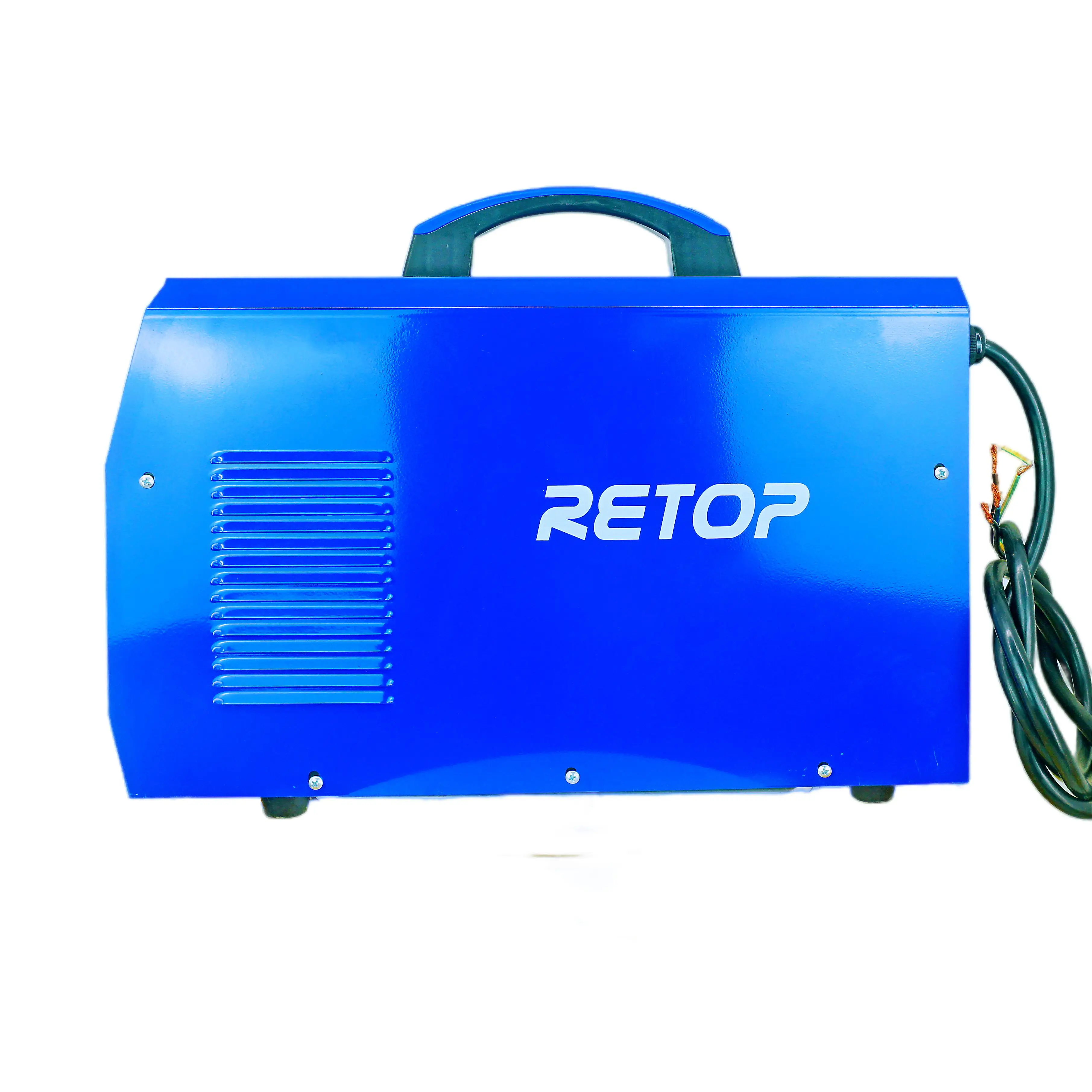

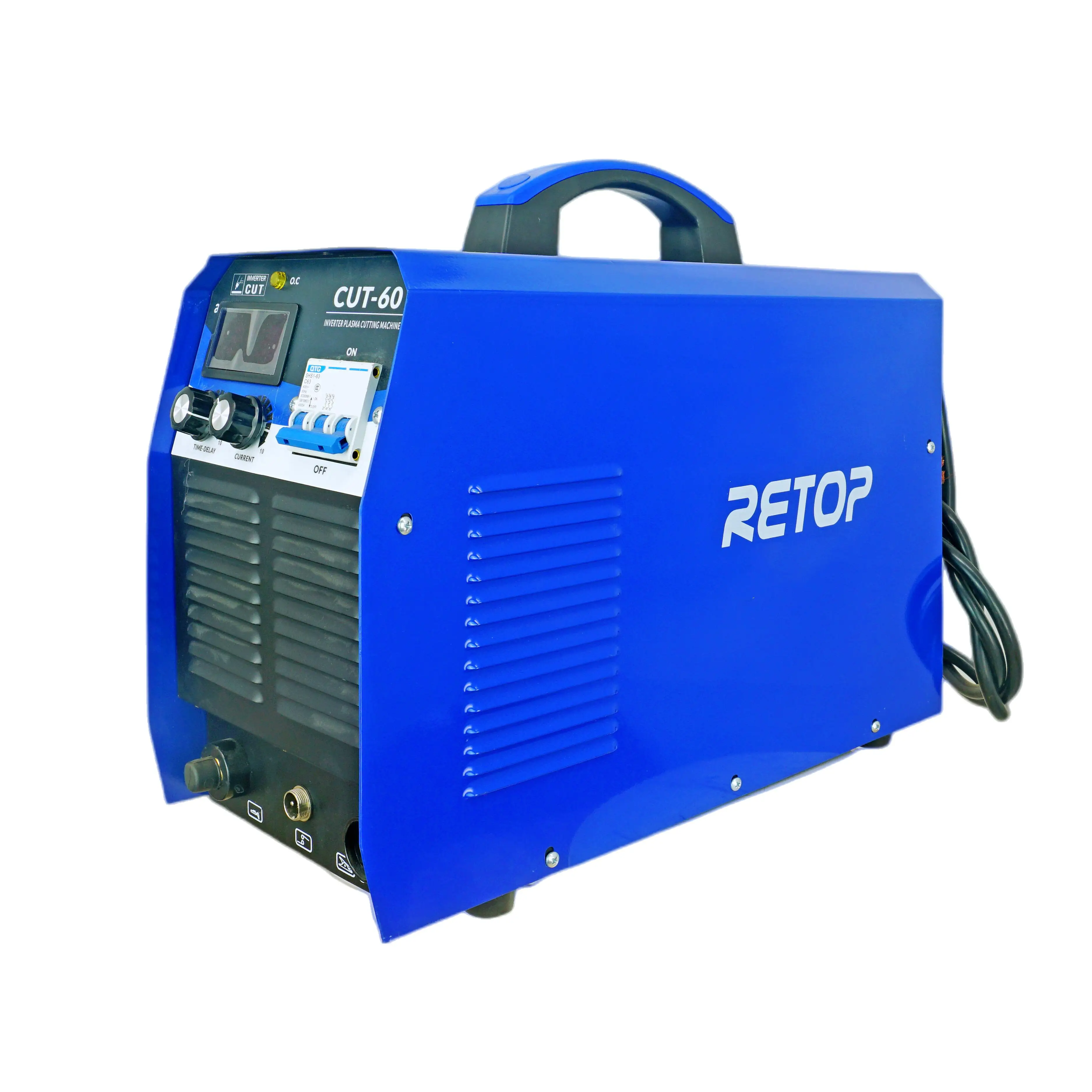

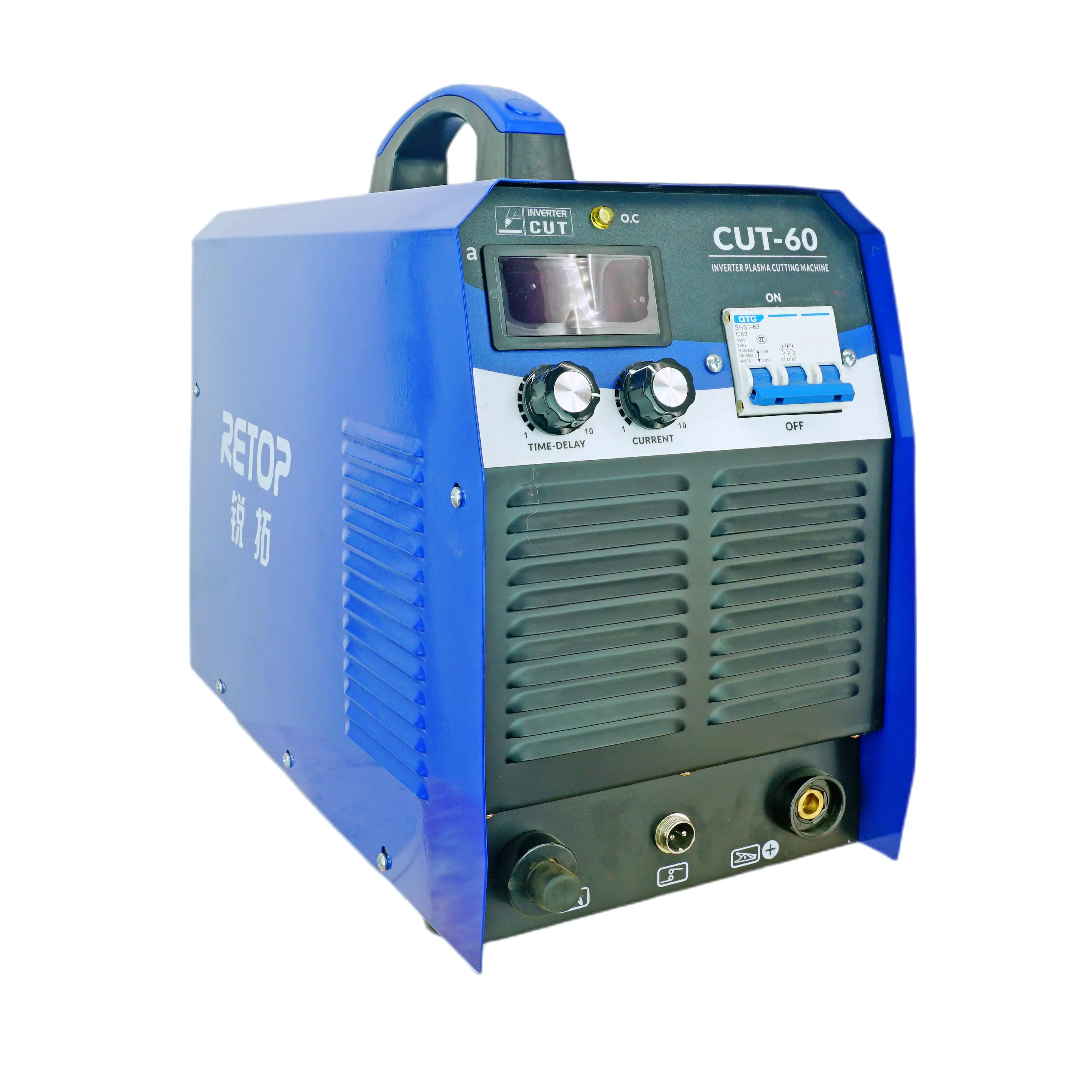

Factory Direct CUT Current 40 Amps Cutting Thickness 15mm Plasma Cutting Machine CUT60
- Category: Plasma Welders >>>
- Supplier: Taizhou Retop Mechanical & Electrical Co. Ltd.
Share on (1600831443172):
Product Overview
Description
Products Description
Features
1. MOSFET inverter and PWM technology, energy-efficient and low noise.
2. Use compressed air as cutting gas source, cost-effective.
3. Air regulator and digital meter in the front panel. Easier operation for adjusting air pressure and cutting current.
4. Narrow cutting seams, smooth cutting performance and less deformation.
5. Automatic over-voltage, over-current and over-heat protection.
6. Light industrial applications: production line work; plant maintenance; garage/job shops; fabrication; etc.
2. Use compressed air as cutting gas source, cost-effective.
3. Air regulator and digital meter in the front panel. Easier operation for adjusting air pressure and cutting current.
4. Narrow cutting seams, smooth cutting performance and less deformation.
5. Automatic over-voltage, over-current and over-heat protection.
6. Light industrial applications: production line work; plant maintenance; garage/job shops; fabrication; etc.
Technical Specifications
ITEM | CUT-60 | CUT-100 | CUT-120 |
input power Voltage (V) | AC230v | AC230v | AC230v |
input power frequency（hz） | 50/60 | 50/60 | 50/60 |
rated input capacity（kva） | 7.9 | 15.2 | 19 |
output current Range(A) | 20-60 | 20-100 | 20-120 |
No-load Voltage(V) | 250 | 270 | 270 |
Rated duty cycle（%） | 60 | 60 | 60 |
ARC START | TOUCH | NON-TOUCH | NON-TOUCH |
Air pressure（mpa） | 0.2-0.4 | 0.3-0.5 | 0.3-0.5 |
Insulation Grade | F | F | F |
Protection Grade | IP21S | IP21S | IP21S |
Dimensions（mm） | 495*205*355 | 580*315*570 | 580*315*570 |
weight（kg) | 16.2 | 33 | 35 |
FAQ
Company Introduction
Certifications
Exhibition
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
