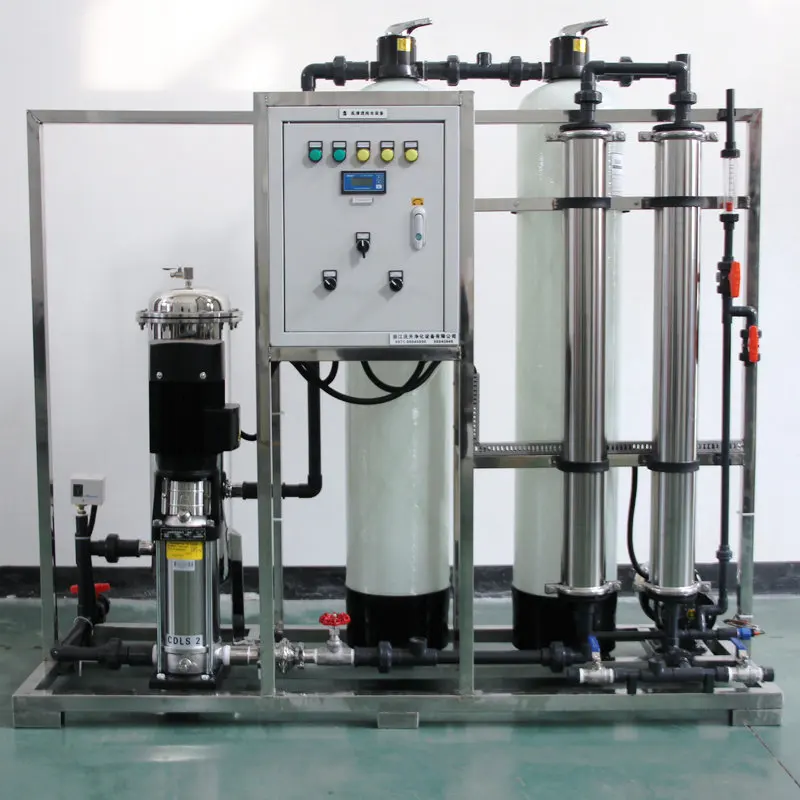

Hot Sales Water Treatment Plant RO Industrial Equipment Reverse Osmosis Water Filter System
- Category: Environmental Machinery >>>
- Supplier: Hangzhou Juntai Plastic Products Co. Ltd.
Share on (1600297203015):
Product Overview
Description
Product Details
Model | JT-RO-EDI-250/500/1000/1500/2000L/3000L | ||||||||||
Working power | Voltage：AC380V/50HZ | ||||||||||
System water production(L/h) | 250L/H | 500L/H | 1000L/H | 1500L/H | 2000L/H | 3000L/H | |||||
Power(KW) | 10—12 | 10—12 | 10—12 | 10—12 | 12—15 | 12—15 | |||||
Water quality(MΩ) | Resistivity：≥18.2MΩ.cm | ||||||||||
Reverse osmosis recovery rate | 50%-75 % | ||||||||||
EDI Water production | 0.25m³-3.5m³/h | ||||||||||
Water inlet pressure | 1.0～1.5MPa | ||||||||||
Scope of application | Laboratory, medicine, pharmaceutical industry, chemical industry, electronic industry, electroplating and coating industry, food and beverage industry | ||||||||||

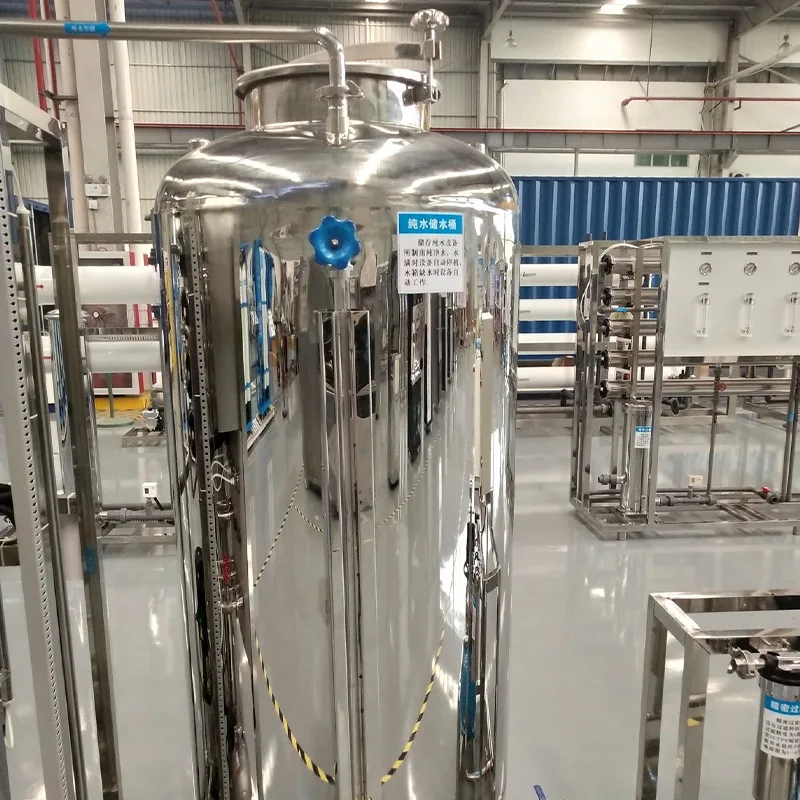

Water storage tank | Standard 250L | Standard 500L | Standard 1000L | Standard 1500L | Standard 2000L | Standard 3000L | |||||
Operating temperature | 5℃～45℃ | ||||||||||
Reverse osmosis pure water filter technical characteristics.
1. Adopt the most advanced membrane technology, and the core components are made of American brand
2. Advanced technology, mature technology, reasonable design
3. Automatic control of liquid level and pressure, automatic opening and closing
4. Adopt advanced waterless protection system
2. Advanced technology, mature technology, reasonable design
3. Automatic control of liquid level and pressure, automatic opening and closing
4. Adopt advanced waterless protection system

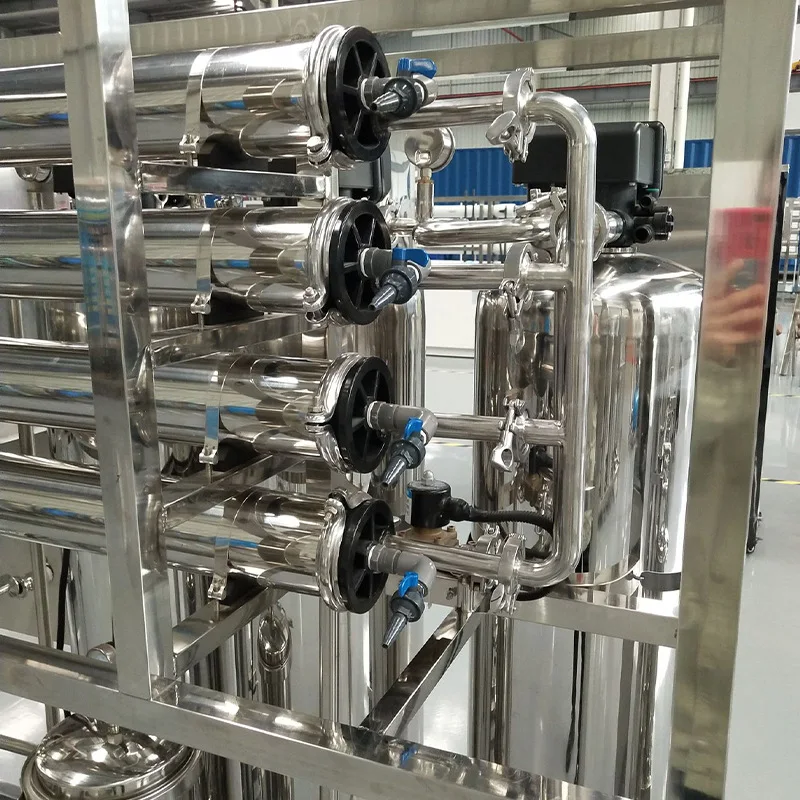

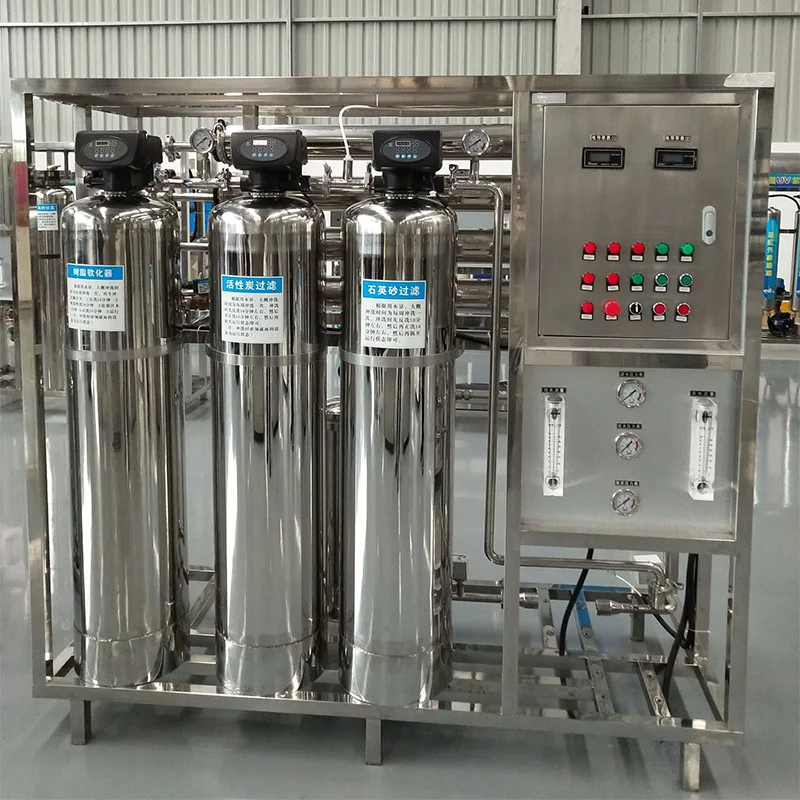

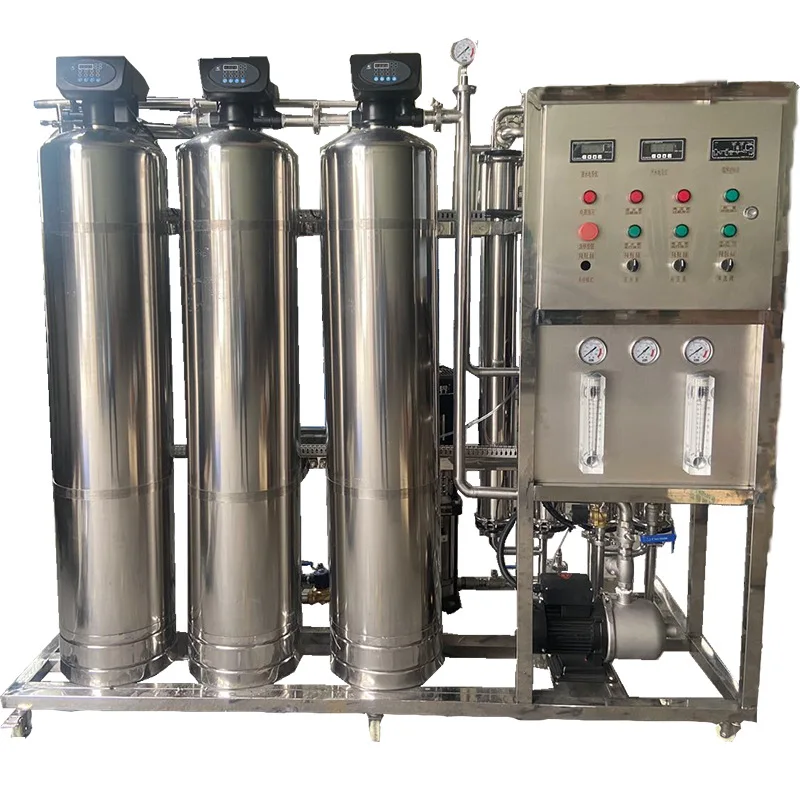

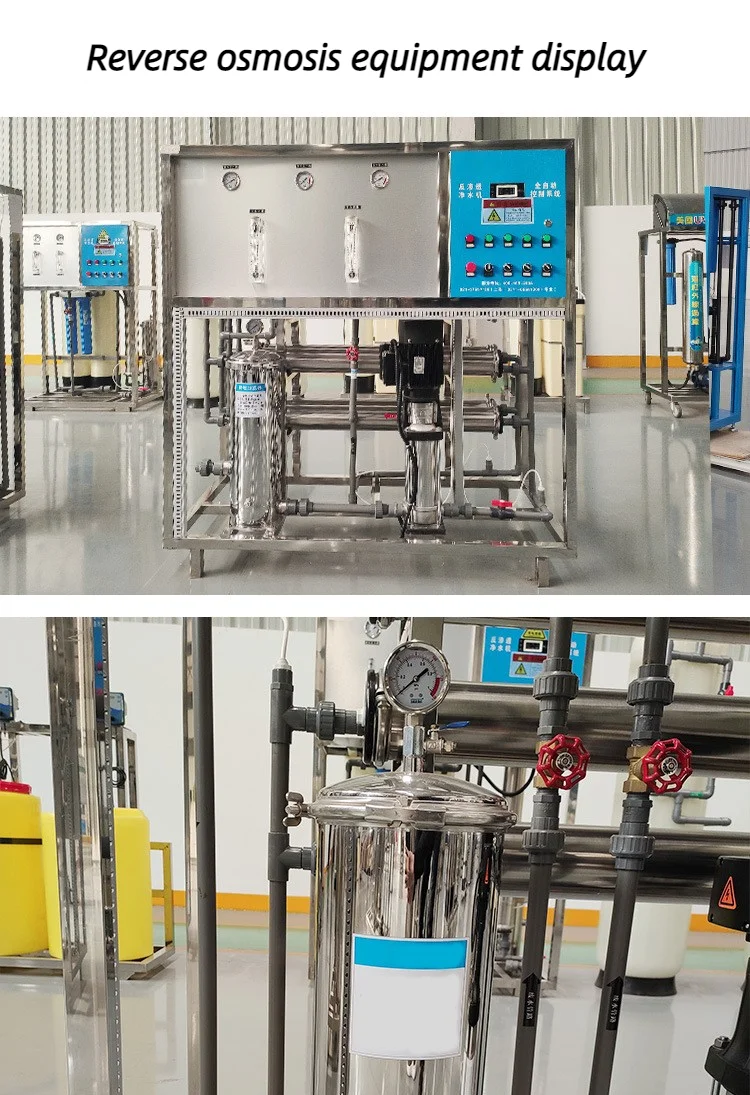

Details Images
Water purification equipment applications
Prepared water for various industries such as painting, electrophoresis, food
Metal stain removal cleaning water, chemical auxiliary preparation water.
Cleaning water for lamps and crafts; preparation water for paints and adhesives
Optical glass cleaning water; disinfectant, detergent preparation water.
Welcome to consult the technology and price of reverse osmosis membrane separation pure water equipment.
Prepared water for various industries such as painting, electrophoresis, food
Metal stain removal cleaning water, chemical auxiliary preparation water.
Cleaning water for lamps and crafts; preparation water for paints and adhesives
Optical glass cleaning water; disinfectant, detergent preparation water.
Welcome to consult the technology and price of reverse osmosis membrane separation pure water equipment.

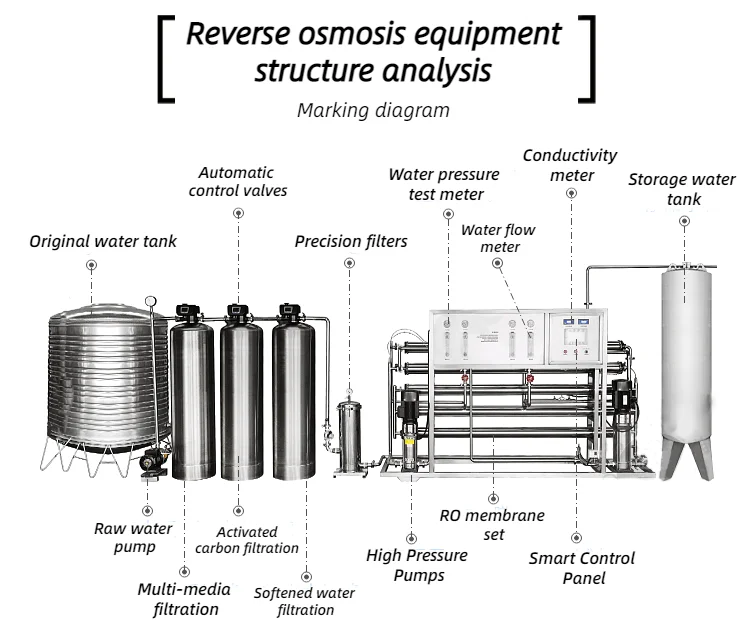

Every part of the reverse osmosis system | ||||||
S/N. | Commodity name | Application | Remark | |||
1 | Raw water tank | Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system | Customer provide for themselves, because big size will result in expensive freight. | |||

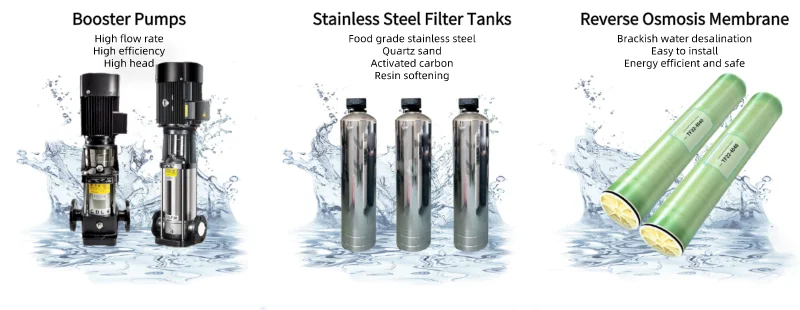

2 | Raw water pump or called booster pump | Provide needed pressure for every pretreatment filter | We can provide CNP pumps or Grundfos pumps | |||
3 | Mechanical filter or called quartz sand filter or sand filter | We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. | ||||
4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances. | ||||
5 | Water softener, demineralizer, or called Na+ exchanger | Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling | ||||
6 | Security filter or pp filter, or called PP sediment filter | prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm, | ||||
7 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Grundfos optional | |||

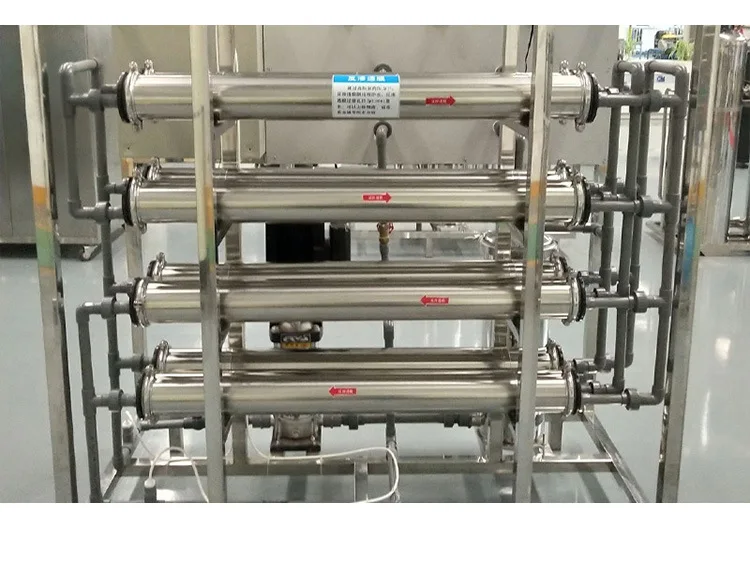

8 | RO(reverse osmosis) system | Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. | RO membranes USA Filmtec D | |||
Product Packaging
The following points should be noted during installation.
1. Reverse osmosis installation should be placed indoors, such as placed outdoors must add a roof.
2. Reverse osmosis must be placed horizontally.
3. Before running reverse osmosis, the quartz sand and activated carbon must be flushed repeatedly to know the clean position of the water, and the ion exchanger must be regenerated and cleaned.
4. When starting the equipment, pay attention to start the front booster pump first, and then start the high pressure pump.
2. Reverse osmosis must be placed horizontally.
3. Before running reverse osmosis, the quartz sand and activated carbon must be flushed repeatedly to know the clean position of the water, and the ion exchanger must be regenerated and cleaned.
4. When starting the equipment, pay attention to start the front booster pump first, and then start the high pressure pump.
FAQ
1. Q: Are you factory or trading company?
A: We’re factory, specialized in manufacturing reverse osmosis water treatment plants more than 10 years.
2.Q:How can I know which model is suitable for me?
A. Our model is KYRO-250, KYRO-500, KYRO-1000…, KYRO-500 is 500 liters per hour, it can produce 500 liters pure water. KYRO-1000 can produce 1000 liters per hour. Depends on your requirements for pure water.
3. Q: What kind of water treatment unit is suitable for me?
A: it depends on your raw water quality and your requirement for product water quality, which area the pure water will be used. We have reverse osmosis pure water machine, EDI ultrapure water plants, and ion exchange system, deionizer, ultrafiltration mineral
water plants etc.
4. Q. How long have to replace or change the carbon, sand and PP sediment filter cartridge and RO membranes?
A: depends on water quality, generally speaking, quartz sand and activated carbon should be replaced every about 15 months, PP filter cartridges should be replaced every about 1 month, RO membranes have to be replaced every about 2 years.
5. Q: Can you provide oversea installation and debugging service?
A: Yes, oversea installation service is available for us. We have professional installation teams, and have full experience of the
oversea site installation.
A: We’re factory, specialized in manufacturing reverse osmosis water treatment plants more than 10 years.
2.Q:How can I know which model is suitable for me?
A. Our model is KYRO-250, KYRO-500, KYRO-1000…, KYRO-500 is 500 liters per hour, it can produce 500 liters pure water. KYRO-1000 can produce 1000 liters per hour. Depends on your requirements for pure water.
3. Q: What kind of water treatment unit is suitable for me?
A: it depends on your raw water quality and your requirement for product water quality, which area the pure water will be used. We have reverse osmosis pure water machine, EDI ultrapure water plants, and ion exchange system, deionizer, ultrafiltration mineral
water plants etc.
4. Q. How long have to replace or change the carbon, sand and PP sediment filter cartridge and RO membranes?
A: depends on water quality, generally speaking, quartz sand and activated carbon should be replaced every about 15 months, PP filter cartridges should be replaced every about 1 month, RO membranes have to be replaced every about 2 years.
5. Q: Can you provide oversea installation and debugging service?
A: Yes, oversea installation service is available for us. We have professional installation teams, and have full experience of the
oversea site installation.
