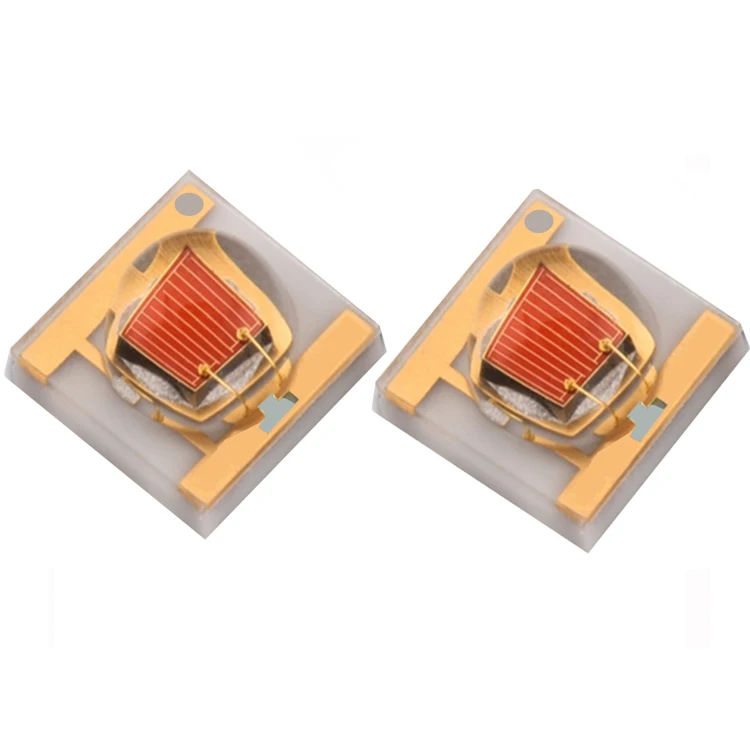

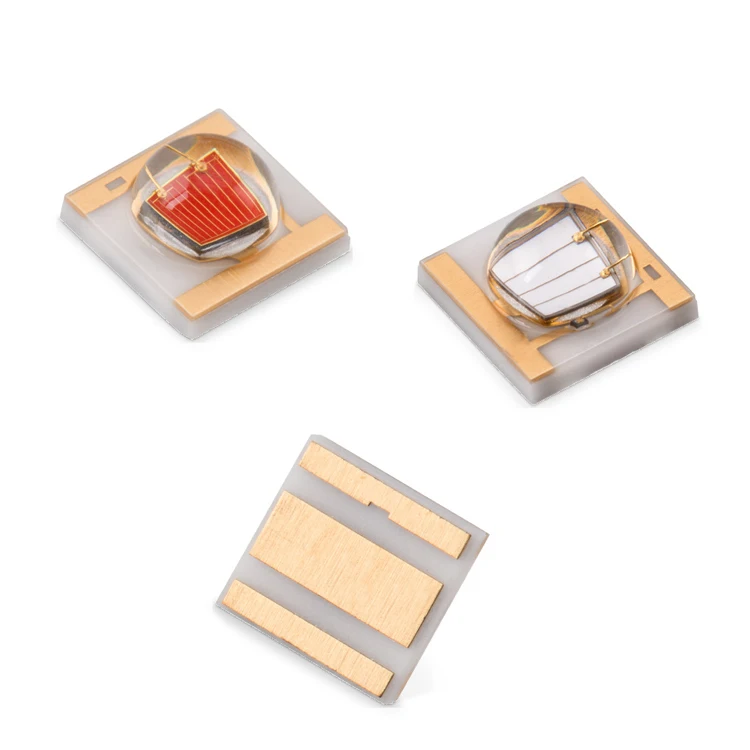

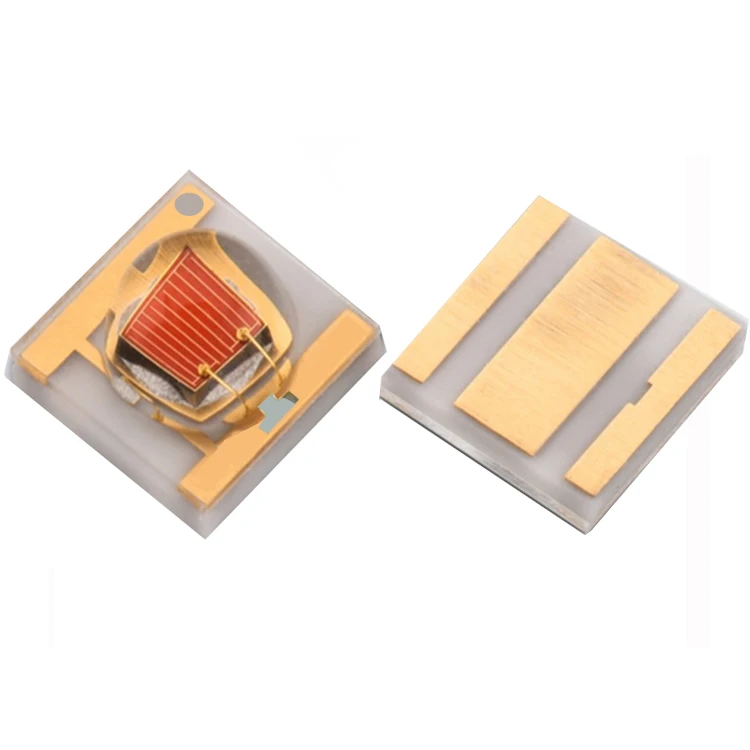

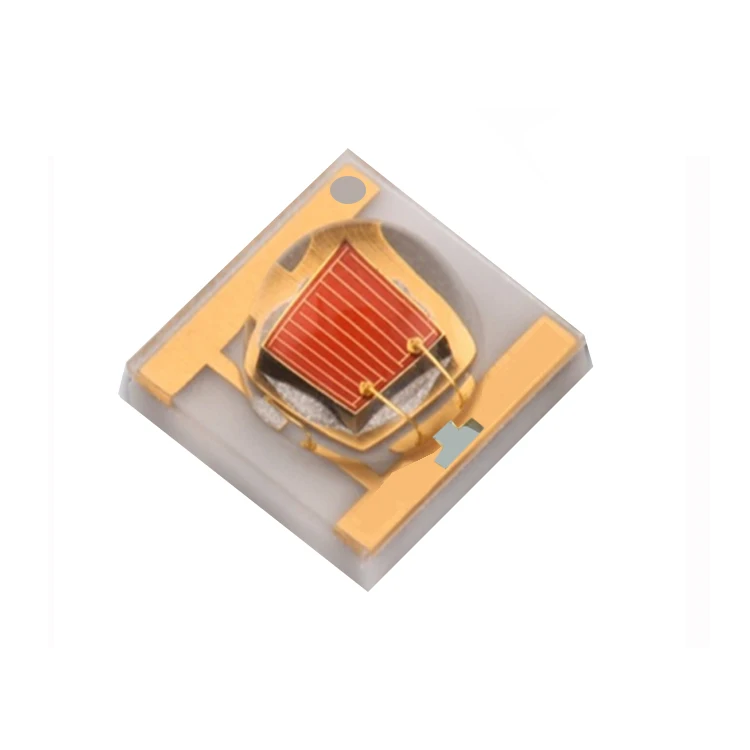

Good Quality Light Emitting Diode 585nm 590nm 595nm High Power 1Watt 3W Yellow, orange LEDs chip 592nm
- Category: High Power LED >>>
- Supplier: Shenzhen Heyi Optical Control Co. Ltd.
Share on (1600301084729):
Product Overview
Description
| Order Code | Voltage (V) | Peak Wavelength (nm) | Radiant Power (mW) | Radiant Intensity (mw/sr) | Current (mA) | Half Width (nm) | Angle (0) | Power (W) |
| HYQ35R45N450KN-D1 | 3.0-3.4 | 450-460 | 700-800 | 341 | 700 | 20 | 120 | 3W |
| HYQ35G45P460KN-D1 | 3.0-3.4 | 460-470 | 400-500 | 281 | 700 | 22 | 120 | 3W |
| HYQ35G45P480KN-D1 | 3.0-3.4 | 470-490 | 800-1000 | 262 | 700 | 26 | 120 | 3W |
| HYQ35G45P500KN-D1 | 3.0-3.4 | 495-505 | 300-400 | 235 | 700 | 25 | 120 | 3W |
| HYQ35R45N520KN-D1 | 3.0-3.4 | 520-530 | 250-350 | 227 | 700 | 30 | 120 | 3W |
| HYQ35G45P530KN-D1 | 3.0-3.4 | 530-540 | 300-400 | 236 | 700 | 30 | 120 | 3W |
| HYQ35G45P545KN-D1 | 3.0-3.4 | 540-560 | 200-300 | 227 | 700 | 40 | 120 | 3W |
| HYQ35F45N560KN-D1 | 3.0-3.4 | 555-575 | 80-100 | 300 | 700 | 40 | 120 | 3W |
| HYQ35E42P590KN-D1 | 2.0-2.4 | 590-600 | 100-130 | 85 | 700 | 20 | 120 | 3W |
| HYQ35G42N600KN-D1 | 2.0-2.4 | 600-610 | 250-350 | 187 | 700 | 15 | 120 | 3W |
| HYQ35E42P630KN-D1 | 2.0-2.4 | 620-640 | 400-500 | 461 | 700 | 15 | 120 | 3W |
| HYQ35E42N660KN-D1 | 2.0-2.4 | 655-665 | 600-700 | 794 | 700 | 17 | 120 | 3W |
| HYQ35G42N680KN-D1 | 2.0-2.4 | 670-690 | 700-800 | 774 | 700 | 20 | 120 | 3W |
| HYQ35R45N450KN-X1 | 3.0-3.4 | 450-460 | 700-800 | 341 | 700 | 20 | 60 | 3W |
| HYQ35G45P460KN-X1 | 3.0-3.4 | 460-470 | 400-500 | 281 | 700 | 22 | 60 | 3W |
| HYQ35G45P480KN-X1 | 3.0-3.4 | 470-490 | 800-1000 | 262 | 700 | 26 | 60 | 3W |
| HYQ35G45P500KN-X1 | 3.0-3.4 | 495-505 | 300-400 | 235 | 700 | 25 | 60 | 3W |
| HYQ35R45N520KN-X1 | 3.0-3.4 | 520-530 | 250-350 | 227 | 700 | 30 | 60 | 3W |
| HYQ35G45P530KN-X1 | 3.0-3.4 | 530-540 | 300-400 | 236 | 700 | 30 | 60 | 3W |
| HYQ35G45P545KN-X1 | 3.0-3.4 | 540-560 | 200-300 | 227 | 700 | 40 | 60 | 3W |
| HYQ35F45N560KN-X1 | 3.0-3.4 | 555-575 | 80-100 | 300 | 700 | 40 | 60 | 3W |
| HYQ35E42P590KN-X1 | 2.0-2.4 | 590-600 | 100-130 | 85 | 700 | 20 | 60 | 3W |
| HYQ35G42N600KN-X1 | 2.0-2.4 | 600-610 | 250-350 | 187 | 700 | 15 | 60 | 3W |
| HYQ35E42P630KN-X1 | 2.0-2.4 | 620-640 | 400-500 | 461 | 700 | 15 | 60 | 3W |
| HYQ35E42N660KN-X1 | 2.0-2.4 | 655-665 | 600-700 | 794 | 700 | 17 | 60 | 3W |
| HYQ35G42N680KN-X1 | 2.0-2.4 | 670-690 | 700-800 | 774 | 700 | 20 | 60 | 3W |
| HYQ35G45P560KN-S1 | 2.5-3.0 | 550-560 | 400-500 | 364 | 700 | 40 | 45 | 3W |
| HYQ35E42P630KN-S1 | 2.0-2.4 | 620-640 | 700-800 | 614 | 1000 | 15 | 45 | 3W |
| HYQ35E55N660KN-S1 | 2.0-2.4 | 650-665 | 1400-1600 | 2134 | 1000 | 17 | 45 | 3W |
Warm Tip:The above parameters are for reference. Wavelength Angle, PCB can be customized according to requirements
