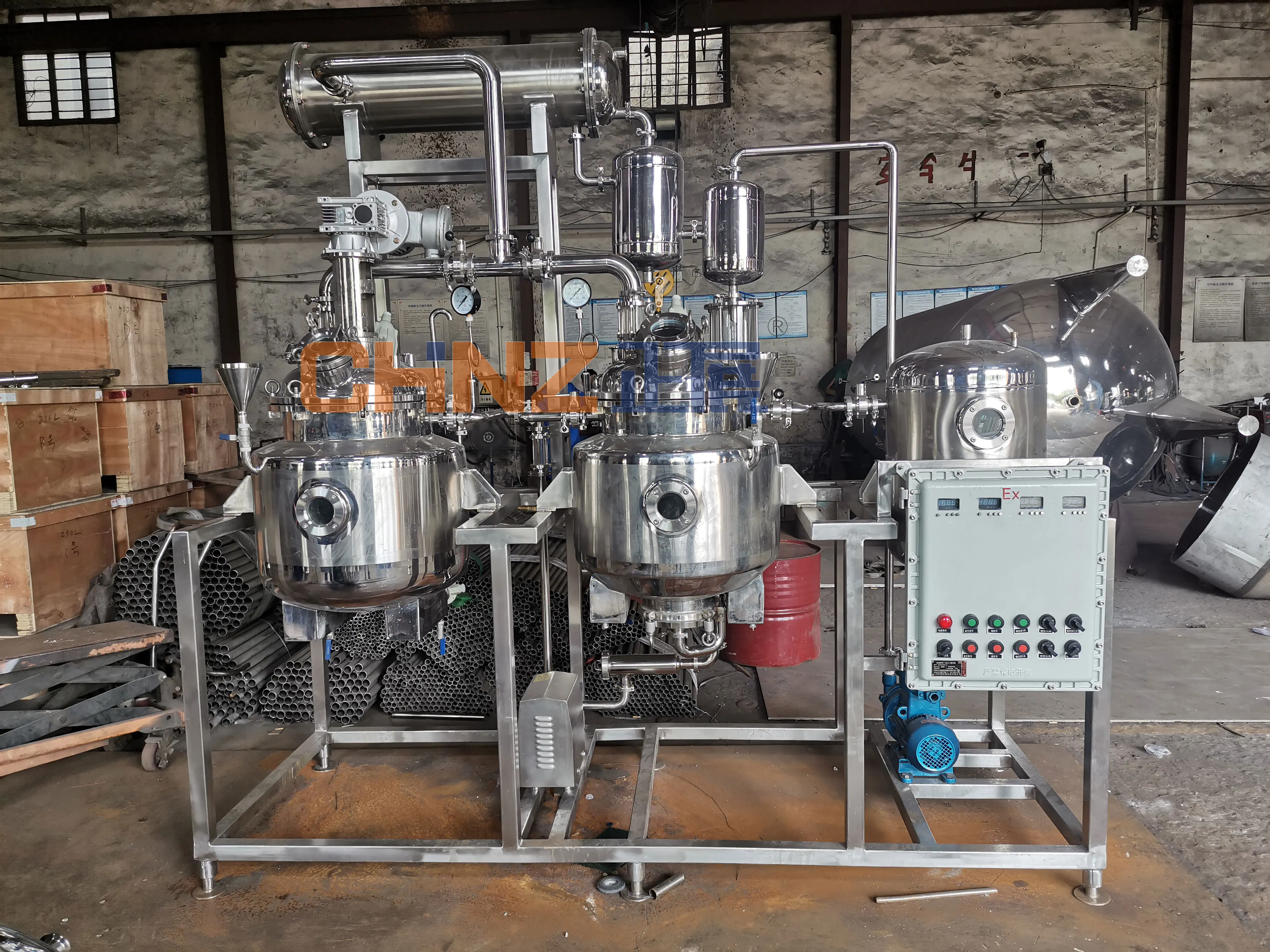

stainless steel extraction tank equipment plant extraction/essential oil extraction machine
- Category: Pharmaceutical Machinery >>>
- Supplier: Wenzhou Chinz Machinery Co. Ltd.
Share on (1600301258458):
Product Overview
Description
Products Description
Usage
This equipment is suitable for extracting and concentrating the effective component from Chinese herbas and other botanical.
Feature
Feature

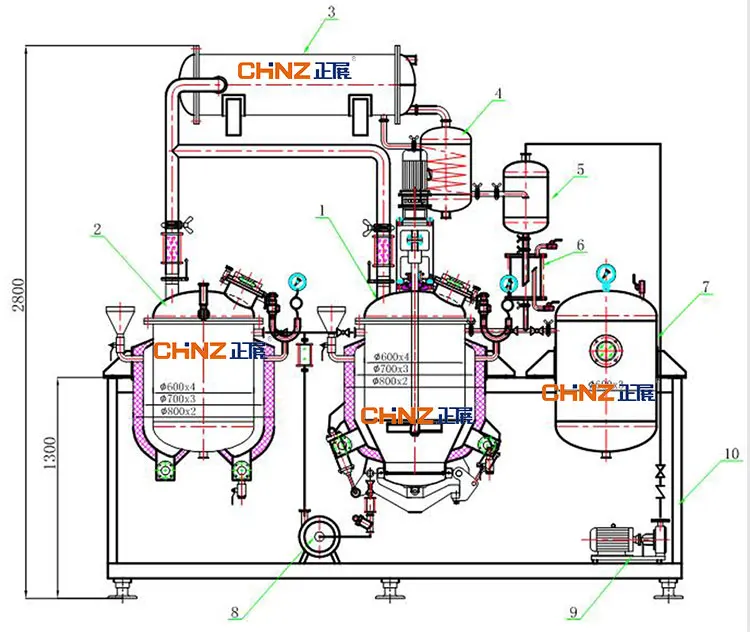

1. This equipment has excellent manufacture,complete collocation,simple operation.It is consist of extracting tank,concentrated
pot,storage tank for liquid material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric heating,the user can operate it only to engage the steam or electricty.
2. This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.
3. The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.
4. This equipment can configure with PLC control system according to user’s demand and control the parameter during the processing to enhance the production efficiency and quality.
pot,storage tank for liquid material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric heating,the user can operate it only to engage the steam or electricty.
2. This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.
3. The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.
4. This equipment can configure with PLC control system according to user’s demand and control the parameter during the processing to enhance the production efficiency and quality.
Product Paramenters
Model | GYJ-50 | GYJ-100 | GYJ-200 | GYJ-300 | GYJ-500 |
volume(L) | 50 | 100 | 200 | 300 | 500 |
Evaporation capacity(Kg/h) | 20 | 50 | 70 | 100 | 200 |
Motor Power(KW) | 2.7 | 2.7 | 2.7 | 3.5 | 3.5 |
Steam consumption(kg/h) | 25 | 60 | 90 | 120 | 250 |
System Vacuum(Mpa) | -0.085 | -0.085 | -0.085 | -0.085 | -0.085 |
Pressure of jacket(Mpa) | 0.09~0.3 | 0.09~0.3 | 0.09~0.3 | 0.09~0.3 | 0.09~0.3 |
Compressed air(Mpa) | 0.5~0.6 | 0.5~0.6 | 0.5~0.6 | 0.5~0.6 | 0.5~0.6 |
Evaporation temperature(℃) | 50~90 | 50~90 | 50~90 | 50~90 | 50~90 |

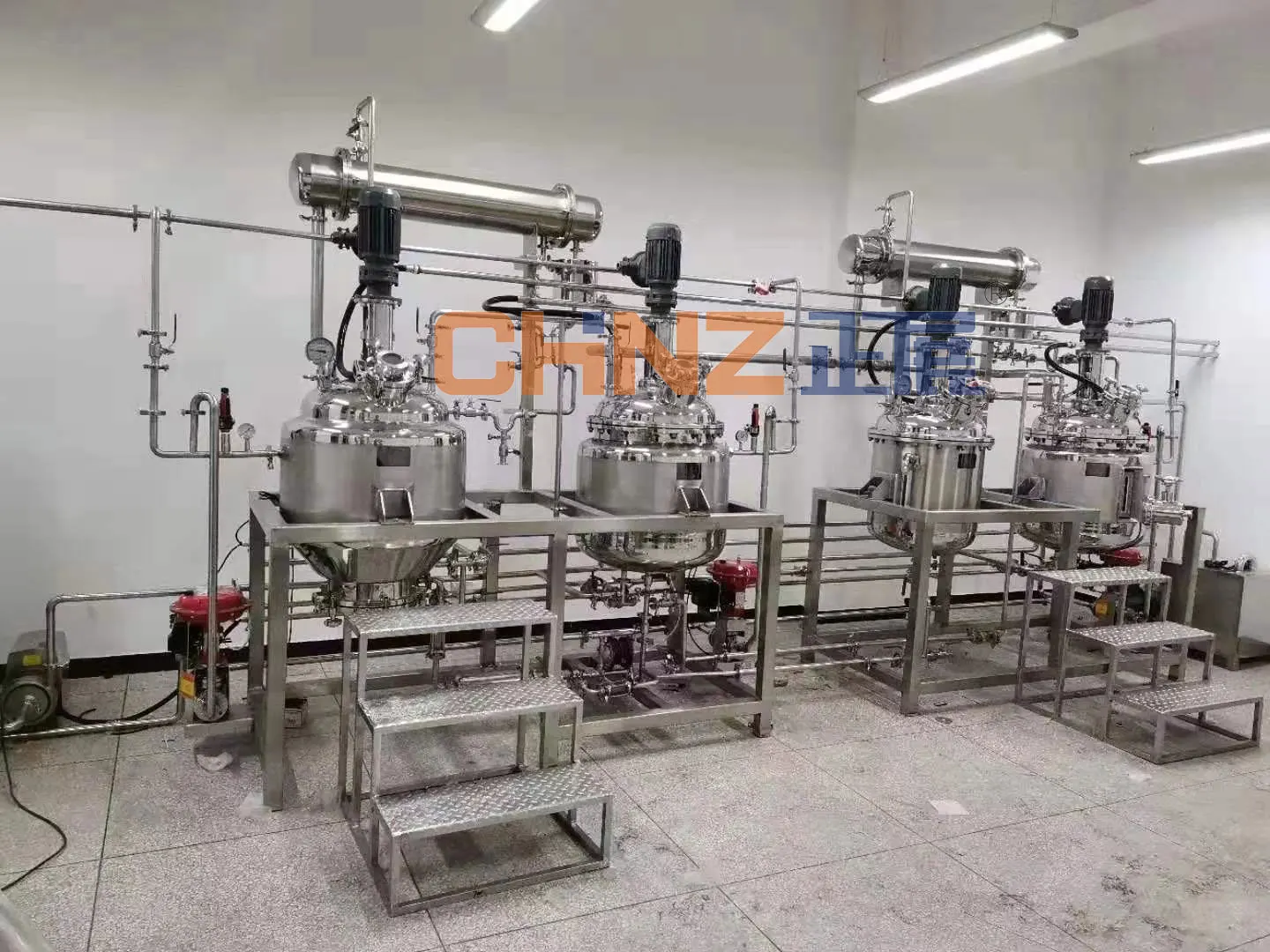

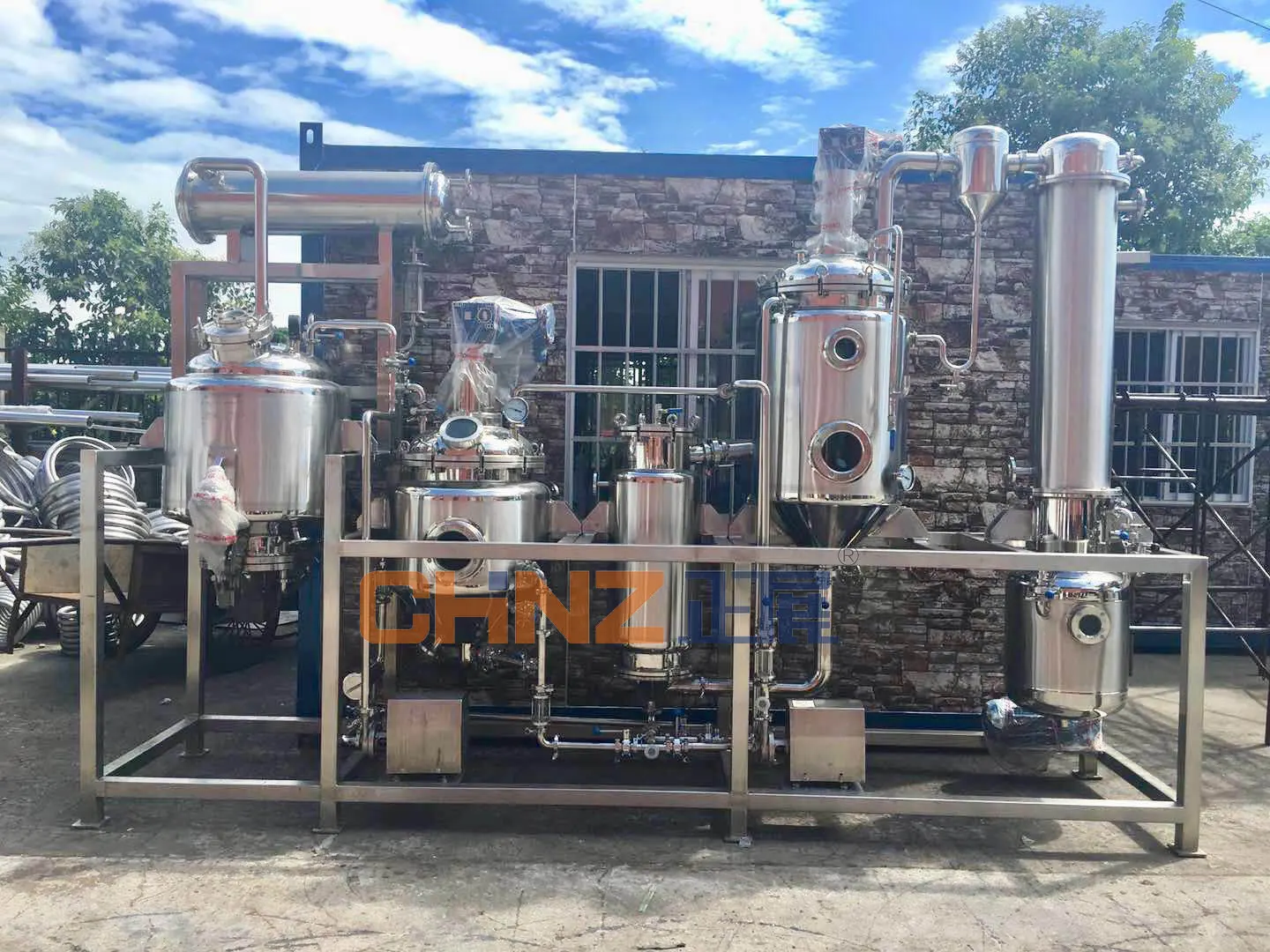

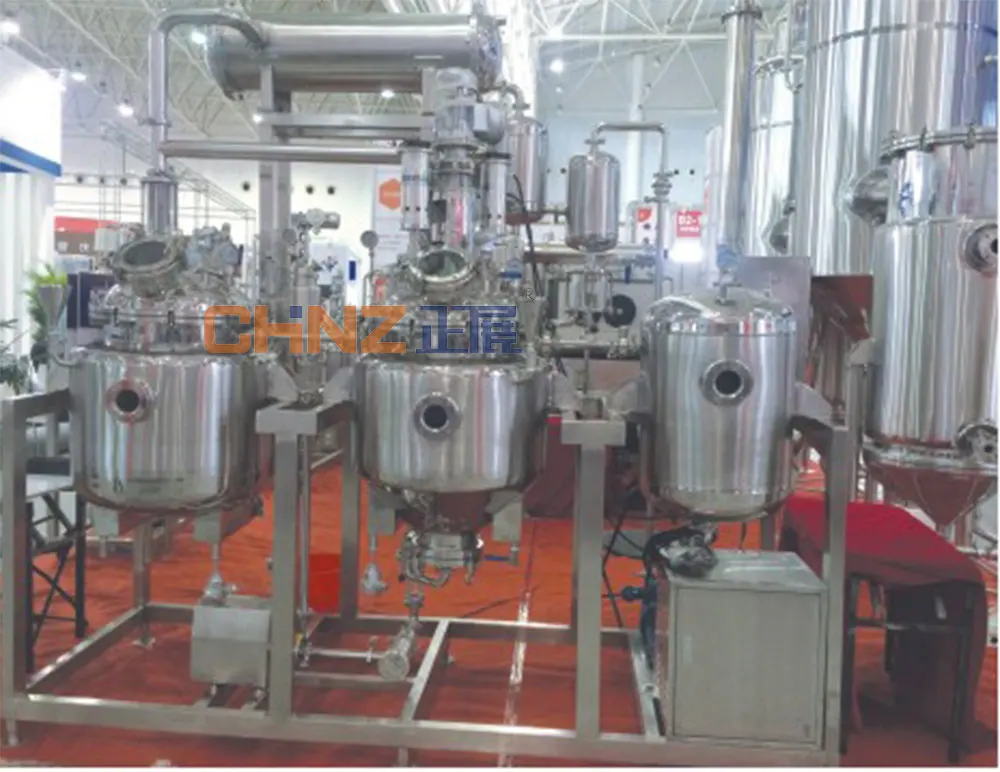

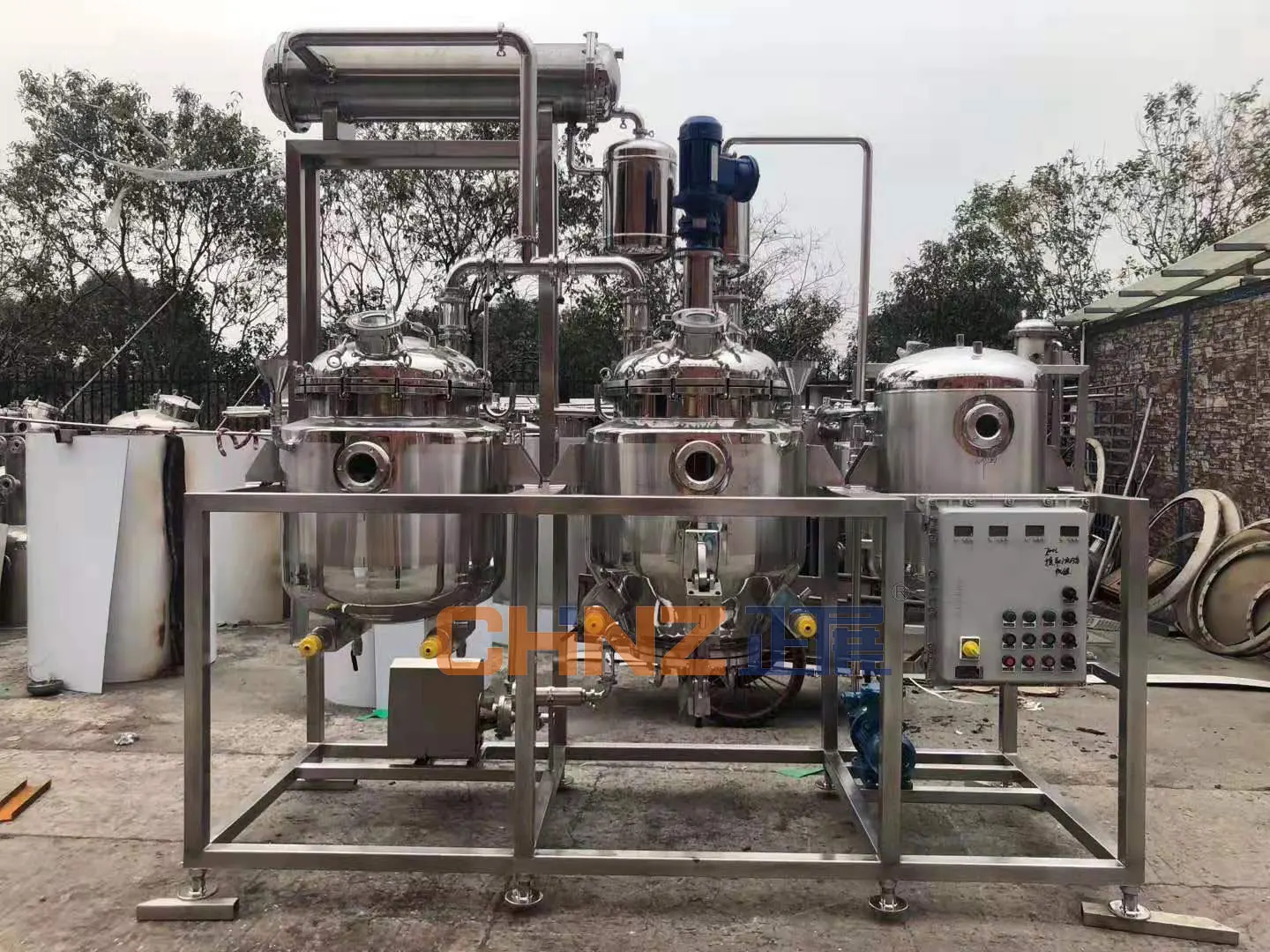

Details Images
Company Profile
Wenzhou Chinz Machinery Co., Ltd. is a specialized high technology enterprise integrating the design, manufacture and service of biochemical pharmaceutical equipment, dairy food and beverage equipment, chemical equipment and sanitary fluid equipment. Our company is devoted to technology investment and culture construction. We have modern workshops and complete manufacturing facilities. We absorb and train various talented people. We have one batch of capable, specialized and talented persons of design, manufacture and installment. Our company establishes a machinery R&D center, a fluid equipment machining and inspecting center and a machinery manufacturing center. After more than ten years of continuous development, our company has formed a troop of scientific and innovative team. Many of our products have obtained national invention patents. Our company has been awarded many titles, including Zhejiang High-Tech Enterprise, etc. Wenzhou Chinz Machinery Co., Ltd. is always devoted to the research and development of machinery project and high precision sanitary fluid equipment. Through several years of efforts, our company has successfully designed and developed various specifications of methanol and ethanol reclaimers, low temperature concentrators, heat
hump type water-alcohol concentrators, multi-purpose countercurrent extraction tank groups, integral functional application machine sets, dynamic counter-current adsorption resin units, and so on.
Wenzhou Chinz Machinery Co., Ltd. has introduced advanced production equipment and technical process from Germany, adopted the first-class management and produced and stored products in warehouse in accordance with various industrial standards (like ISO9001, DIN, IDF, SMS and 3A). We have complete inspection facilities, such as devices and instruments for hydrostatic test, X-ray flaw detection, chemical analysis, mechanical property test, etc. Our company persists in the management idea of "take the market as the guidance, take the science and technology as the power, strive for survival by quality, strive for development by service" and the tenet of "create benefit for society, create value for customers, create wealth for enterprises, create opportunity for staff members".To win user's trust and support, every procedure and every chain are strictly controlled to make products be in accordance with GMP standards so as to ensure that the quality is keeping pace with the world level. Our company is willing to cooperate with all the customers hand in hand diligently and develop together.
hump type water-alcohol concentrators, multi-purpose countercurrent extraction tank groups, integral functional application machine sets, dynamic counter-current adsorption resin units, and so on.
Wenzhou Chinz Machinery Co., Ltd. has introduced advanced production equipment and technical process from Germany, adopted the first-class management and produced and stored products in warehouse in accordance with various industrial standards (like ISO9001, DIN, IDF, SMS and 3A). We have complete inspection facilities, such as devices and instruments for hydrostatic test, X-ray flaw detection, chemical analysis, mechanical property test, etc. Our company persists in the management idea of "take the market as the guidance, take the science and technology as the power, strive for survival by quality, strive for development by service" and the tenet of "create benefit for society, create value for customers, create wealth for enterprises, create opportunity for staff members".To win user's trust and support, every procedure and every chain are strictly controlled to make products be in accordance with GMP standards so as to ensure that the quality is keeping pace with the world level. Our company is willing to cooperate with all the customers hand in hand diligently and develop together.
