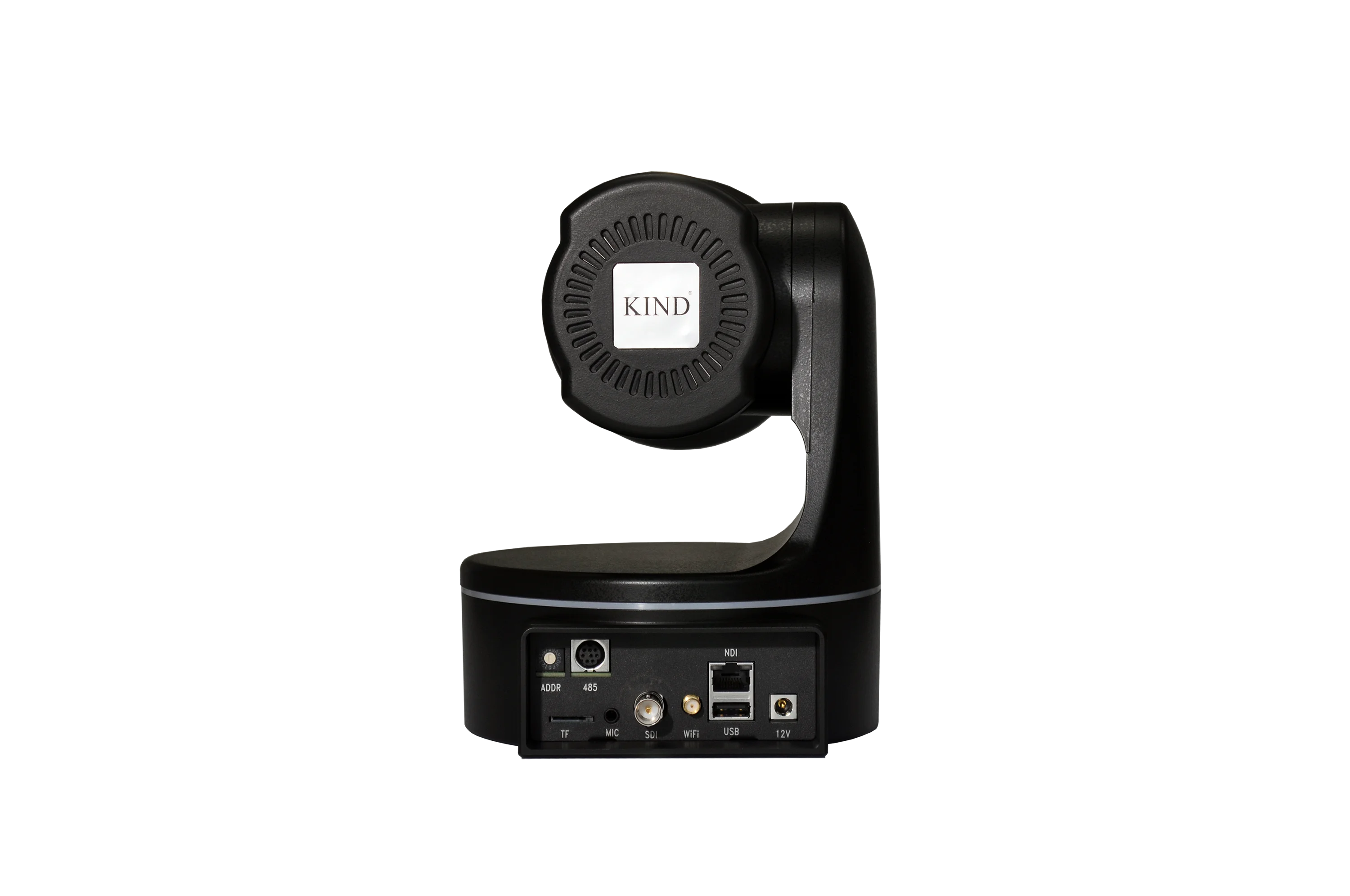

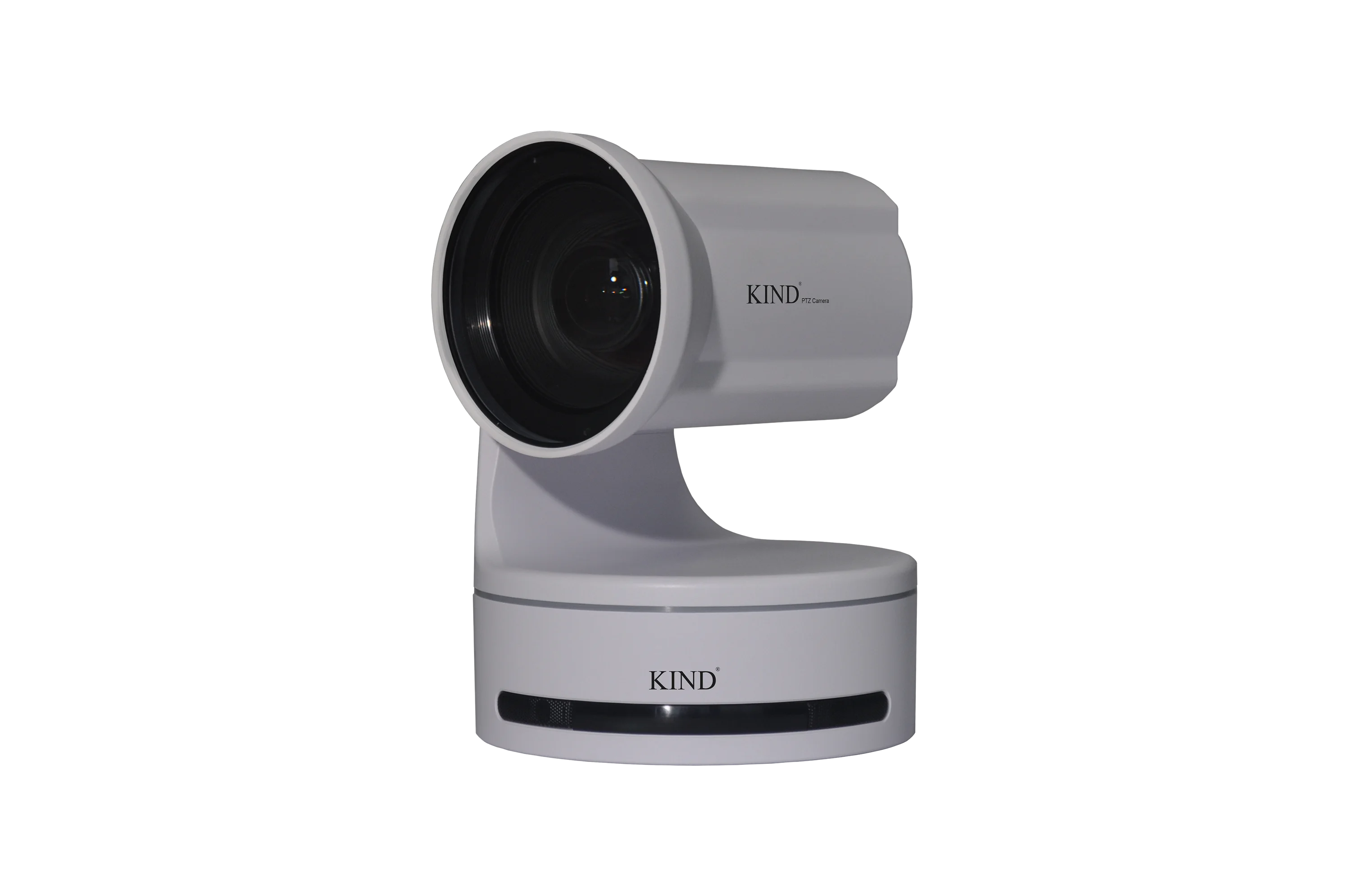

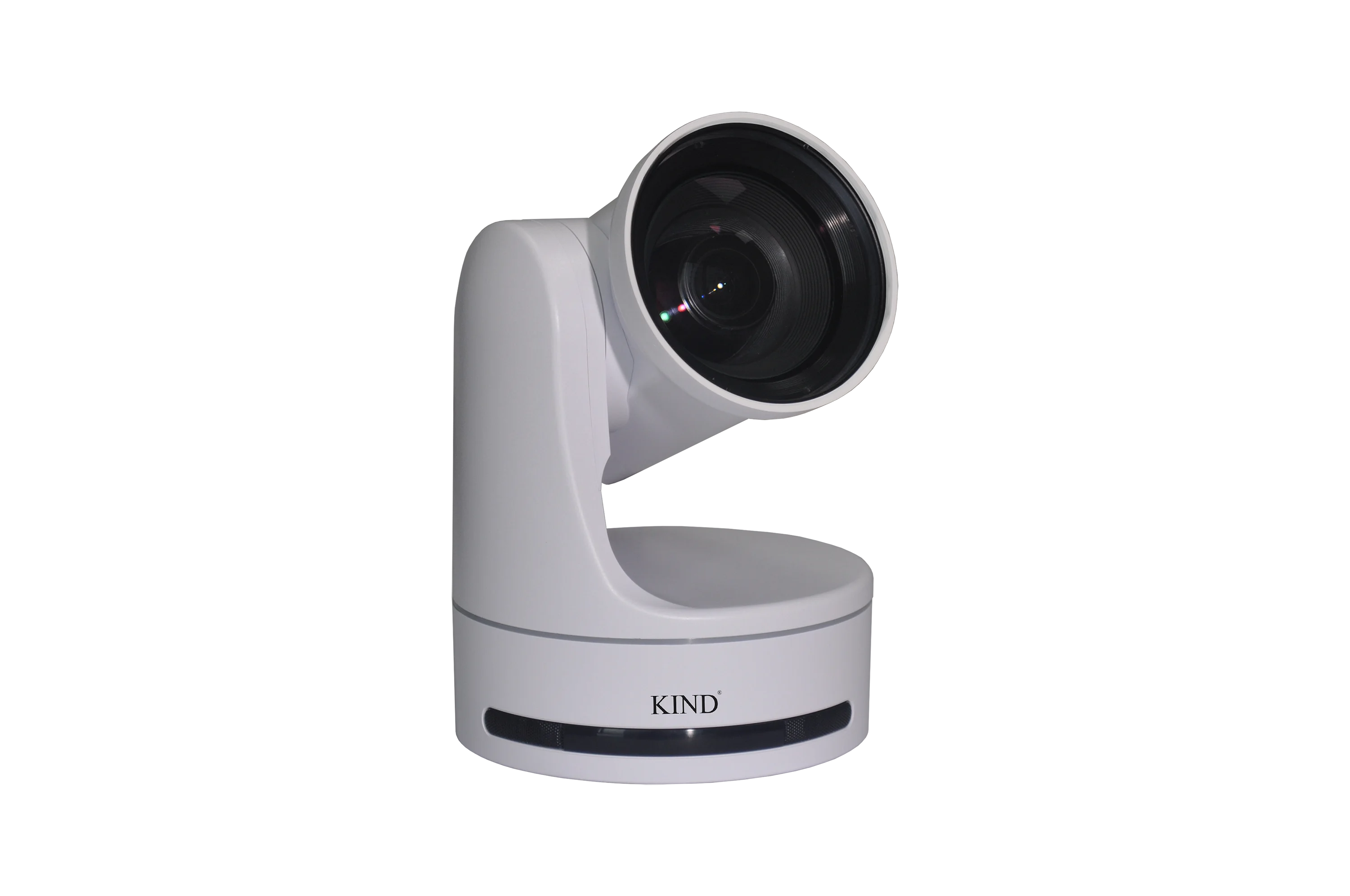

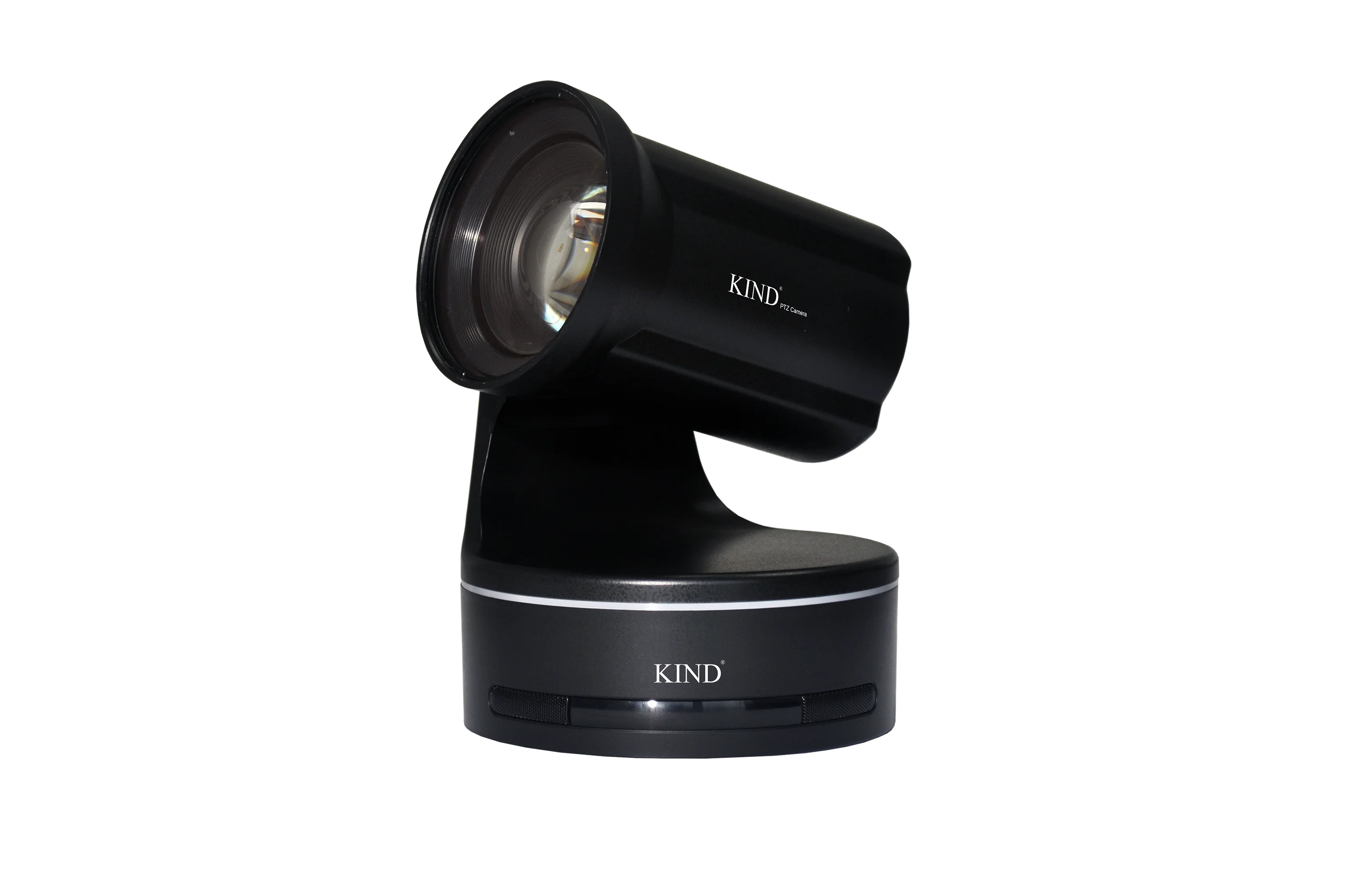

Factory direct sale Full HD 1920*1080 SDI Full HD video 12x optical zoom LiveCam
- Category: Action & Sports Camera >>>
- Supplier: beijing kind network technology co.ltd.
Share on (1600301394339):
Product Overview
Description
Product Description
Product Paramenters
1. 1/1.8 Exmor RS CMOS;
2. The lens diameter is 105mm;
3. Super wide angle, 92° diagonal and 85° horizontal;
4. Servo motor high-speed pan/tilt, pan and tilt speed: speed 0.1°~300°/sec;
5. 12x optical zoom;
6. Full HD 1920×1080 video output, HDMI, SDI and HDBaseT interfaces;
7. Audio XLR×2 input with 48V fantasy power supply, with embedded audio;
8. A 75Ω coaxial cable or Category 6 network cable transmits five signals, which are HD-SDI full HD video + audio + PTZ control + TALLY + power supply;
9. Application: studio, education recording and broadcasting, media live broadcasting, multi-camera shooting;
10. Size: 160mm155mm×230mm; Weight: about 2kg;
2. The lens diameter is 105mm;
3. Super wide angle, 92° diagonal and 85° horizontal;
4. Servo motor high-speed pan/tilt, pan and tilt speed: speed 0.1°~300°/sec;
5. 12x optical zoom;
6. Full HD 1920×1080 video output, HDMI, SDI and HDBaseT interfaces;
7. Audio XLR×2 input with 48V fantasy power supply, with embedded audio;
8. A 75Ω coaxial cable or Category 6 network cable transmits five signals, which are HD-SDI full HD video + audio + PTZ control + TALLY + power supply;
9. Application: studio, education recording and broadcasting, media live broadcasting, multi-camera shooting;
10. Size: 160mm155mm×230mm; Weight: about 2kg;
model | KD-C18B |
Imager | 1/1.8 type Exmor RS CMOS |
Lens diameter | 105mm |
Zoom | 12X |
Perspective | 92°Diagonal,85°Level |
distortion | -2%~0.2% |
angle | Pan-175°~+175°,Tilt+90°~-45° |
speed | Servo motor control,Shift speed:Pan0.1°~300°/s,Tilt0.1°~300°/s |
Precision | Precision repeatability error <0.01 |
Slow mode | Support |
Effective Pixels | 2,400,000 Pixels |
Minimum illumination | 0.01 Lux |
Signal-to-noise ratio | 55dB |
Clarity | 1920x1080 |
aperture | Auto/Manual |
Focus | Auto/Manual |
White balance | Auto/Manual |
focal length | f=4.2mm~50.4mm,F1.8 (Wide)~F2.8 (Tele) |
Minimum object distance | 1000mm~INF (Wide),1500mm~INF (Tele) |
Signal format | HD:1080p/60,1080p/50,1080p/30,1080p/25,1080i/60,1080i/50,720p/60,720p/50,720p/30,720p/25 |
Preset position | 128 |
Control interface | VISCA RS-422,RJ45 (input/output),Support control |
audio port | XLR3 type 3x2 input,Line/MIC+48V, Line:+4dBu,MIC:-70dBu--30dBu |
Video interface | BNC 1Vp-p 75Ω 3G-SDIx1,HDMIx1, HDBaseTx1 |
power supply | DC jack 12DC,DC10.8V-13.2V,Power supply |
Director Tips | 360°TALLY |
Record | MP4 |
Control transmission | HD video,Audio,TALLY,Power supply,PTZ control,Two way control, Recording and information prompt by a Cat 5e/Cat 6 line. |

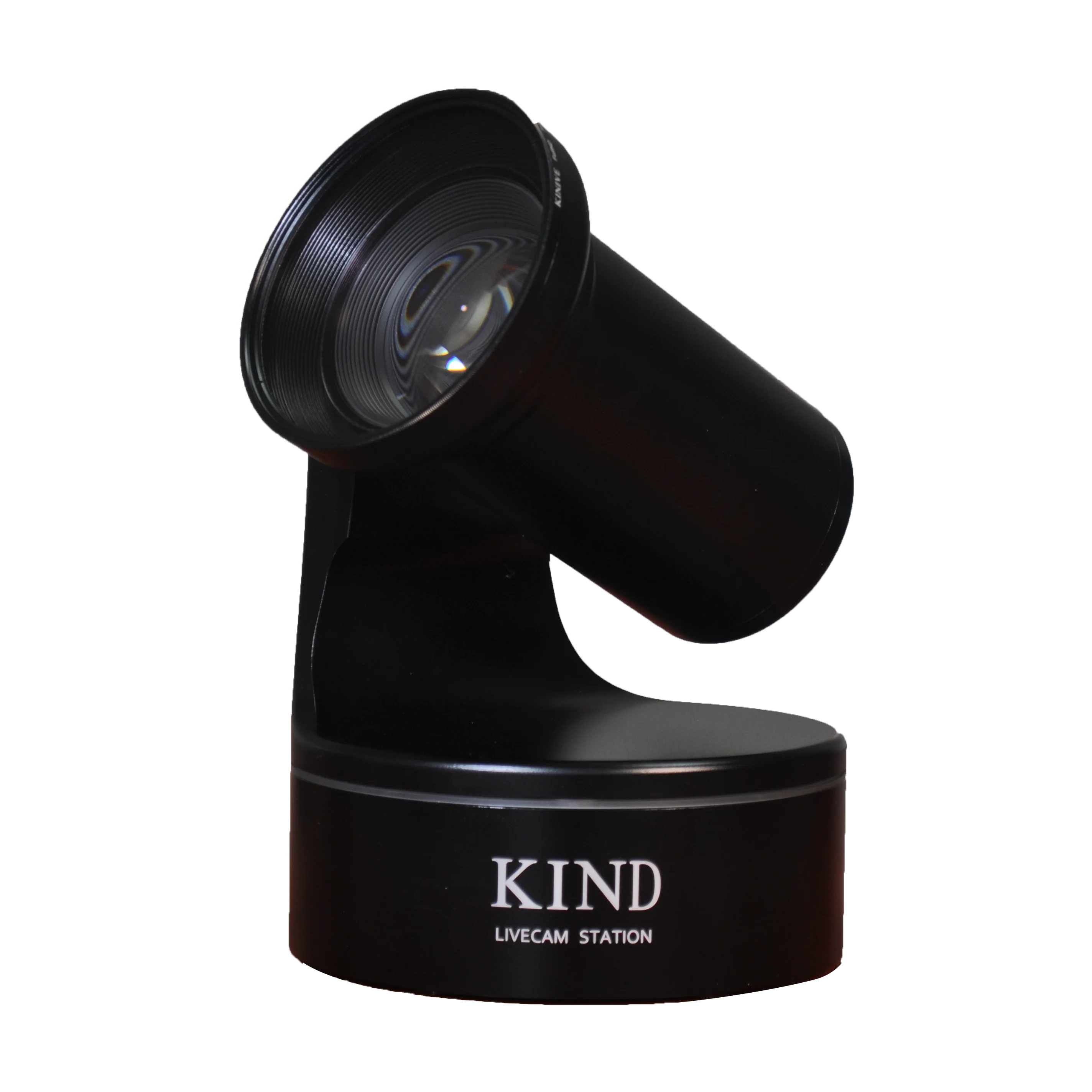

Kaidi camera control all-in-one LIVECAM STATION KD-C18B technical parameters
High-end business class camera
Imager: 1/1.8 large target surface Exmor RS CMOS imager;
Lens filter diameter: 105mm, multi-layer antireflection, light transmittance>99%;
Optical zoom: 12 times;
Viewing angle: 92° diagonal (wide-angle end), horizontal 85° (wide-angle end);
Distortion: -2%~0.2%;
Pan/tilt angle: pan -170°~+170, tilt +90°~-45°;
Pan/tilt speed: servo motor control, pan 0.1°~300°/sec, tilt 0.1°~300°/sec;
Pan/tilt accuracy: repeatability accuracy error <0.01°;
Pan/tilt slow mode: support;
Effective pixels: 2.4 million effective pixels;
Minimum illumination: 0.01 lux;
Signal to noise ratio: 55dB;
Resolution: 1920×1080;
Focusing system: automatic/manual;
White balance: automatic/manual;
Focal length: f=4.2mm~50.4mm, F1.8 (Wide) ~ F2.8 (Tele);
Minimum object distance: 1000mm~INF (Wide), 1500mm~INF (Tele);
Video format: HD: 1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25;
Preset positions: 128;
Camera control interface: VISCA RS-422, RJ45 (input/output);
Audio interface: XLR3 type 3-pin (female) (×2) input, line/microphone +48 V optional, line: +4dBu, microphone: -70dBu--30dBu;
Video interface: BNC (×1), 1.0 Vp-p, 75Ω, HD/SD-SDI output × 1, HDMI output × 1;
DC input: DC jack 12DC, DC10.8V-13.2V;
Director prompt: 360°TALLY light;
Control and transmission: A 75Ω coaxial cable or Category 6 network cable controls and transmits five signals. They are: camera full HD HD-SDI video signal + camera and XLR audio signal + camera power supply + camera PTZ control + broadcast guide prompt Signal TALLY;
High-end business class camera
Imager: 1/1.8 large target surface Exmor RS CMOS imager;
Lens filter diameter: 105mm, multi-layer antireflection, light transmittance>99%;
Optical zoom: 12 times;
Viewing angle: 92° diagonal (wide-angle end), horizontal 85° (wide-angle end);
Distortion: -2%~0.2%;
Pan/tilt angle: pan -170°~+170, tilt +90°~-45°;
Pan/tilt speed: servo motor control, pan 0.1°~300°/sec, tilt 0.1°~300°/sec;
Pan/tilt accuracy: repeatability accuracy error <0.01°;
Pan/tilt slow mode: support;
Effective pixels: 2.4 million effective pixels;
Minimum illumination: 0.01 lux;
Signal to noise ratio: 55dB;
Resolution: 1920×1080;
Focusing system: automatic/manual;
White balance: automatic/manual;
Focal length: f=4.2mm~50.4mm, F1.8 (Wide) ~ F2.8 (Tele);
Minimum object distance: 1000mm~INF (Wide), 1500mm~INF (Tele);
Video format: HD: 1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25;
Preset positions: 128;
Camera control interface: VISCA RS-422, RJ45 (input/output);
Audio interface: XLR3 type 3-pin (female) (×2) input, line/microphone +48 V optional, line: +4dBu, microphone: -70dBu--30dBu;
Video interface: BNC (×1), 1.0 Vp-p, 75Ω, HD/SD-SDI output × 1, HDMI output × 1;
DC input: DC jack 12DC, DC10.8V-13.2V;
Director prompt: 360°TALLY light;
Control and transmission: A 75Ω coaxial cable or Category 6 network cable controls and transmits five signals. They are: camera full HD HD-SDI video signal + camera and XLR audio signal + camera power supply + camera PTZ control + broadcast guide prompt Signal TALLY;
